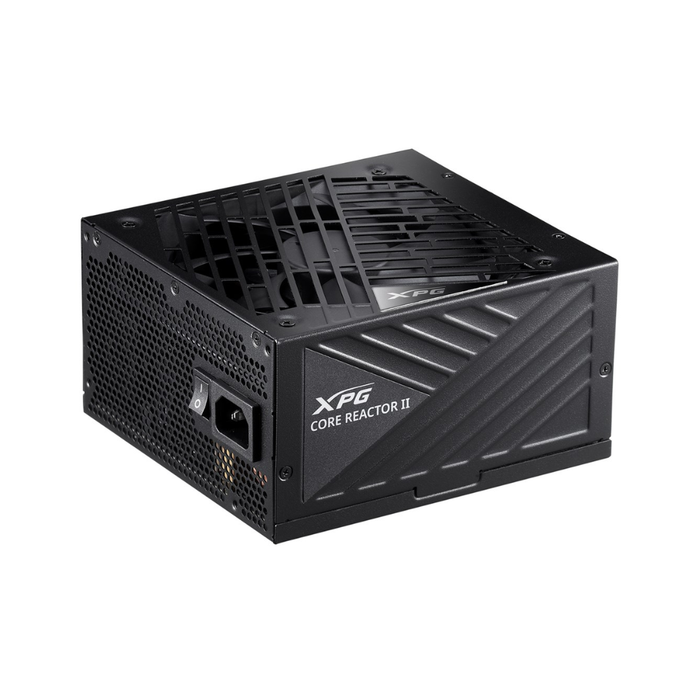

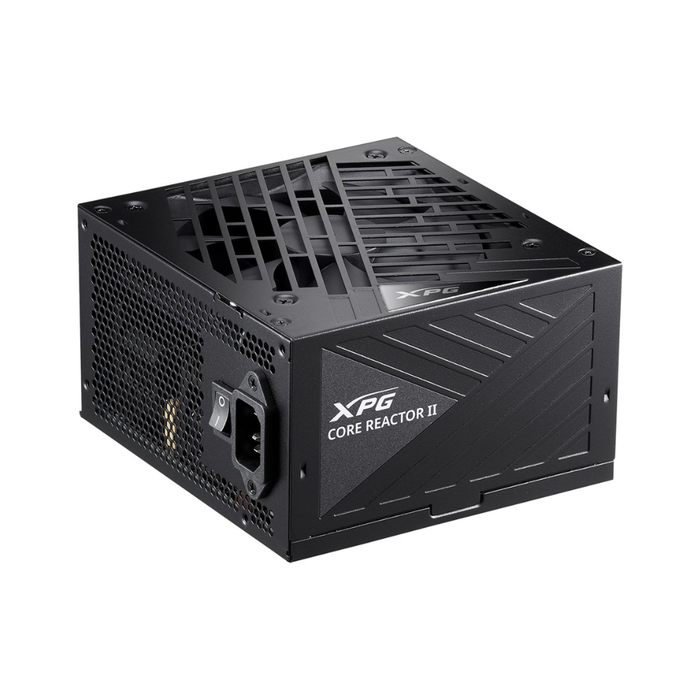

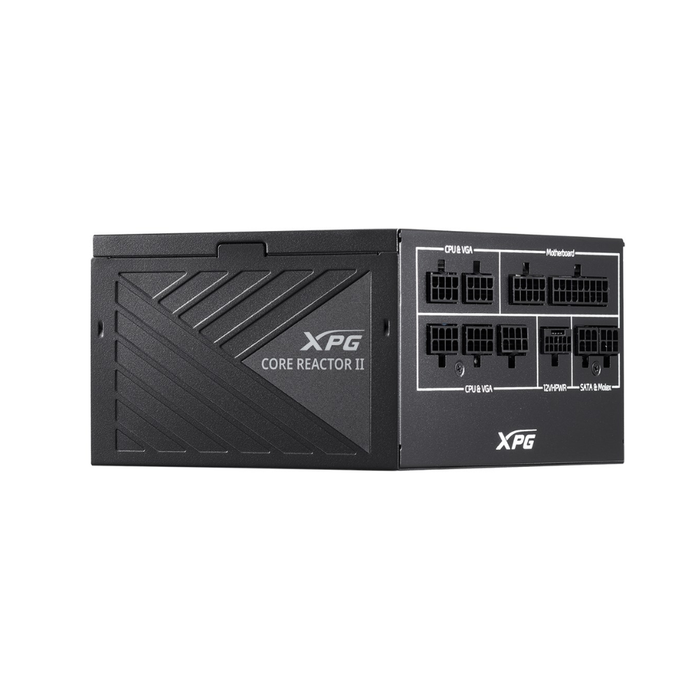

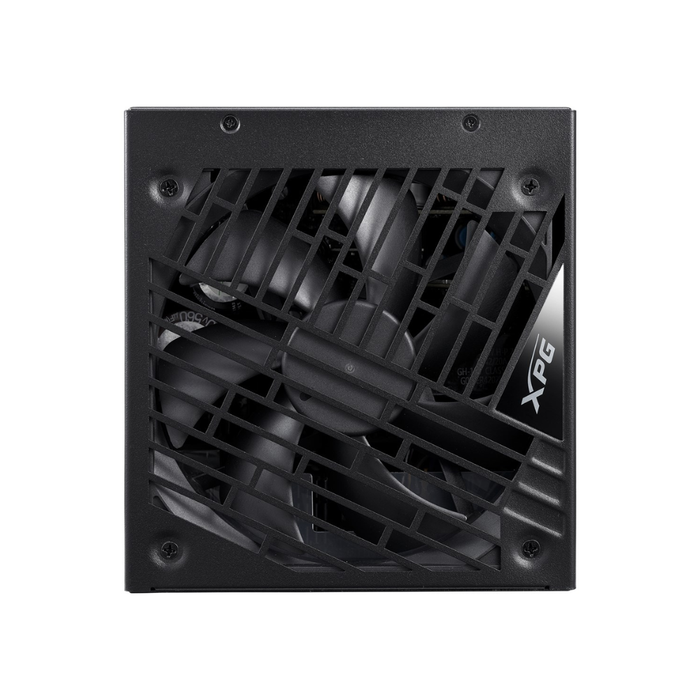

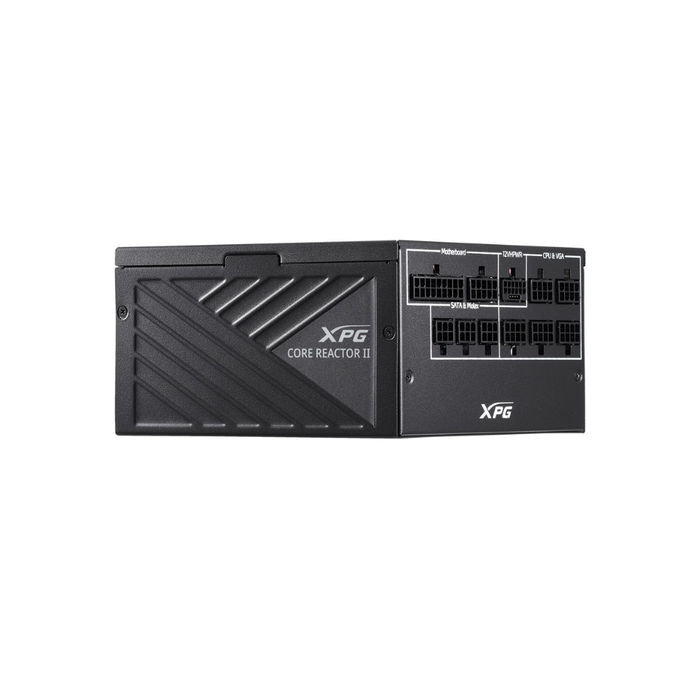

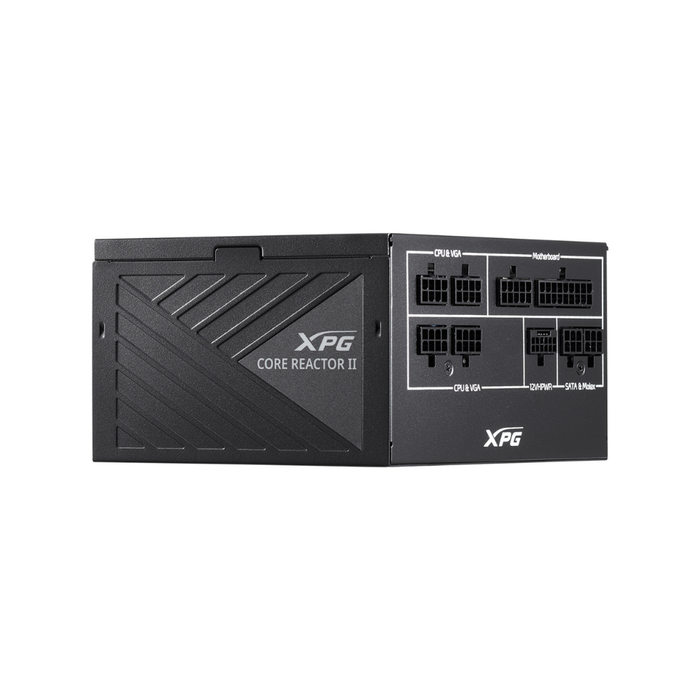

XPG Corereactor II Power Supply 1200W

Specifications:

• Product Number: 75261221


 Power

• Total power: 1200 W
• AC input voltage: 100 - 240 V
• AC input frequency: 50/60 Hz
• Input current: 15 A
• Power factor: 0.99
• Max output current (+3.3V): 22 A
• Max output current (+12V): 100 A

• Max output current (+5V): 22 A
• Max output current (-12V): 0.3 A

• Max output current (+5Vsb): 3A

• Power protection features:

  • Over current

  • Over power

  • Over voltage


 Ports & interfaces:

• Motherboard power connector: 24-pin ATX

• Number of SATA power connectors: 9
• Peripheral (Molex) power connectors (4-pin): 3

• EPS power connector (8-pin): Yes

• PCI Express power connectors (6+2 pin): 8

• ATX Power connector (24-pin): Yes

• ATX power connector (12+4 pin): Yes

• Cabling type: Fully-Modular


 Performance:

• 80 PLUS certification: 80 PLUS Gold

• Purpose: PC

• Power supply unit (PSU) form factor: ATX

• ATX version: 3.0

• EPS version: 2.92

• Bearing technology: FDB

• Mean time between failures (MTBF): 100000 h


 Design

• Product colour: Black
• Fan diameter: 13.5 cm

 Certificates

• Certification: CE | CB| FCC(IC) | TUV | cTUVus | TUV S-Zeichen | NOM | BSMI | UKCA | EAC | CCC | RCM


 Weight & dimensions

• Width: 160 mm

• Depth: 150 mm

• Height: 86 mm
