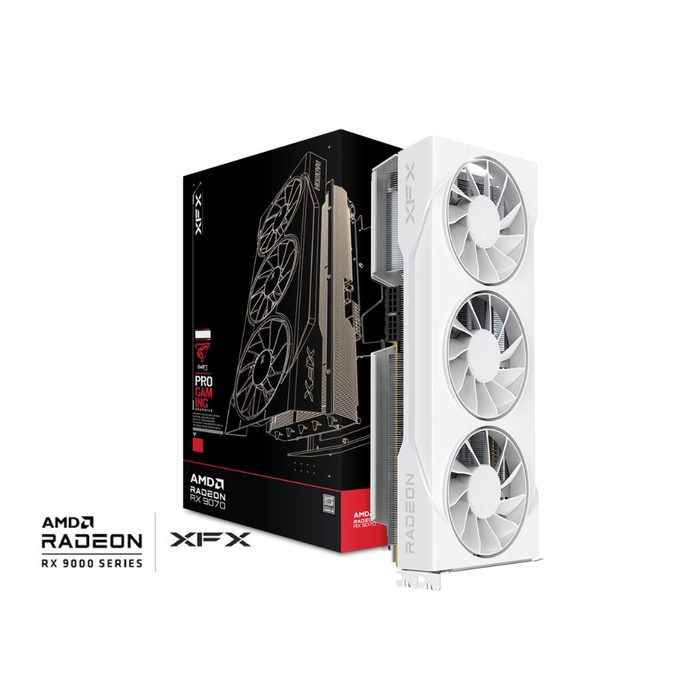

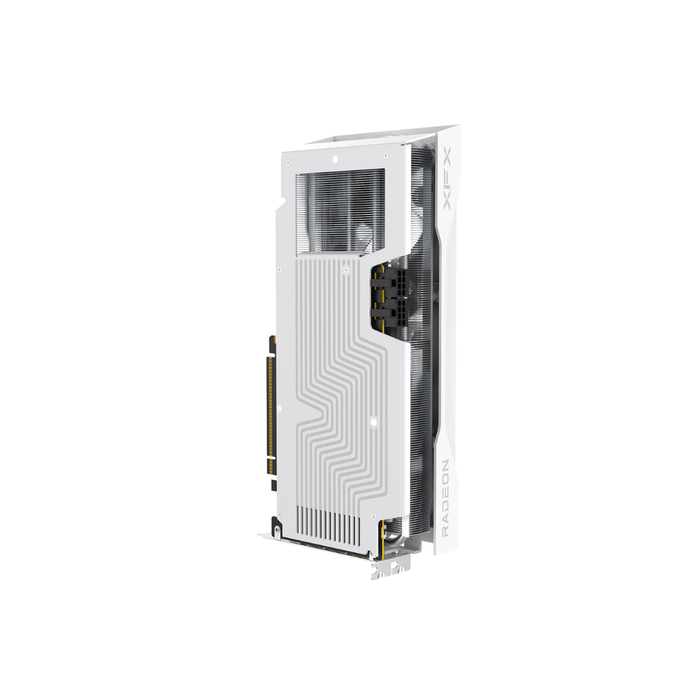

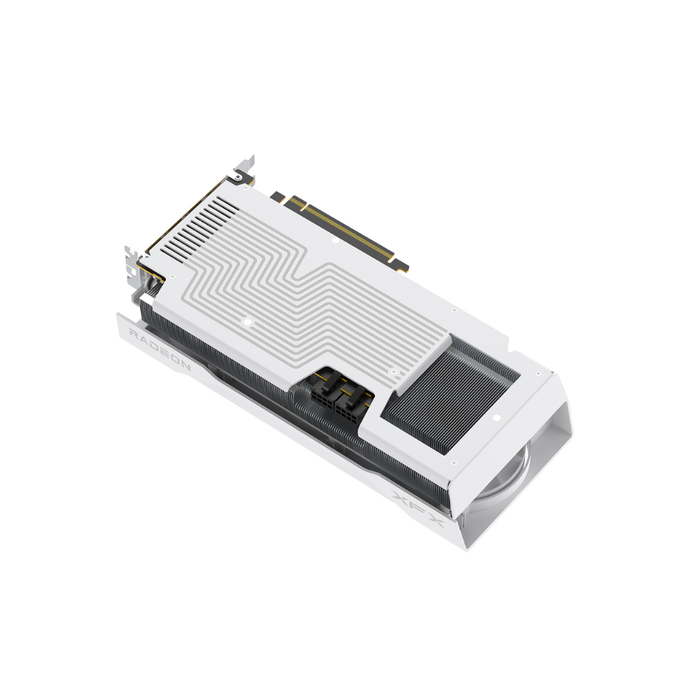

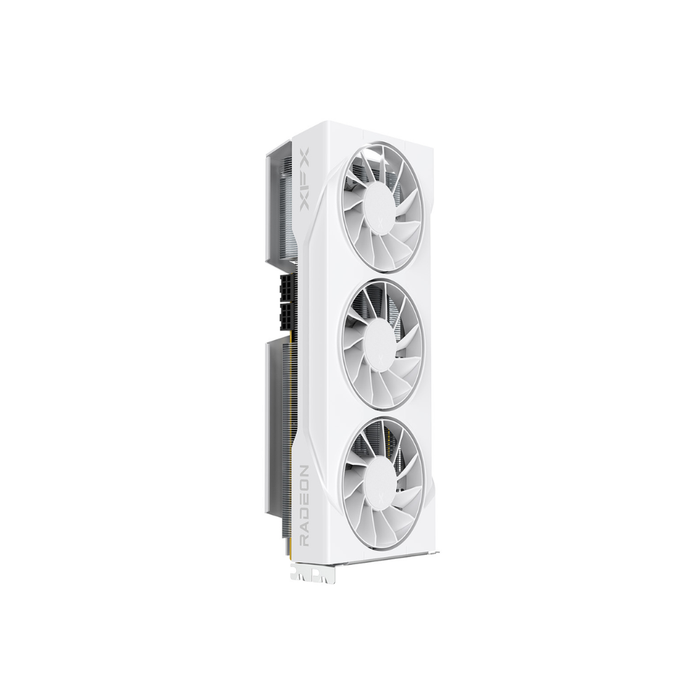

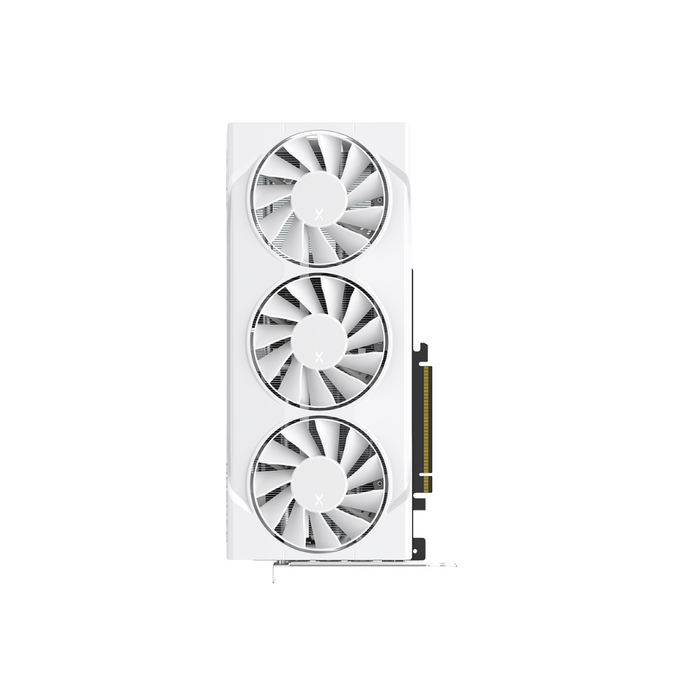

XFX Swift RX 9070 XT 12GB White

Specifications:

• Product Number: RX-97GRE29W7
• Bus Type: PCI-E 5.0
• Primary Clock Speeds:
• Base Clock Up To: 1420 MHz

• Game Clock Up To: 2220 MHz

• Boost Clock Up to: 2790 MHz
• Stream Processors:  3072

• Compute Units: 48

• Memory Bus: 192bit

• Memory Clock: 18 Gbps

• Memory Size: 12 GB

• Effective Memory Bandwidth: Up to 432 GB/s

• Memory Type: GDDR6

• Card Profile: 3.5 slot

• Thermal Solution: 3 Fan

Outputs

• DisplayPort 2.1: 3x

• HDMI™ 2.1: 1x

Requirements

• External Power: 2x PCI-E 8 pin connections

• Minimum Power Supply Requirement: 650 watt

Certifications

• RoHS

Package Contents

• Quick Installation Guide: 1

Estimated Dimensions & Weights

• Card Dimension (cm): 30.1 x 15.3 x 5.9

• Card Dimension (inch): 11.85 x 6.02 x 2.32

• Master Carton Dimensions (cm): 51.5 x 44.3 x 40.5

• Master Carton Dimensions (inch): 20.28 x 17.44 x 15.94

• Master Carton Weight (Kg): 15.17

• Master Carton Weight (lb) 33.44

• Package Dimensions (cm): 38.9 x 21.8 x 12.5

• Package Dimensions (inch): 15.31 x 8.58 x 4.92

• Package Weight (Kg): 1.69 est

• Package Weight (lb): 3.73 est

• Units/Carton: 8

Technologies

• 64 AMD RDNA™ 4 Compute Units(with RT+AI Accelerators)

• AMD Infinity Cache™ technology

• DisplayPort™ 2.1

• AMD Radiance Display™ Engine

• AMD Radeon™ Boost technology

• AMD Radeon™ Anti-Lag* technology

• 16GB GDDR6 on 256-Bit Memory Bus

• PCI® Express 5.0 ready

• AMD FidelityFX™ technologies

• AMD FidelityFX™ Super Resolution technology

• Microsoft® DirectX® 12 Ultimate

• Microsoft® DirectStorage

• Vulkan® Optimized

• AMD smart technologies

• AMD Software: Adrenalin Edition™ application

• AMD Noise Suppression

• AMD Privacy View

• AMD Radeon™ Super Resolution technology

• AMD Freesync™ technology

Key Features

• Features:

  • 2790MHz Boost Clock

  • 2x 8pin PCI-E Power

  • PTM7950

Other Features

• HDMI™ 4K Support

• 4K H264 Decode

• 4K H264 Encode

• H265/HEVC Decode

• H265/HEVC Encode

• AV1 Decode

• AV1 Encode
