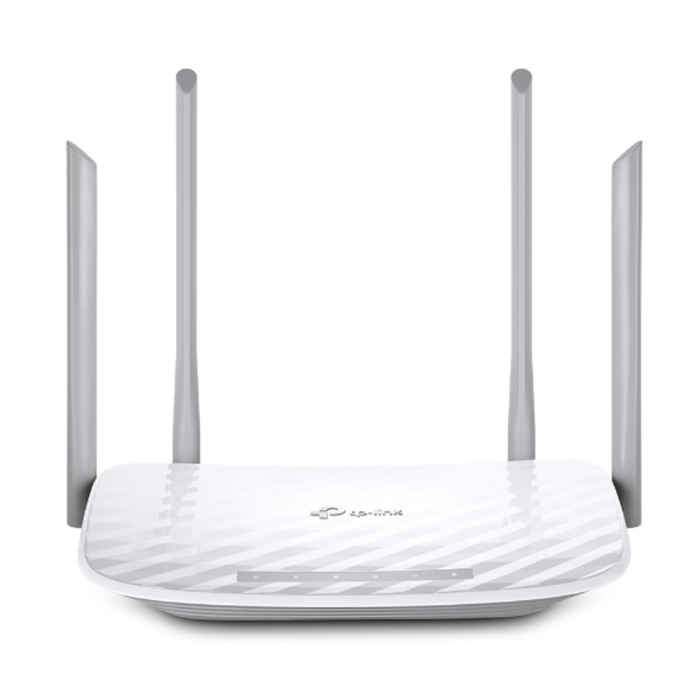

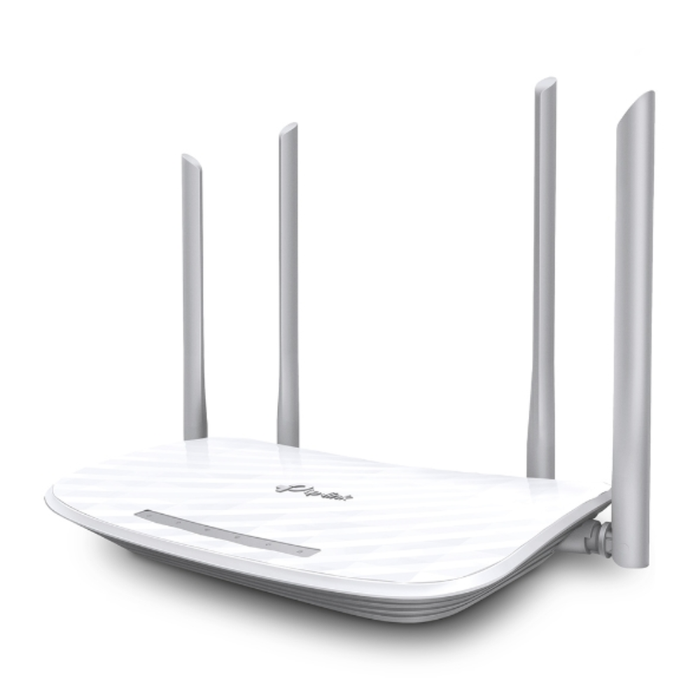

TP-Link Router ARCHER C50

Specifications:

• Product Number: ARCHER C50

WIRELESS:

Standards and Protocols

• Wi-Fi 5:
• IEEE 802.11ac/n/a 5 GHz
• IEEE 802.11n/b/g 2.4 GHz

WiFi Speeds:

• AC1200:
• 5 GHz: 867 Mbps (802.11ac)
• 2.4 GHz: 300 Mbps (802.11n)

WiFi Range:

• 2 Bedroom Houses
• 4× Fixed Antennas
• Multiple antennas form a signal-boosting array to cover more directions and large areas

WiFi Capacity

• Medium
• Dual-Band
• Allocate devices to different bands for optimal performance

Working Modes:

• Router Mode
• Access Point Mode

SECURITY:

Network Security:

• SPI Firewall
• Access Control
• IP & MAC Binding
• Application Layer Gateway

Guest Network:

• 1× 5 GHz Guest Network
• 1× 2.4 GHz Guest Network

WiFi Encryption:

• WEP
• WPA
• WPA2
• WPA/WPA2-Enterprise (802.1x)

HARDWARE:

Processor:

• Single-Core CPU

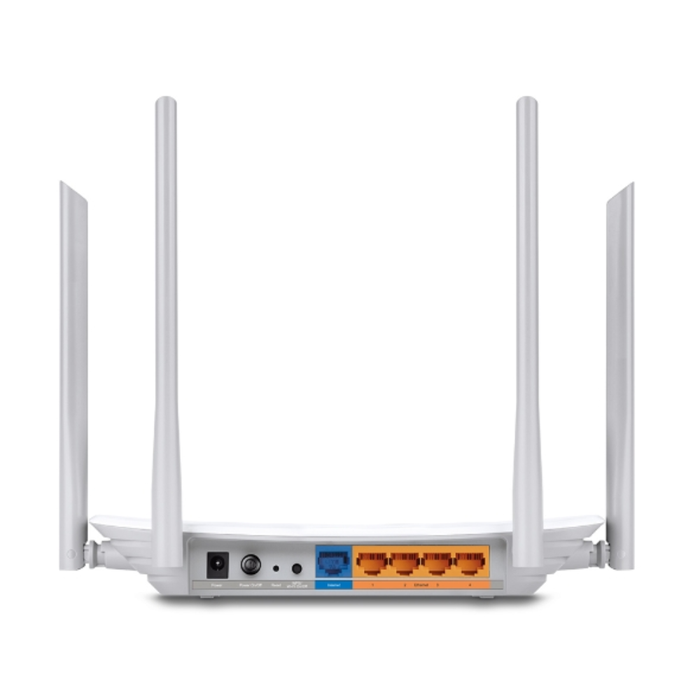

Ethernet Ports:

• 1× 10/100 Mbps WAN Port
• 4× 10/100 Mbps LAN Ports

Buttons:

• WPS/Wi-Fi Button
• Power On/Off Button
• Reset Button

Power:

• 9 V ⎓ 0.85 A

SOFTWARE:

Protocols:

• IPv4
• IPv6

EasyMesh:

• Mesh networking creates smooth, fast, stable roaming. Archer C50 can build an EasyMesh network with devices that use EasyMesh technology. It also works with other TP-Link products to create a OneMesh network. Eliminate Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi.

Parental Controls:

• URL Filtering
• Time Controls

WAN Types:

• Dynamic IP
• Static IP
• PPPoE
• PPTP
• L2TP

Quality of Service:

• QoS by Device

NAT Forwarding:

• Port Forwarding
• Port Triggering
• DMZ
• UPnP

IPTV:

• IGMP Proxy
• IGMP Snooping
• Bridge
• Tag VLAN

DHCP:

• Address Reservation
• DHCP Client List
• Server

DDNS:

• NO-IP
• DynDNS

Management Features:

• Tether App
• Webpage

OTHER:

System Requirements:

• Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
• Cable or DSL Modem (if needed)
• Subscription with an internet service provider (for internet access)

Certifications:

• FCC, CE, RoHS

Environment:

• Operating Temperature: 0℃~40℃ (32℉ ~104℉)
• Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

TEST DATA:

WiFi Transmission Power:

• CE EIRP:
  • <20dBm(2.4GHz)
  • <23dBm(5GHz)
• FCC:
  • <30dBm(2.4GHz & 5GHz)

WiFi Reception Sensitivity:

• 5GHz:
  • 11a 54M: -73dBm
  • 11ac VHT20 MCS8: -68dBm
  • 11ac VHT40 MCS9: -64dBm
  • 11ac VHT80 MCS9: -60dBm
• 2.4GHz:
  • 11g 54M: -76dBm
  • 11n HT20 MCS7: -74dBm
  • 11n HT40 MCS7: -71dBm

PHYSICAL:

• Dimensions (W×D×H): 9.1 × 5.7 × 1.5 in
  (229.9 × 144.2 × 36.9 mm)

Package Content:

• Wi-Fi Router Archer C50
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide
