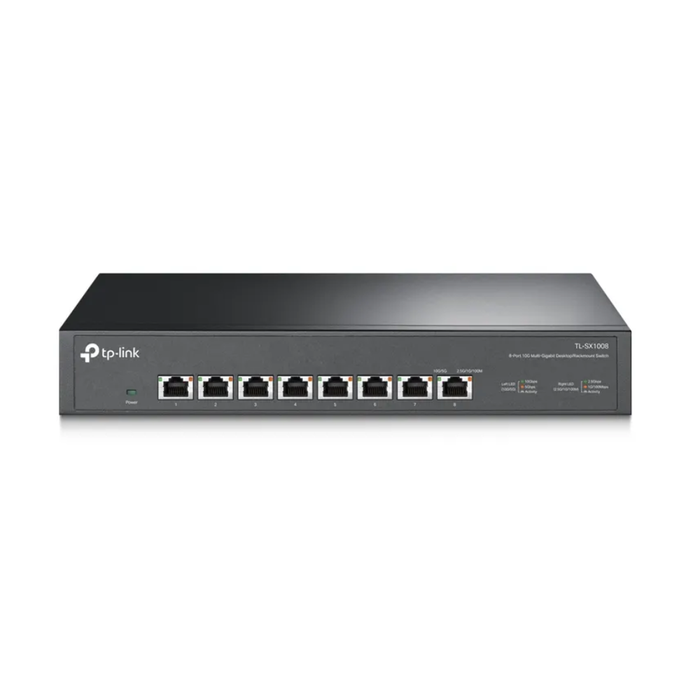

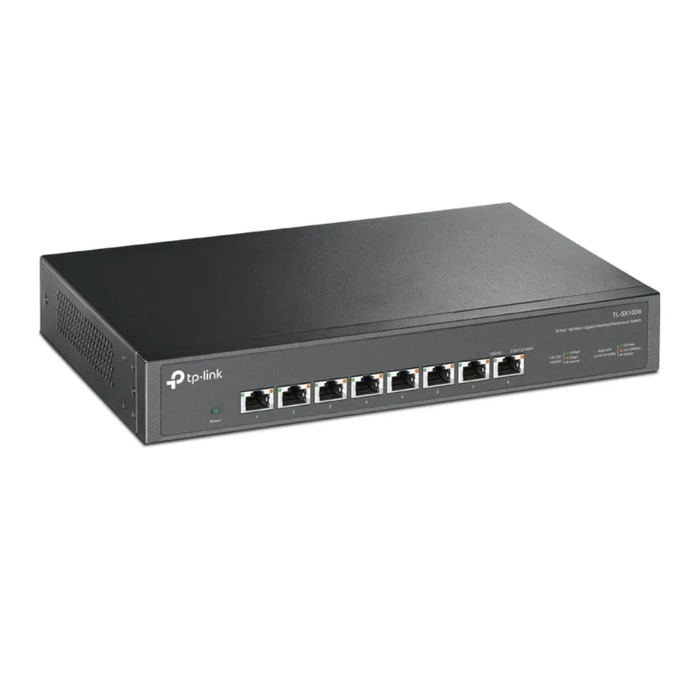

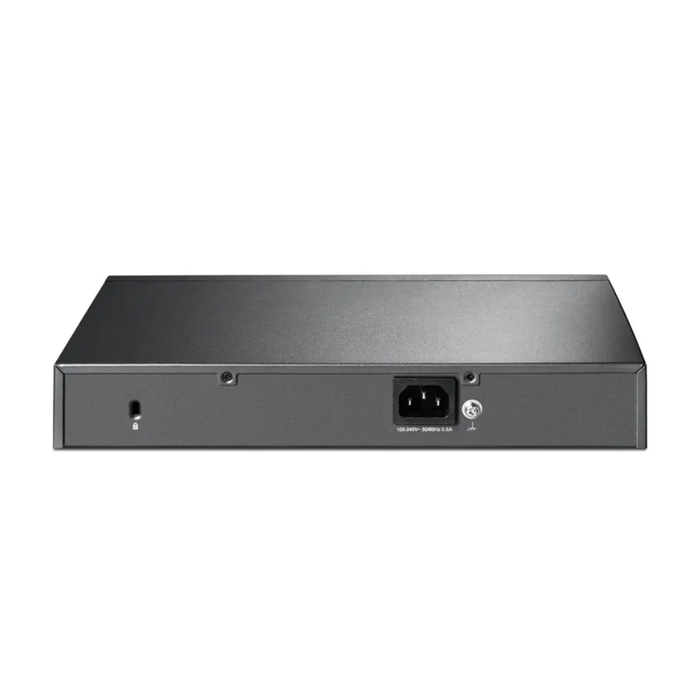

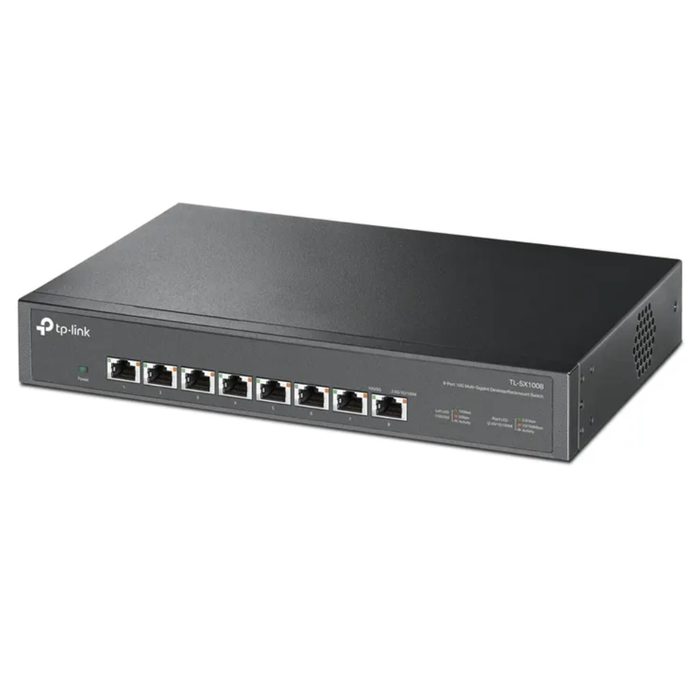

TP-Link 8x 10G Switch TL-SX1008

Specifications:

• Product Number: TL-SX1008(UN)

Management functions

• Switch type: Unmanaged

Connections and interfaces

• Number of 10G Ethernet (copper) ports: 8

• Number of basic switching RJ-45 Ethernet ports: 8

• Number of installed SFP modules: 0

• Number of installed SFP modules: 0

• Basic Switching RJ-45 Ethernet Ports Type: 10G Ethernet (100/1000/10000)

Network

• Network standard: IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3p, IEEE 802.3x

• Auto MDI/MDI-X: Yes

• Auto-negotiation function: Yes
• 10G support: Yes

Data transmission

• Jumbo Frames Support: Yes

• MAC address table: 32000 entries

• Jumbo frames: 10000

• Routing/switching capacity: 160 Gbit/s

• Store-and-Forward: Yes

• Transfer rate: 119 MPPS

• Data packet buffer: 16 MB

Design

• Number of fans: 1 fan

• LED displays: Yes

• Product color: Black

• Form factor: 1U

• Rack mounting: Yes

Energy

• Energy source: AC

• AC input voltage: 100 - 240 V

• Input current: 0.8 A

• Power consumption (max.): 28.4 W

• Power supply included: Yes

• AC input frequency: 50 - 60 Hz

Power over Ethernet (PoE)

• Power over Ethernet (PoE): No

Operating conditions

• Humidity during storage: 5 - 90%

• Temperature range during storage: -40 - 70 °C

• Operating temperature: 0 - 50 °C

• Relative humidity during operation: 10 - 90%

Weight and dimensions

• Depth: 180 mm

• Height: 44 mm

• Width: 294 mm

Scope of delivery

• Rack mounting kit: Yes

• Included cables: AC

• Quick Start Overview: Yes
