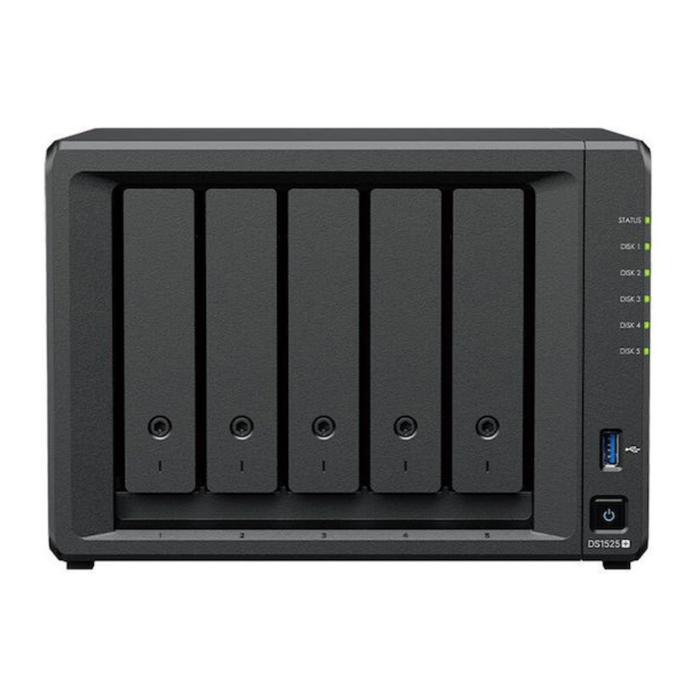

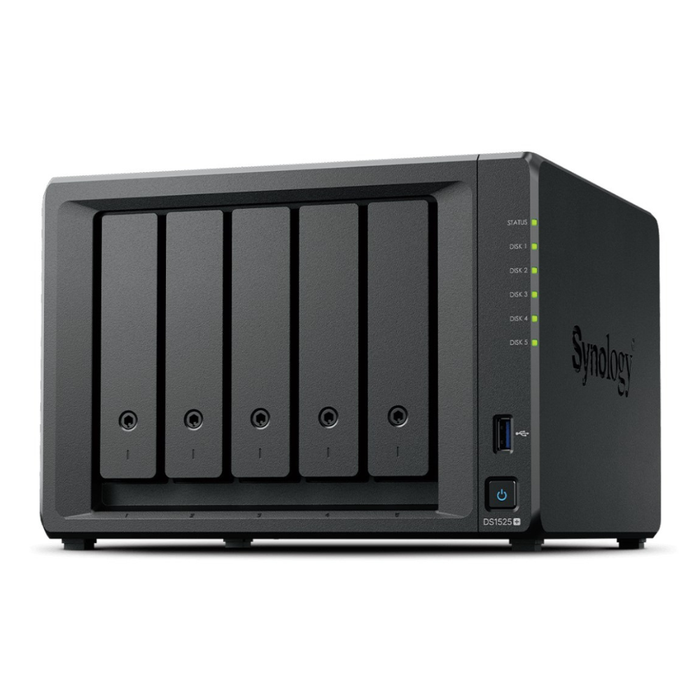

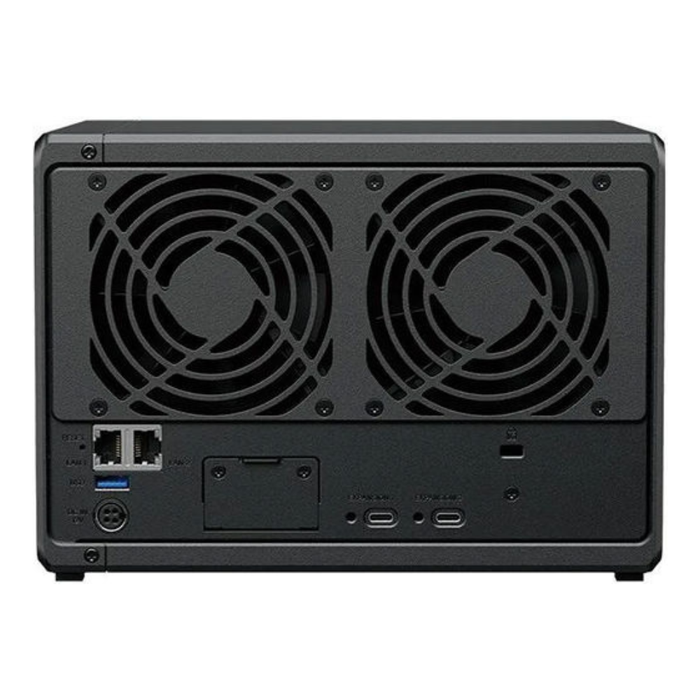

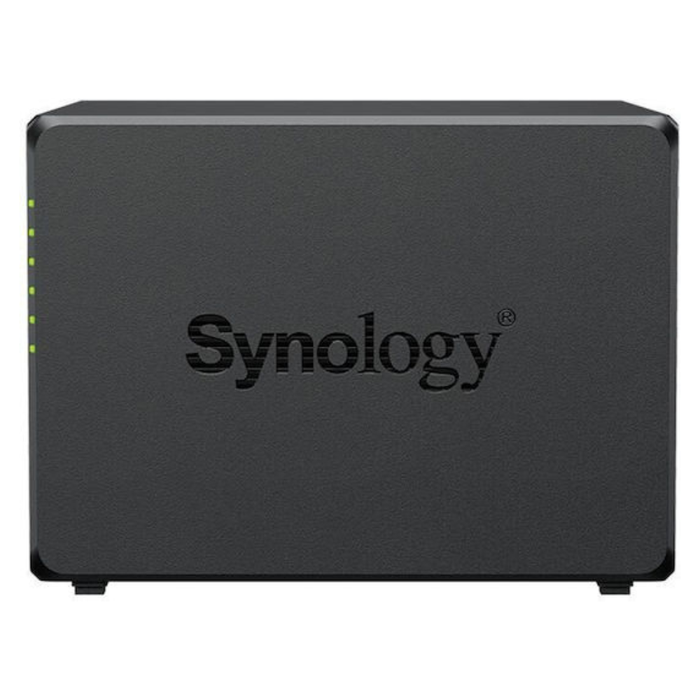

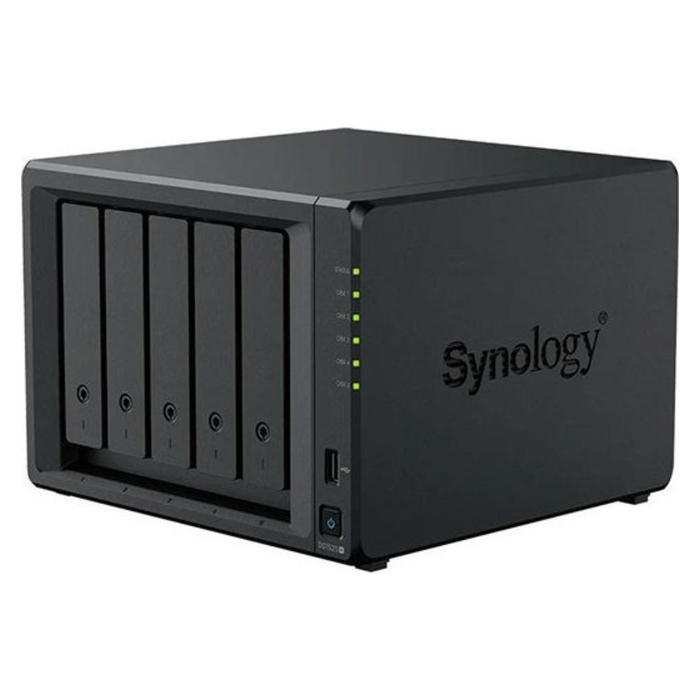

Synology DiskStation Server DS1525+

Specifications

Product Number: Synology DS1525+

Storage

• Storage drive capacity: 0 GB

• Supported storage drive interfaces: M.2, Serial ATA

• Storage drive sizes supported: 2.5", 3.5", M.2

• Maximum supported storage capacity: 300 TB

• Number of M.2 (M & B) slots: 2

• RAID support: Yes

• RAID levels: 0, 1, 10, 5, 6, JBOD

• Hot-swap drive bays: Yes

• Supported file systems: BTRFS, exFAT, ext3, ext4, FAT32, HFS+, NTFS

• Storage drives installed: No

• Total installed storage capacity: 0 TB
• Number of storage drives supported: 15

• Installed storage drive type: No

• Supported storage drive types: HDD & SSD

Processor

• Processor manufacturer: AMD

• Processor generation: AMD Ryzen Embedded V1000 Series

• Processor family: Ryzen Embedded

• Processor model: V1500B

• Processor frequency: 2.2 GHz

• Processor cores: 4

• Processor threads: 8


Memory

• Internal memory: 8 GB

• Internal memory type: DDR4

• Maximum RAM supported: 32 GB

• Memory slots: 2

• Memory form factor: SO-DIMM

• ECC: Yes

Network

• Ethernet LAN: Yes

• Ethernet LAN data rates: 2500

• Wake-on-LAN ready: Yes

Ports & interfaces

• USB port: Yes

• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

• Ethernet LAN (RJ-45) ports: 2


Design

• Cooling type: Active

• Product colour: Black

• Number of fans: 2 fan(s)

• Fan diameter: 9.2 cm

• Fan diameter 2: 9.2 cm
• LED indicators: Yes

• Drive bay locking: Yes

Performance

• Type: NAS

• Device class: Home & Home Office

• Backup function: Yes

• Backup features: Cloud, iSCSI LUN

• Multilingual support: Yes

• Number of users: 1024 user(s)
• Noise level: 22.6 dB

• Snapshot: Yes

• Web-based management: Yes

• Access Control List (ACL): Yes

• On/off switch: Yes

• Browser supported: Chrome, Firefox, Edge, Safari

• System log: Yes

Power

• Power supply location: External

• Power supply unit (PSU) capacity: 120 W

• Power consumption (typical): 44.56 W

• Power consumption (HDD standby): 13.63 W

• AC input voltage: 100 - 240 V

• AC input frequency: 50 - 60 Hz

Weight & dimensions

• Width: 230 mm

• Depth: 223 mm

• Height: 166 mm

• Weight: 2.67 kg

Operational conditions

• Operating temperature (T-T): 0 - 40 °C

• Operating relative humidity (H-H): 5 - 95%

• Storage temperature (T-T): -20 - 60 °C

• Storage relative humidity (H-H):  5 - 95%

• Operating altitude: 0 - 5000 m

Packaging content

• External power adapter: Yes

• Cables included: AC LAN (RJ-45)

• Power cables quantity: 1
