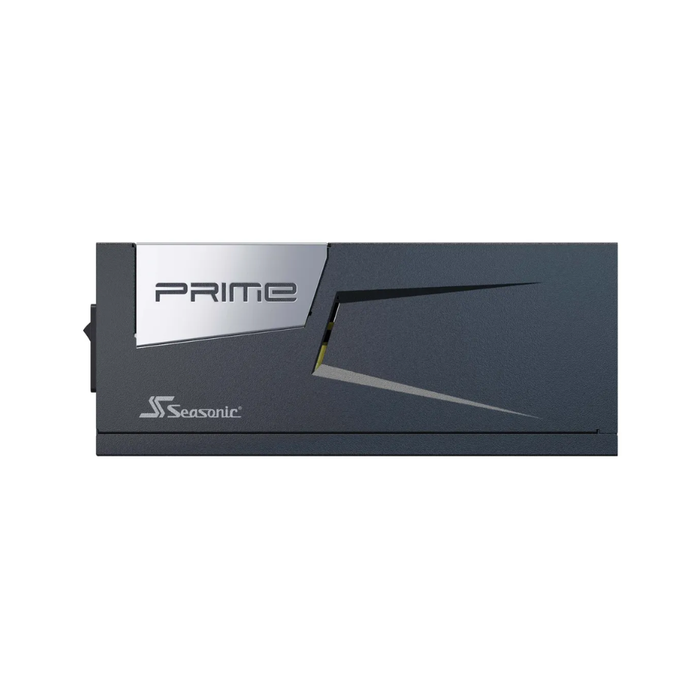

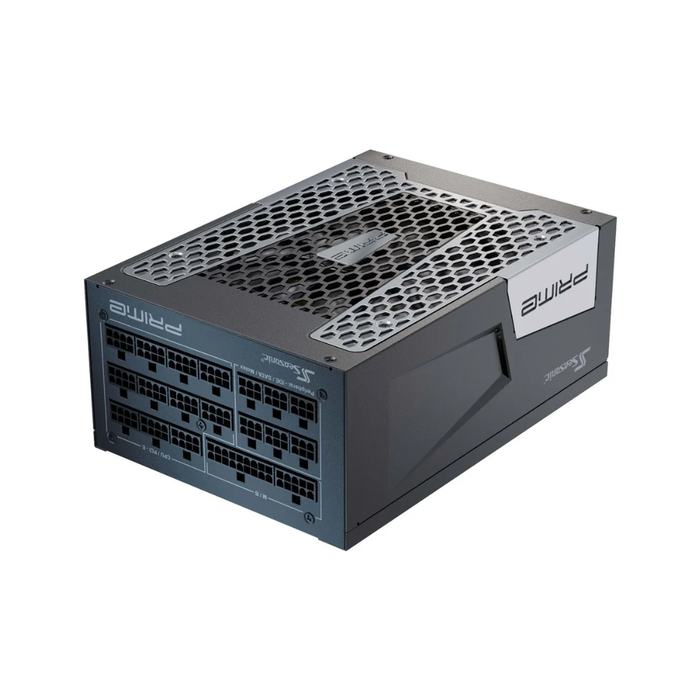

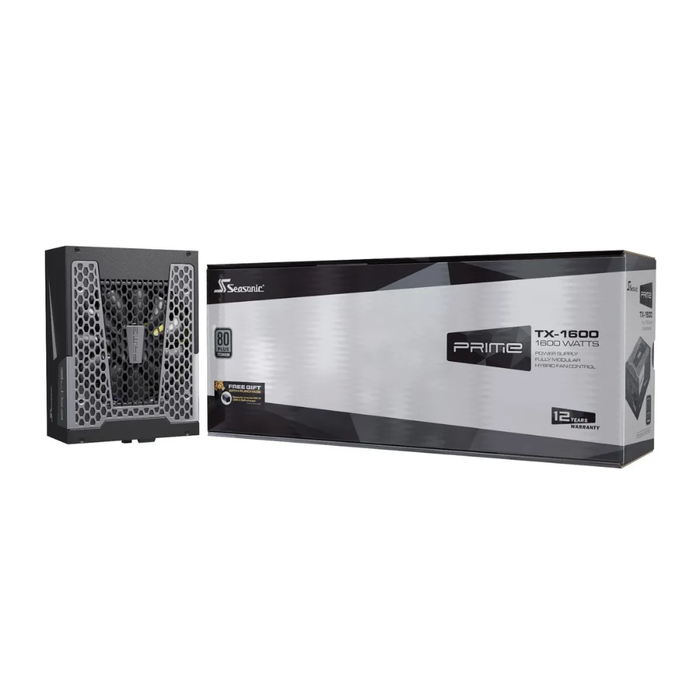

Seasonic Power Supply Prime TX-1600 ATX31 Titanium 1600W

Specifications:

• Product Number: PRIME-TX-1600-ATX30
• 80PLUS®: Titanium

• Cybenetics Efficiency Level: Titanium

• Cybenetics Noise Level: Lambda A

• Form Factor: ATX/EPS

• Dimensions: 210 × 150 × 86 mm

• Fan Information:

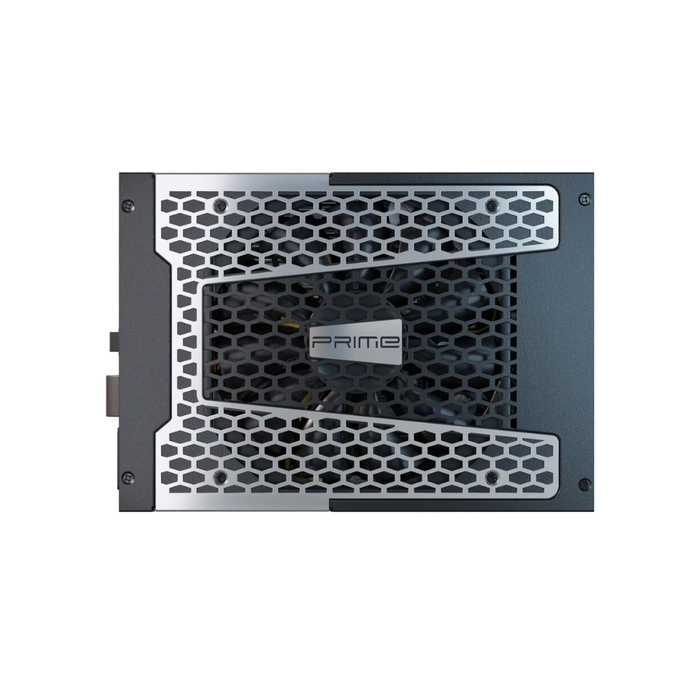

  • Fan Size: 135 mm

  • Fan Control: Digital Hybrid Fan Control

  • Fan Bearing: Fluid Dynamic Bearing

  • Life Expectancy: 50,000 hours at 40 °C, 15 % - 65 % RH

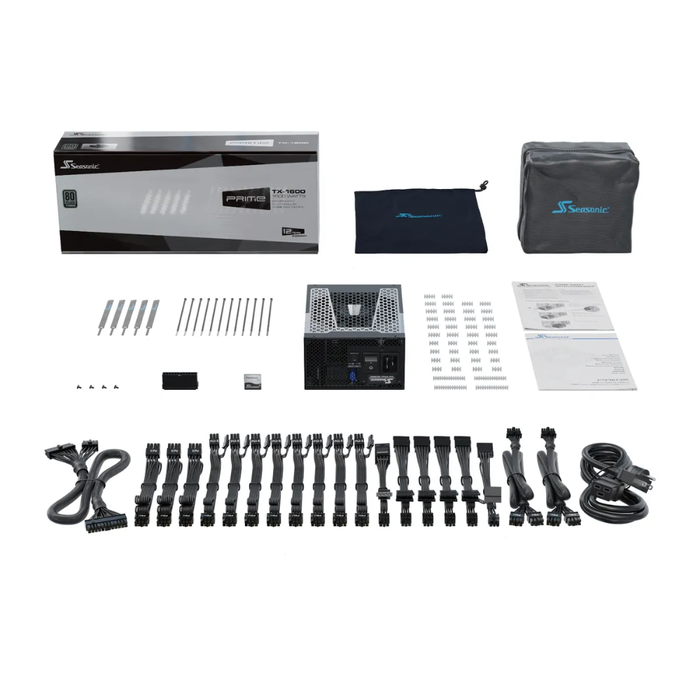

• Cable Information:

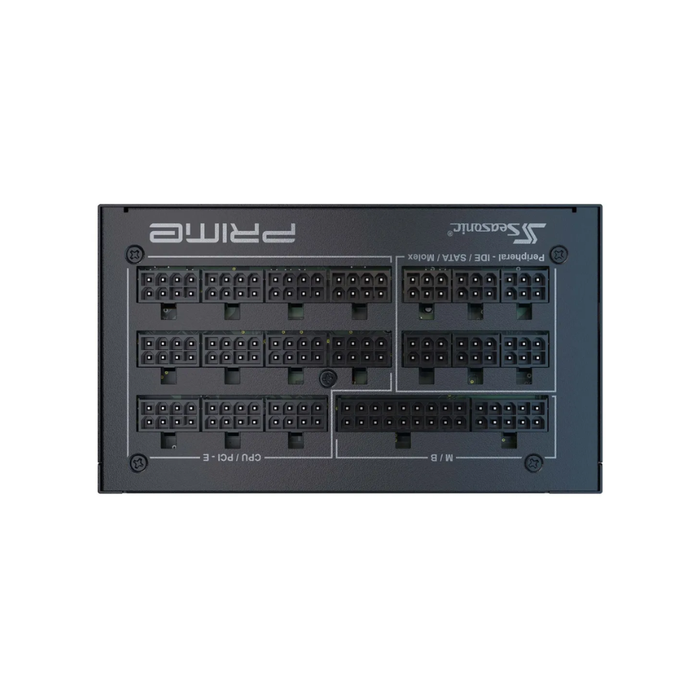

  • Modularity: Fully Modular

  • Cable type: Individual Black Cables with Braided Pattern

• Electrical Features:
  • Operating Temperature: 0 - 50 °C

  • MTBF @ 25 °C, excl. fan: 100,000 hours

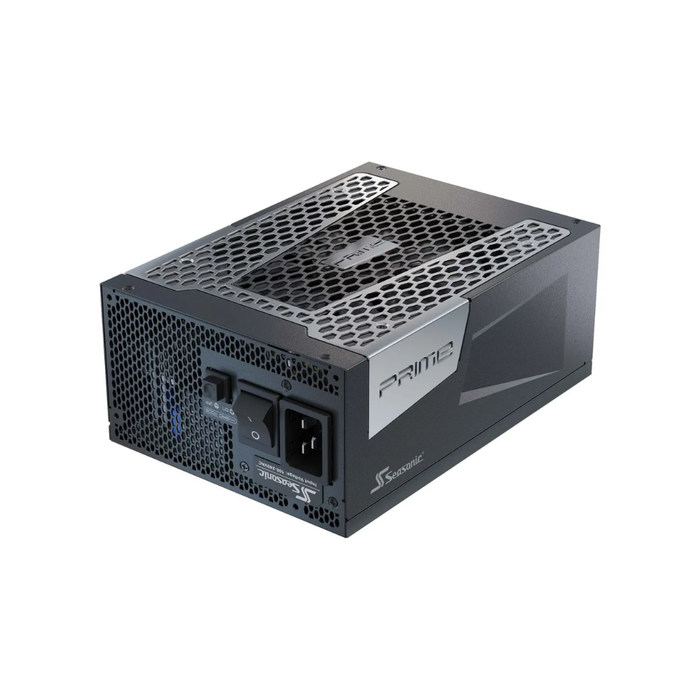

  • AC Input: Full Range

  • Protection: OPP, OVP, UVP, OCP, OTP, SCP

• Safety and Environmental:
  • Safety and EMC: cTUVus, TUV, CB, CCC, BSMI, EAC, CE

  • Environmental Compliance: Energy Star, RoHS, WEEE, ErP Lot 6, REACH

• Warranty: 12 Years


Power Output:

• AC Input:
  • 100 V - 240 V

  • 15 - 10 A

  • 50 Hz - 60 Hz

• DC Output:
  • Rail: +3.3 V,+5 V,+12 V,-12 V,+5 VSB

  • Maximum Power:
    •  25 A,25 A,133.3 A,0.5 A,3 A

    • 125 W,1600 W,6 W,15 W

  • Total continuous power: 1600 W 115-240Vac, 1300 W 100-240 Vac
