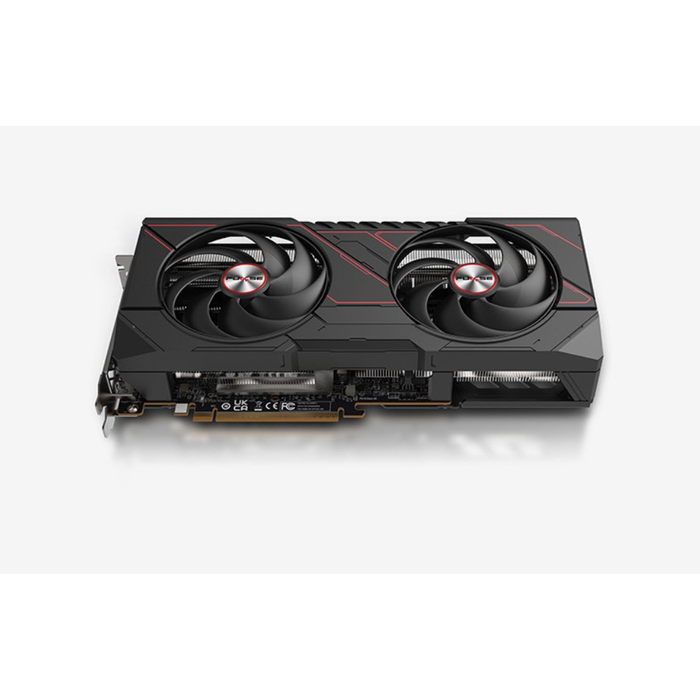

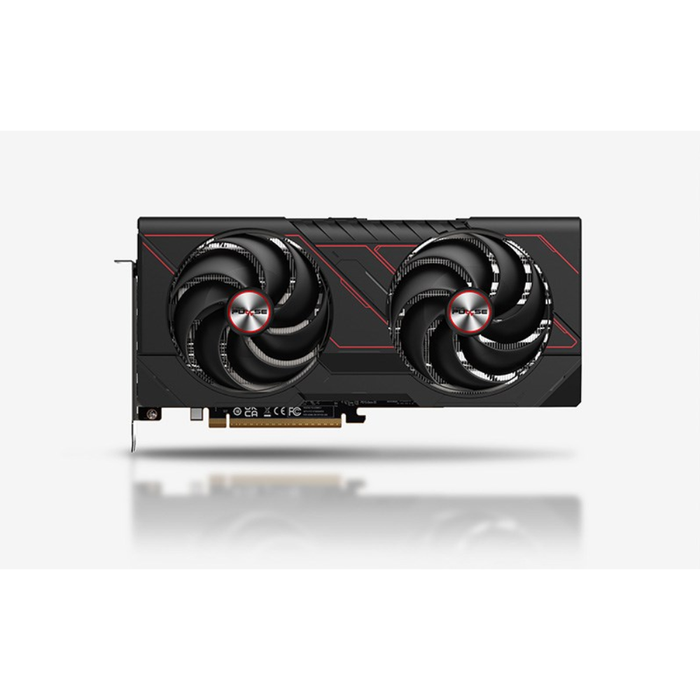

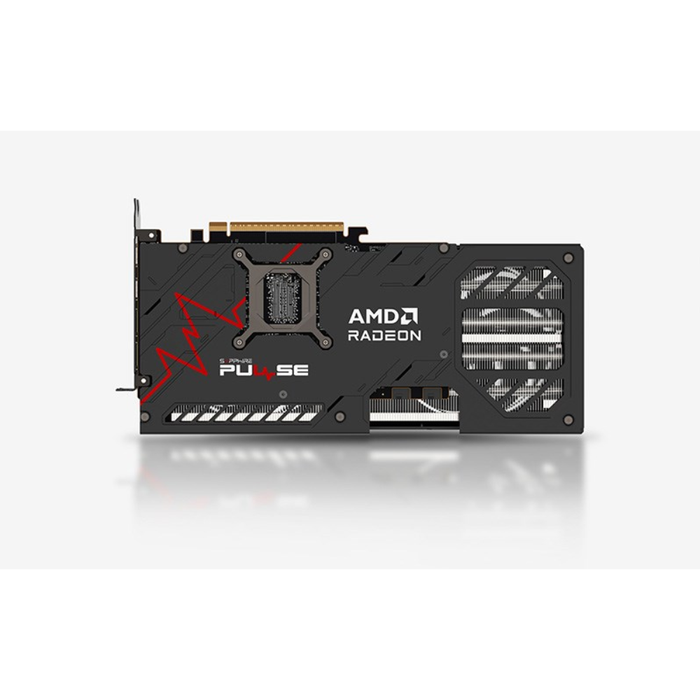

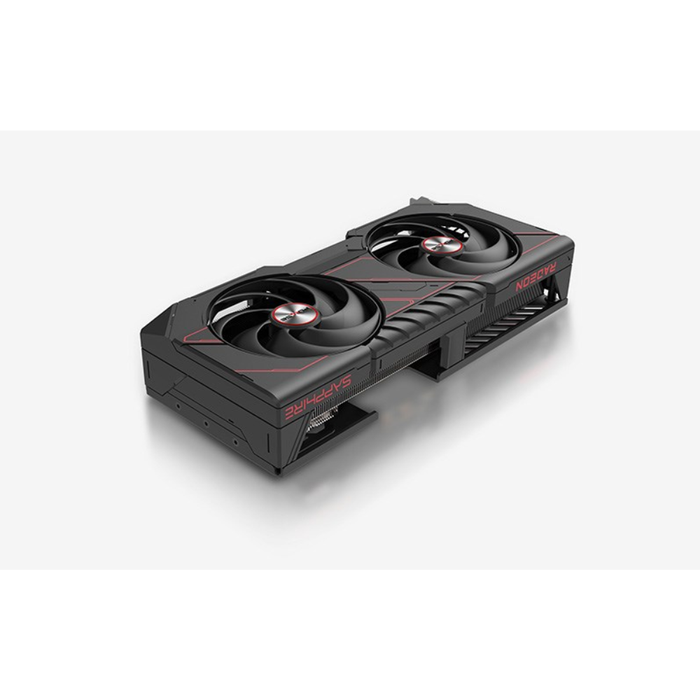

Sapphire Pulse Radeon RX 9070 12GB

Specifications:

• Product Number: 11354-01-20G

• GPU:

  • AMD Radeon™ RX 9070 GRE Graphics Card

  • AMD RDNA™ 4 Architecture

• Engine Clock

• Boost Clock: Up to 2920 MHz

• Game Clock: Up to 2340 MHz
• Stream Processors: 3072

• Compute Units: 48 CUs (3rd Gen RT + 2nd Gen AI Accelerators)

• Infinity Cache: 48MB

• Ray Accelerators: 48

• AI Accelerator: 96

• Memory Size/Bus: 12GB/192 bit GDDR6

• Memory Clock: 18 Gbps Effective

• Displays: Maximum 4 Displays

• Resolution:

  • HDMI® 2.1b: 7680×4320

  • DisplayPort™ 2.1a: 7680×4320

• Interface: PCI-Express 5.0 x16
• Output

  • 2x HDMI® 2.1b

  • 2x DisplayPort™ 2.1a
• BIOS Support: UEFI

• Game Index: 1440P

• Sapphire Features:

  • Honeywell PTM7950 Thermal Interface Material (TIM)

  • AeroCurve Fan Blade

  • Free Flow

  • FrameDefense

  • Integrated Cooling Module

  • Dual-X Cooling Technology

  • High TG Copper PCB

  • Optimized Composite Heatpipes
  • Metal Backplate
  • Two-Ball Bearing Fans

  • 14-Phase Digital Power Design

  • Fuse Protection

  • Intelligent Fan Control

  • Precision Fan Control

  • TriXX Supported

  • TriXX Boost

• AMD Features:

  • AMD RDNA™ 4 Architecture

  • 48 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators)

  • AMD HYPR-RX with AFMF 2

  • AMD FidelityFX™ Super Resolution 4 with AI Upscaling

  • DisplayPort™ 2.1a

  • AMD Radiance Display™ Engine

  • AMD Fluid Motion Frames 2 technology

  • AMD Radeon™ Anti-Lag 2 technology

  • AMD FidelityFX™ technologies

  • Microsoft® DirectX® 12 Ultimate

  • AMD Noise Suppression

  • AMD Freesync™ technology

  • 12 GB of GDDR6 on 192-bit Memory Bus

  • AMD FSR™ "Redstone"

  • AMD Software: Adrenalin Edition™ application

• Cooler Type:

  • Dual-X Cooling

  • AeroCurve Fan Blade

  • Free Flow

  • Integrated Cooling Module

  • High TG Copper PCB

  • Optimized Composite Heatpipes

  • Two-Ball Bearing

• Form Factor:

  • 2.5 slot, ATX

  • Dimension: 280(L)X 120.25(W)X 51.5 (H)mm

• Power Consumption: 240W Typical Board Power

• OS: Linux®, Windows® 10, and Windows 11. 64-bit  operating system required
• System Requirement:

  • Minimum 650 Watt Power Supply

  • 2 x 8-pin Power Connector.

  • PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.

  • Minimum 8GB of system memory. 16GB recommended.

  • Packaging Information: Packaging Materials & Recycling Guide
