NZXT Power Supply C1500 1500W Platinum

Specifications:

• Product Number: PA-5P1BB-EU

Power

• Total power: 1500 W

• AC input voltage: 115 - 240 V

• AC input frequency: 50/60 Hz

• Input current: 15 - 9 A

• Maximum input current (@110V): 15 A

• Maximum input current (@220V): 9 A

• Combined power (+3.3V): 120 W

• Combined power (+12V): 1500 W

• Combined power (+5V): 120 W

• Combined power (+5Vsb): 15 W

• Max output current (+3.3V): 22 A

• Max output current (+12V): 125 A

• Max output current (+5V): 22 A

• Max output current (+5Vsb): 3 A

• Efficiency: 94%


Ports & interfaces

• Motherboard power connector: 24-pin ATX

• Motherboard power cable length: 60 cm

• SATA power cable length:150, 500 mm

• Peripheral (Molex) power connectors (4-pin): 4

• Peripheral (Molex) power cable length: 150, 500 mm

• EPS power connector (4+4 pin): Yes

• PCI Express power connectors (12+4 pin) cable length: 650 mm

• CPU power connector (4+4 pin): Yes

• ATX Power connector (24-pin): Yes

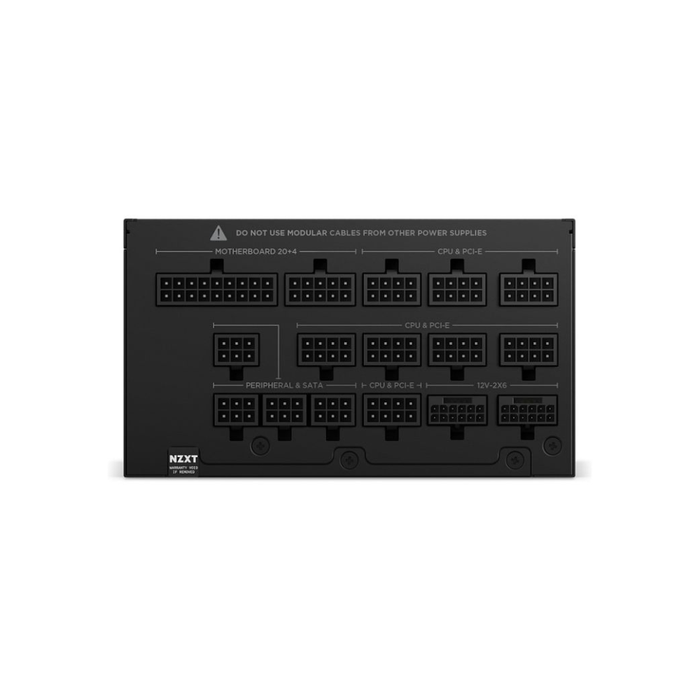

• Cabling type: Fully Modular


Performance

• 80 PLUS certification: 80 PLUS Platinum


Performance

• Supported motherboard form factors: ATX

• Purpose: PC

• Power supply unit (PSU) form factor: ATX

• ATX version: 3.1

• EPS version: 2.92

• Noise level: 41 dB

• Bearing technology: MLB

• Mean time between failures (MTBF): 100000 h


Design

• Product colour: Black

• Cooling type: Active

• Fan diameter: 12 cm

• Number of fans: 1 fan(s)

• Fan speed: 2160 - 2640 RPM

• On/off switch: Yes

Operational conditions

• Operating temperature (T-T): 0 - 50 °C


Certificates

• Compliance certificates: CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, WEEE
  Certification: CB / CE / FCC / TUV / cTUV-SUDus / China CCC / Taiwan BSMI R33245/ Australia RCM / EAC / UKCA / WEEE


Weight & dimensions

• Width: 150 mm

• Depth: 180 mm

• Height: 86 mm


Technical details

• Sustainable technologies and materials: Steel, PCB, plastic

• Warranty period:10 year(s)
