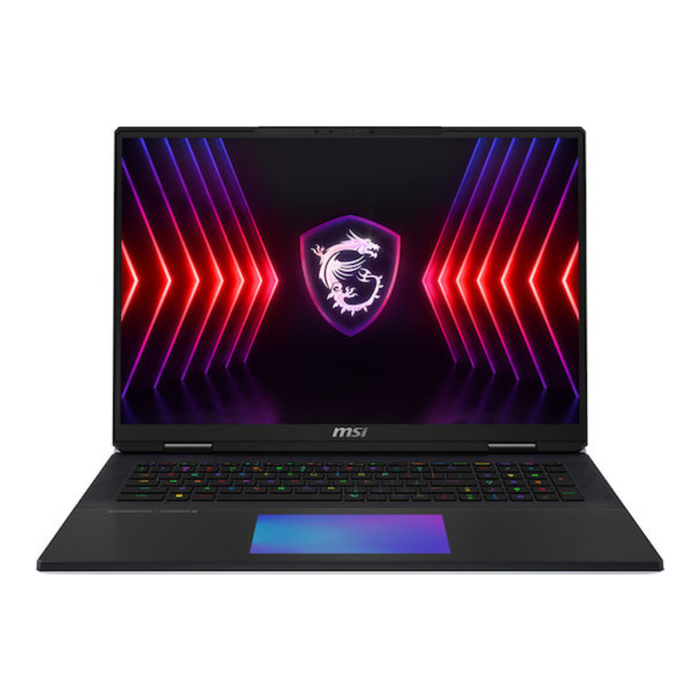

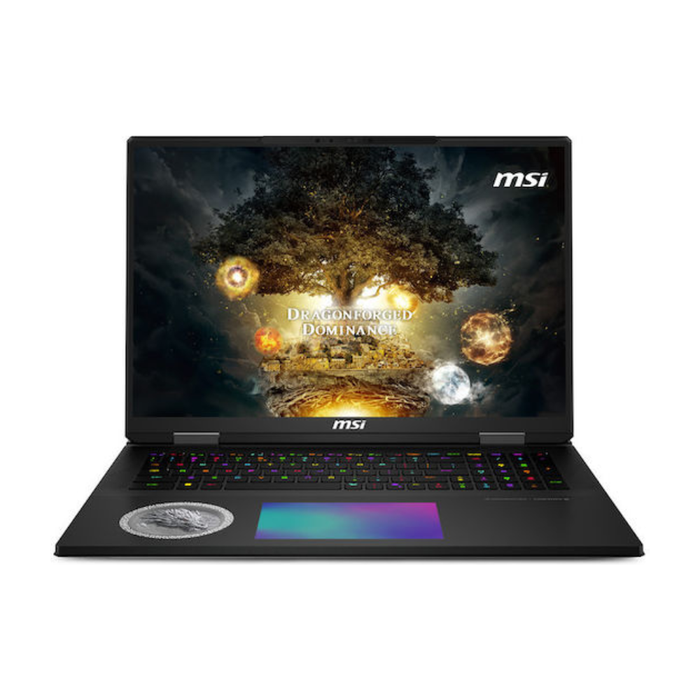

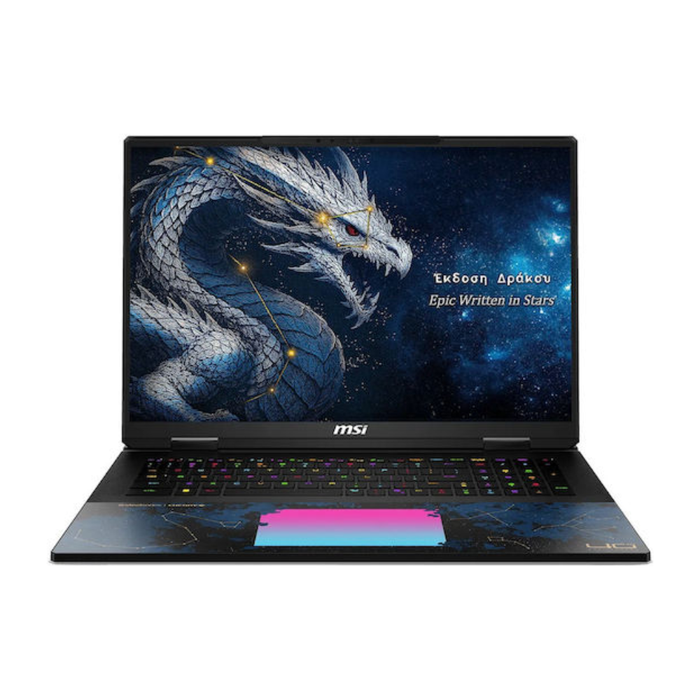

MSI Titan 18 HX Dragon Laptop Plus 290HX Plus/ 96GB/ 4TB/ RTX 5090

Specifications:

• Product Number: 001824-1218


Design

• Colour name: Dragon Edition Draco Epic

• Product type: Laptop

• Product colour: Black

• Form factor: Clamshell

• Housing material: Metal, Plastic

• Market positioning: Gaming

• Original brand name: MSI


Display

• Display diagonal: 45.7 cm (18")

• Display resolution: 3840 x 2400 pixels

• Touchscreen: No

• HD type: UHD+

• Panel type: Mini LED

• Native aspect ratio: 16:10

• Display brightness: 1200 cd/m²

• RGB colour space: DCI-P3

• Colour gamut: 100%

• Maximum refresh rate: 240 Hz

• High Dynamic Range (HDR) supported Yes

• High Dynamic Range (HDR) technology: DisplayHDR 1000


Processor

• Processor manufacturer: Intel

• Processor family: Intel Core Ultra 9

• Processor generation: Intel Core Ultra (Series 2)

• Processor model: 290HX Plus

• Processor cores: 24

• Processor threads: 24

• Processor boost frequency: 5.5 GHz

• Performance cores: 8

• Efficient cores: 16

• Performance-core Max Turbo Frequency: 5.5 GHz

• Efficient-core Max Turbo Frequency: 4.7 GHz

• Performance-core base frequency: 2.7 GHz

• Efficient-core base frequency: 1.8 GHz

• Processor cache: 36 MB

• Processor cache type: Smart Cache

• Processor socket: BGA 2114

• Processor base power: 55 W

• Maximum turbo power: 160 W


Neural processor unit (NPU)

• Neural processor unit (NPU): Intel AI Boost

• Sparsity support: Yes

• Windows Studio effects support: Yes

• AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN

• Total processor performance up to: 36 TOPs

• NPU performance up to: 13 TOPs

• GPU performance up to: 8 TOPs


Memory

• Internal memory: 96 GB

• Internal memory type: DDR5-SDRAM

• Memory clock speed: 6400 MHz

• Memory form factor: SO-DIMM

• Memory layout (slots x size): 2 x 48 GB

• Memory slots: 2x SO-DIMM

• Maximum internal memory: 128 GB


Storage

• Total storage capacity| 4 TB

• Storage media: SSD

• Total SSDs capacity: 4 TB

• Number of SSDs installed: 2

• SSD capacity: 2 TB

• SSD interface: PCI Express 5.0, PCI Express 4.0

• NVMe: Yes

• SSD form factor: M.2

• Optical drive type: No

• Card reader integrated: Yes
• Compatible memory cards:  SD


Graphics

• Discrete GPU manufacturer: NVIDIA

• Discrete graphics card model: NVIDIA® GeForce RTX™ 5090 Laptop GPU


Graphics

• Discrete graphics card memory: 24 GB

• Discrete graphics memory type: GDDR7

• On-board graphics card: Yes

• On-board GPU manufacturer: Intel

• Discrete graphics card: Yes

• On-board graphics card family: Intel Arc Graphics

• On-board graphics card model: Intel Arc Graphics


Audio

• Audio system: Nahimic 3

• Number of built-in speakers: 6

• Speakers manufacturer: Dynaudio

• Speaker power: 2 W

• Built-in microphone: Yes


Camera

• Front camera: Yes

• Front camera resolution: 1920 x 1080 pixels

• Front camera HD type: Full HD

• Video capturing speed: 30 fps

• Infrared (IR) camera: Yes

• Privacy camera: Yes

• Privacy type: Privacy shutter


Network

• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Wi-Fi standards: Wi-Fi 7 (802.11be)

• Mobile network connection: No

• WLAN controller model: Killer Wi-Fi 7 BE1750

• WLAN controller manufacturer: Killer

• Ethernet LAN: Yes

• Ethernet LAN data rates: 2500 Mbit/s

• Bluetooth: Yes

• Bluetooth version: 5.4


Ports & interfaces

• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3

• Ethernet LAN (RJ-45) ports: 1

• HDMI ports quantity: 1

• HDMI version: 2.1

• Thunderbolt 5 ports quantity: 2

• Intel® Thunderbolt 5: Yes

• Combo headphone/mic port: Yes

• USB Type-C DisplayPort Alternate Mode: Yes


Performance

• Motherboard chipset: Intel HM870


Keyboard

• Pointing device: Trackpad

• Numeric keypad: Yes

• Keyboard backlit: Yes

• Keyboard backlit colour: RGB

• Keyboard backlit zone: Per-key RGB

• Keyboard language: German

• Copilot key: Yes


Software

• Operating system installed: Windows 11 Home


Battery

• Battery technology: Lithium-Ion (Li-Ion)

• Number of battery cells: 4

• Battery capacity: 6205 mAh

• Battery capacity: 99.9 Wh


Power

• AC adapter power: 400 W

• USB Type-C charging port: Yes

• USB Power Delivery (USB PD): Yes


Security

• Cable lock slot: Yes

• Cable lock slot type: Kensington

• Trusted Platform Module (TPM): Yes

• Trusted Platform Module (TPM) version: 2.0


Weight & dimensions

• Width: 404 mm

• Depth: 307.5 mm

• Height (front): 2.4 cm

• Height (rear): 3.21 cm

• Weight: 3.6 kg


Packaging content

• AC adapter included: Yes
