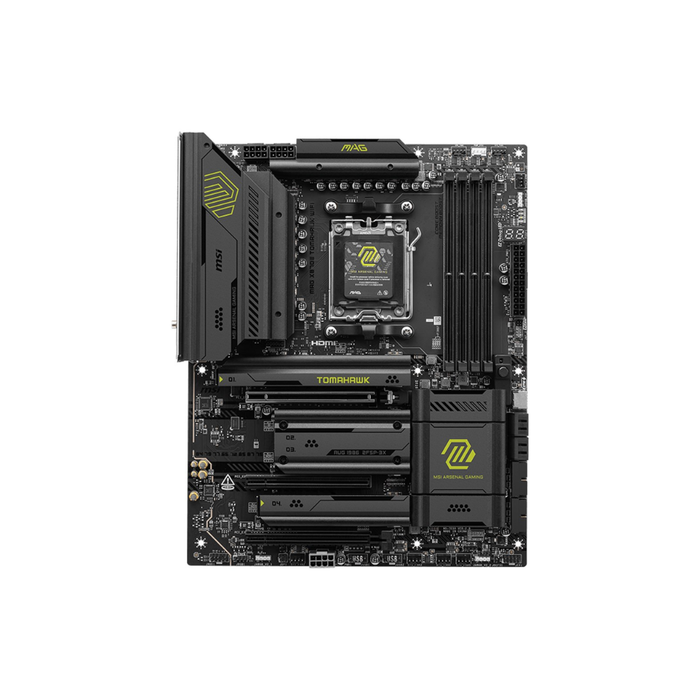

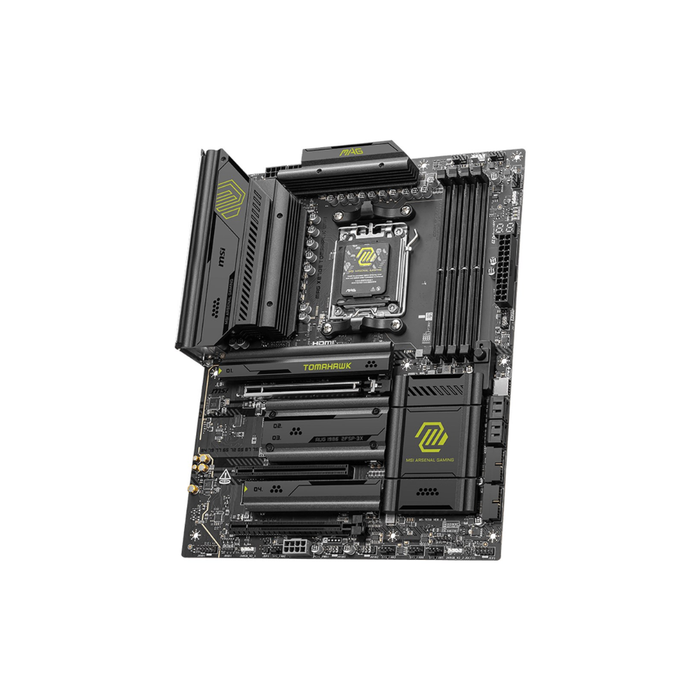

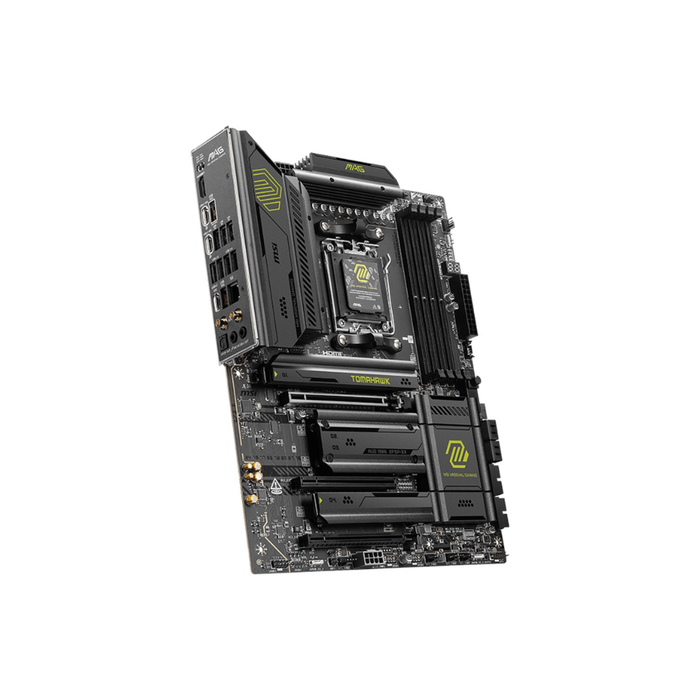

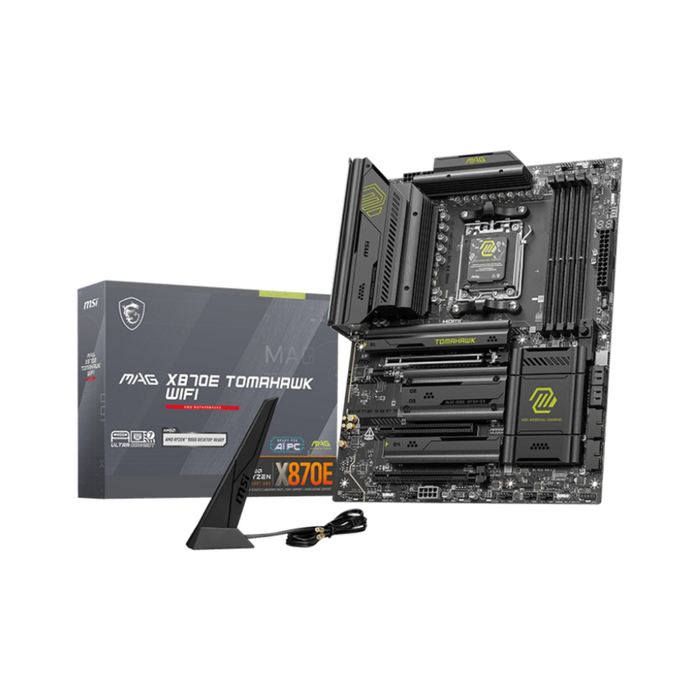

MSI Motherboard MAG X870E Tomahawk Max WiFi

Specifications:

• Product Number: MAG X870E TOMAHAWK WIFI

• Chipset: AMD X870E

• CPU: Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
  Socket AM5

• Memory:
  • 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
    Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
    Ryzen™ 9000 Series Processors max. overclocking frequency:

  • 1DPC 1R Max speed up to 8400+ MT/s

  • 1DPC 2R Max speed up to 6400+ MT/s

  • 2DPC 1R Max speed up to 6400+ MT/s

  • 2DPC 2R Max speed up to 6400+ MT/s
  • Supports AMD POR Speed and JEDEC Speed

  • Supports Memory Overclocking and AMD EXPO™

  • Supports Dual-Channel mode

  • Supports Non-ECC, Un-buffered memory

  • Supports CUDIMM, Clock Driver bypass mode only
• Onboard Graphics:
  • 1x HDMI™
  • Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz

  • 2x Type-C DisplayPort

  • USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz

• Slot:
  • 3x PCI-E x16 slot

  • PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

  • PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

  • PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
  • PCI_E1 slot

  • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)

  • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)

  • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)

• Audio:
  • Realtek® ALC4080 Codec

  • 7.1-Channel USB High Performance Audio

  • Supports up to 32-bit/384kHz playback on front panel

  • Supports S/PDIF output

• Storage:
  • 4x M.2:

    • M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices

    • M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices

    • M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

    • M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
      4x SATA 6G
  • M.2_1 slot (From CPU):

    • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)

    • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
  • M.2_2 slot (From CPU):

    • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)

    • Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• RAID:
  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
• USB:
  • 4x USB 2.0 (Rear)

  • 4x USB 2.0 (Front)

  • 3x USB 5Gbps Type A (Rear)

  • 4x USB 5Gbps Type A (Front)

  • 2x USB 10Gbps Type A (Rear)

  • 1x USB 10Gbps Type C (Rear)

  • 1x USB 20Gbps Type C (Front)

  • 2x USB 40Gbps Type C (Rear)

• LAN: 1x Realtek® 8126 5G LAN

• Internal IO:
  • 1x Power Connector(ATX_PWR)

  • 2x Power Connector(CPU_PWR)

  • 1x Power Connector(PCIE_PWR 8pin)

  • 1x CPU Fan

  • 1x Combo Fan (Pump_Sys Fan)

  • 6x System Fan

  • 1x EZ Conn-header (JAF_2)

  • 2x Front Panel (JFP)

  • 1x Chassis Intrusion (JCI)

  • 1x Front Audio (JAUD)

  • 3x Addressable V2 RGB LED connector (JARGB_V2)

  • 1x RGB LED connector(JRGB)

  • 1x TPM pin header(Support TPM 2.0)

  • 4x USB 2.0 ports

  • 4x USB 5Gbps Type A ports

  • 1x USB 20Gbps Type C ports

• WIRELESS LAN & BLUETOOTH:
  • Wi-Fi 7

  • The Wireless module is pre-installed in the M.2 (Key-E) slot

  • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps

  • Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
  • Supports Bluetooth® 5.4**, MLO, 4KQAM
• LED FEATURE:
  • 4x EZ Debug LED
  • 1x EZ Digit Debug LED

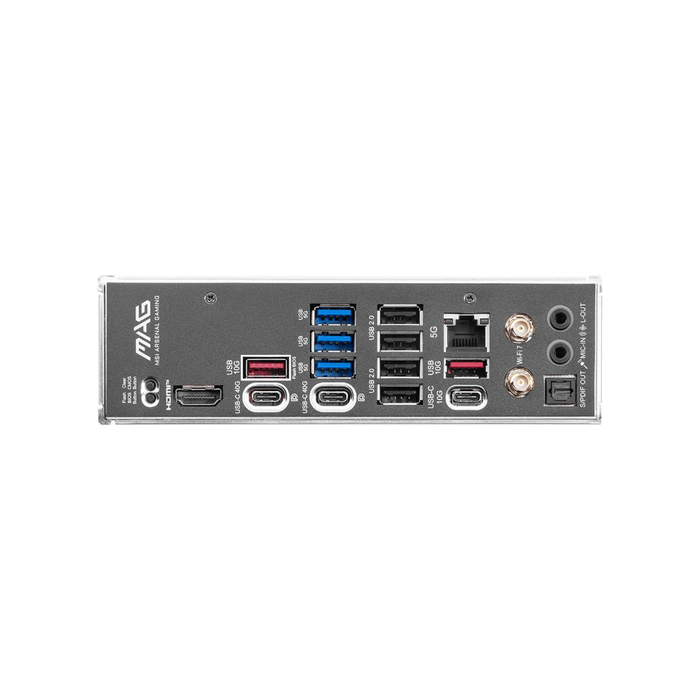

  • BACK PANEL PORTS

  • Clear CMOS Button

  • USB 10Gbps Type-A

  • USB 5Gbps Type-A

  • USB 2.0

  • 5G LAN

  • Wi-Fi / Bluetooth

  • Audio connectors

  • Flash BIOS Button

  • HDMI™

  • USB 40Gbps Type-C

  • USB 10Gbps Type-C

  • USB 10Gbps Type-A
• OPERATING SYSTEM: Support for Windows® 11 64-bit
• PCB Info:
  • ATX

  • 243.84mmx304.8mm
