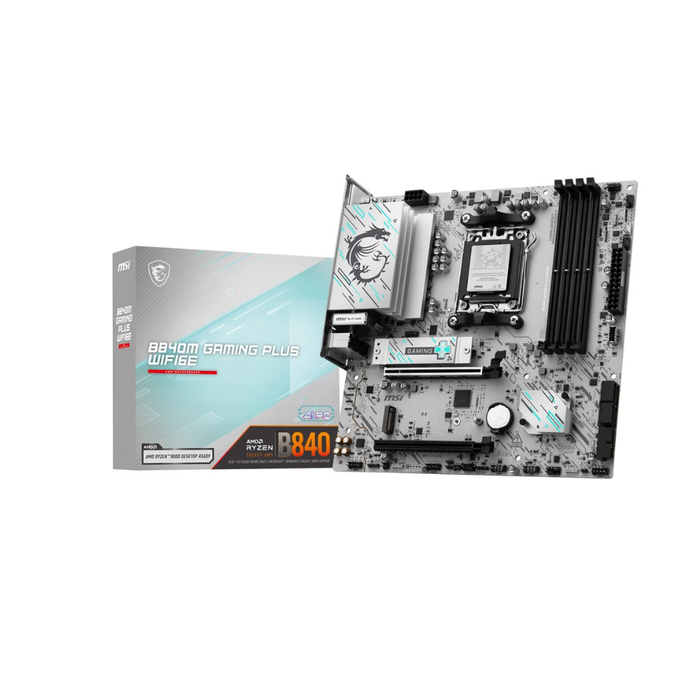

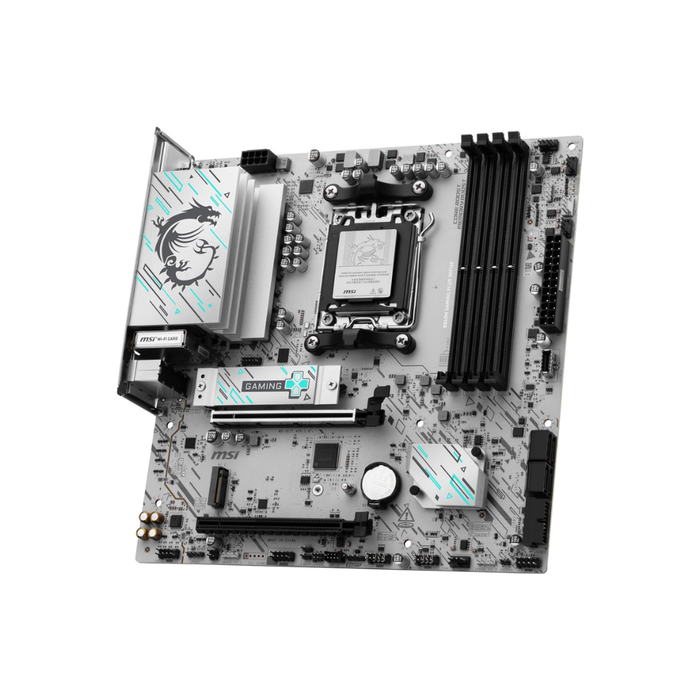

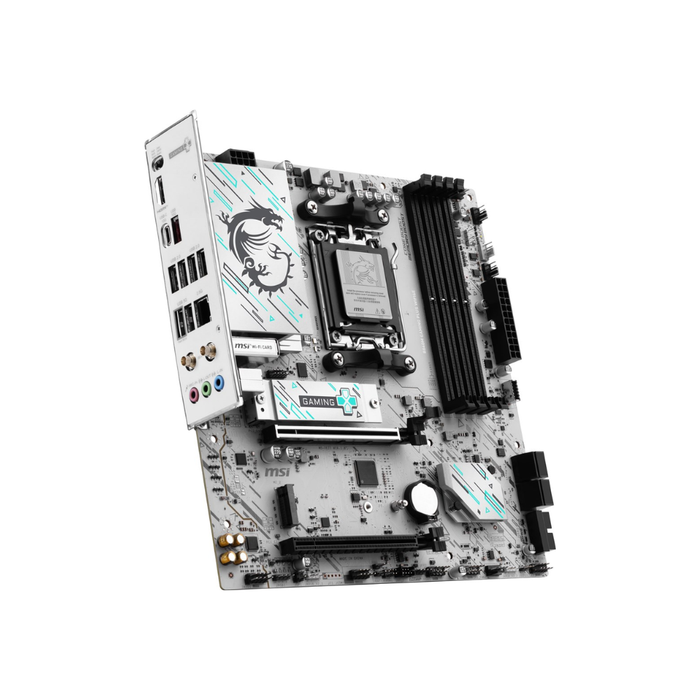

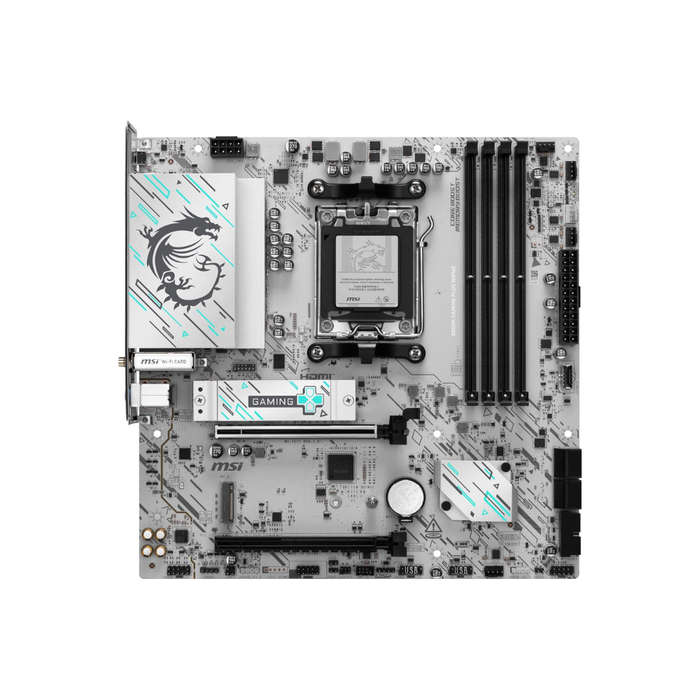

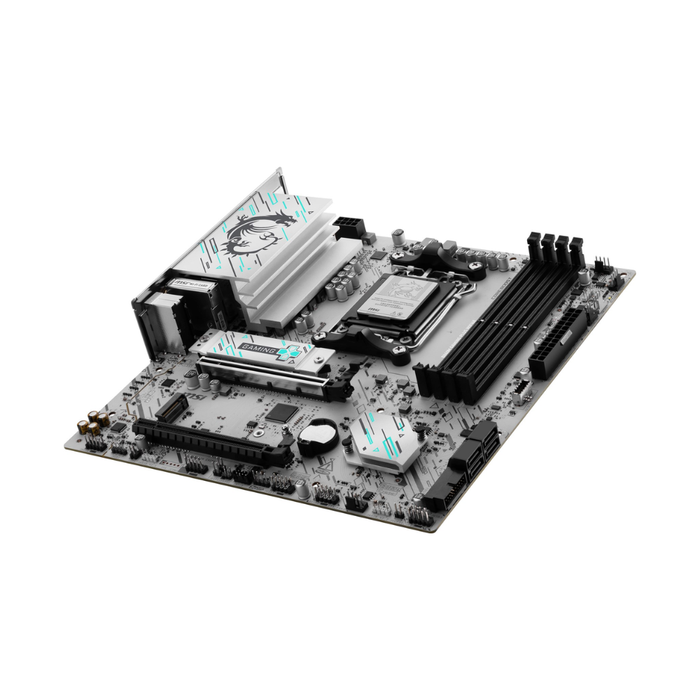

MSI Motherboard B840M Gaming Plus WiFi6E

Specifications:

• Product Number: B840M GAMING PLUS WIFI6E

Chipset

•  AMD B840


CPU

• Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
• Socket AM5

Memory

• 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
  Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
  Ryzen™ 9000 Series Processors max. overclocking frequency:


  •  1DPC 1R Max speed up to 8000+ MT/s

  •  1DPC 2R Max speed up to 6400+ MT/s

  •  2DPC 1R Max speed up to 6400+ MT/s
  •  2DPC 2R Max speed up to 5600+ MT/s
• Supports AMD POR Speed and JEDEC Speed

• Supports Memory Overclocking and AMD EXPOTM

• Supports Dual-Channel mode

• Supports Non-ECC, Un-buffered memory

• Supports CUDIMM, Clock Driver bypass mode only

Onboard Graphics

• 1x HDMI™

• Support HDMI™ 2.1, maximum resolution of 4K 60Hz


Slot

• 2x PCI-E x16 slot

• PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

• PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)
• PCI_E1 slot:
  • Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors)

  • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)

  • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)


Audio

• Realtek® ALC897 Codec

• 7.1-Channel High Definition Audio


Storage

• 2x M.2

• M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

• M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

• 4x SATA 6G

RAID

• Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

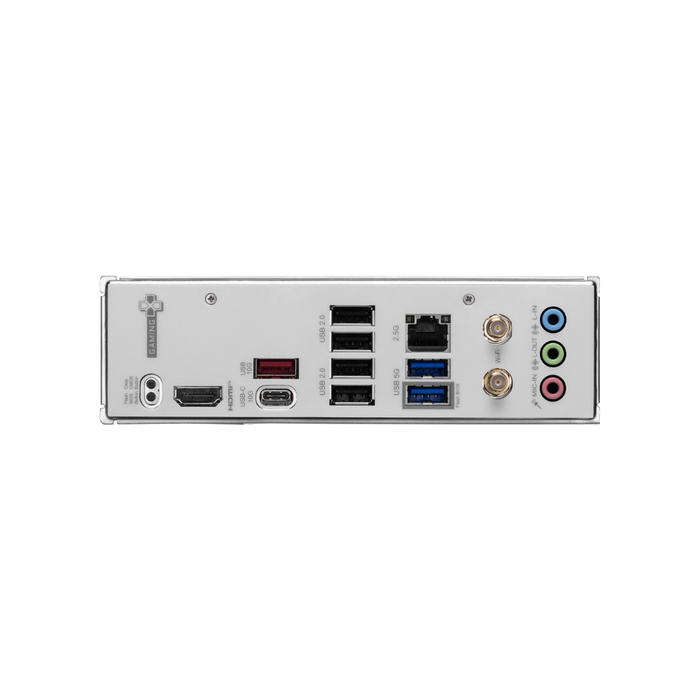

USB

• 4x USB 2.0 (Rear)

• 4x USB 2.0 (Front)

• 2x USB 5Gbps Type A (Rear)

• 2x USB 5Gbps Type A (Front)

• 1x USB 5Gbps Type C (Front)

• 1x USB 10Gbps Type A (Rear)

• 1x USB 10Gbps Type C (Rear)


LAN

• Realtek® 8125D 2.5G LAN


Internal IO

• 1x Power Connector(ATX_PWR)

• 1x Power Connector(CPU_PWR)

• 1x CPU Fan

• 1x Combo Fan (Pump_Sys Fan)

• 3x System Fan

• 1x EZ Conn-header (JAF_1)

• 2x Front Panel (JFP)

• 1x Chassis Intrusion (JCI)

• 1x Front Audio (JAUD)

• 1x Com Port (JCOM)

• 1x Tuning Controller connector(JDASH)

• 3x Addressable V2 RGB LED connector (JARGB_V2)

• 1x RGB LED connector(JRGB)

• 1x TPM pin header(Support TPM 2.0)

• 4x USB 2.0 ports

• 2x USB 5Gbps Type A ports

• 1x USB 5Gbps Type C ports


WIRELESS LAN & BLUETOOTH

• Wi-Fi 6E Solution

• The Wireless module is pre-installed in the M.2 (Key-E) slot

• Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps

• Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Bluetooth® 5.3, FIPS, FISMA

LED FEATURE

• 4x EZ Debug LED

• 1x EZ Memory Detection LED
