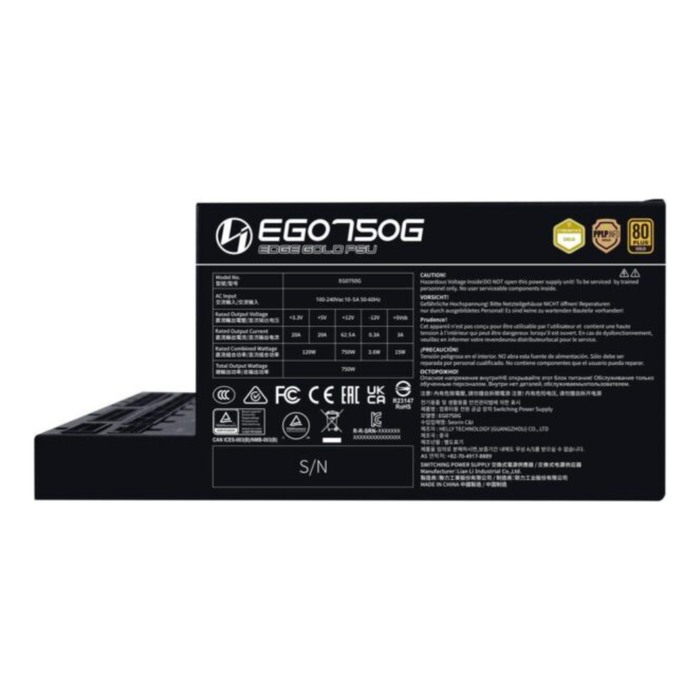

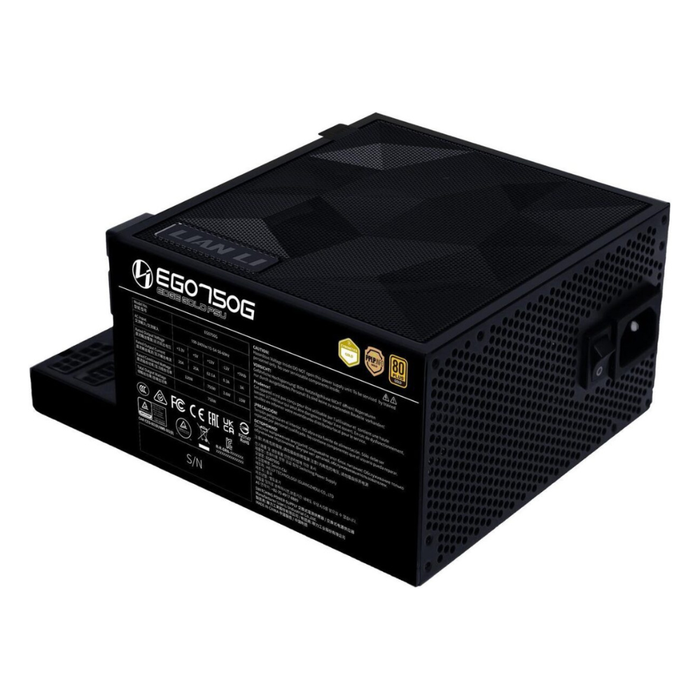

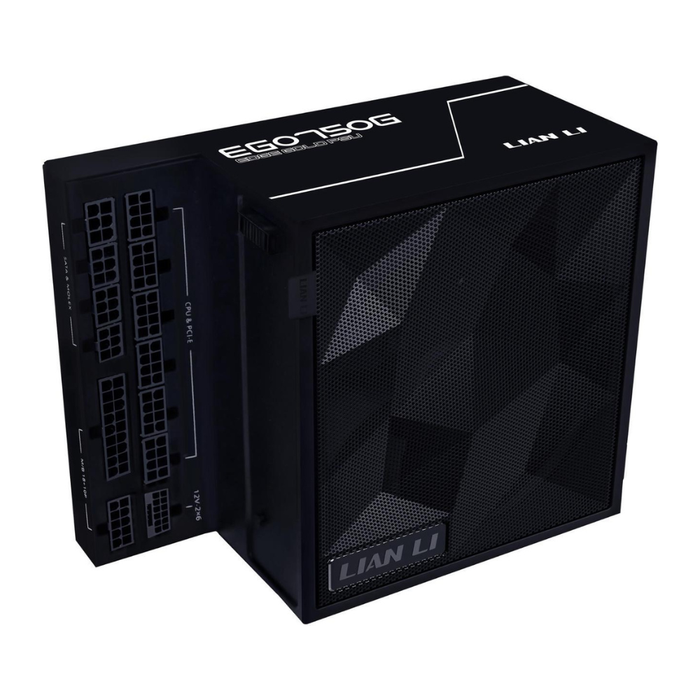

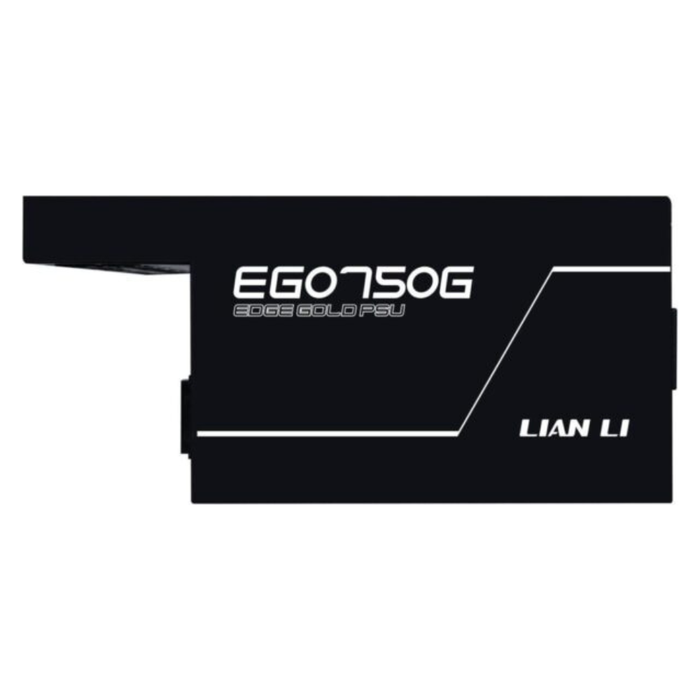

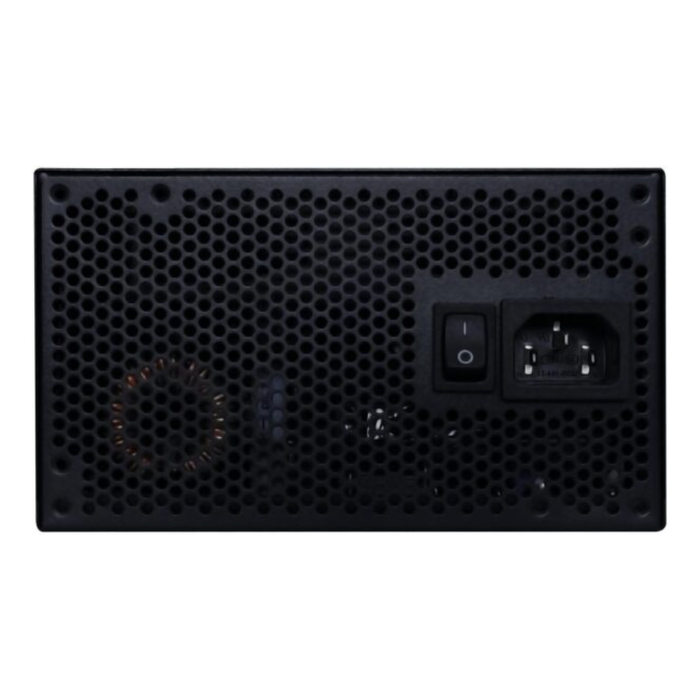

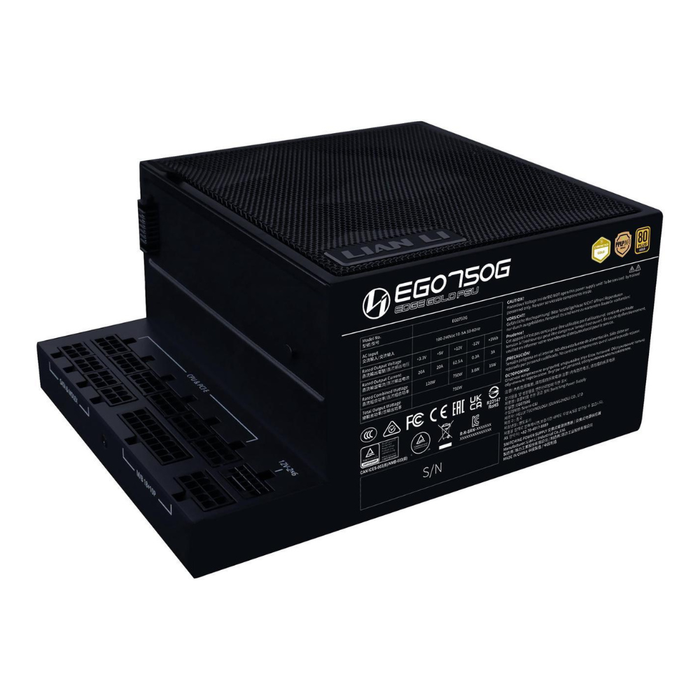

Lian Li Power Supply Edge Gold 750W Black

Specifications:

• Product Number: 2.35.65.02.016
• Model: EG0750G
• Dimensions: (D)182 mm X (W)86 mm X (H)150 mm
• Power Supply Design: Fully modular
• color: Black
• Material: Steel
• Form Factor: ATX 3.1
• Certification: 80 PLUS GOLD / Cybenetics GOLD / PPLP GOLD
• Max. Dc Output: 750W
• Combined +3.3V & +5V: 120 W
• Combined +12V: 744 W
• Input Voltage: 100-240Vac
• Input Frequency Range: 9-4.5A 50-60Hz
• PFC: Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz
• Efficiency: 90.52%MAX
• Protective Circuit: OCP/OVP/OTP/OPP/SCP/UVP

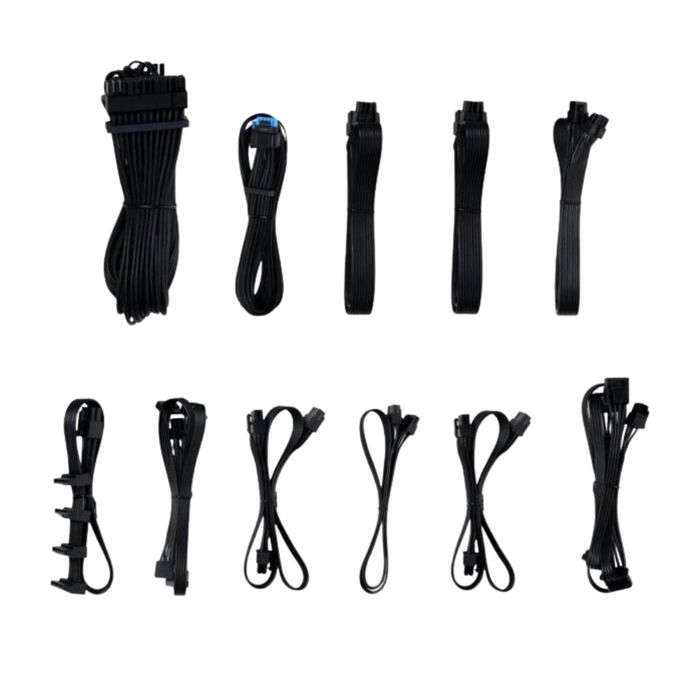

• Connectors:
  • 1 x 24/20-Pin motherboard connector (620mm) x1pcs

  • 1 x 8 pin CPU/ATX 12V connector (750mm) x1pcs

  • 1 x 4+4 Pin CPU connector (750mm) x1pcs

  • 1 x 6+2 Pin GPU connector (650mm+100mm) x1pcs

  • 1 x SATA connector (300mm-15mm-15mm-15mm) x1pcs

  • 1 x SATA-Y connector (375mm-150mm-150mm) x 1pcs

  • 1 x SATA connector (400mm-150mm-150mm-150mm) x1pcs

  • 4 x 4-Pin Peripheral connector (500mm-150mm-150mm-150mm) x1pcs
  • 1 x 12V – 2X6 450W connector (650mm) x1pcs

  • 2 x 6+2 Pin GPU connector (650mm) x2pcs
• Fan Type: 120mm FDB Fan
• Fan Speed: 2000RPM
• Fan Noise Level: 30.9dBA
• Warranty: 10 Years ( Hub 2 Years )
