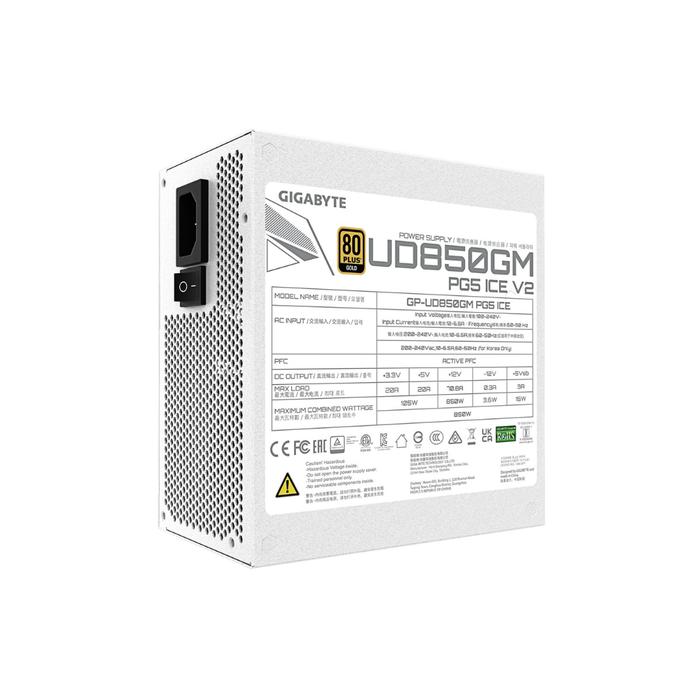

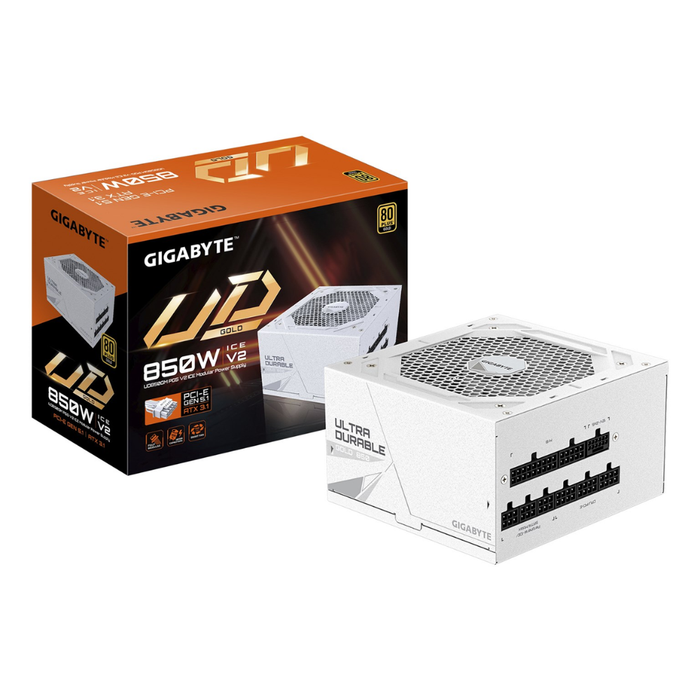

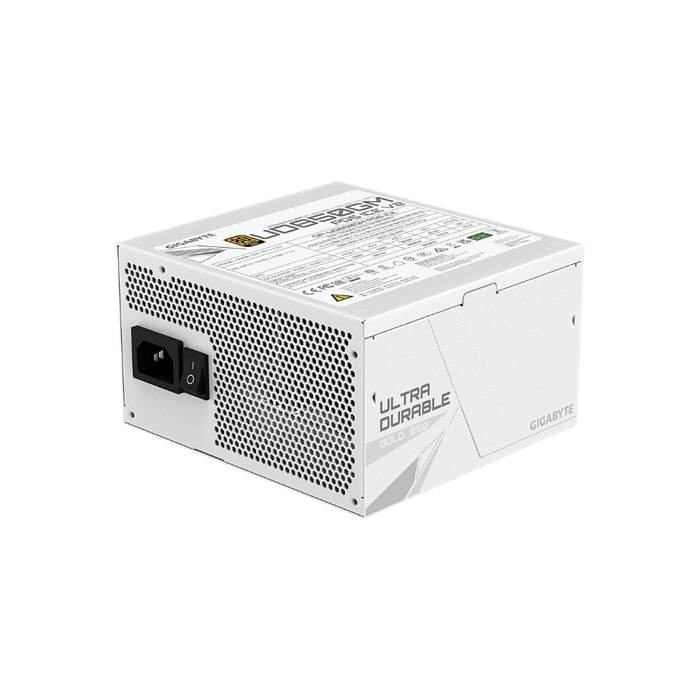

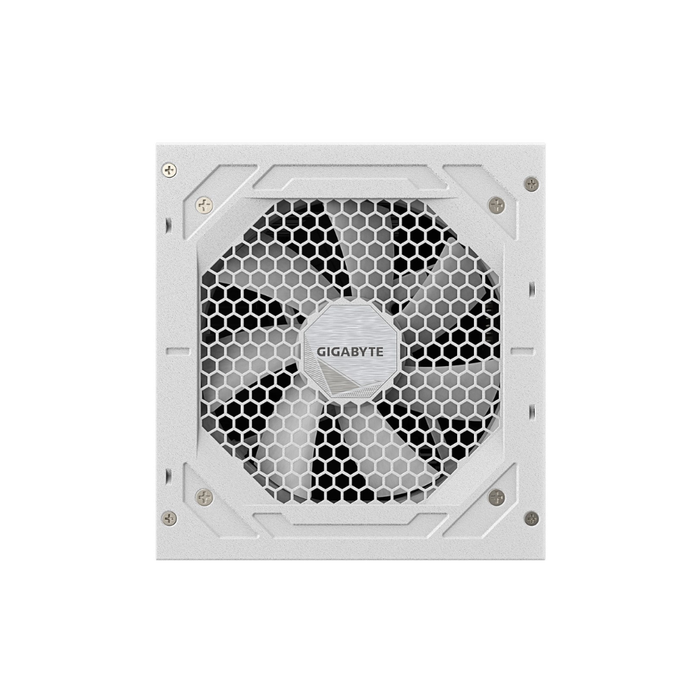

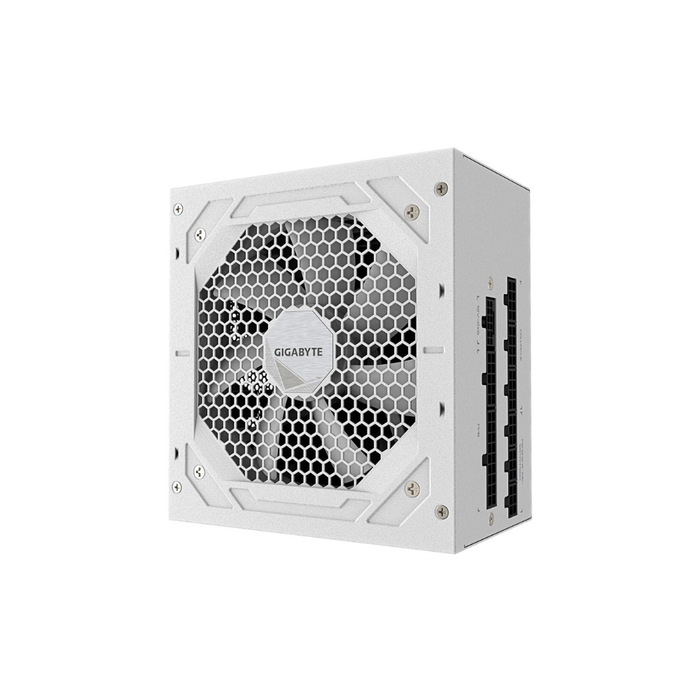

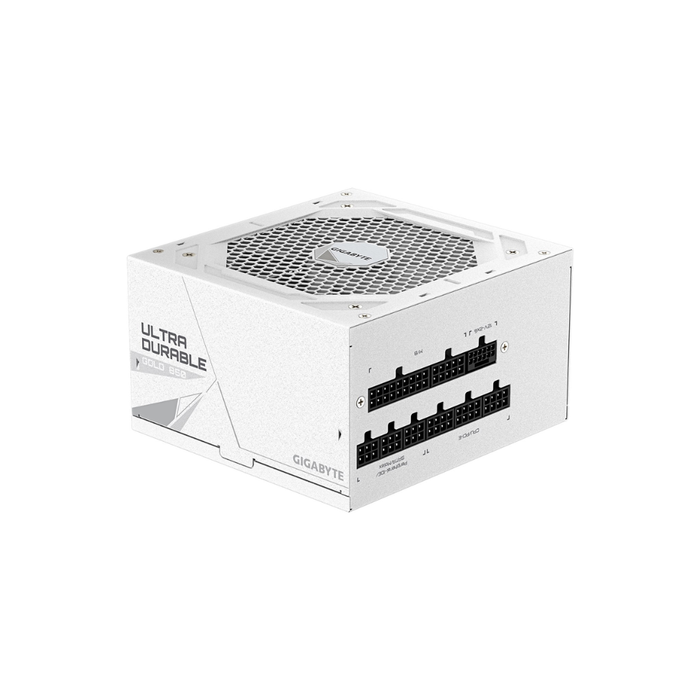

Gigabyte Power Supply UD850GM PG5 Ice Gold 850W White

Specifications:

• Product Number: GP-UD850GM PG5W

• Model: GP-UD850GM PG5 ICE
• Type: Intel Form Factor ATX 12V v3.1
• PFC: Active PFC (>0.9 typical)
• Input Voltage: 100-240 Vac (full range)
• Input Current: 15-6.5A
• Input Frequency: 60-50 Hz
• Output Capacity: 850W
• Dimension: 150 x 140 x 86 mm
• Fan Type: 120mm Hydraulic Bearing(HYB)fan
• 80 PLUS: Gold
• Efficiency: 90% at typical load
• MTBF: >100,000 hours
• Protection: OVP/OPP/SCP/UVP/OCP/OTP
• Power Good Signal: 100-150ms
• Hold Up Time: >16ms
• Cable Type: Embossed, All white

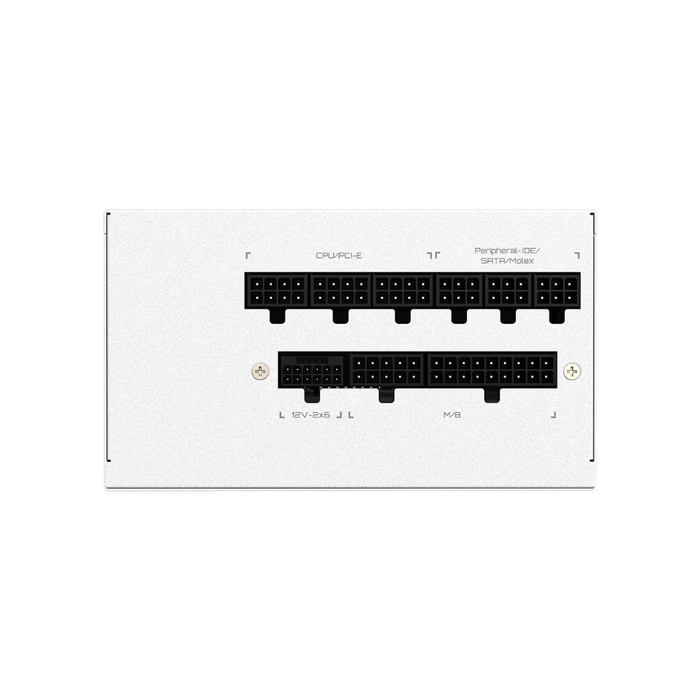

Connectors

• ATX/MB 20+4 Pin x 1 : 610mm*1
• CPU/EPS 4+4 Pin x 2 : 650mm+200mm*1

• PCI-e 6+2 Pin x 4 : 600mm+150mm*2
• PCI-e 12+4 Pin x 1:700mm*1
• SATA x 8 :600mm+150mm+150mm+150mm*2
• 4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+150mm+150mm+150mm*1
