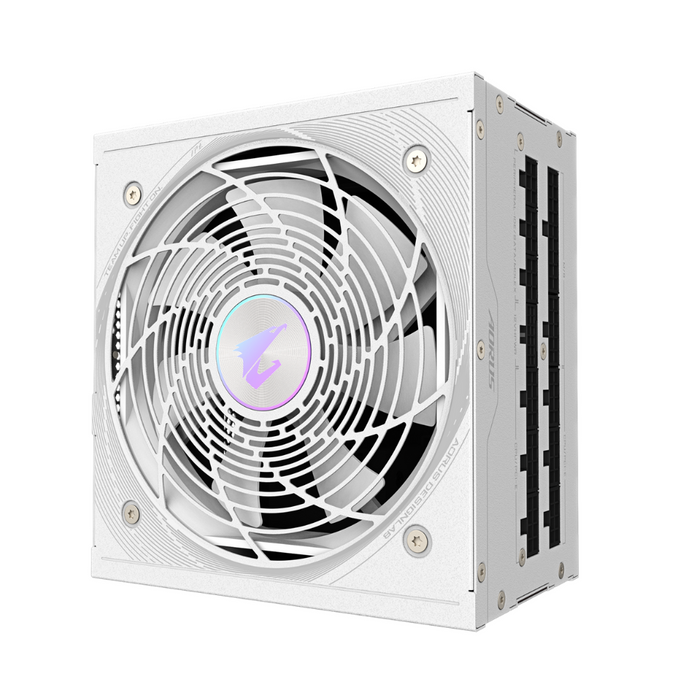

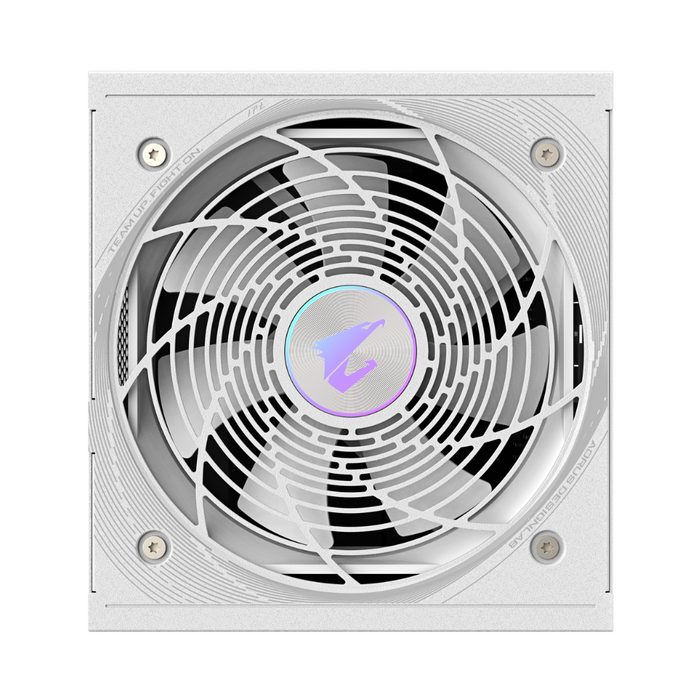

Gigabyte Power Supply AORUS ELITE P1000W Platinum 1000W White

Specifications:

• Product Number: GP-AE1000PM PG5 ICE
• Model: GP-AE1000PM PG5 ICE
• Type: Intel Form Factor ATX 12V v3.0 (compatible with ATX 3.1)
• PFC: Active PFC (>0.9 typical)
• Input Voltage: 100-240 Vac (full range)
• Input Current: 15-6.5A
• Input Frequency: 60-50 Hz
• Output Capacity: 1000W
• Dimension: 150 x 140 x 86mm
• Fan Type: 120mm Fluid Dynamic Bearing (FDB) Fan
• 80 PLUS: Platinum
• Efficiency: 92% at typical load
• MTBF: >100,000 hours
• Protection: OVP/OPP/SCP/UVP/OCP/OTP
• Power Good Signal: 100-150ms
• Hold Up Time: >16ms
• Cable Type: Flat, All white
• Connectors:
  • ATX/MB 20+4 Pin x 1 : 650mm*1
  • CPU/EPS 4+4 Pin x 2 : 700mm*2
  • PCI-e 16 Pin x 1: 700mm*1
  • PCI-e 6+2 Pin x 6 : 650mm+150mm*2, 750mm*2
  • SATA x 8 : 600mm+150mm+150mm+150mm*2
  • 4 Pin Peripheral x 4 : 500mm+150mm+150mm+150mm*1
