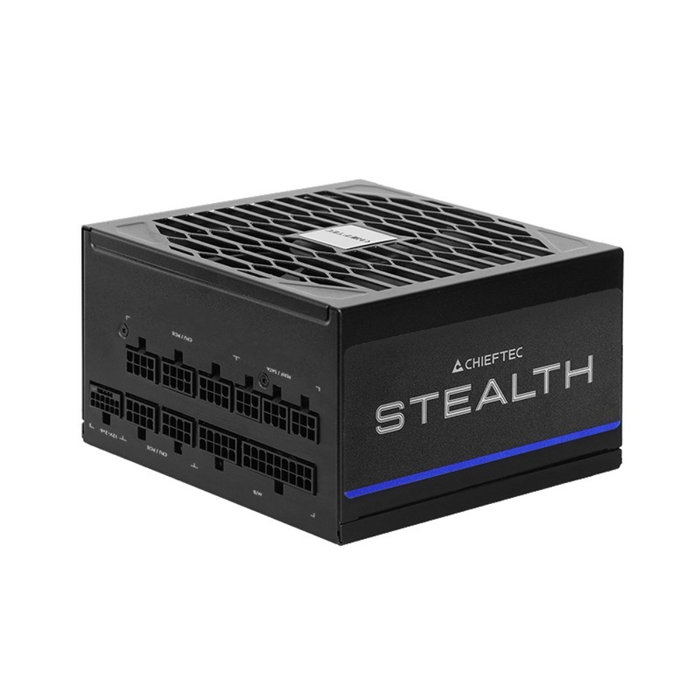

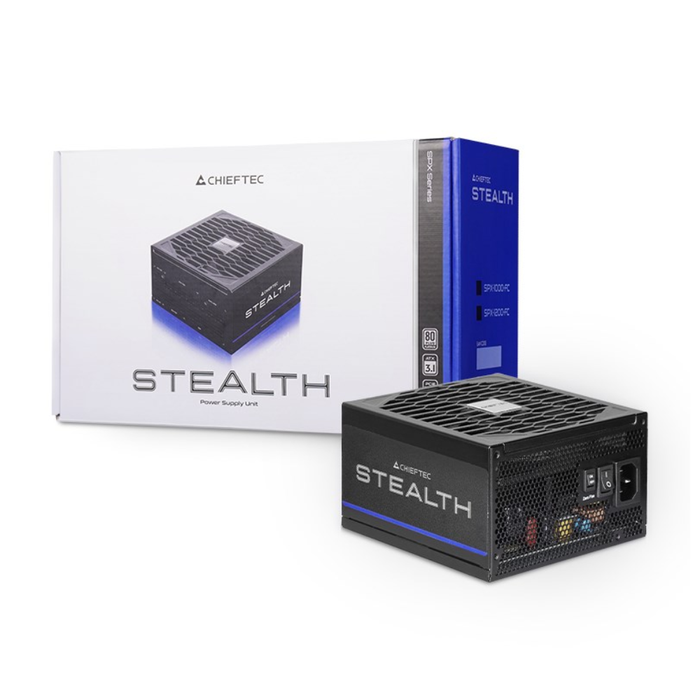

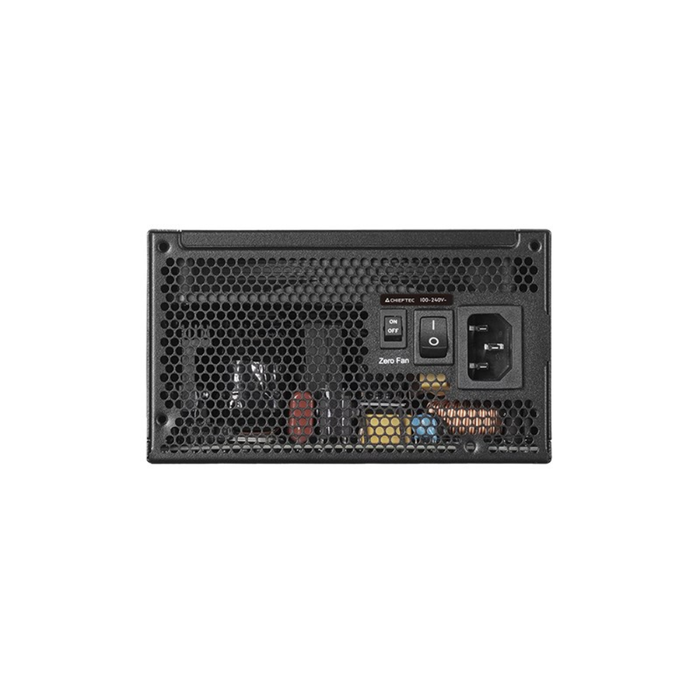

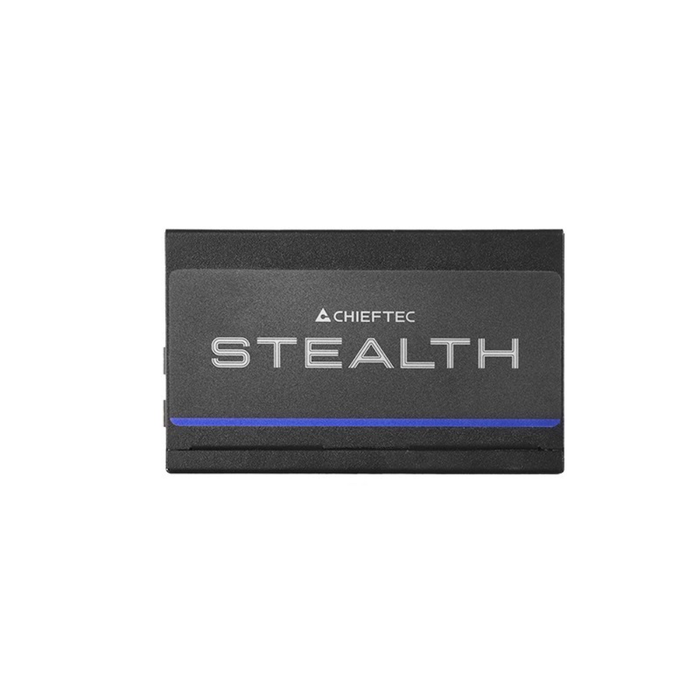

Chieftec Stealth Power Supply Vega M Series 1000W

Specifications:

• Product Number: SPX-1000-FC
• Model: Stealth 1000W

• Article no.: SPX-1000-FC

• EAN code: 0753263079251

• Weight (without/with package): 2.05kg / 2.50kg

• AC Input: 100 - 240V~ / 13.0 - 6.5A

• Frequency: 50 - 60Hz

• +5V: 20A

• +3,3V: 20A

• +5V & +3,3V combined: 100W

• +12V1: 83.3A

• +12V2: -

• +12V1, +12V2 combined : 1000W

• P.F.: ≥0.95

• -12V: -

• +5VSB: 3.0A / 15W

• Maximum Power: 1000W

Connectors

• 20+4 PIN ATX: 1

• 8 PIN EPS: 1

• 8 PIN EPS (4+4): 1

• 8 PIN PCIe (6+2): 3

• 16 PIN 12V - 2 x 6: 1

• SATA: 10

• MOLEX: 2

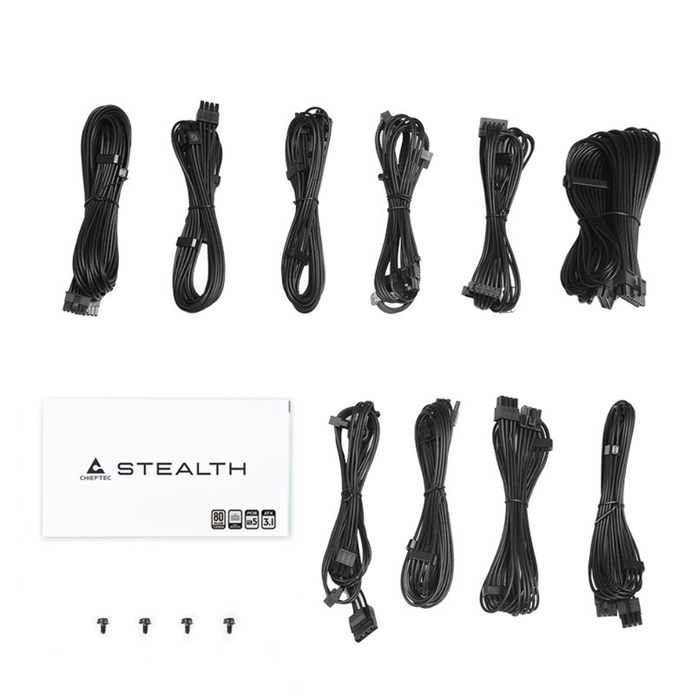

Cable length (mm)

• 20+4 PIN ATX: 600
  8 PIN EPS: 700
  8 PIN EPS (4+4): 700
  8 PIN PCIe (6+2): 3 x 650
  16 PIN 12V - 2 x 6: 650
  SATA: 2 x 500/150/150/150
  SATA/MOLEX: 500/150/150/150


Features

• ATX12V Version: ATX 12V 3.1

• Efficiency: 80Plus Platinum

• Dimension (DxWxH): 140mm x 150mm x 86mm

• PFC: Active PFC

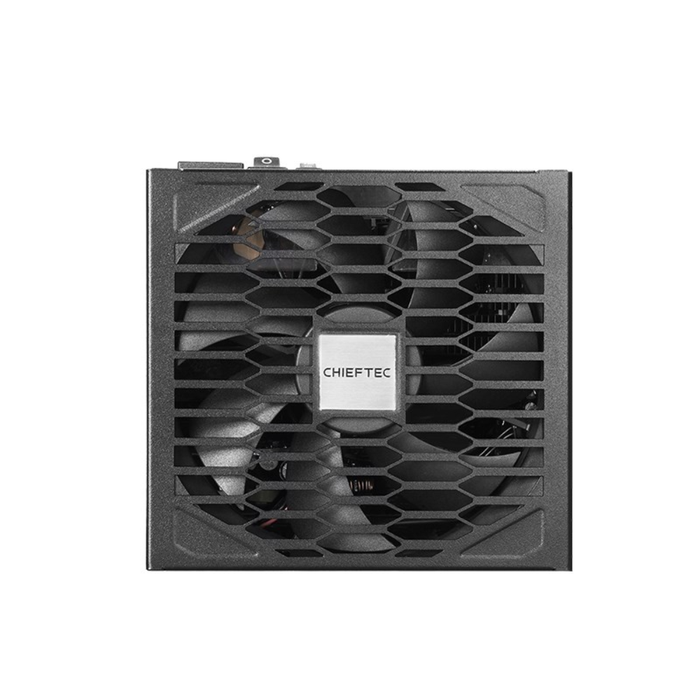

• Fan: 135mm FDB fan

• Security:
  • AFC (Automatic Fan Speed Control)

  • OPP (Overload Protection)

  • OTP (Over Temperature Protection)

  • OVP (Overvoltage Protection)

  • SCP (Short-Circuit Protection)

  • SIP (Surge & Inrush Protection)

  • UVP (Under Voltage Protection)

  • OCP (Over-Current Protection)

• Warranty: 5 Years
