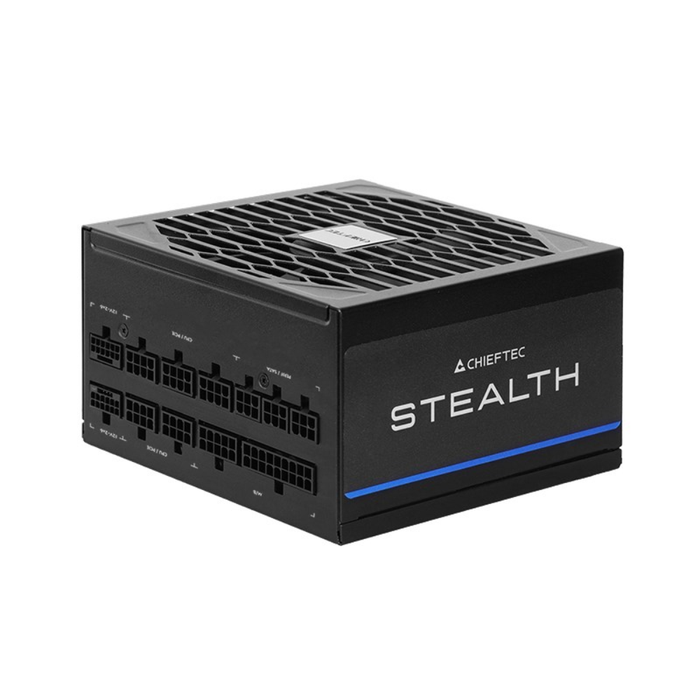

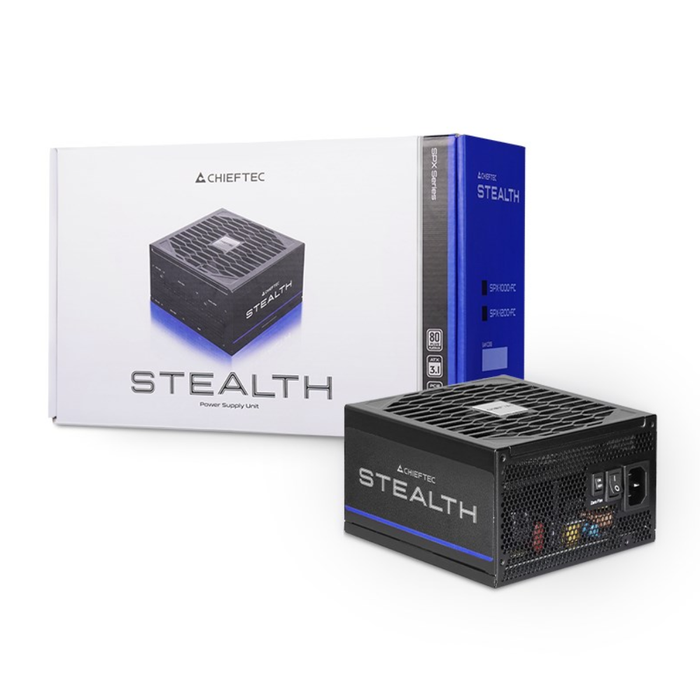

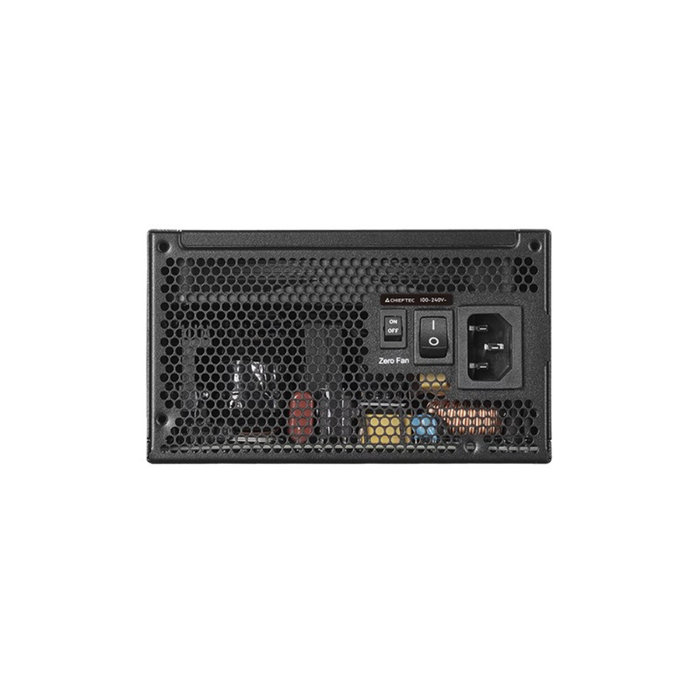

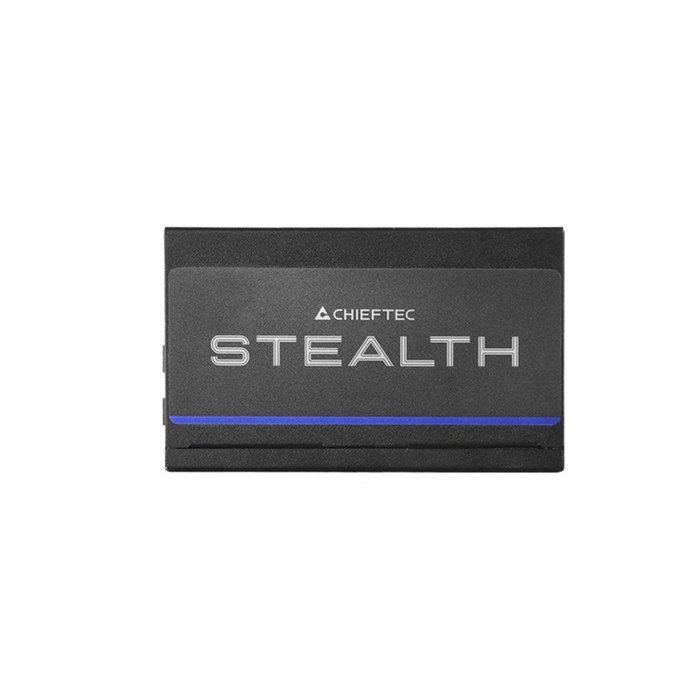

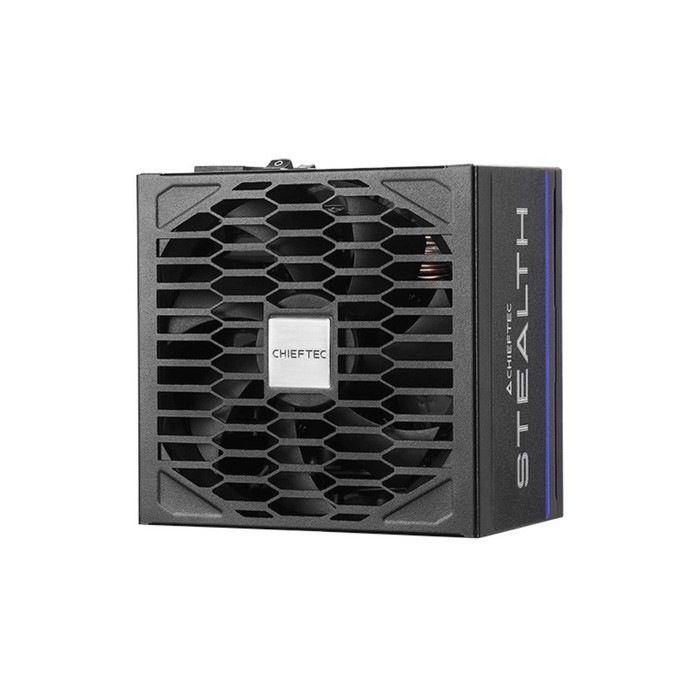

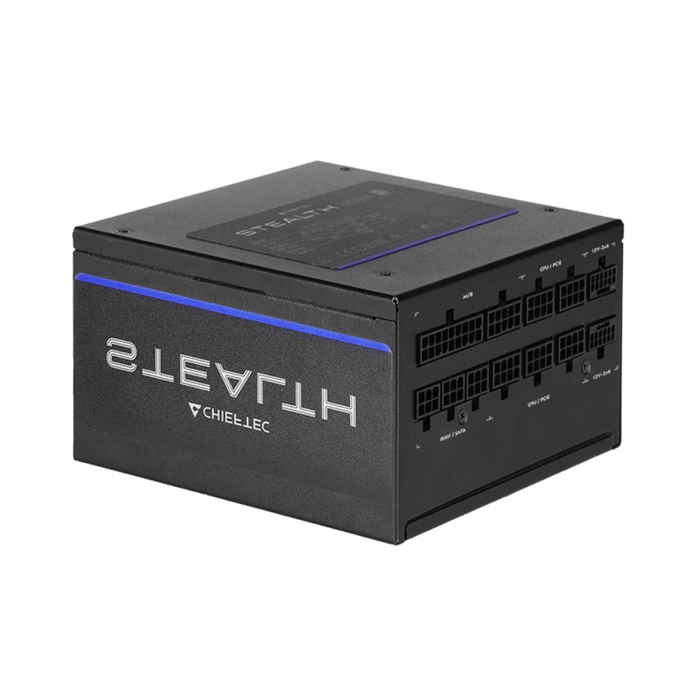

Chieftec Power Supply Stealth Vega M Series Platinum 1200W

Specifications:

• Product Number: SPX-1200-FC
• Technical Data:
  • Model: Stealth 1200W
  • Article no.: SPX-1200-FC
• • EAN code: 0753263079268

  • Weight (without/with package) ;2.86kg / 3.79kg

  • AC Input:100 - 240V~ / 15.0 - 7.5A

  • Frequency: 50 - 60Hz

  • +5V:20A

  • +3,3V: 20A

  • +5V & +3,3V combined: 100W

  • +12V1: 100A

  • +12V2 : -

  • +12V1, +12V2 combined: 1200W

  • P.F. : ≥0.95

  • -12V: -

  • +5VSB: 3.0A / 15W

  • Maximum Power: 1200W

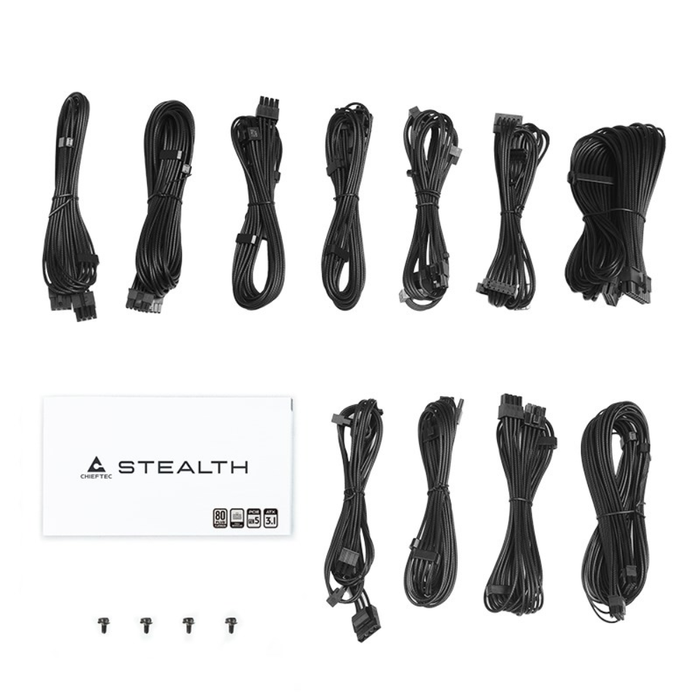

• Connectors:

  • 20+4 PIN ATX: 1

  • 8 PIN EPS: 1

  • 8 PIN EPS (4+4): 1

  • 8 PIN PCIe (6+2): 3

  • 16 PIN 12V - 2 x 6: 2

  • SATA: 10

  • MOLEX: 2
• Cable length (mm):

  • 20+4 PIN ATX: 600

  • 8 PIN EPS: 700

  • 8 PIN EPS (4+4): 700

  • 8 PIN PCIe (6+2): 3 x 650

  • 16 PIN 12V - 2 x 6: 2 x 650

  • SATA: 2 x 500/150/150/150

  • SATA/MOLEX: 500/150/150/150

• Features:

  • ATX12V Version: ATX 12V 3.1

  • Efficiency: 80Plus Platinum

  • Dimension (DxWxH): 140mm x 150mm x 86mm

  • PFC: Active PFC

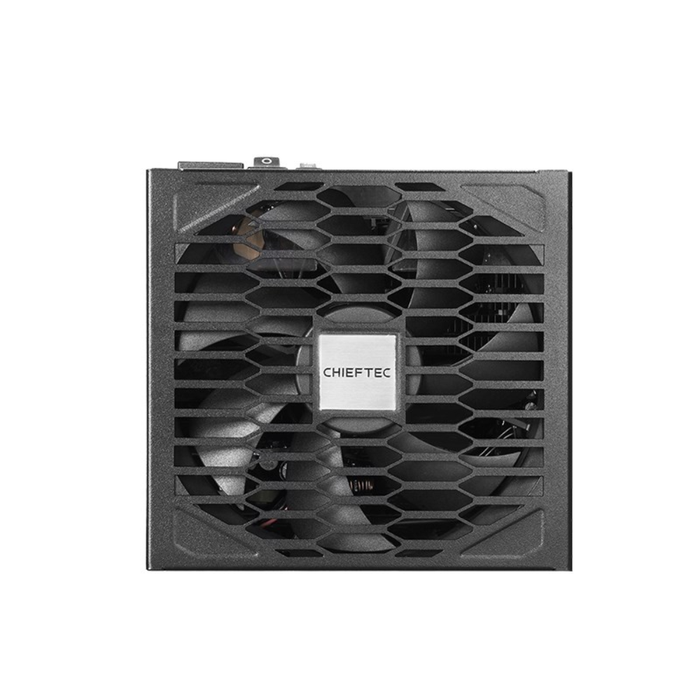

  • Fan: 135mm FDB fan

• Security :
  • AFC (Automatic Fan Speed Control)

  • OPP (Overload Protection)

  • OTP (Over Temperature Protection)

  • OVP (Overvoltage Protection)

  • SCP (Short-Circuit Protection)

  • SIP (Surge & Inrush Protection)

  • UVP (Under Voltage Protection)

  • OCP (Over-Current Protection)

• Warranty: 5 Years
