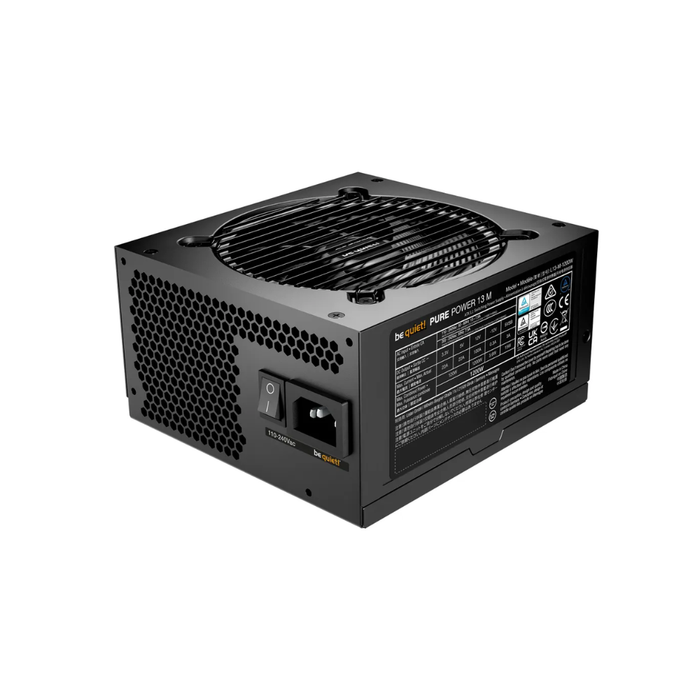

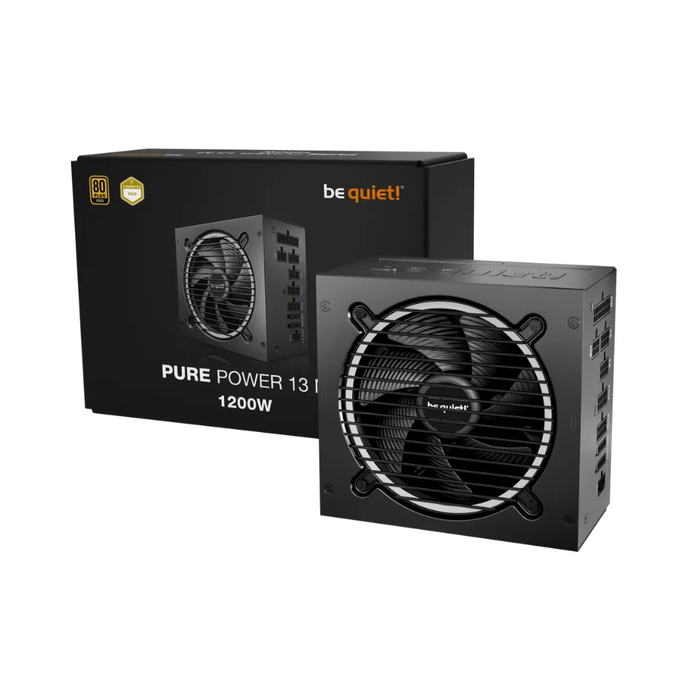

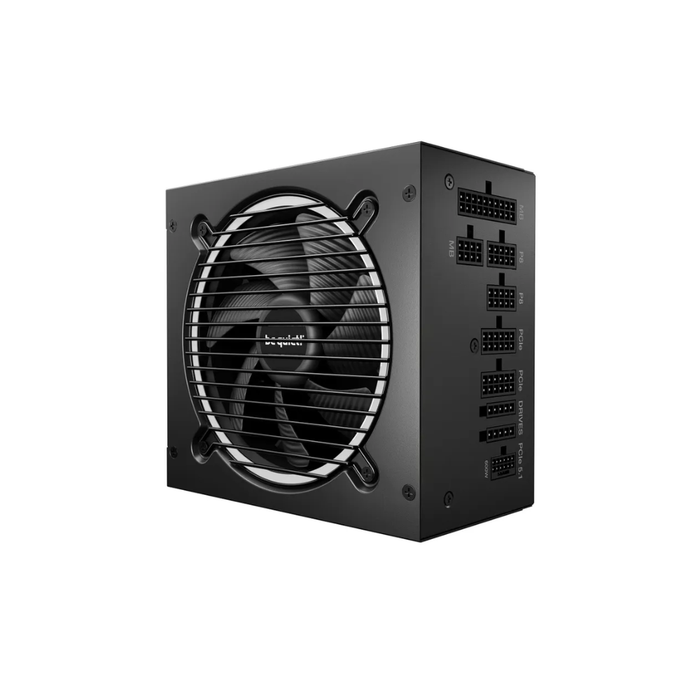

Be Quiet Power Supply Pure Power 13M 1200W Gold

Specifications:

• Product Number: BP029EU

Energy

• AC input voltage: 110 - 240 V

• Holding time: 19.11 ms

• Total performance: 1200 W

• Maximum input current (at 110V): 15 A

• Max. output current (+3.3V): 22 A

• Maximum output current (+5V): 22 A

• Efficiency: 90.8%

• Max. output current (+12V): 100 A

• Performance factor: 0.97

• Maximum input current (at 220V): 7.5 A

• Combined power (+12V): 1200 W

• Combined current (+5V): 120 W

• Peak current: 1250 W

• Power Factor Correction Filter (PFC): Active

• Combined current (+5Vsb): 15 W

• AC input frequency: 50/60 Hz

• Energy protection properties: Overcurrent, overload, overvoltage, overheating, short circuit, surge & inrush protection (SIP), undervoltage

• Number of +12V rail(s): 1

• Max. output current (+5Vsb): 3 A

• Max. output current (-12V): 0.3 A

• Combined current (+3.3V): 120 W

• Combined current (-12V): 3.6 W


Connections and interfaces:

• Number of Molex connectors: 4-pin,2

• PCI Express power connectors (12-pin): 1

• CPU P4 connector (4-pin): 2

• Number of SATA power connectors: 6

• EPS power connector (8-pin): Yes

• Number of PCI Express power connectors: 6+2pin,4

• SATA power cable length:500, 650, 800, 950 mm

• CPU performance Cable length: 65 cm

• Power cable length motherboard: 55 cm

• Motherboard connector: 20+4 pin ATX

• Peripheral (Molex) network cable length: 800,950 mm

• Cable type: Fully modular

• CPU connector (4+4 pin): Yes

• PCI Express power cable length: 60 cm

• Number of SATA power cables: 2

• PCI Express connector:Yes


Services

• Storage type: gun

• Power Supply Unit (PSU) Form Factor:ATX

• ATX version: 3.1

• 80 Plus Certification:80 PLUS Gold

• Purpose: PC

• Mean time between failures (MTBF): 100,000 h

• EPS version: 2.92

• noise level: 32.3 dB


Design

• On/Off switch: Yes

• Product color: Black

• fan diameter: 12 cm

• Number of fans: 1 fan

• cooling: Active

• fan speed: 0 - 2700 RPM

• lighting: No


Operating conditions

• Operating temperature: 0 - 40 °C

• Humidity during storage: 0 - 95%

• Temperature range during storage: -40 - 70 °C

• Relative humidity during operation: 0 - 85%


Scope of delivery

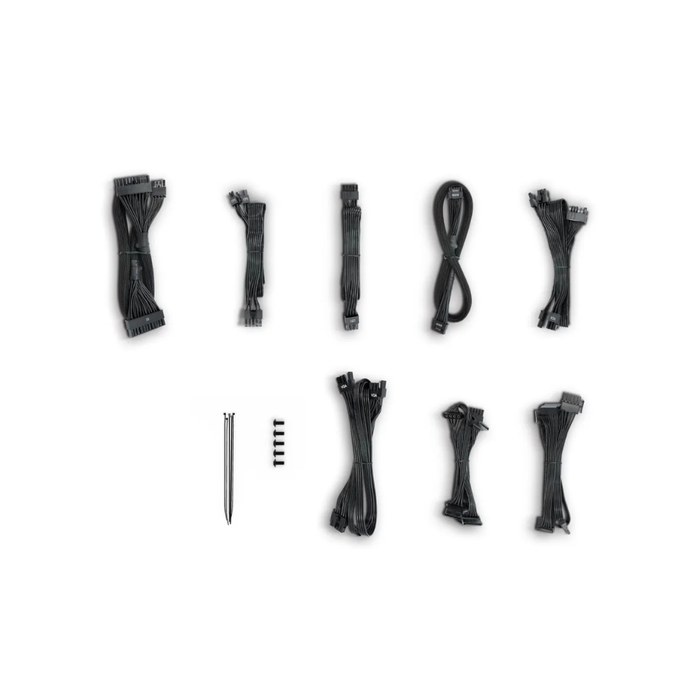

• Included cables: AC, CPU, PCIe, Peripheral (Molex), SATA


Certificates

• Certificates of conformity: BSMI, CB, CCC, CE, Swiss Federal Communications
• Commission (FCC), IRAM, RCM, RoHS, TÜV mark, UKCA, WEEE, cTUVus

• Conformity of Waste Electrical and Electronic Equipment (WEEE): Yes


Weight and dimensions

• Height: 86 mm

• depth: 160 mm

• Width: 150 mm

• Weight: 2.69 kg


Packaging data

• Packaging depth: 284 mm

• Operating instructions: Yes

• Packaging height: 100 mm

• Packaging type: box

• Package weight: 3.14 kg

• Languages of the manual:German, English, Spanish, French, Polish, Russian,Ukrainian
• Packaging width: 220 mm


Technical details

• Sustainability certificates: ENERGY STAR, ErP


Logistics data

• Quantity per shipping carton: 6 pieces

• Shipping carton height: 24.5 cm

• Weight (inner) shipping carton: 20.8 kg

• Shipping carton length: 59 cm

• Shipping carton width: 32 cm


Other functions

• Screws included: Yes

• Cable ties included: Yes
