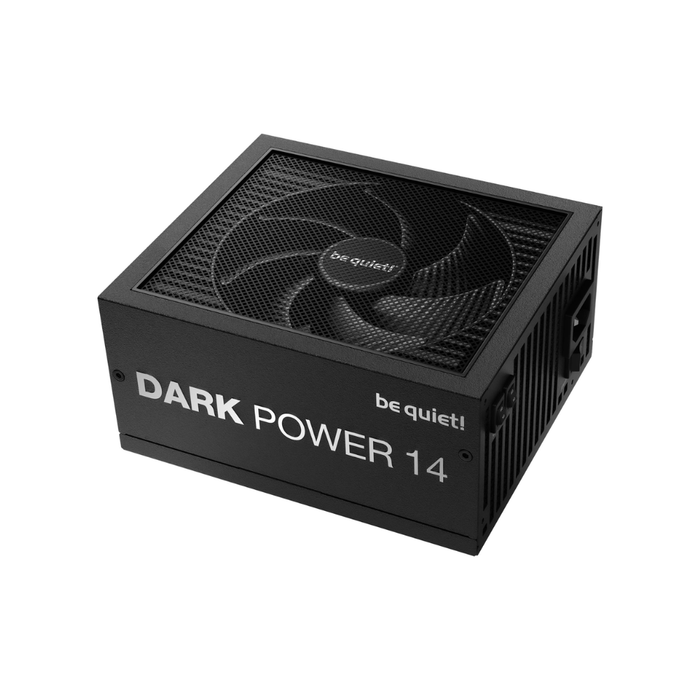

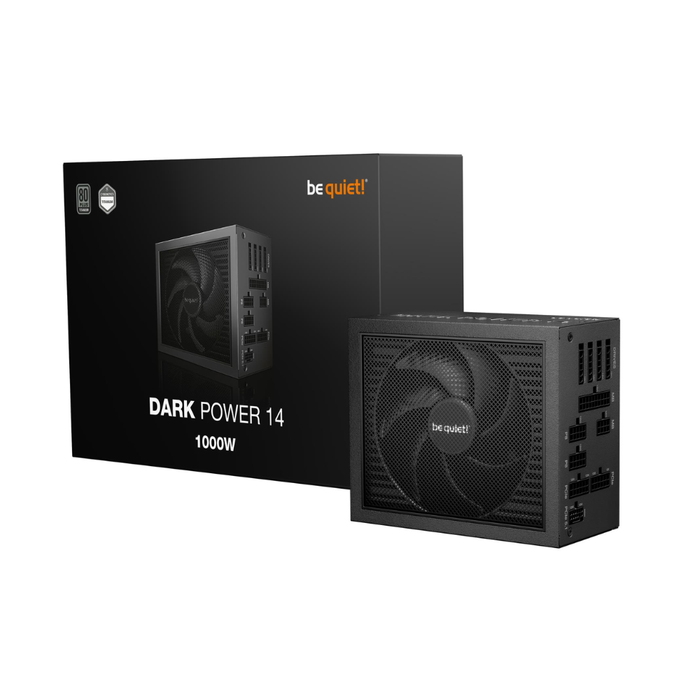

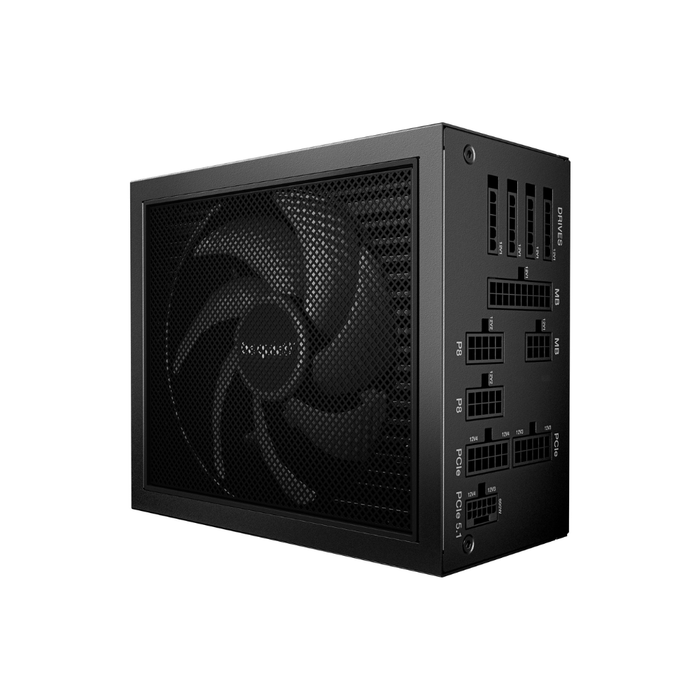

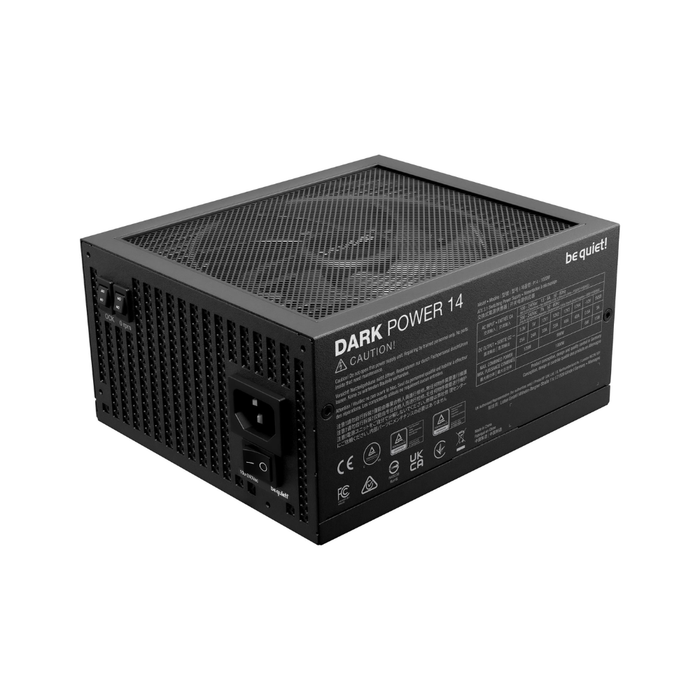

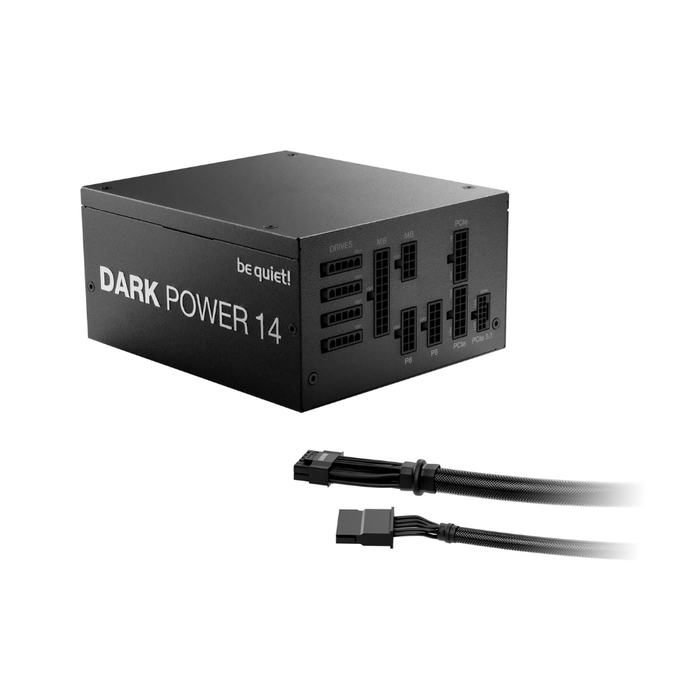

Be Quiet Power Supply Dark Power 14 Titanium 1000W

• Product Number: BP020EU

Power

• AC input frequency: 50/60 Hz

• AC input voltage: 100 - 240 V

• Combined power (+12V): 996 W

• Combined power (+3.3V) : 120 W

• Combined power (+5V): 120 W

• Efficiency: 93.8 %

• Hold time: 20.1 ms

• Max output current (+12V1): 33 A

• Max output current (+12V2): 33 A

• Max output current (+12V3): 40 A

• Max output current (+12V4): 40 A

• Max output current (+5V): 24 A

• Max output current (+5Vsb): 3 A

• Max output current (-12V): 0.5 A

• Maximum input current (@110V): 0 A

• Maximum input current (@220V): 5 A

• Number of +12V rail(s): 4

• Peak power: 1100 W

• Power factor: 0.98

• Power protection features:Over current/Over voltage/Overheating/Overload/Short circuit/Surge & inrush protection (SIP)/Under voltage

• Total power: 1000 W


Ports & interfaces

• ATX power connector (20+4 pin): Yes

• Cabling type: Fully-Modular

• CPU power cable length: 700 mm

• CPU power connector (4+4 pin): Yes

• EPS power connector (4+4 pin): Yes

• EPS power connector (8-pin): Yes

• Motherboard power cable length: 600 mm

• Motherboard power connector: 20+4 pin ATX

• Number of SATA power cables: 4

• Number of SATA power connectors: 13

• PCI Express connector: Yes

• PCI Express power cable length: 600 mm

• PCI Express power connectors (12-pin): 1

• PCI Express power connectors (6+2 pin): 4

• Peripheral (Molex) power cable length: 1050/900 mm

• Peripheral (Molex) power connectors (4-pin): 2

• SATA power cable length: 1050/600/750/900 mm


Performance

• 80 PLUS certification: 80 PLUS Titanium

• ATX version: 3.1

• Bearing technology: FDB

• EPS version: 2.92

• Mean time between failures (MTBF): 100000 h

• Noise level: 18.2 dB

• Power supply unit (PSU) form factor: ATX

• Purpose: PC


Design

• Cooling type: Active

• Fan diameter: 135 mm

• Fan speed: 0 - 2100 RPM

• Number of fans: 1 fan(s)

• On/off fan switch: Yes

• On/off switch: Yes

• Product colour: Black


Operational conditions

• Operating temperature (T-T): 0 - 40 °C


Certificates

• Compliance certificates: CB/cTUVus/Federal Communications Commission (FCC)/RoHS/TÜV mark/UKCA/WEEE


Weight & dimensions

• Depth: 175 mm

• Height: 86 mm

• Weight: 2200 g

• Width: 150 mm


Packaging data

• Manual: Yes

• Manual languages: English/French/German/Italian/Japanese/Polish/Russian/Simplified Chinese/Spanish/Thai/Ukrainian

• Package depth: 126 mm

• Package height: 355 mm

• Package weight: 3500 g

• Package width: 230 mm


Technical details

• Sustainability certificates: ENERGY STAR/ErP/Triman

Other features

• Cable ties included: Yes

• Screws included: Yes
• Unit Calculated Weight: 4.82 kg
