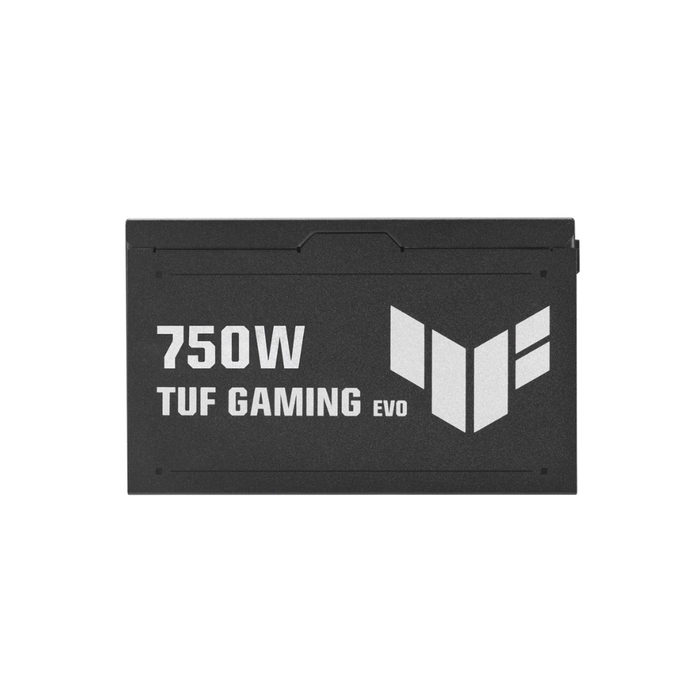

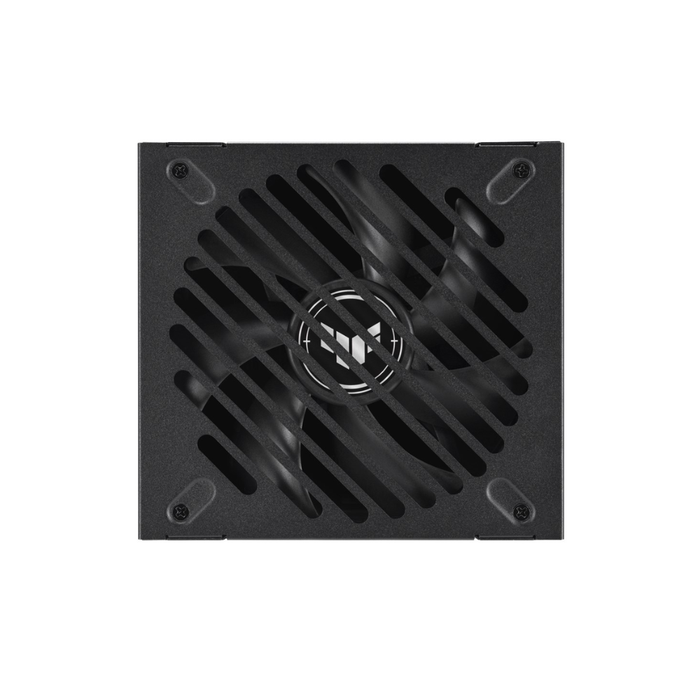

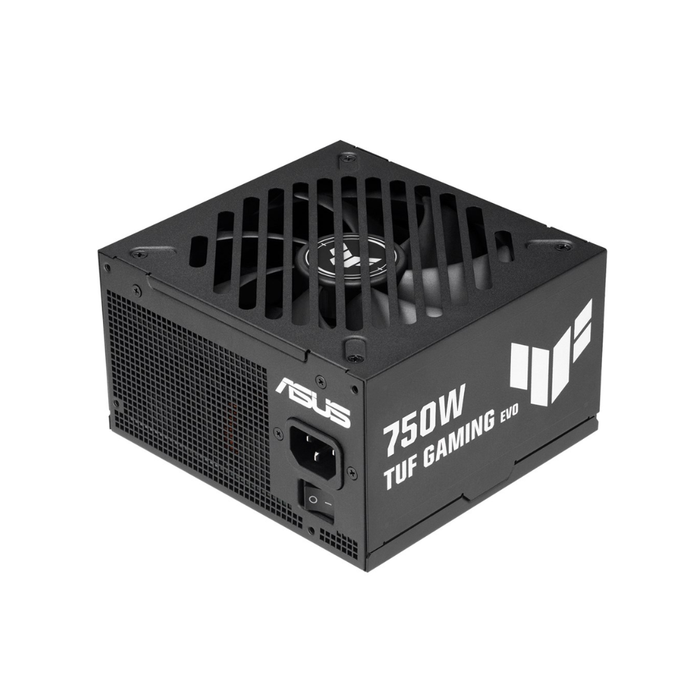

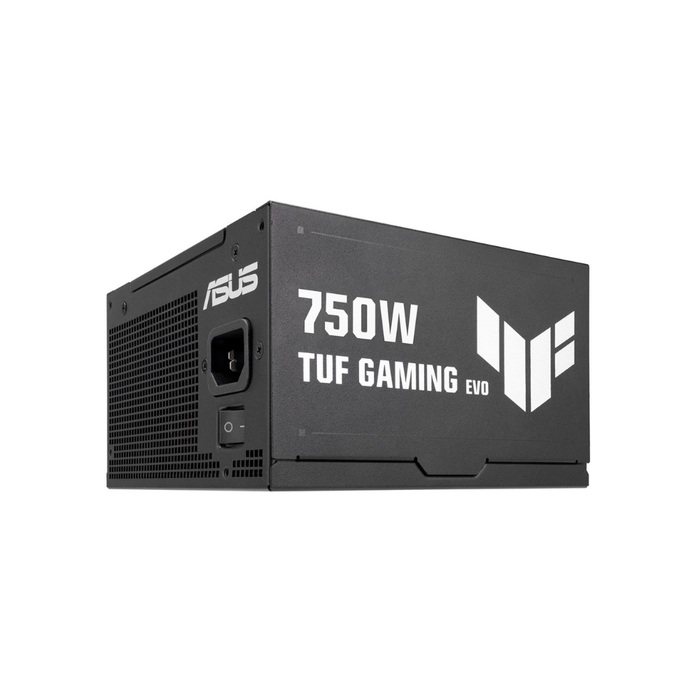

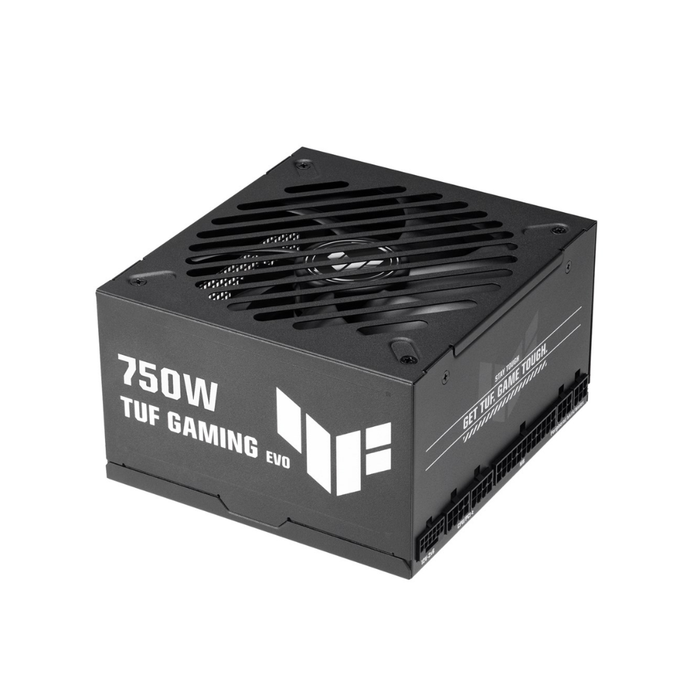

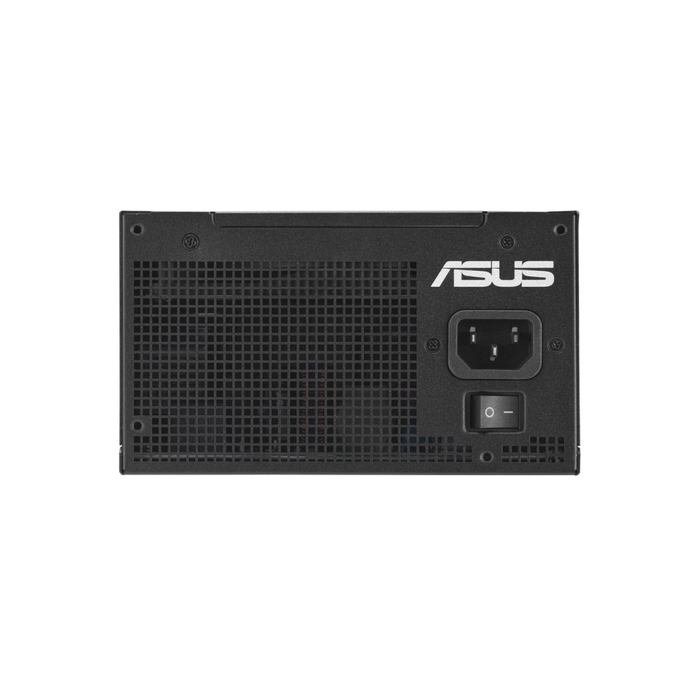

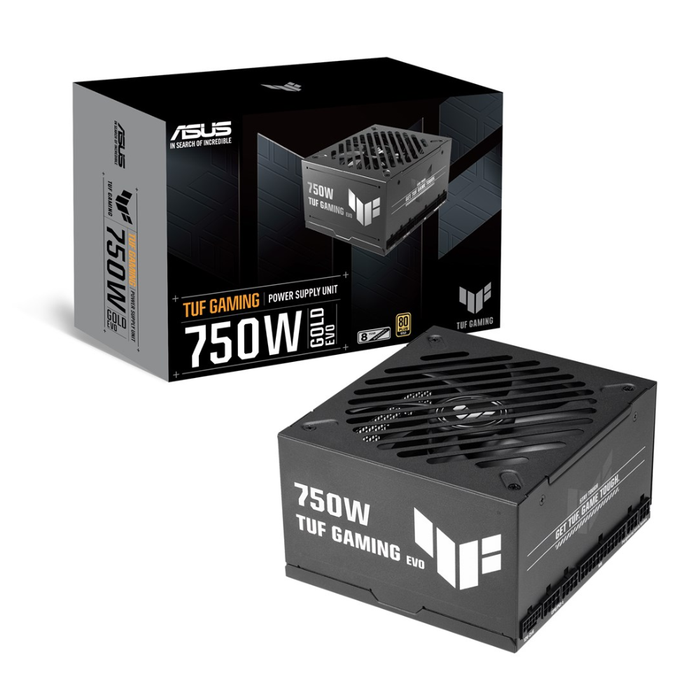

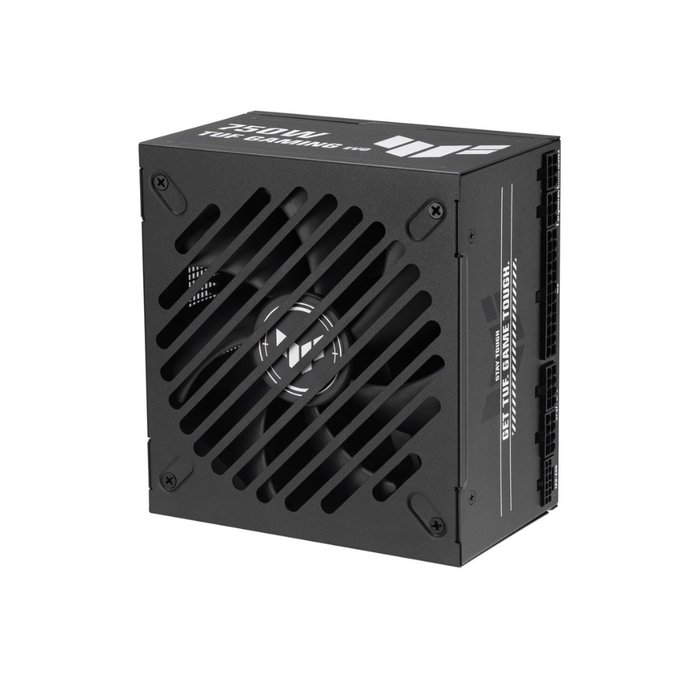

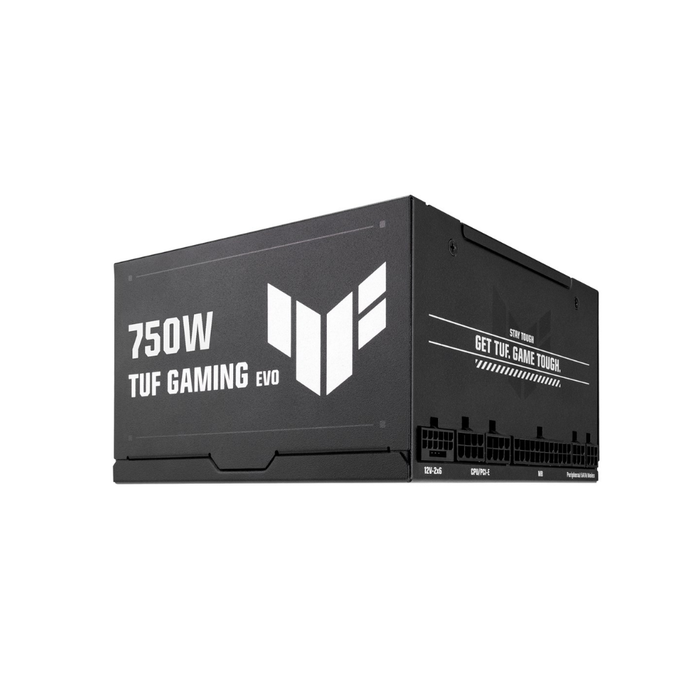

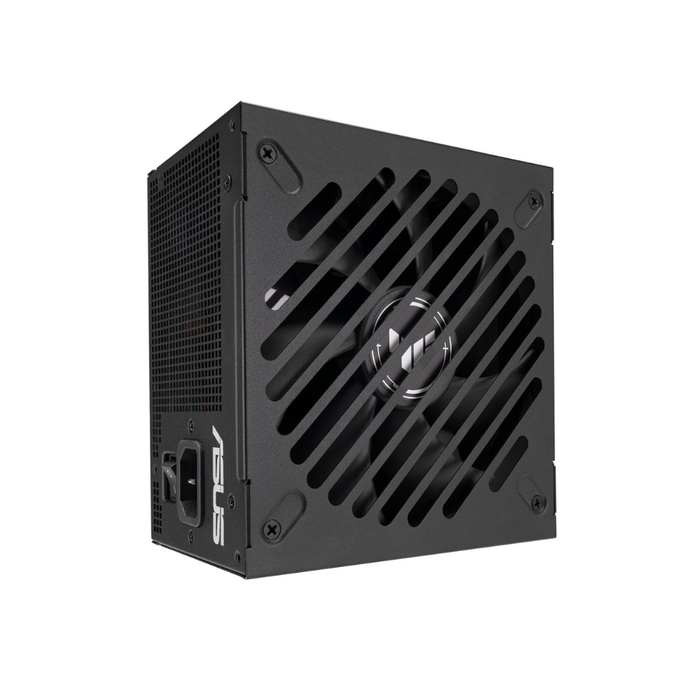

Asus Power Supply TUF Gaming 750G EVO 750W

Specifications:

• Product Number: 90YE00SB-B0NA00
• Model: TUF-GAMING-750G-EVO

• Intel Form Factor: ATX12V
• PFC Type: Active PFC
• ATX Standard: ATX 3.1
• Dimensions: 140 x 150 x 86 mm
• Efficiency: 80Plus Gold
• MTBF: >120,000 hrs @ 40°C
• Protection Features: OPP/OVP/UVP/SCP/OCP/OTP
• Hazardous Materials: ROHS
• AC Input Range: 100-240Vac
• DC Output Voltage: +3.3V +5V +12V -12V +5Vsb
• Maximum Load: 20A 20A 62.5A 0.3A 3A
• Combined Load: 110W 110W 750W 3.6W 15W
• Total Output: 750W

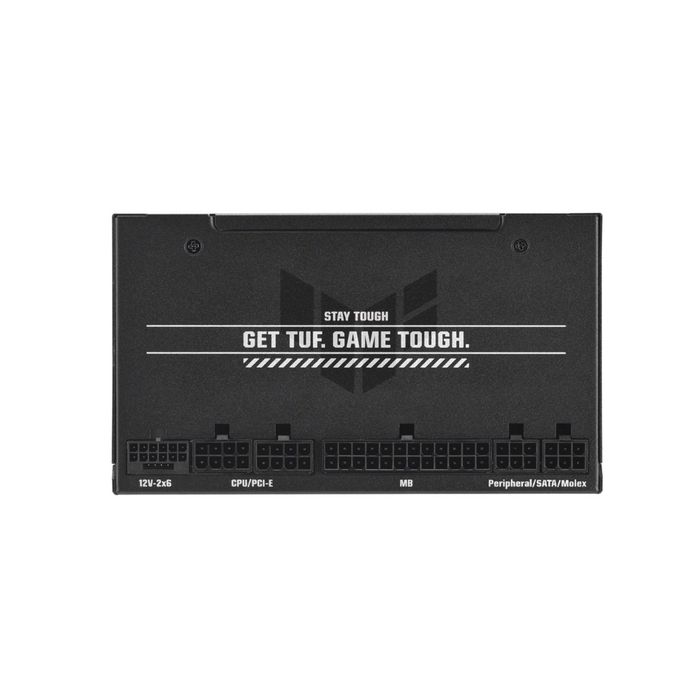

• Cable Connectors:
  • MB 20+4pin x 1

  • CPU 4+4pin x 2

  • PCI-E 16pin x 1 (12V-2x6)

  • PCI-E 6+2pin x 2

  • SATA x 4

  • PERIPHERAL x 2
• Package Contents:

  • Power Cord x 1

  • Motherboard Power cable x 1 (610mm)

  • CPU 1-to-2 Cable x 1 (650mm+100mm)

  • PCI-E Gen 5.1 Cable (16-pin-to-16-pin) x 1 (500mm)

  • PCI-E 1-to-2 Cable (8-pin-to-6+2pin*2) x 1 (500+100mm)

  • SATA & Peripheral 1-to-2+1 Cable x 2 (400+120+120mm)

  • TUF Gaming Cable Tie x 3

  • User Manual x 1
• Weight: 1.32 kg (single PSU)
• Cybenetics Noise Level Certification: NA
• 0dB Technology: No
