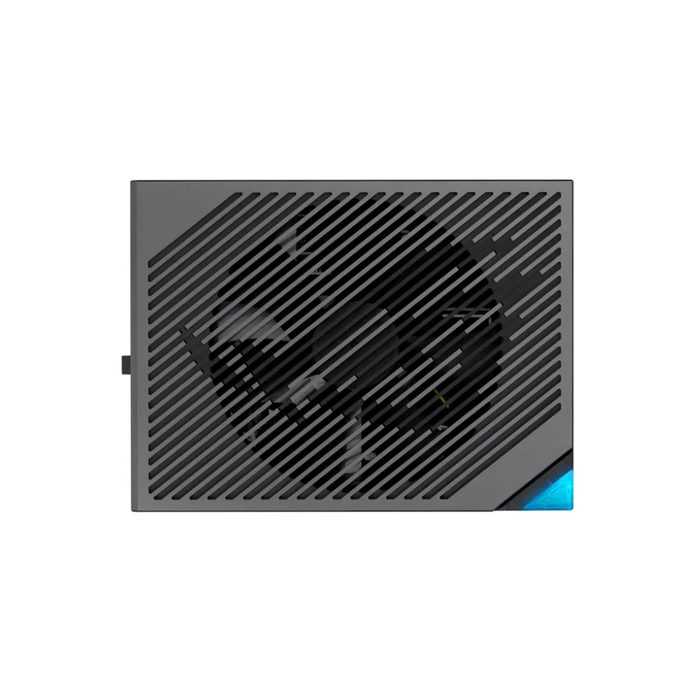

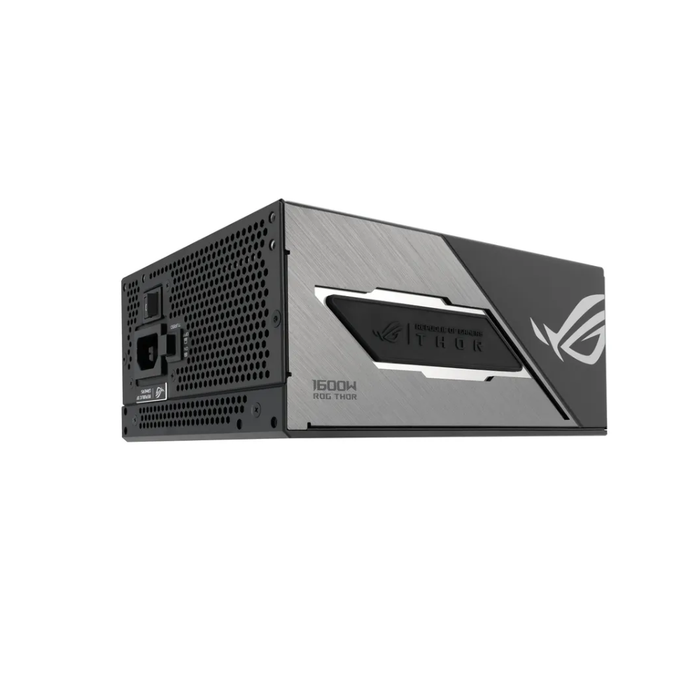

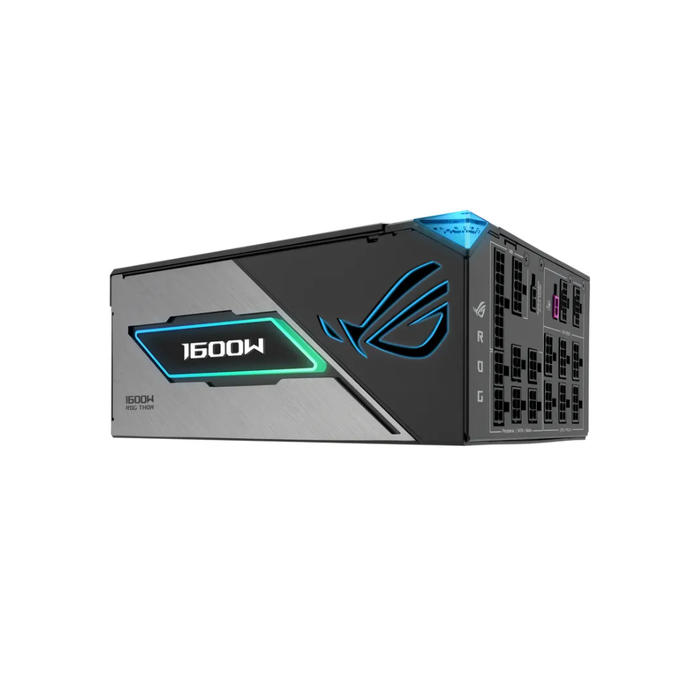

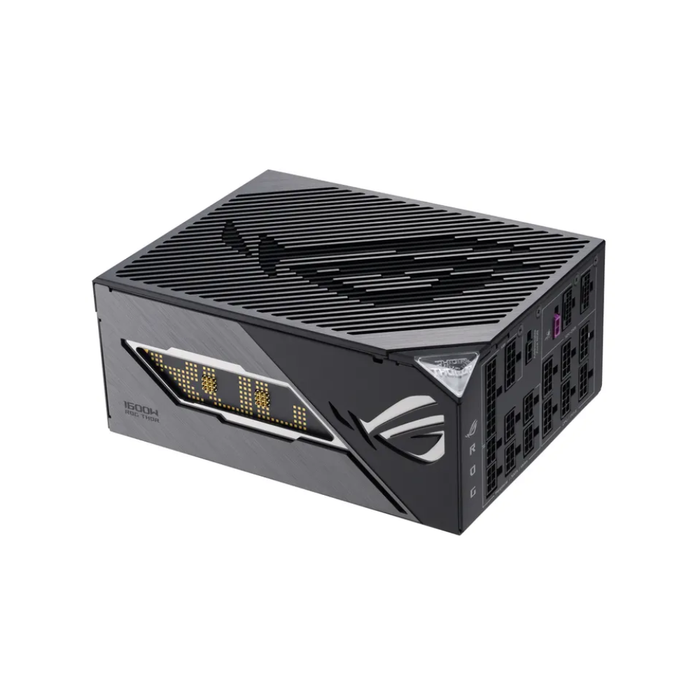

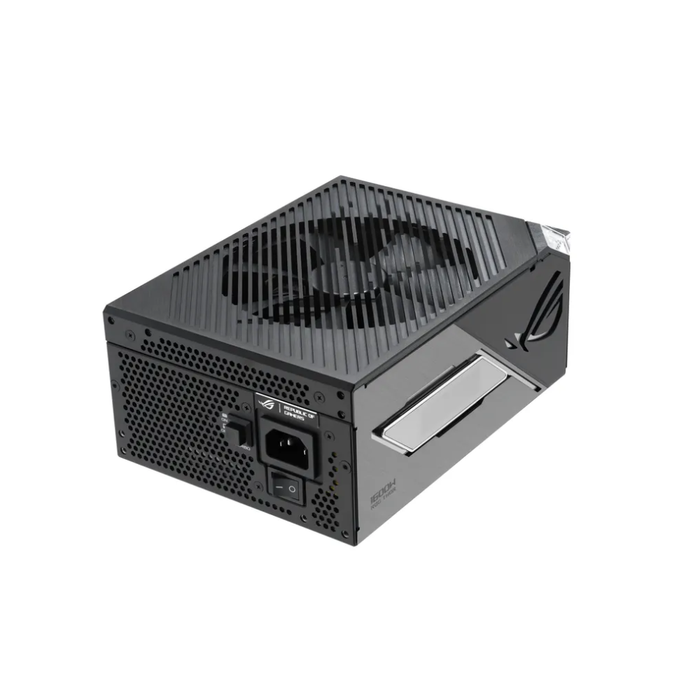

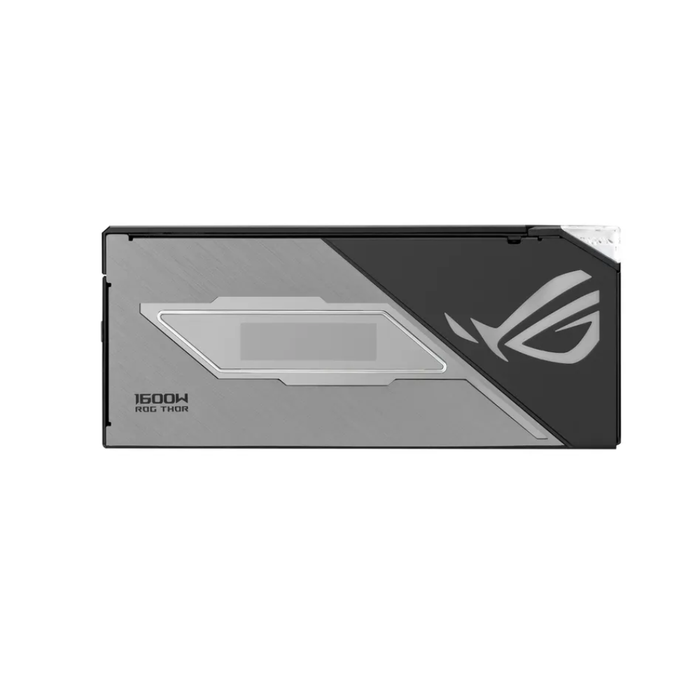

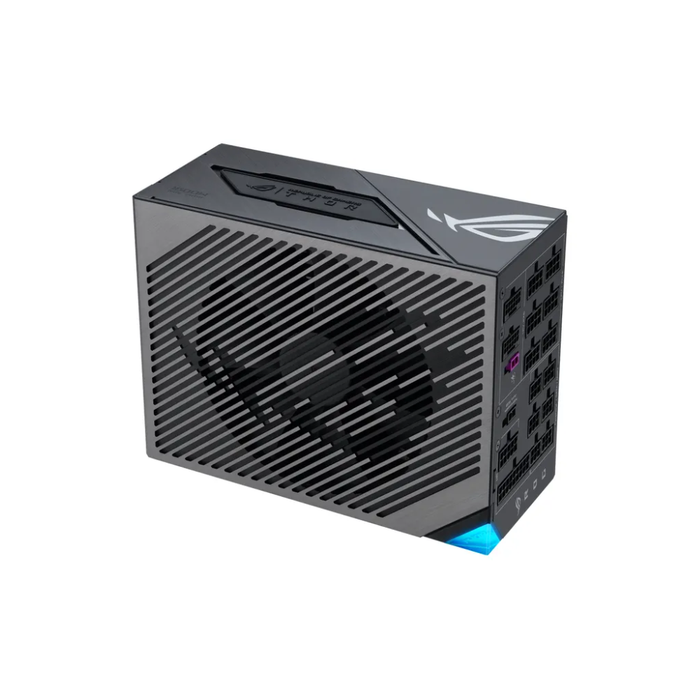

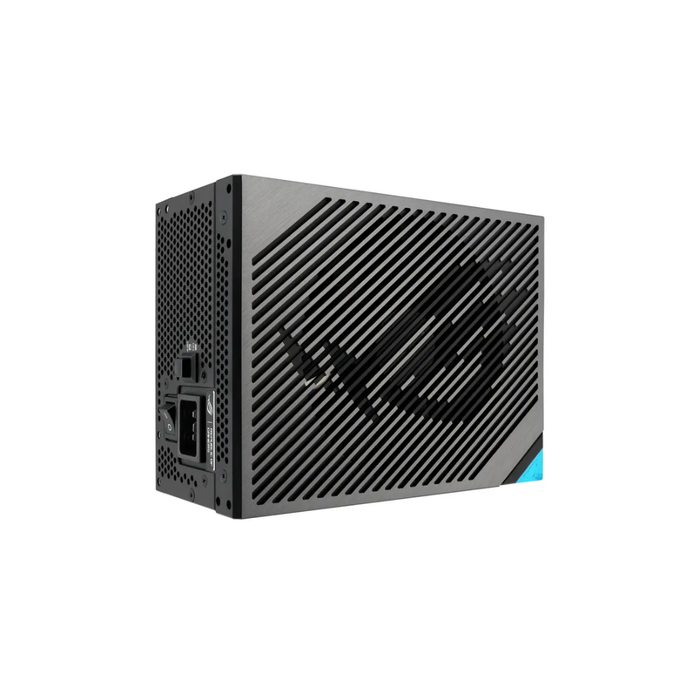

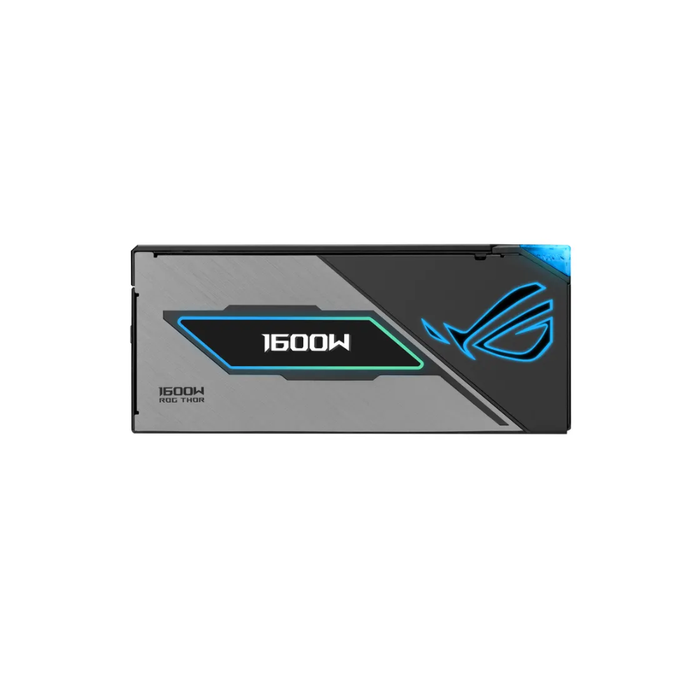

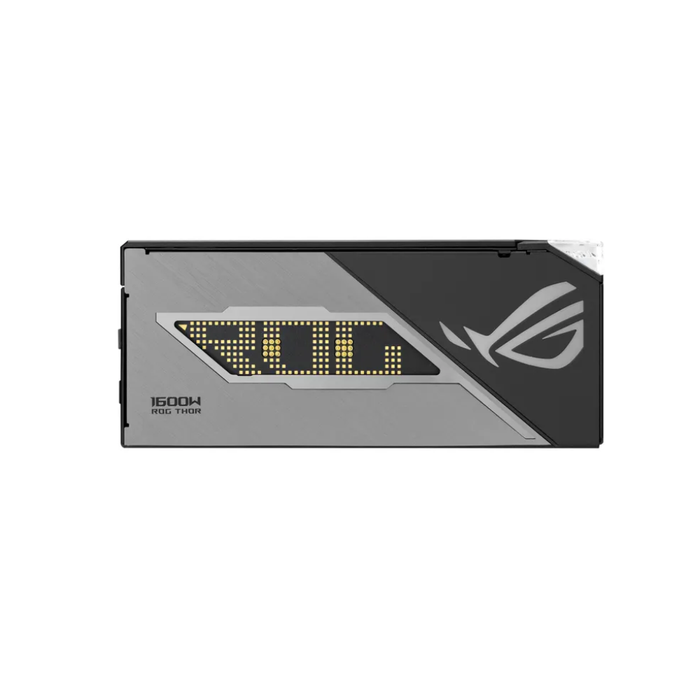

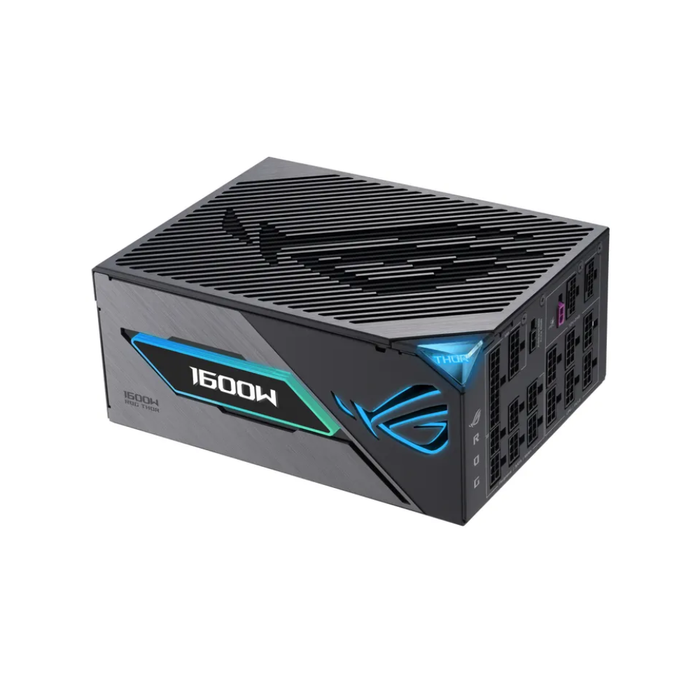

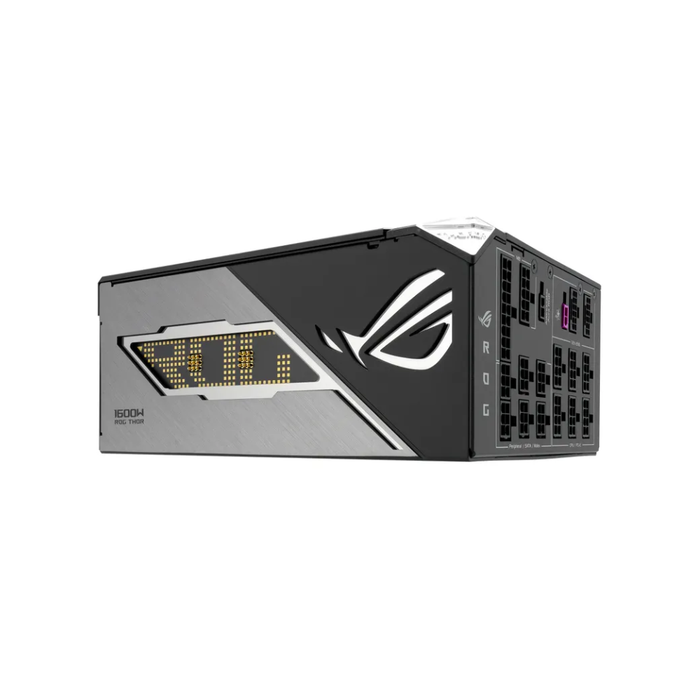

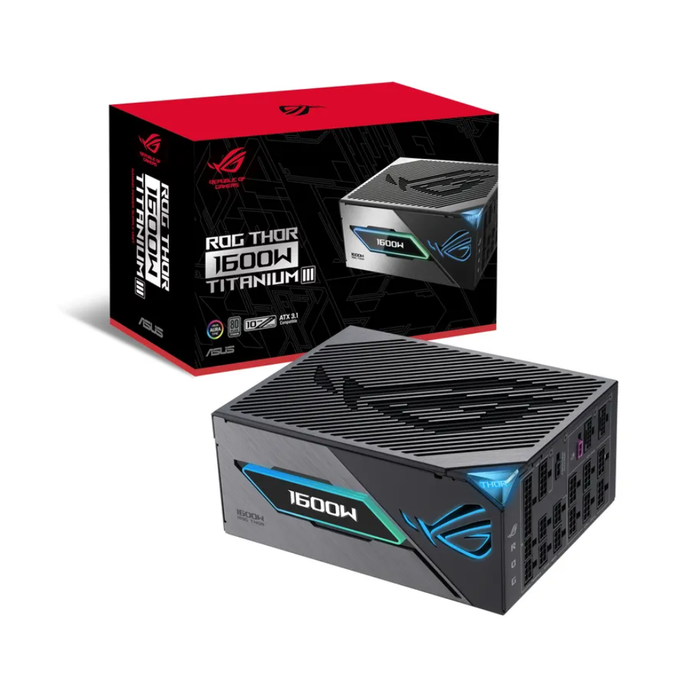

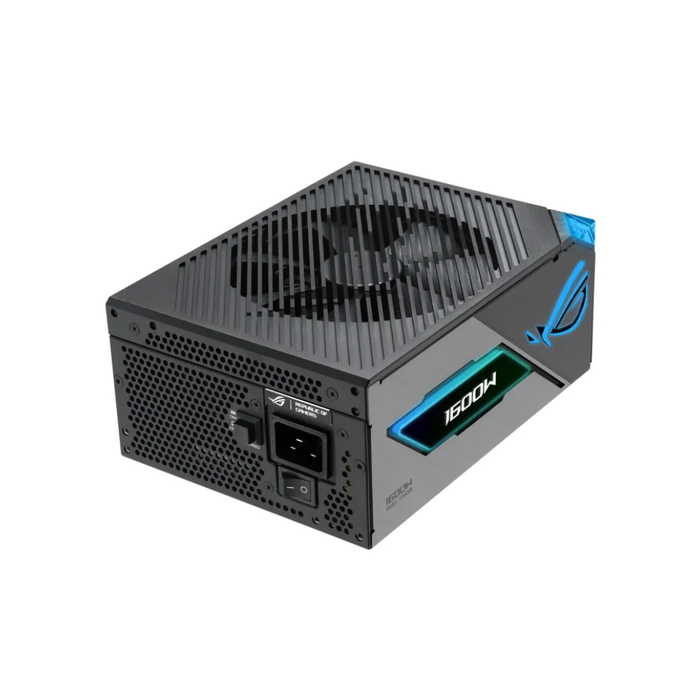

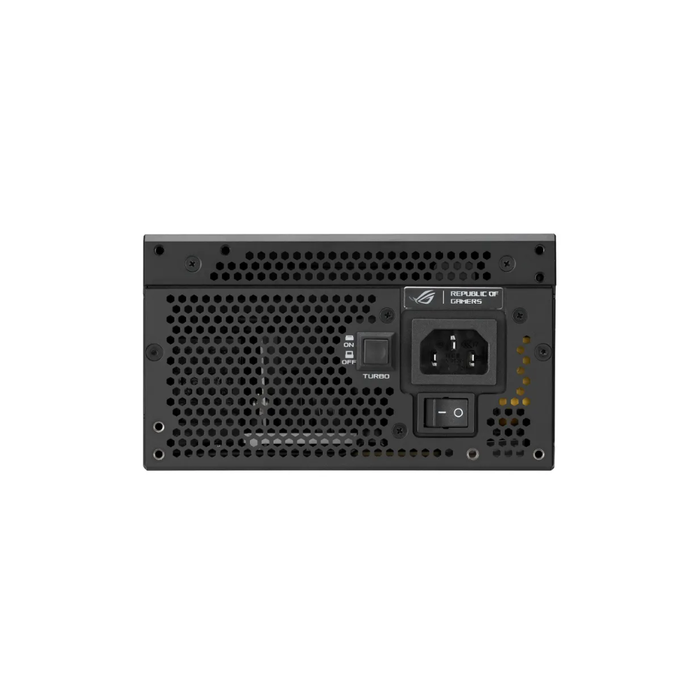

Asus Power Supply Rog Thor III Gaming 1600W Titanium

Specifications:

• Product Number:90YE00V1-B0NA00
• Model: ROG THOR 1600W Titanium III
• PFC Type: Active PFC
• ATX Standard: ATX 3.1
• Dimensions: 200 x 150 x 86 mm
• Efficiency: 80Plus Titanium
• MTBF: >120,000 hrs @ 25°C
• Protection Features: OPP/OVP/UVP/SCP/OCP/OTP
• Hazardous Materials: ROHS
• AC Input Range: 100-240Vac
• DC Output Voltage: +3.3V +5V +12V -12V +5Vsb
• Maximum Load: 30A    25A    133.3A 0.3A 3A
• Combined Load: 125W 125W 1600W 3.6W 15W
• Total Output: 1600W

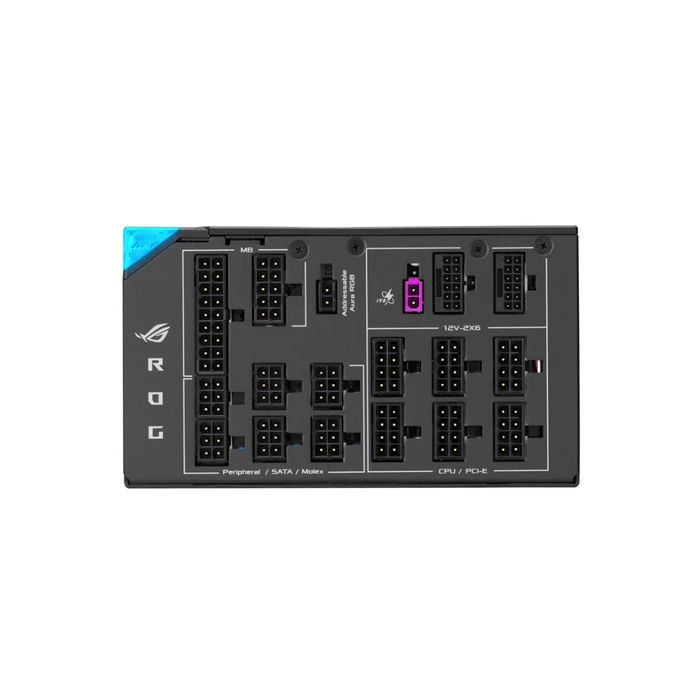

• Cable Connectors:
  • MB 24/20-pin x 1

  • CPU 4+4-pin x 2

  • PCI-E 6+2-pin x 4

  • PCI-E 16-pin x 2

  • SATA x 10

  • PERIPHERAL x 9

• Package Contents:

  • Power Cord x 1

  • Motherboard Power Cable x 1 (610mm)

  • CPU Cable x 2 (1000mm)

  • PCI-E Gen 5.1 16-pin Cable x 2 (750mm)

  • PCI-E Cable 1-to-1 x 4 (750mm)

  • SATA Cable 1-to-4 x 1 (400+120+120+120mm)

  • SATA Cable 1-to-3 x 2 (400+120+120mm)

  • Peripheral 1-to-3 x 3 (400+150+150mm)

  • Addressable RGB Cable x 1 (800mm)

  • ROG sticker x 1

  • ROG cable tie x 6

  • Chassis Screws Package x 1

  • Cable Tie x 12

  • User Manual x 1

• Weight: 2.80 kg (single PSU)

• AURA SYNC: ARGB

• Cybenetics Noise Level Certification: TBD

• 0dB Technology:Supported. The fan shuts off entirely when the PSU is under certain load

• 0dB Fan Button: Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels.
