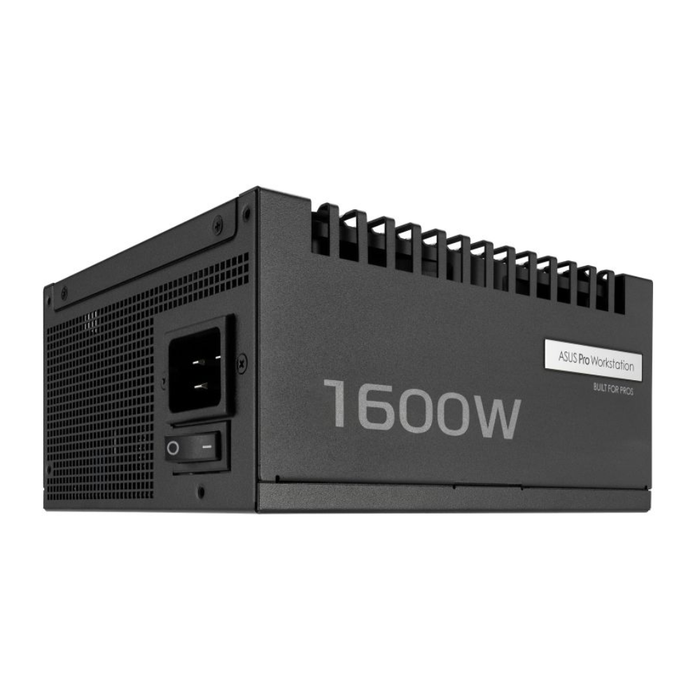

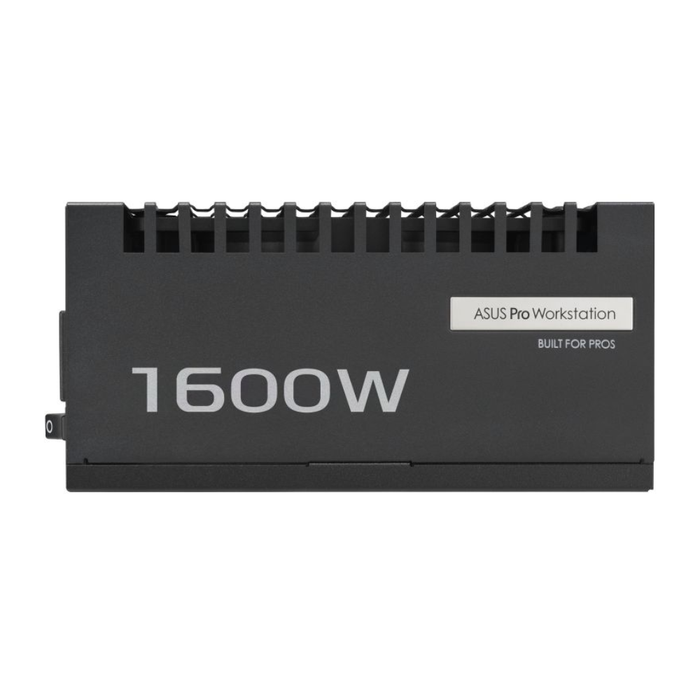

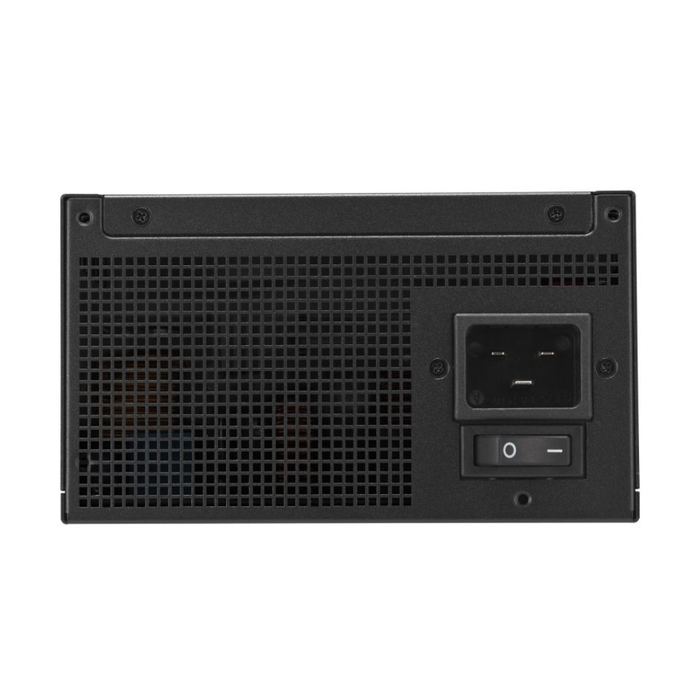

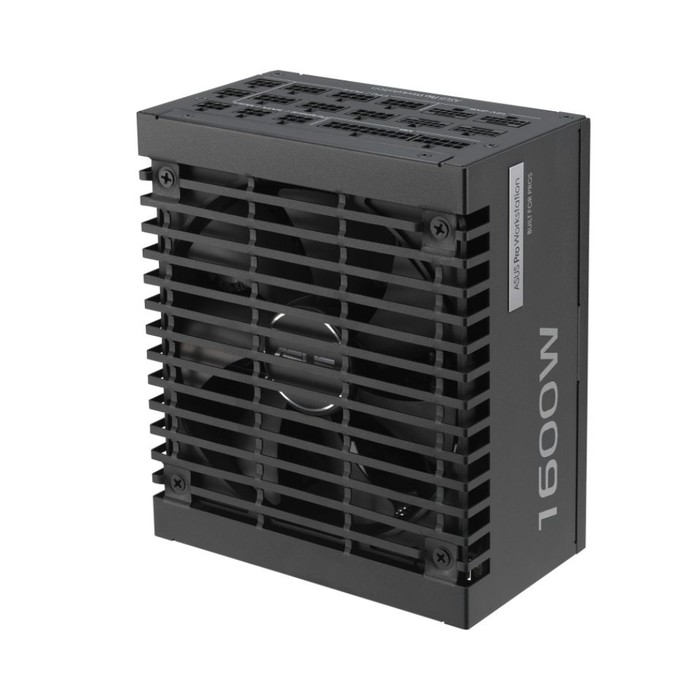

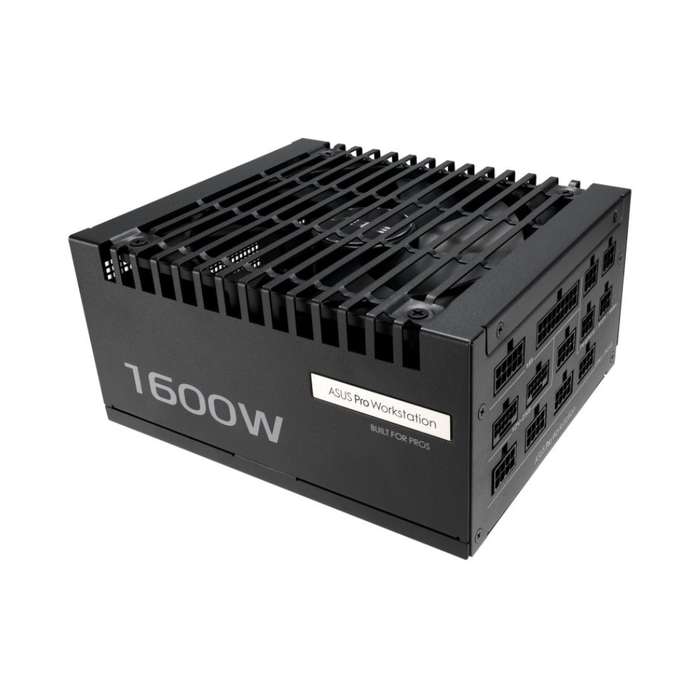

Asus Power Supply Pro WS Platinum 1600W

Specifications:

• Product Number: 90YE00Z2-B0NA00

Power

• Total power: 1600W
• AC input voltage: 200 - 240 V

• Power Factor Correction (PFC) type: Active

• Combined power (+3.3V): 130 W

• Combined power (+12V): 1600 W

• Combined power (+5V): 130 W

• Combined power (-12V): 9.6 W

• Combined power (+5Vsb): 15 W

• Max output current (+3.3V): 25 A

• Max output current (+12V): 133.3 A

• Max output current (+5V): 25 A

• Max output current (-12V): 0.8 A

• Max output current (+5Vsb): 3 A

• Efficiency: 92%

• Power protection features:  Features that protect the device against power problems e.g. overload. Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Ports & interfaces

• Motherboard power connector: 20+4 pin ATX

• Motherboard power cable length: 61 cm

• Number of SATA power connectors: 9

• SATA power cable length: 120, 400 mm

• Peripheral (Molex) power connectors (4-pin): 3

• Peripheral (Molex) power cable length: 150, 400 mm

• PCI Express power connectors (6+2 pin): 4

• PCI Express power connectors (16-pin): 2

• PCI Express power cable length: 75 cm

• CPU power connector (4+4 pin): Yes

• CPU power cable length: 100 cm

Ports & interfaces

• ATX power connector (20+4 pin): Yes

• PCI Express connector: Yes

• Cabling type: Fully-Modular

Performance

• 80 PLUS certification: 80 PLUS Platinum

• Power supply unit (PSU) form factor: ATX

• ATX version: 3.1

• Bearing technology: Ball bearing

Design

• Product colour: Black

• Cooling type: Active

• Illumination: No

• On/off switch: Yes

Certificates

• Compliance certificates: RoHS

Weight & dimensions

• Width: 150 mm

• Depth: 175 mm

• Height: 86 mm

• Weight: 2 kg
