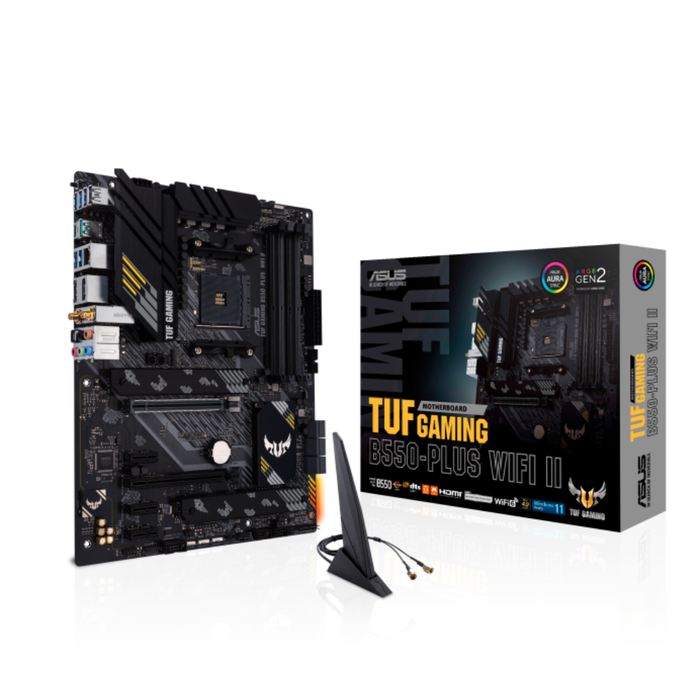

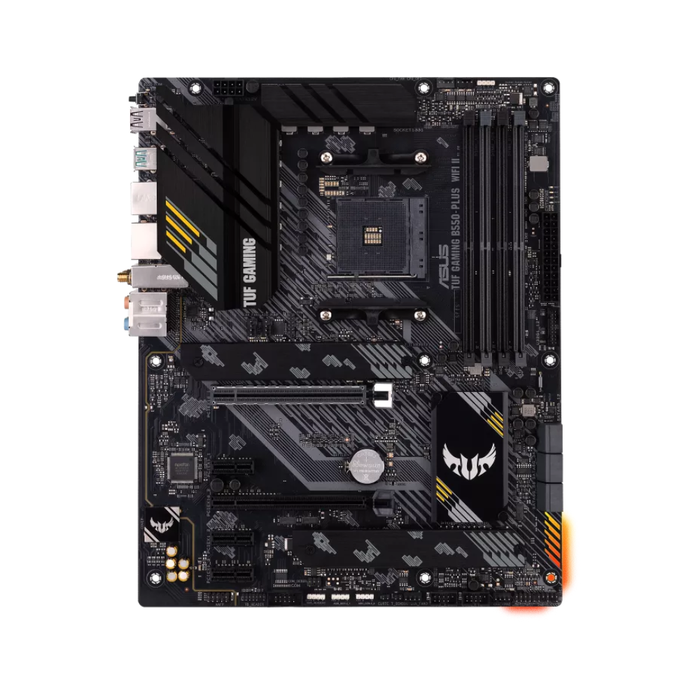

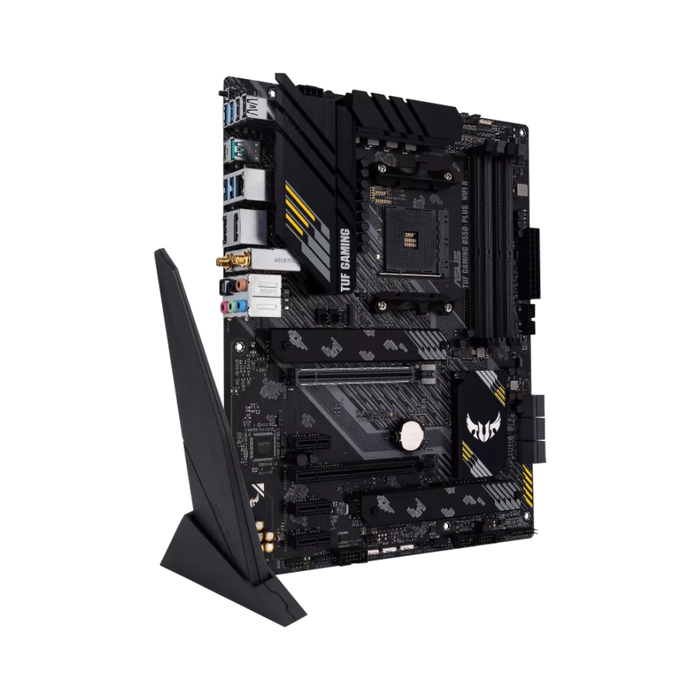

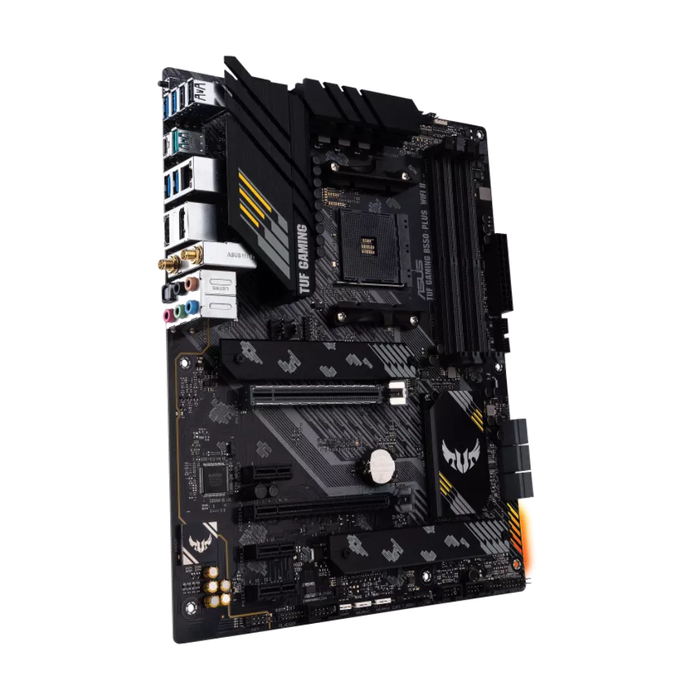

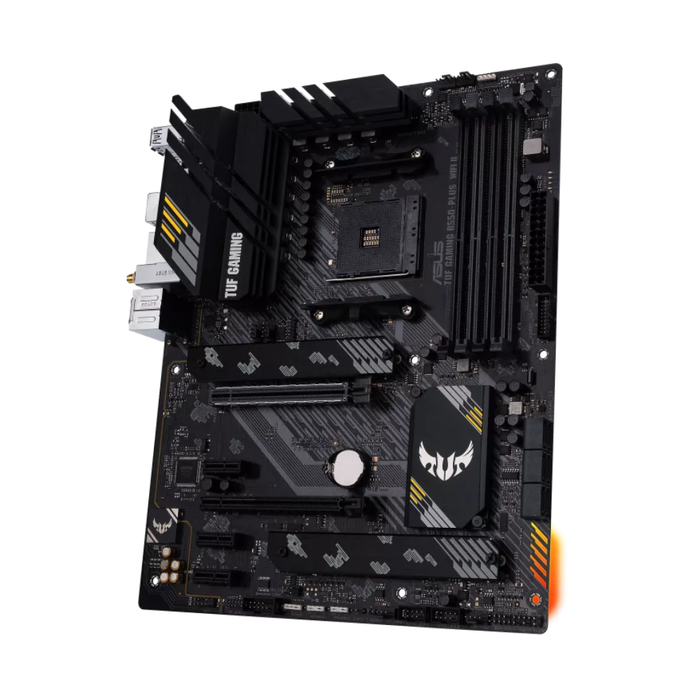

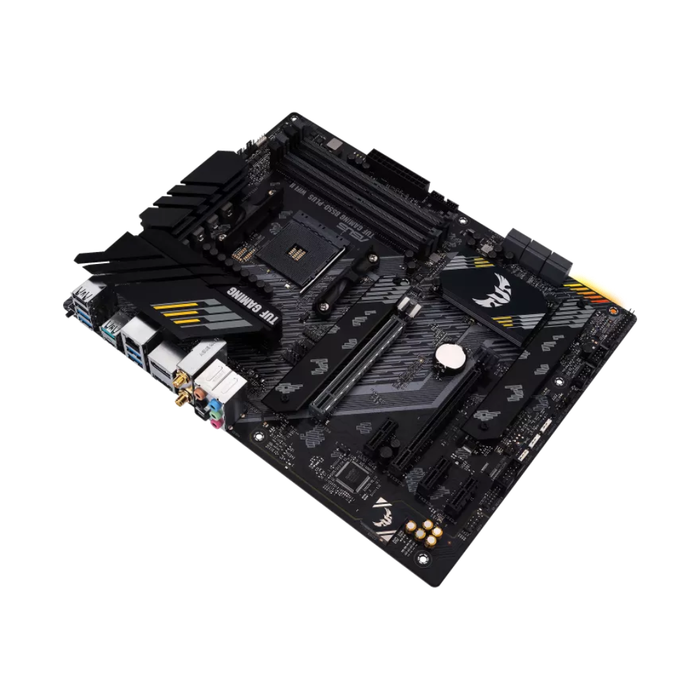

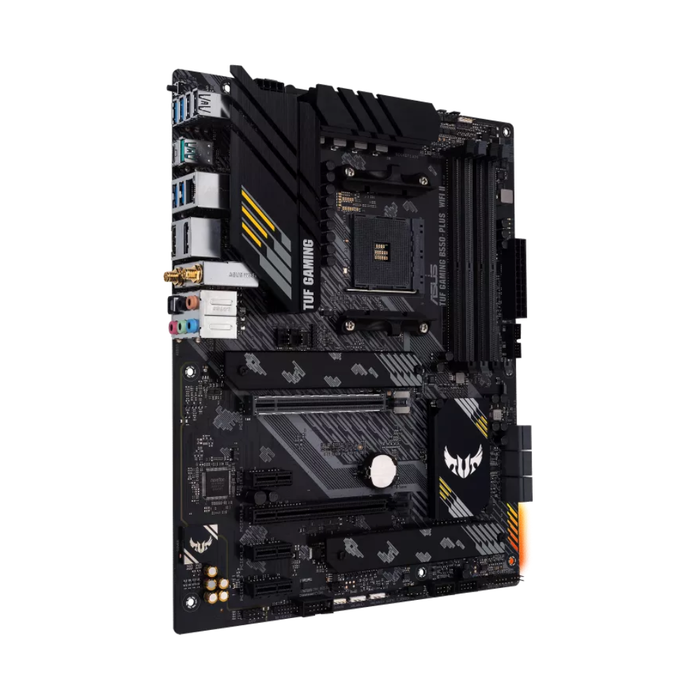

Asus Motherboard TUF Gaming B550-Plus WiFi II

Specifications:

• Product Number: 90MB19U0-M0EAY0

Processor

• Processor manufacturer: AMD

• Processor socket: Socket AM4

• Compatible processor series: AMD Ryzen 3000 Series

• Supported processor sockets: Socket AM4

Memory

• Supported memory types: DDR4-SDRAM

• Number of memory slots: 4

• Memory slots type: DIMM

• Memory channels: Dual-channel

• ECC сompatibility: ECC

• Supported memory clock speeds: 2133MHz, 2400, 2666, 2800, 2933, 3000, 3200 MHz, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4200, 4266, 4333, 4400 MHz, 4466, 4600 MHz, 4800, 4866 MHz

• Maximum internal memory: 128 GB

• Unbuffered memory: Yes

Storage controllers

• Supported storage drive types: HDD & SSD

• Supported storage drive interfaces: M.2, SATA

• Number of storage drives supported: 8
• RAID support: Yes
• RAID levels: 0,1,10

Graphics

• Parallel processing technology support: Not supported

• On-board graphics card: No
• Number of displays supported: 2

Internal I/O

• USB 2.0 connectors: 2

• USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

• Number of SATA III connectors: 6

• Front panel audio connector: Yes

• ATX Power connector (24-pin): Yes

• CPU fan connector: Yes

• Number of chassis fan connectors: 3

• EPS power connector (8-pin): Yes

• Number of COM connectors: 1

• Thunderbolt headers: 1

• RGB LED pin header: Yes

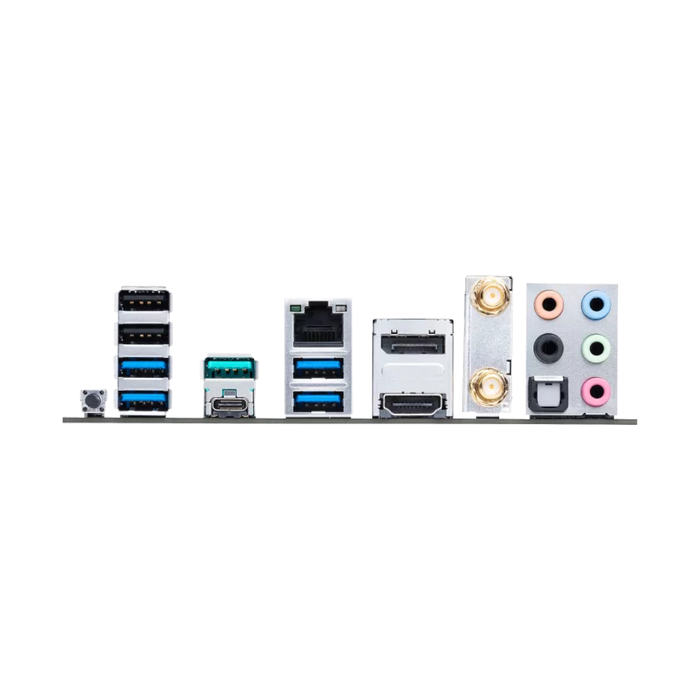

Rear panel I/O ports

• USB 2.0 ports quantity: 2

• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

• Ethernet LAN (RJ-45) ports: 1

• HDMI ports quantity: 1

• DisplayPorts quantity: 1

• Headphone outputs: 1

• Line-in: Yes

• Microphone in: Yes

• S/PDIF out port: Yes
• USB connector type:
  • USB Type-A

  • USB Type-C

Network

• Ethernet LAN: Yes

• Ethernet interface type: 2.5 Gigabit Ethernet

• Wi-Fi: Yes

• Top Wi-Fi standard: Wi-Fi 6 (802.11ax)

• Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), WiFi 6 (802.11ax)
• Bluetooth: Yes

• Bluetooth version: 5.2

Features

• Motherboard chipset: AMD B550

• Audio output channels: 7.1 channels

• Product colour: Black

• Motherboard form factor: ATX

• Motherboard chipset family: AMD

• Windows operating systems supported: Windows 10, 11

Expansion slots

• PCI Express x1 (Gen 3.x) slots: 3

• PCI Express x16 (Gen 3.x) slots: 1

• PCI Express x16 (Gen 4.x) slots: 1

• Number of M.2 (M) slots: 2

BIOS

• BIOS type: UEFI AMI

Weight & dimensions

• Width: 305 mm

• Depth: 244 mm
• Height: 75 mm

Packaging content

• Cables included: SATA

• User guide: Yes

Other features

• Weight: 945 g
