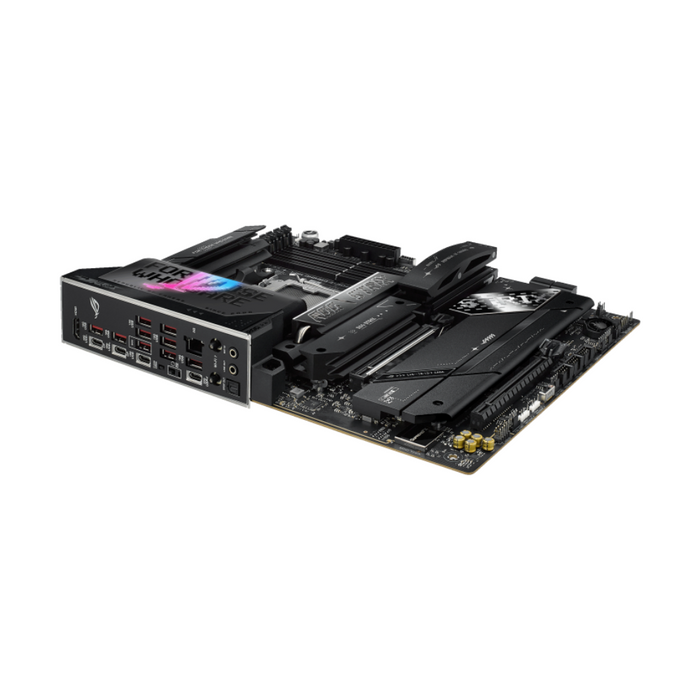

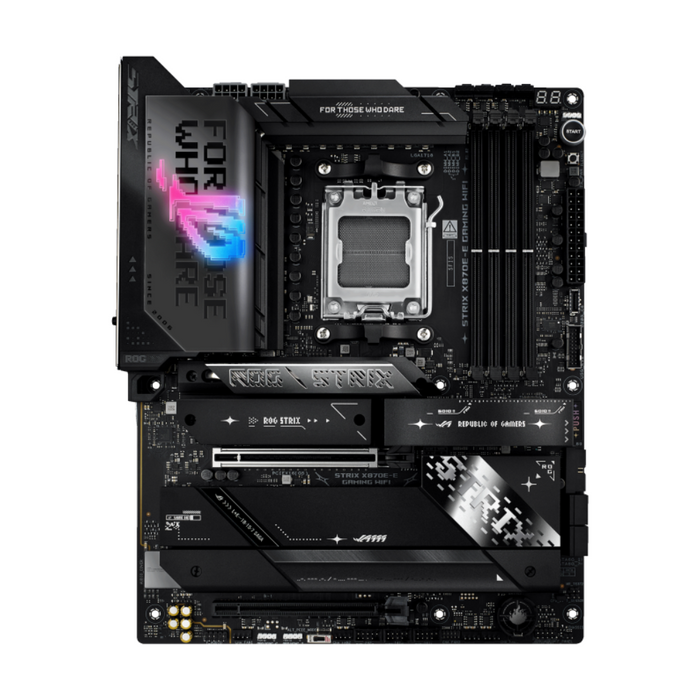

Asus Motherboard ROG Strix X870E-E Gaming WiFi

Specifications:

• Product Number: STRIXX870E-EGAMINGWIFI

• Model: ROG STRIX X870E-E GAMING WIFI


CPU

• AMD Socket AM5 for AMD Ryzen™ 9000 &
  8000 & 7000 Series Desktop Processors

Chipset

• AMD X870E Chipset

Memory

• 4 x DIMM slots, max. 192GB, DDR5

• Supports up to

  • 8000+MT/s(OC) with Ryzen™ 9000 Series Processors,

  • 8400+MT/s(OC) with Ryzen™ 8000 Series Processors,

  • 8000+MT/s(OC) with Ryzen™ 7000 Series Processors,

• ECC and Non-ECC Un-buffered DIMM*

• Dual Channel Memory Architecture

• Supports AMD EXTended Profiles for Overclocking (EXPO™)

• NitroPath DRAM Technology

• ASUS Enhanced Memory Profile (AEMP)

Graphics

• 1 x HDMI™ port

• 2 x USB4® (40Gbps) ports support USB Type-C® display outputs

Expansion Slots

• AMD Ryzen™ 9000 & 7000 Series Desktop Processors

  • 1 x PCIe 5.0 x16 slot (supports x16 mode)

• AMD Ryzen™ 8000 Series Desktop Processors

  • 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
• AMD X870E Chipset

  • 1 x PCIe 4.0 x16 slot (supports x4 mode)

Storage

• Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports

• AMD Ryzen™ 9000 & 7000 Series Desktop Processors

  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

  • M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)

• AMD Ryzen™ 8000 Series Desktop Processors

  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

  • M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)

  • M.2_3 slot (Key M), type 2242/2260/2280/22110 (Not supports)

• AMD X870E Chipset

  • M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

  • M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

• 4 x SATA 6Gb/s ports

Ethernet

• 1 x Intel® 2.5Gb Ethernet

• ASUS LANGuard

Wireless & Bluetooth

• Wi-Fi 7

• 2x2 Wi-Fi 7 (802.11be)

• Supports 2.4/5/6GHz frequency band

• Support Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate.

• Bluetooth® v5.4

USB

• Rear USB (Total 13 ports)

  • 2 x USB4® (40Gbps) ports(2 x USB Type-C®)

  • 1 x USB 20Gbps port (1 x USB Type-C® with up to 30W PD Fast-charge)**

  • 10 x USB 10Gbps ports (9 x Type-A + 1 x USB Type-C®)

• Front USB (Total 11 ports)

  • 1 x USB 20Gbps connector (supports USB Type-C®)

  • 2 x USB 5Gbps headers support additional 4 USB 5Gbps ports

  • 3 x USB 2.0 headers support additional 6 USB 2.0 ports

Audio

• ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
• Impedance sense for front and rear headphone outputs

• Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking

• High quality 120 dB SNR stereo playback output and 110 dB SNR recording input

• Supports up to 32-Bit/384 kHz playback

• Audio Features

  • Audio Shielding

  • Savitech SV3H712 AMP

  • Gold-plated audio jacks

  • Rear optical S/PDIF out port

  • Premium audio capacitors

  • Audio cover

Back Panel I/O Ports

• 2 x USB4® (40Gbps) ports (2 x USB Type-C®)

• 1 x USB 20Gbps port (1 x USB Type-C® with up to 30W PD Fast-charge)

• 10 x USB 10Gbps ports (9 x Type-A + 1 x USB Type-C®)

• 1 x HDMI™ port

• 1 x Wi-Fi Module

• 1 x Realtek 5Gb Ethernet

• 2 x Gold-plated audio jacks

• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack™  button

• 1 x Clear CMOS button

Internal I/O Connectors

• Fan and Cooling related
  • 1 x 4-pin CPU Fan header

  • 1 x 4-pin CPU OPT Fan header

  • 1 x 4-pin AIO Pump header

  • 5 x 4-pin Chassis Fan headers Chassis Fan header(s)
• Power related
  • 1 x 24-pin Main Power connector

  • 2 x 8-pin +12V CPU Power connectors

  • Storage related

  • 5 x M.2 slots (Key M)

  • 4 x SATA 6Gb/s ports
• USB
  • 1 x USB 20Gbps connector (supports USB Type-C®)

  • 2 x USB 5Gbps headers support additional 4 USB 5Gbps ports

  • 3 x USB 2.0 headers support additional 6 USB 2.0 ports
• Miscellaneous
  • 3 x Addressable Gen 2 headers

  • 1 x CPU Over Voltage jumper

  • 1 x FlexKey button

  • 1 x Front Panel Audio header (F_AUDIO)

  • 1 x Start button

  • 1 x 10-1 pin System Panel header

  • 1 x Thermal Sensor header

Software Features

• ROG Exclusive Software

  • ROG CPU-Z

  • Dolby Atmos

• ASUS Exclusive Software

  • Armoury Crate

  • AIDA64 Extreme (60 days free trial)

  • Aura Creator

  • Aura Sync

  • Fan Xpert 4 (with AI Cooling II)

  • GameFirst

  • HWiNFO

  • Power Saving

  • ASUS Driver Hub

  • ASUS GlideX

  • TurboV Core
  • USB Wattage Watcher

  • Adobe Creative Cloud (Free Trial)
  • Norton 360 for Gamers (60 Days Free Trial)

  • WinRAR (40 Days Free Trial)

• UEFI BIOS

  • AI Overclocking Guide

  • ASUS EZ DIY

  • ASUS CrashFree BIOS 3

  • ASUS EZ Flash 3

  • ASUS UEFI

  • BIOS EZ Mode

  • ASUS

  • MyHotkey

  • Dynamic OC Switcher

  • FlexKey

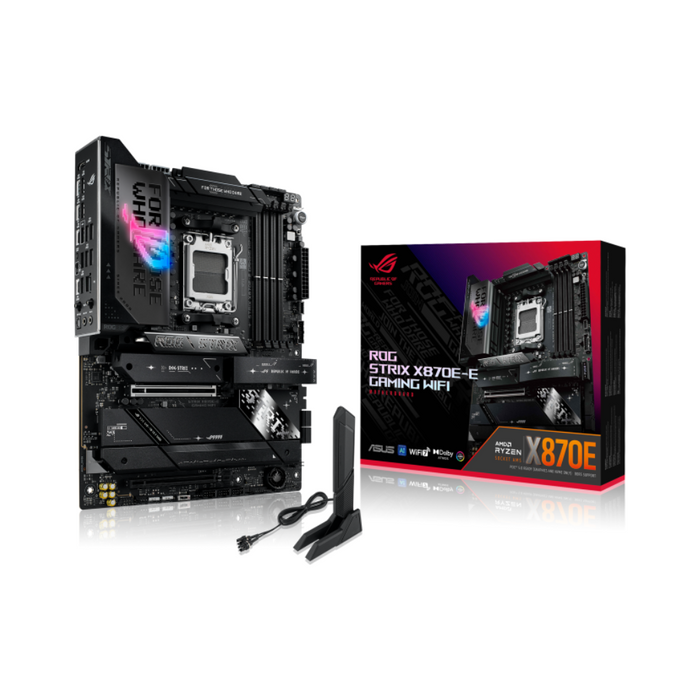

Accessories

• Cables
  • 2 x SATA 6Gb/s cables
• Additional Cooling Kit

  • 1 x Thermal pad for M.2 22110

• Miscellaneous

  • 1 x ASUS Wi-Fi moving antennas

  • 1 x Cable ties pack

  • 1 x M.2 Q-Latch package

  • 2 x M.2 Q-Slides

  • 1 x ROG key chain

  • 1 x ROG Strix stickers

  • 5 x M.2 Rubbers

• Documentation

  • 1 x Quick start guide

Operating System

• Windows® 11

Form Factor

• ATX Form Factor

• 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
