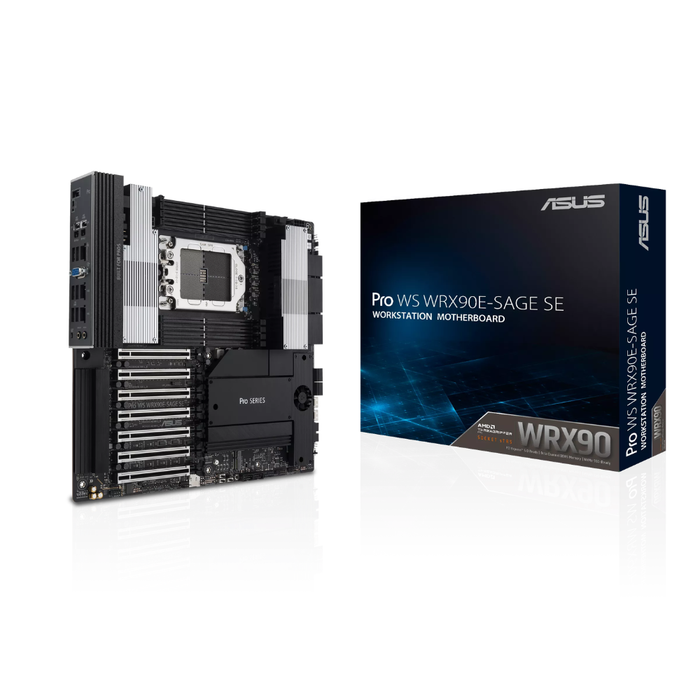

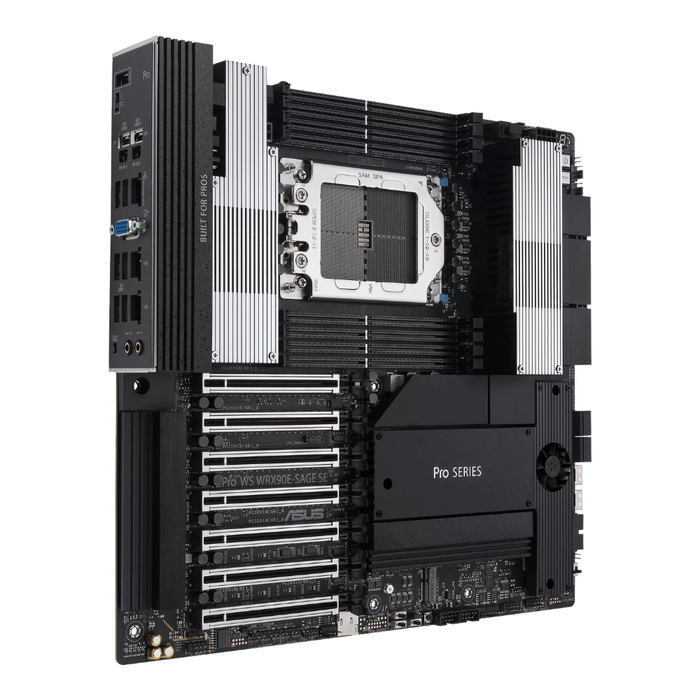

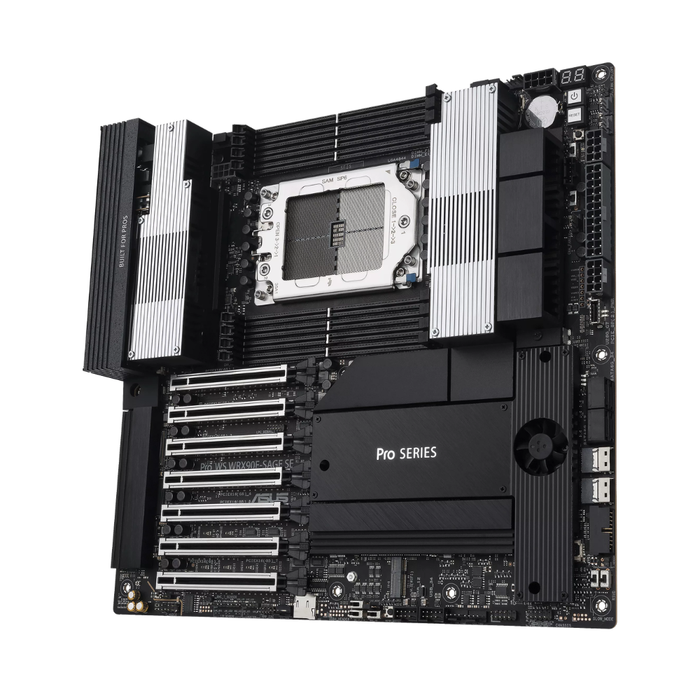

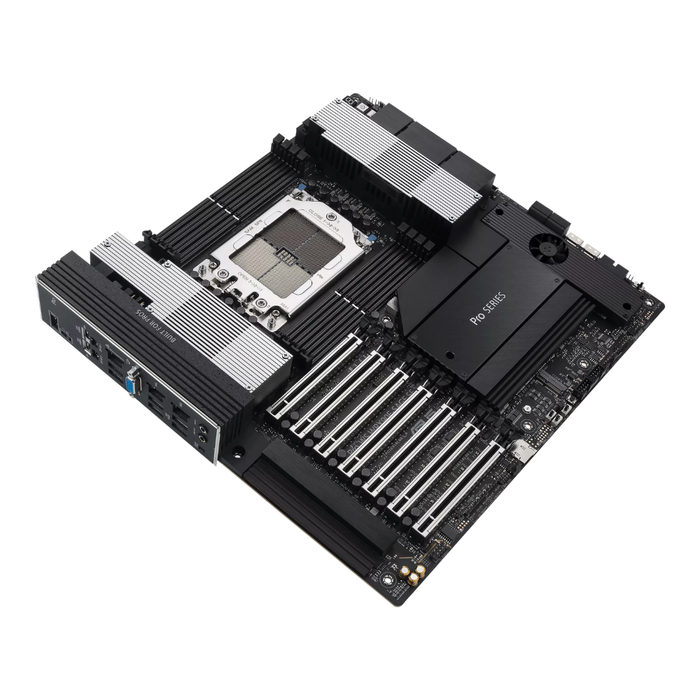

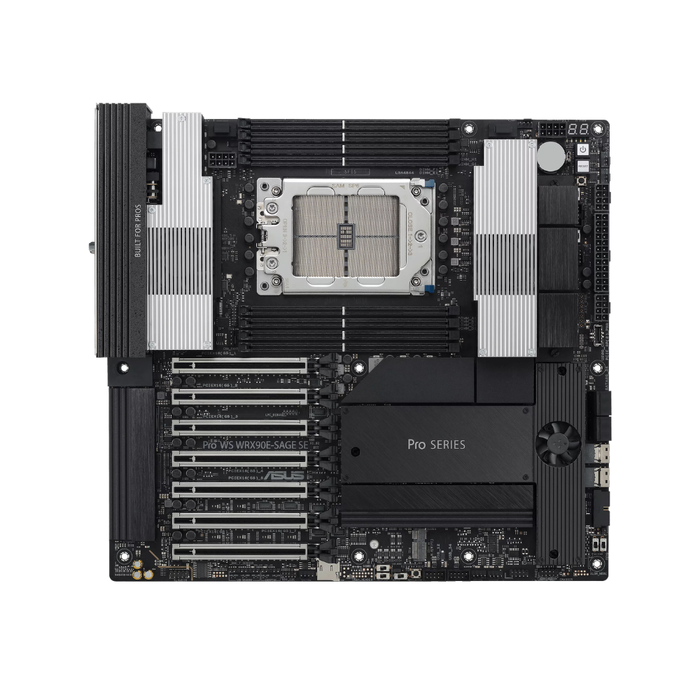

Asus Motherboard Pro WS WRX90E-SAGE SE

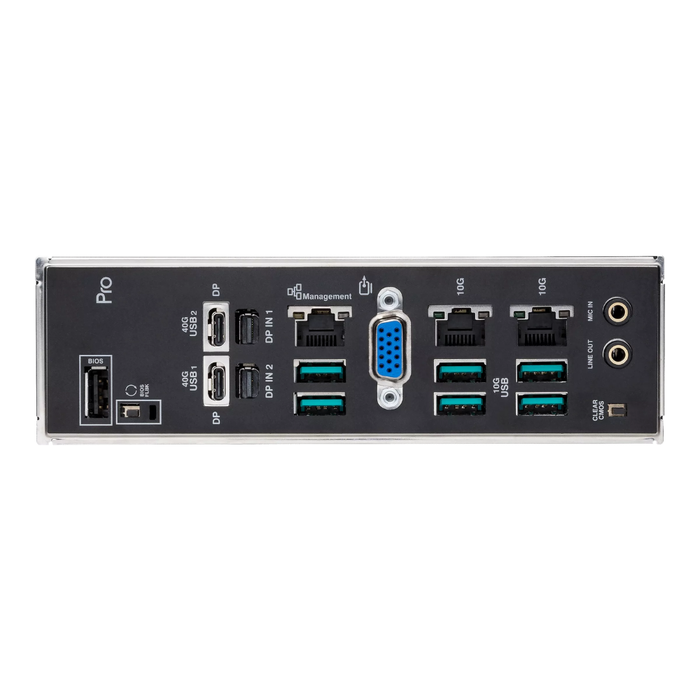

• 2 x USB 40Gbps (USB4®) with ASMedia ASM4242 controller ports (2 x USB Type-C®)

• 6 x USB 10Gbps ports (6 x Type-A)

• 1 x USB 2.0 port (2 x Type-A)

• 1 x VGA port

• 2 x mini DisplayPort IN

• 1 x Intel® dual 10Gb Ethernet ports

• 1 x Realtek 1Gb Ethernet port

• 2 x Audio jacks

• 1 x BIOS FlashBack™  button

• 1 x Clear CMOS button

• Fan and Cooling related

  • 1 x 4-pin CPU Fan header

  • 1 x 4-pin CPU OPT Fan header

  • 1 x W_PUMP+ header

  • 5 x 4-pin Chassis Fan headers

  • 2 x 4-pin VRM Fan header (with VRM FAN onboard)

  • 1 x 4-pin M.2 Fan header (with M.2 FAN onboard)
• Power related

  • 1 x 24-pin Main Power connectors

  • 2 x 8-pin +12V Power connectors

  • 2 x 8-pin PCIe to CPU power connectors

  • 2 x 8-pin PCIe Power connector
• Storage related

  • 4 x M.2 slots (Key M)

  • 4 x SATA 6Gb/s ports

  • 2 x SlimSAS port
• USB
  • 1 x USB 20Gbps connector supports USB Type-C®

  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Miscellaneous

  • 1 x Chassis intrusion header

  • 1 x COM port header

  • 1 x FlexKey button

  • 1 x Front panel audio header (F_AUDIO)

  • 1 x LN2 mode jumper

  • 1 x M.2 slot (Key E)

  • 7 x ProbeIt measurement points

  • 1 x ReTry button

  • 1 x RSVD switch

  • 1 x Slow mode switch

  • 1 x Safe boot button

  • 1 x SPI TPM header (14-1 pin)

  • 1 x Start button

  • 1 x 10-1 pin system panel header

  • 1 x Thermal sensor header

Special Features

• ASUS 5X PROTECTION III

  • DIGI+ VRM (- Digital power design with SPS)
  • ESD Guards
  • LANGuard
  • Overvoltage protection
  • SafeSlot
  • Stainless-steel back I/O
• ASUS Q-Design

  • M.2 Q-Latch
  • Q-Release Slim (with PCIe SafeSlot)
  • Q-Code
  • Q-Connector
  • Q-DIMM
  • Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  • Q-Slot
• ASUS Thermal Solution

  • M.2 heatsink backplate and onboard thermal pads
  • M.2 heatsink

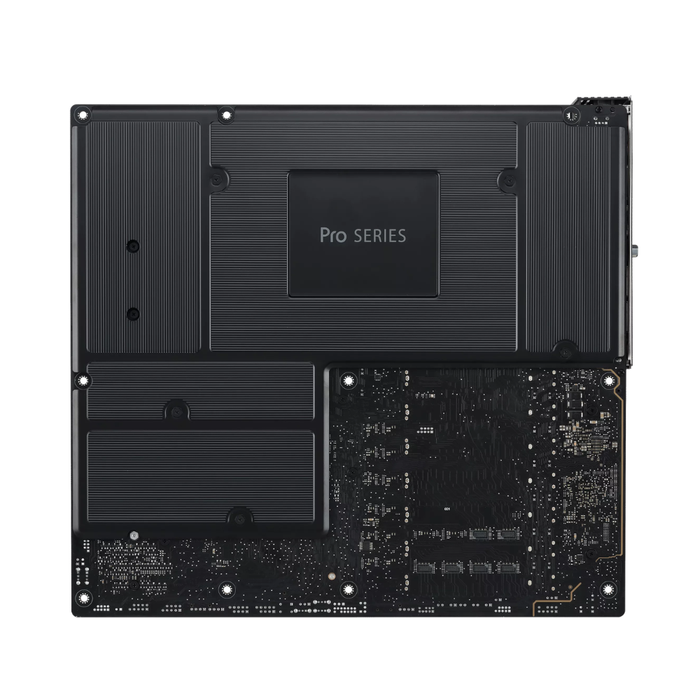

  • Steel backplate
  • VRM heatsink design with active fans
• ASUS EZ DIY

  • BIOS FlashBack™ button

  • BIOS FlashBack™ LED
  • Clear CMOS button

  • ProCool II
  • Pre-mounted I/O shield
  • SafeSlot
  • SafeDIMM
• Bespoke Motherboard Design & Business Focused Features

  • 24/7 Reliability

  • Overcurrent Protection

• BMC Related

  • 1 x BMC switch

  • 1 x BMC LAN fixed IP switch

  • 1 x IPMI switch

  • 1 x Message LED header

  • 1 x microSD card socket

  • 2 x LAN LED headers

  • 1 x Location LED header

  • 1 x Location button header

  • 1 x PSU_SMB header

  • 1 x SMART_PSU switch

  • 1 x VGA switch

  • 1 x VGA header (Dedicated Management for AST2600)

  • 1 x VPP_I2C header

Software features

• ASUS Exclusive Software

• Armoury Crate
  • Fan Xpert 4

• ASUS CPU-Z

• Adobe Creative Cloud (Free Trial)

• Norton 360 for Deluxe (60 Days Free Trial)

• WinRAR (40 Days Free Trial)

• UEFI BIOS

• ASUS EZ DIY
  • ASUS CrashFree BIOS 3

  • ASUSTeK. EzFlash Utility
• FlexKey

• IT Management software supported

• ASUS Control Center Express(ACCE)

BIOS

• 256 Mb Flash ROM, UEFI AMI BIOS(text-based)


Manageability

• WOL by PME, PXE (UEFI mode)

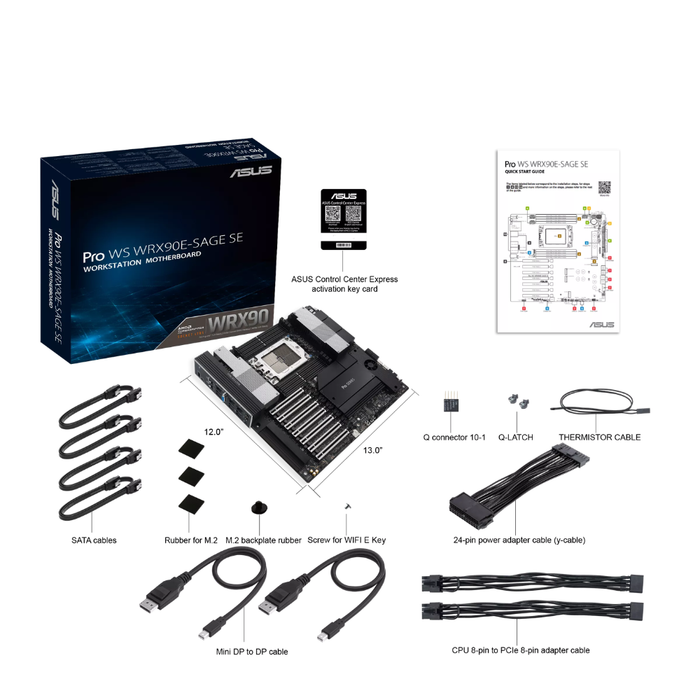

Accessories

• Cables

  • 2 x PCIe 8-pin to CPU power cables

  • 1 x 24-pin power cable (Y cable)

  • 2 x Mini DisplayPort cables

  • 4 x SATA 6Gb/s cables

  • 1 x Thermistor cable pack

• Miscellaneous

  • 1 x Q-connector

  • 1 x M.2 Q-Latch package

  • 1 x AMI license sticker

  • 4 x M.2 rubber packages

  • 1 x Screw package for M.2 Key E

• Documentation

  • 1 x ACC Express Activation Key Card

  • 1 x Quick start guide

Operating System

• Windows® 11

• Windows® 10 64-bit

Form Factor

• EEB Form Factor

• 12 inch x 13 inch

• (30.5 cm x 33 cm)
