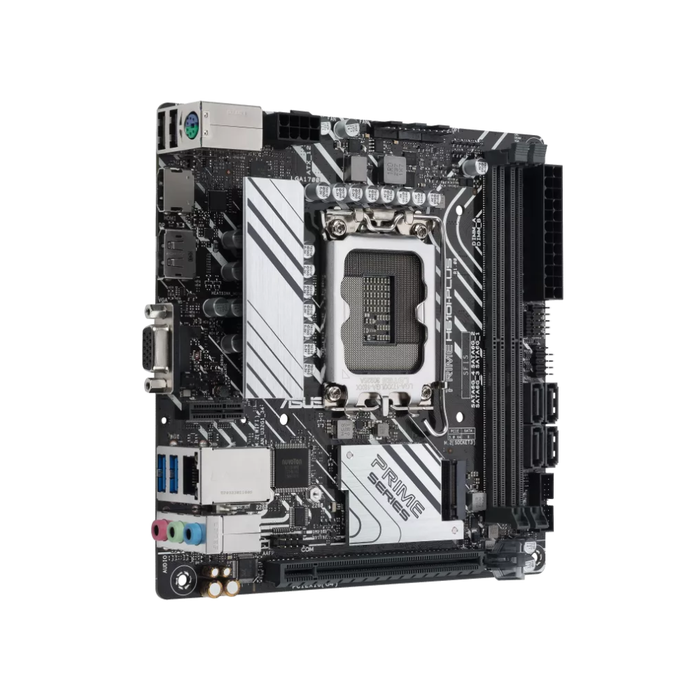

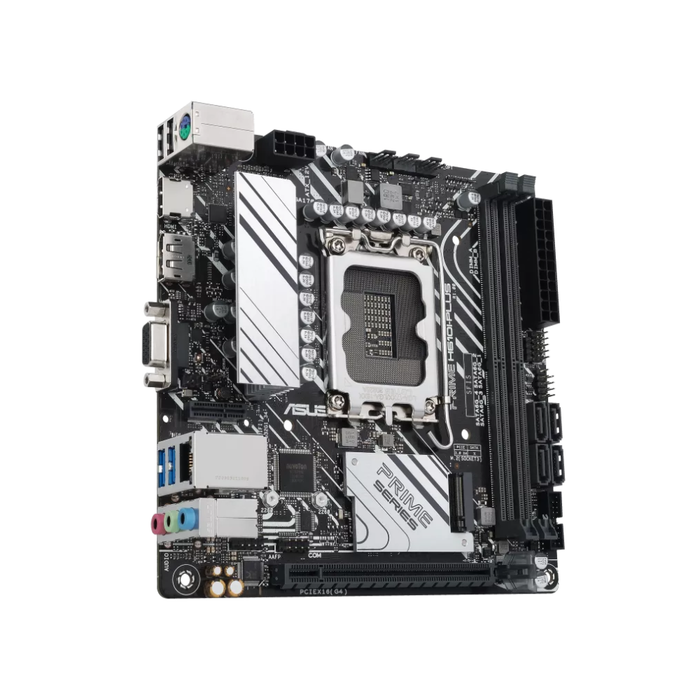

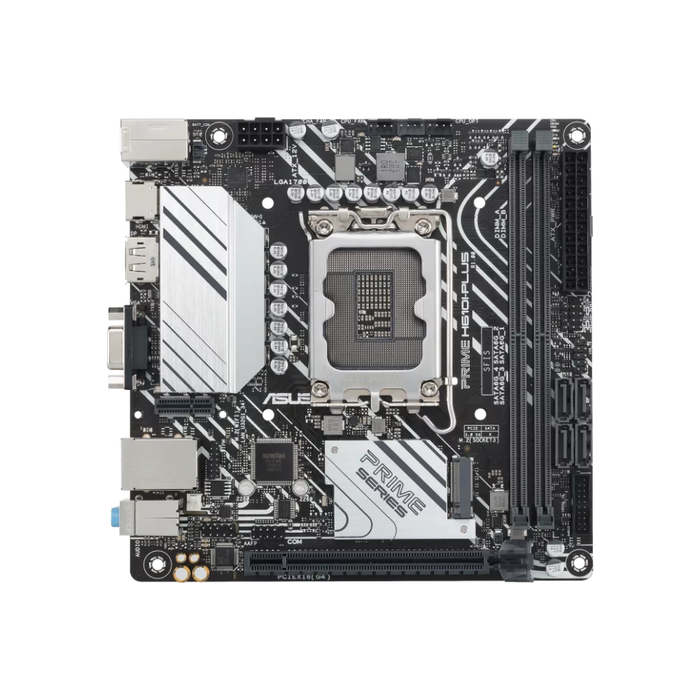

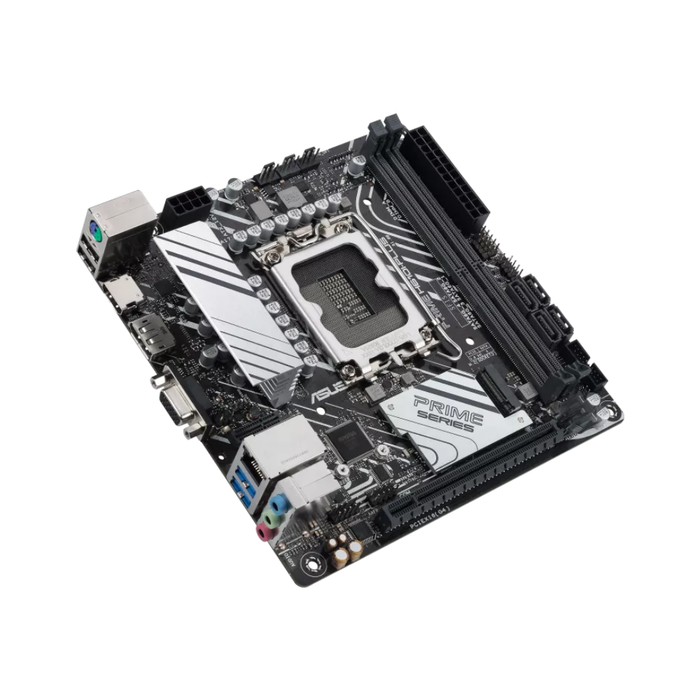

Asus Motherboard PRIME H610I-PLUS-CSM

Specifications:

• Product Number: 90MB1GB0-M0EAYC

Model

• PRIME H610I-PLUS-CSM

CPU

• Intel Socket LGA1700 for 13th Gen Intel Core

• Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors

• Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Chipset

• Intel H610 Chipset

Memory

• 2 x DIMM, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory
• Dual Channel Memory Architecture

Graphics

• 1 x DisplayPort

• 1 x VGA port
• 1 x HDMI port

 Expansion Slots

• Intel 13th & 12th Gen Processors
  • 1 x PCIe 4.0 x16 slot
• Intel Core Processors (14th & 13th & 12th Gen)

  • 1 x PCIe 4.0 x16 slot

Storage

• Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports

• Intel H610 Chipset

• M.2 slot (Key M), type 2260/2280 (supports PCIe 3.0 x4 mode)

• 4 x SATA 6Gb/s ports

Ethernet

• 1 x Intel 1Gb Ethernet

• ASUS LANGuard

Wireless & Bluetooth

• M.2 slot only (Key E, CNVi & PCIe)

• Wi-Fi module is sold separately

USB

• Rear USB (Total 4 ports)

  • 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)

  • 2 x USB 2.0 ports (2 x Type-A)

• Front USB (Total 4 ports)

  • 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports

  • 1 x USB 2.0 header supports 2 additional USB 2.0 ports

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC

• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

• Supports up to 24-Bit/192 kHz playback

• Audio Features

• Audio Shielding

• Dedicated audio PCB layers

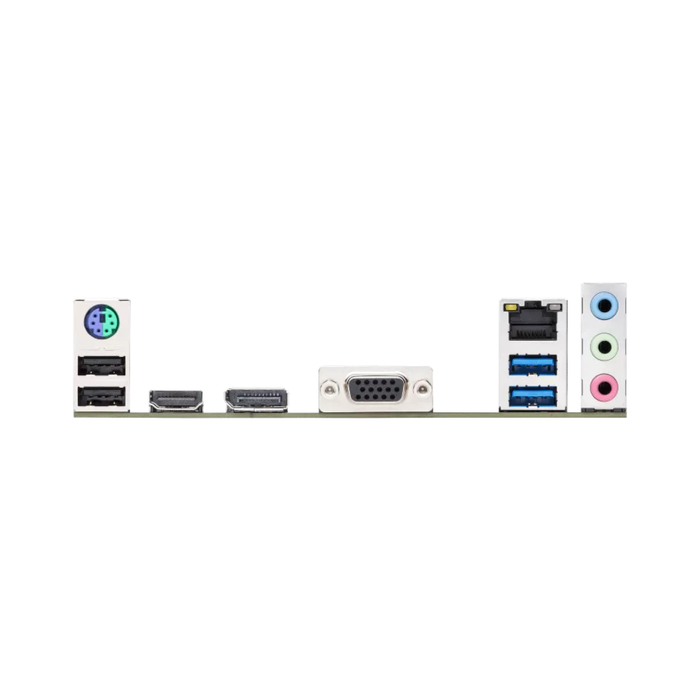

Back Panel I/O Ports

• 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)

• 2 x USB 2.0 ports (2 x Type-A)

• 1 x DisplayPort

• 1 x VGA port

• 1 x HDMI port

• 1 x V-M.2 slot (Key E)

• 1 x Intel 1Gb Ethernet port

• 3 x Audio jacks

• 1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors

• Fan and Cooling related

  • 1 x 4-pin CPU Fan header

  • 1 x 4-pin CPU OPT Fan header

  • 1 x 4-pin Chassis Fan header

• Power Related
  • 1 x 24-pin Main Power connector

  • 1 x 8-pin +12V Power connector

• Storage related

  • 1 x M.2 slot (Key M)

  • 4 x SATA 6Gb/s ports

  • USB

  • 1 x USB 3.2 Gen 1 (5G) header supports additional 2 USB 3.2 Gen 1 ports

  • 1 x USB 2.0 header supports 2 additional USB 2.0 ports

• Miscellaneous

  • 1 x Clear CMOS header

  • 1 x COM Port header

  • 1 x Front Panel Audio header (AAFP)

  • 1 x Mono-out header(with Amp IC)

  • 1 x SMBUS header

  • 1 x Speaker header

  • 1 x SPI TPM header (14-1pin)

  • 1 x 10-1 pin System Panel header

Special Features

• ASUS 5X PROTECTION III

  • DIGI+ VRM

  • LANGuard

  • Overvoltage Protection

  • SafeSlot Core

  • Stainless-Steel Back I/O

• ASUS Q-Design

  • Q-DIMM

  • Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

  • Q-Slot

• ASUS Thermal Solution

  • Aluminum heatsink design

Software Features

• ASUS Exclusive Software

  • Armoury Crate

  • AI Suite 3

  • Performance And Power Saving Utility

  • TurboV EVO

  • EPU

  • DIGI+ VRM

  • Fan Xpert

  • ASUS CPU-Z

  • Norton 360 Deluxe (60 Days Free Trial)

  • WinRAR (40 Days Free Trial)

• UEFI BIOS

  • ASUS EZ DIY

  • ASUS CrashFree BIOS 3

  • ASUS EZ Flash 3

  • ASUS UEFI BIOS EZ Mode

BIOS

• 128 Mb Flash ROM, UEFI AMI BIOS

Manageability

• WOL by PME, PXE

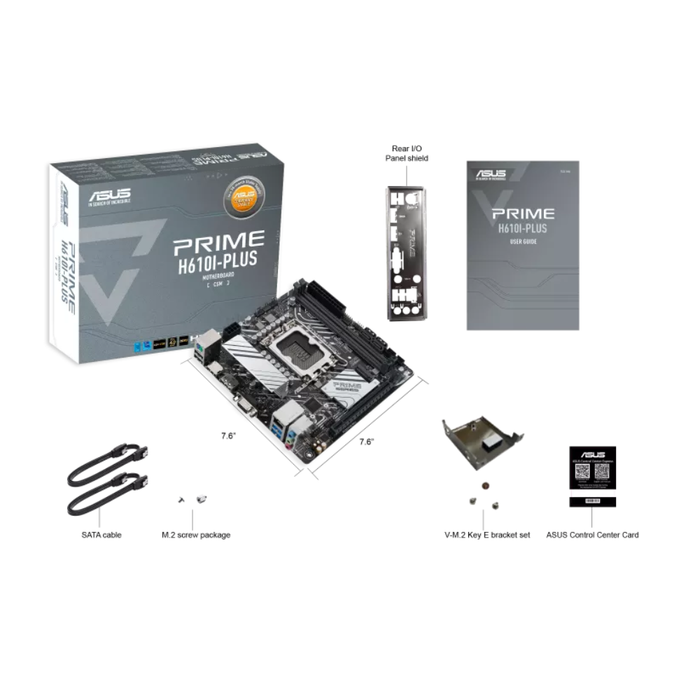

Accessories

• Cables

  • 2 x SATA 6Gb/s cables

• Miscellaneous

  • 1 x I/O Shield

  • 1 x Screw package for M.2 SSD

  • 1 x Vertical M.2 Key E bracket set

• Documentation

  • 1 x User guide

  • Operating System

  • Windows 11 64-bit, Windows 10 64-bit

Form Factor

• Mini ITX Form Factor

• 6.7 inch x 6.7 inch ( 17.02 cm x 17.02 cm )
