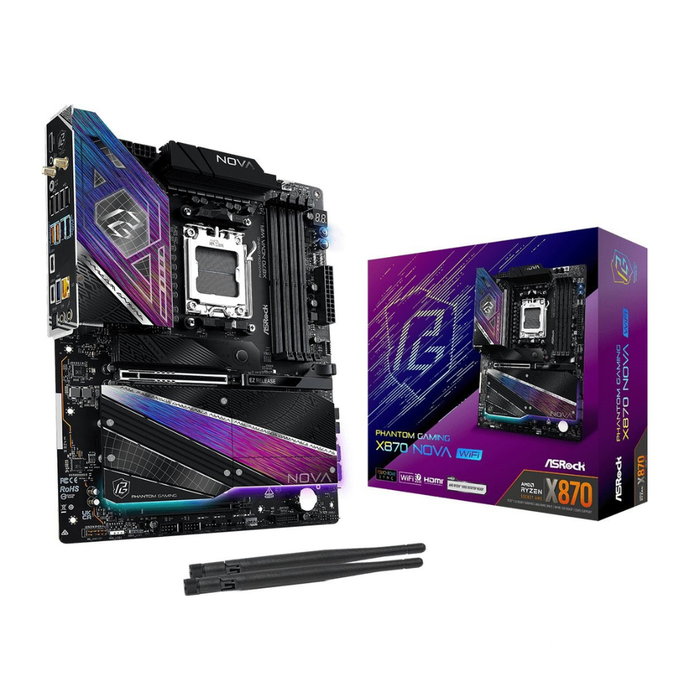

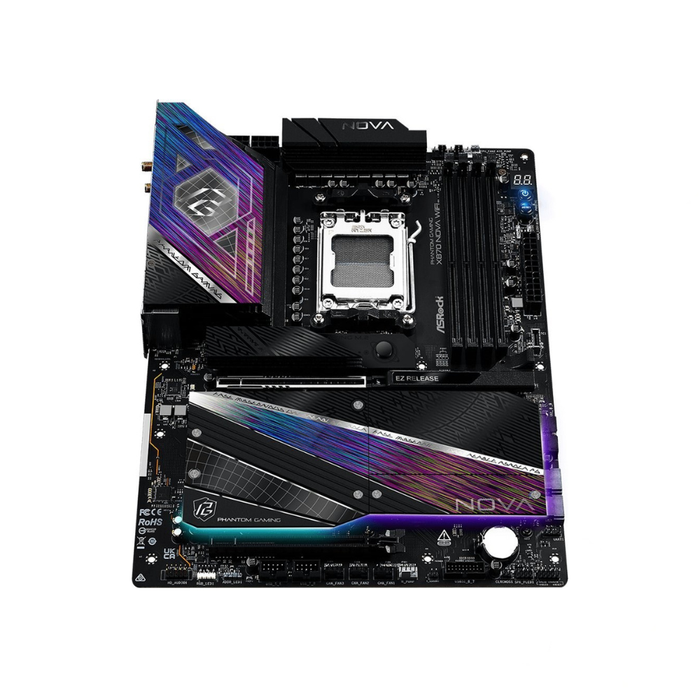

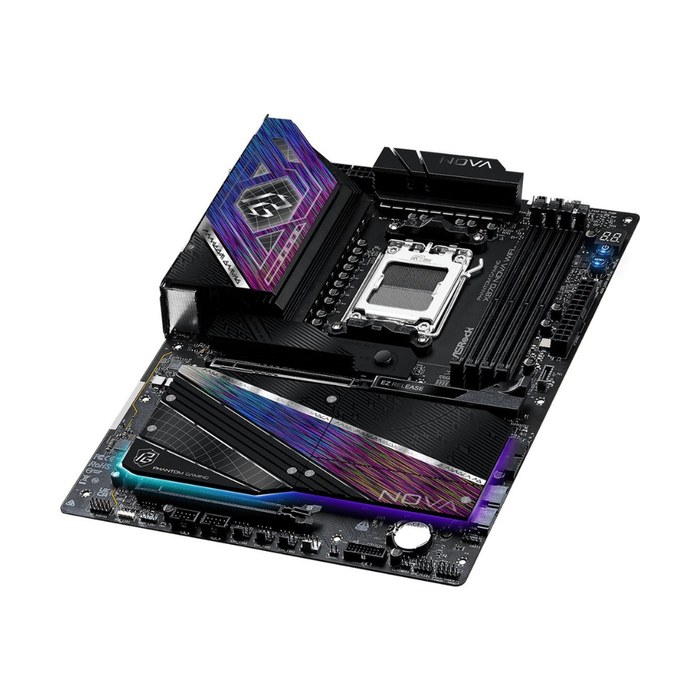

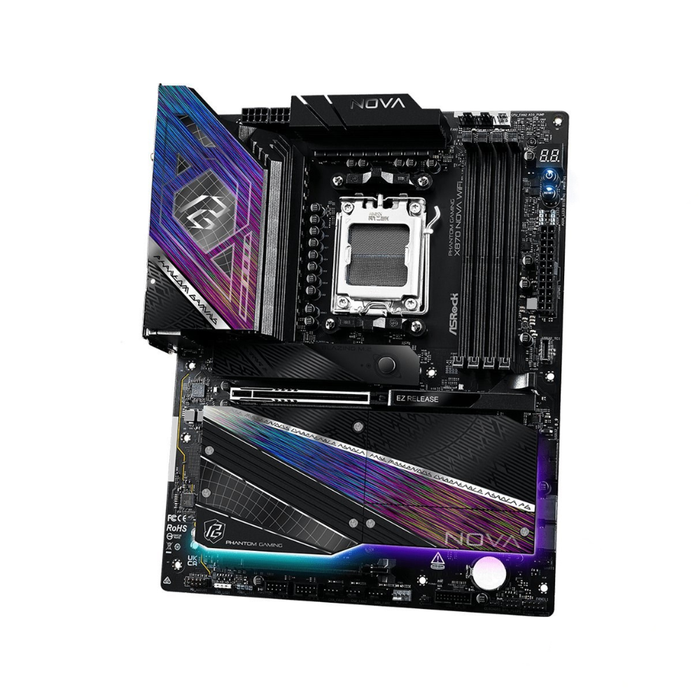

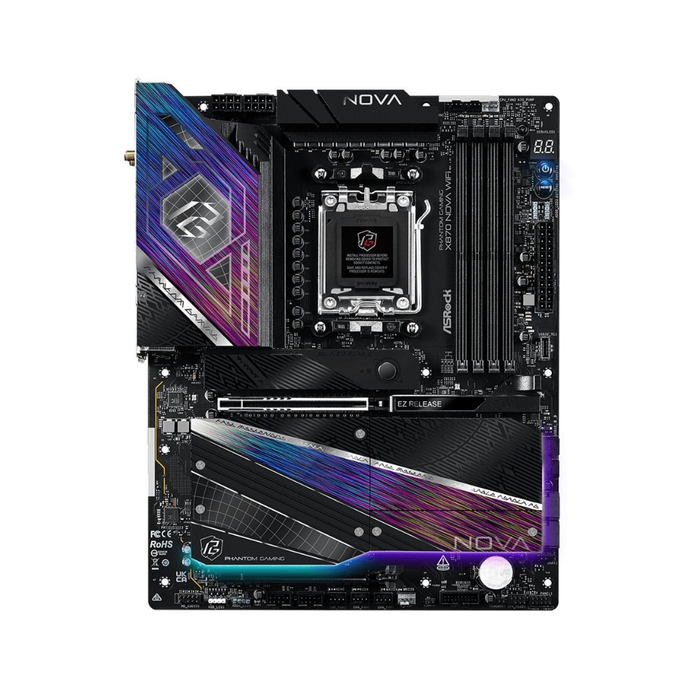

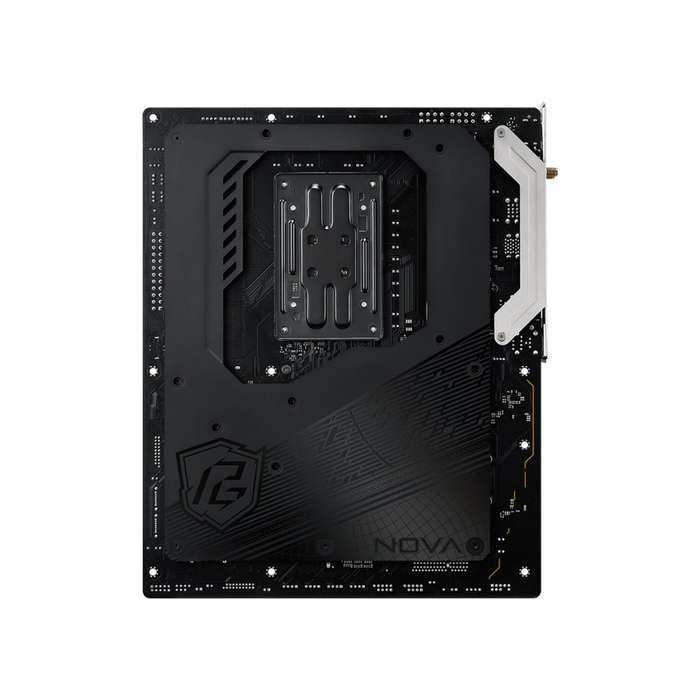

Asrock Motherboard X870 Nova WiFi

Specifications:

• Product Number: X870 NOVA WIFI

Unique Feature

• Superb Productivity:

  • PCIe Gen5 (Graphics, M.2)

  • Dual Channel DDR5

  • USB4 Type-C Ports (40 Gb/s)

• Rock-Solid Durability:

  • Server-Grade Low-Loss PCB

  • 18+2+1 Power Phase, 80A SPS for Vcore+SOC with Enlarged Heatsink Armor

  • Flexible Integrated I/O Shield

  • 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) Ultrafast Gaming

  • 5G LAN, 802.11be Wi-Fi 7 Module

  • ASRock Lightning Gaming Ports

• EZ Update:

  • BIOS Flashback Button

  • ASRock Auto Driver Installer


CPU

• Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors

Chipset

• AMD X870

Memory

• Dual Channel DDR5 Memory Technology

• 4 x DDR5 DIMM Slots

• Supports DDR5 ECC/non-ECC, un-buffered memory up to 8400+(OC)

• Max. capacity of system memory: 256GB

• Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

BIOS

• 256Mb AMI UEFI Legal BIOS with GUI support


Graphics

• Integrated AMD RDNA™ graphics (Actual support may vary by CPU):

  • 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz

  • 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz

Audio

• 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)

• Individual PCB Layers for R/L Audio Channel

• Nahimic Audio


LAN

• 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s
• Realtek RTL8126


Wireless LAN

• 802.11be 2x2 Wi-Fi 7 Module

• Supports IEEE 802.11a/b/g/n/ac/ax/be

• Supports 2.4GHz/5GHz/6GHz frequency band

• Supports 160MHz channel bandwidth with 6GHz frequency band

• 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology

• Supports Bluetooth 5.4

• Supports MU-MIMO

Slots

• CPU:

  • 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode

• Chipset:

  • 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode

  • 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

Storage

• CPU:
  • 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode

  • 1 x Blazing M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
•  Chipset:

  • 1 x M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes

  • 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode

  • 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode

  • 2 x SATA3 6.0 Gb/s Connectors

RAID

• Supports RAID 0 and RAID 1 for SATA storage devices

• Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices


USB

• CPU:

  • 2 x USB4 Type-C (Rear)

  • 1 x USB 3.2 Gen2 Type-A (Rear (USB32_3)

  • 1 x USB 3.2 Gen1 Type-A (Rear (USB32_1)

• Chipset:

  • 1 x USB 3.2 Gen2x2 Type-C (Front)

  • 1 x USB 3.2 Gen2 Type-A (Rear (USB32_4)

  • 6 x USB 3.2 Gen1 Type-A (2 Rear (USB32_2 and USB32_5), 4 Front)

  • 8 x USB 2.0 (4 Rear, 4 Front)

Connector

• 1 x Thermistor Cable Header

• 1 x Power LED and Speaker Header

• 1 x RGB LED Header

• 3 x Addressable LED Headers

• 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)

• 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)

• 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)

• 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)

• 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)

• 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)

• 1 x Front Panel Audio Connector (15μ Gold Audio Connector)

• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)

• 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)

• 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)

• 1 x Dr. Debug with LED

• 1 x Power Button with LED

• 1 x Reset Button with LED

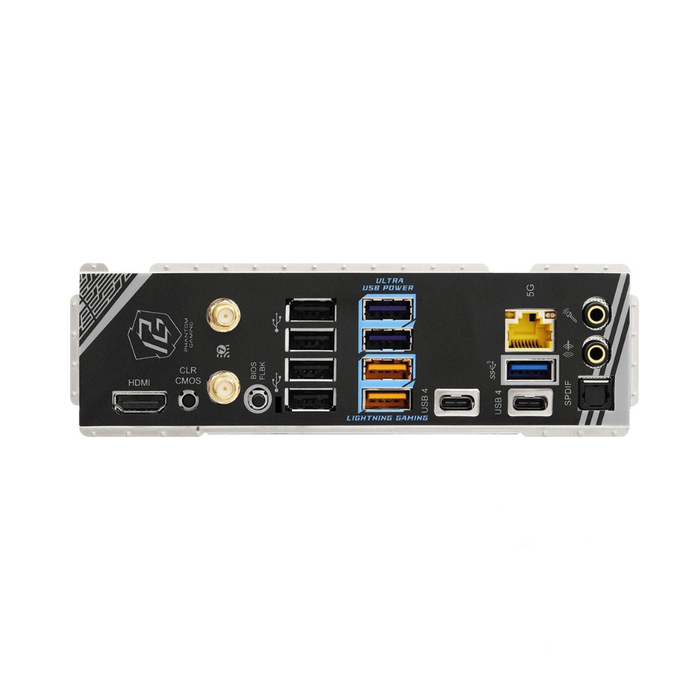

Rear Panel I/O

• 2 x Antenna Ports

• 1 x HDMI Port

• 1 x Optical SPDIF Out Port

• 2 x USB4 Type-C Ports (40 Gb/s)

• 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_34 supports Ultra USB Power.)

• 3 x USB 3.2 Gen1 Type-A Ports (USB32_12 are Lightning Gaming Ports.)

• 4 x USB 2.0 Ports

• 1 x RJ-45 LAN Port

• 1 x Clear CMOS Button

• 1 x BIOS Flashback Button

• 1 x Line Out Jack (Gold Audio Jack)

• 1 x Microphone Input Jack (Gold Audio Jack)

Software and UEFI

• Software

  • ASRock Motherboard Utility (Phantom Gaming Tuning)

  • ASRock Polychrome SYNC

• UEFI

  • ASRock EZ Mode

  • ASRock Full HD UEFI

  • ASRock Auto Driver Installer

  • ASRock Instant Flash

Accessories

• 2 x SATA Data Cables

• 2 x ASRock WiFi 2.4/5/6 GHz Antennas

• 1 x ARGB Splitter Cable

• 1 x Thermistor Cable


Form Factor

• ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

• 8 Layer PCB

• 2oz Copper PCB


OS

• Microsoft Windows® 10 64-bit / 11 64-bit


Certifications

• FCC, CE

• ErP/EuP ready (ErP/EuP ready power supply is required)
