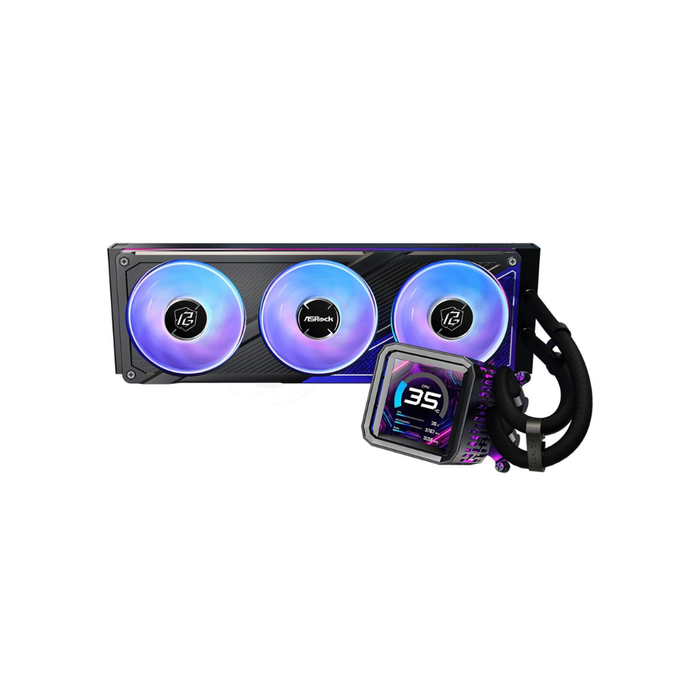

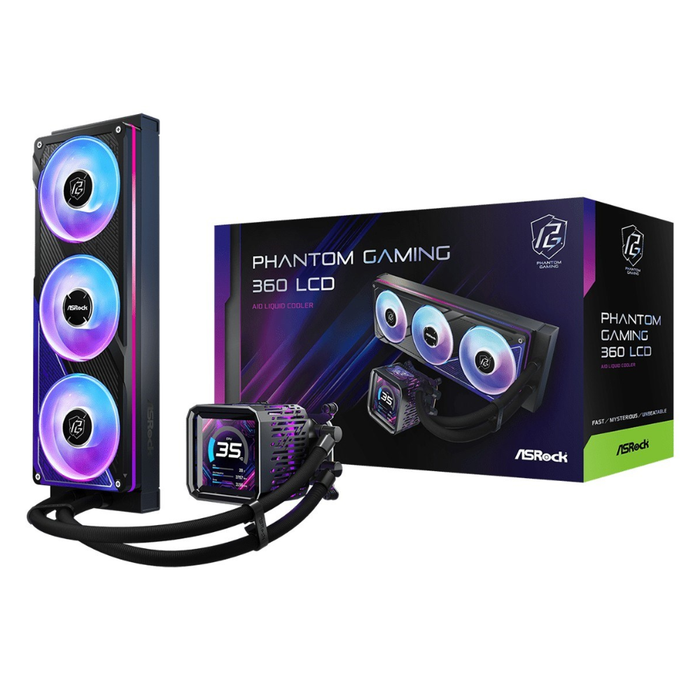

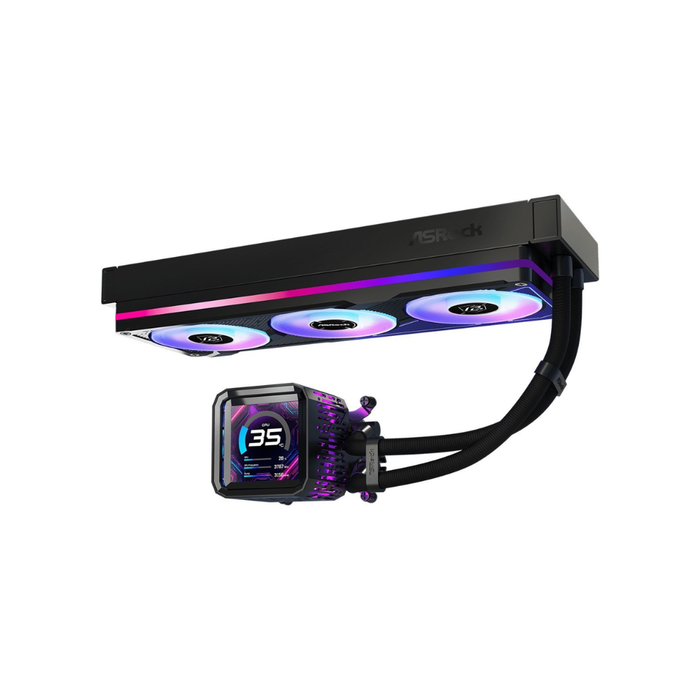

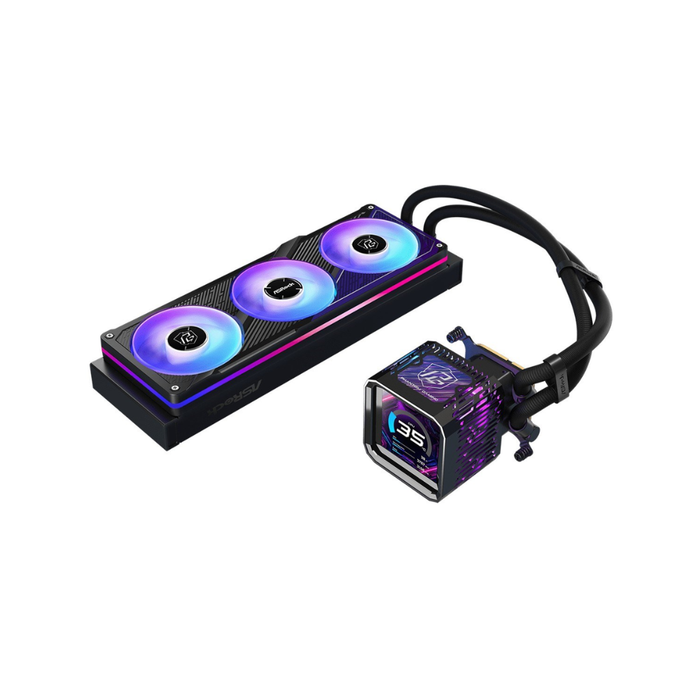

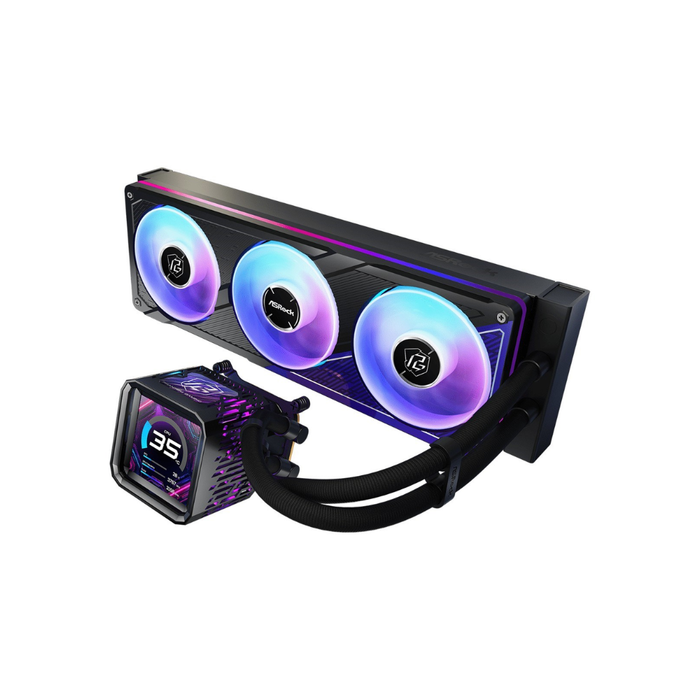

Asrock Liquid Cooler Phantom Gaming 360 LCD

Specifications:

• Product Number: 90-APGA36-BAAGA5
• Model Number: 90-APGA36-BAAGA5


Compatibility

• AMD：AM5, AM4

• Intel：LGA1851, 1700

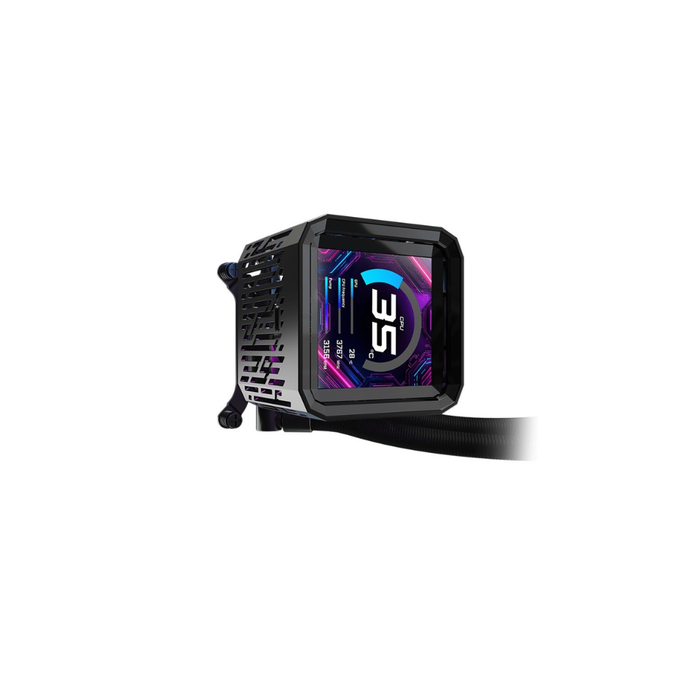

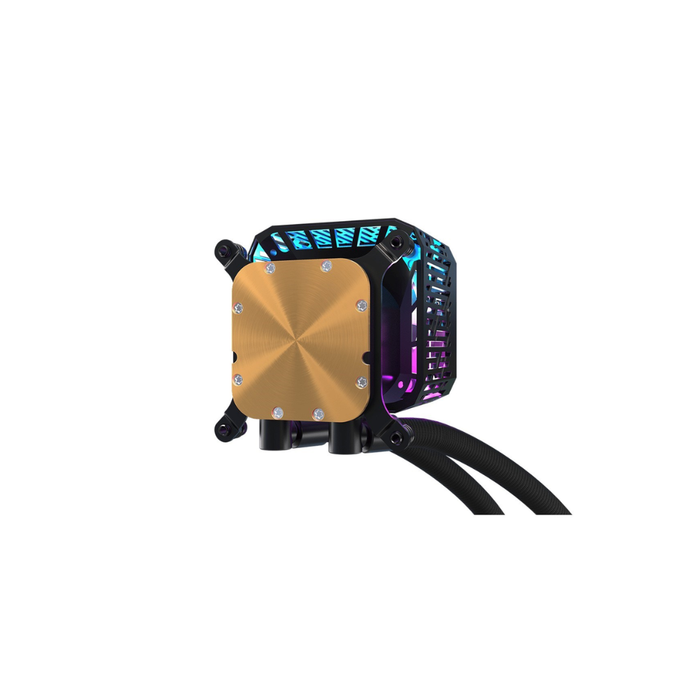

Water Block

• Dimension: (L)100.4 x (W)86 x (H)107.6 mm

• Material (Cold Plate): Copper

• LEDs: ARGB


Radiator

• Dimension: (L)397 x (W)120 x (H)32 mm

• Material: Aluminum


Pump

• Speed: 1200 - 3100 ± 10% RPM

• Current/ Voltage：0.38A/ 12V

• Connector：PWM (4-Pin)


VRM Fan

• Dimension: (L)70 x (W)70 x (H)25 mm

• Speed: (Max.) 3000 ± 10% RPM

• Connector: PWM (4-Pin)

• Current/ Voltage: 0.12A/ 12V

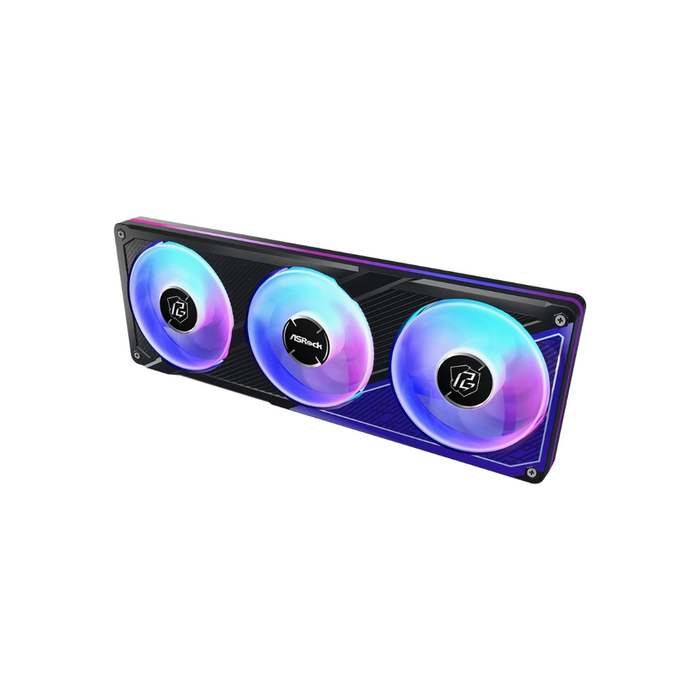

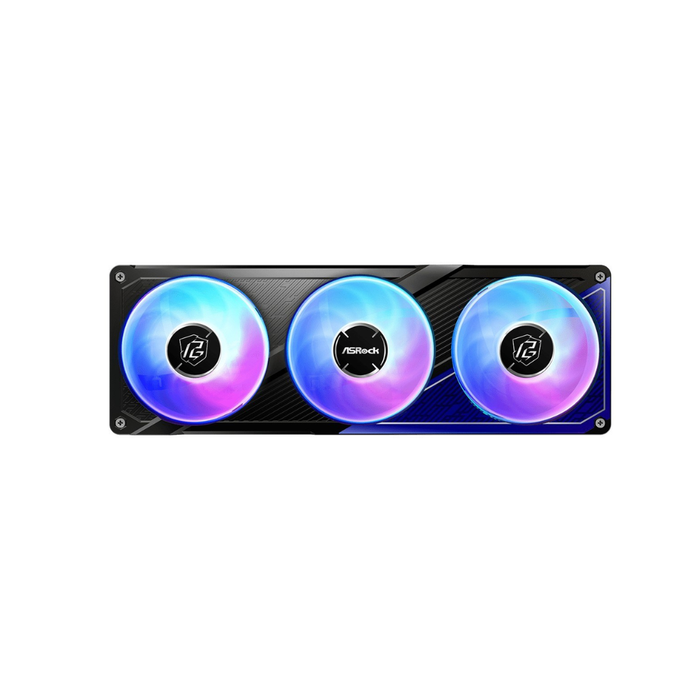

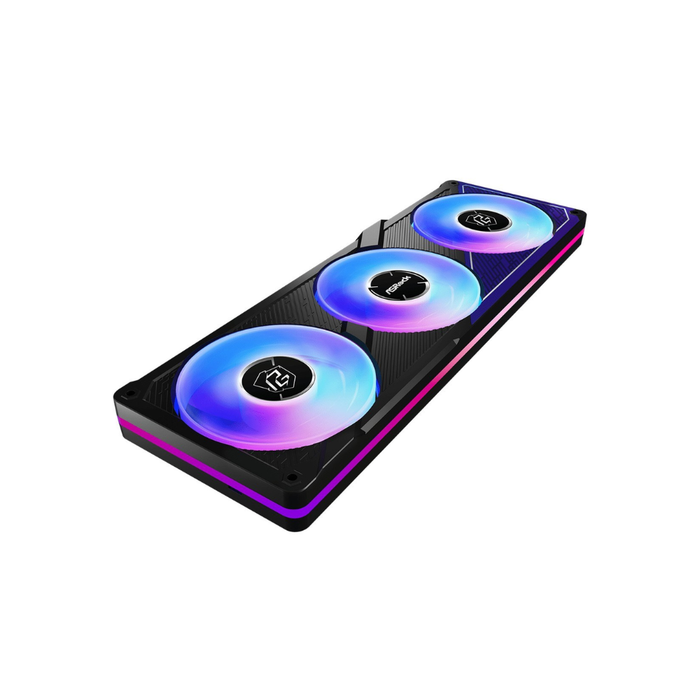

Radiator Fan

• Dimension: (L)362 x (W)123 x (H)28 mm

• Speed: 0 - 2400 ± 10% RPM

• Air Flow: (Max.) 61.28 CFM

• Air Pressure: (Max.) 3.11 mmH20

• Noise: (Max.) 31.4 dB(A)

• Connector: PWM (4-Pin)

• Current/ Voltage: 0.84A/ 12V

• Bearing: Fluid Dynamic Bearing

• LEDs: ARGB Gen1

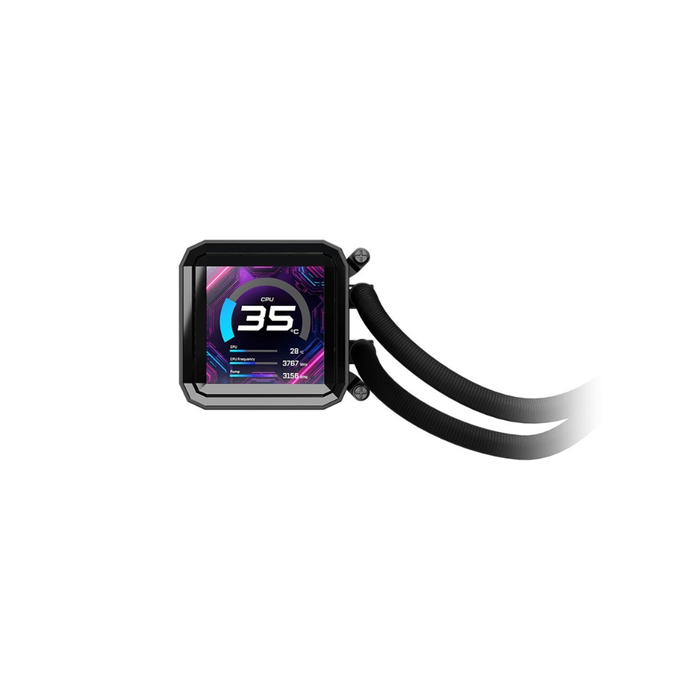

Screen

• Type: IPS LCD

• Size: 3.4"

• Resolution: 480 x 480

• Display Colors: 24-bit

• Brightness: 250 cd/m²

• Refresh Rate: 60 Hz

• Frames Per Second (FPS): 60 FPS

• Connector: USB Type-C to Motherboard 9-Pin


Tubing

• Material: IIR + EPDM

• Length: 450mm


Warranty

• AIO Cooler Module: 6 years

• Display Module: 2 years
