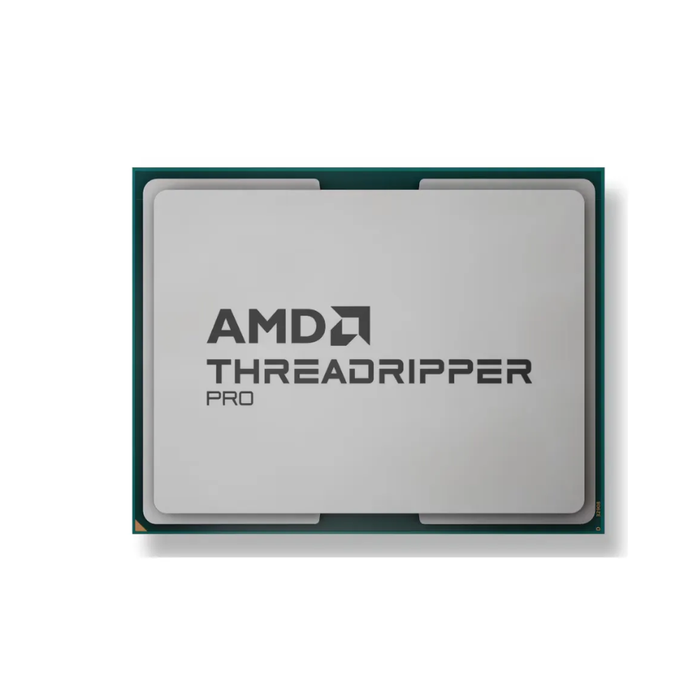

AMD CPU Ryzen Threadripper PRO 9975WX

Specifications

• Product Number: 100-100000723WOF

Processor

• Name: AMD Ryzen™ Threadripper™ PRO 9975WX

• Family: Ryzen Threadripper PRO

• Series: Ryzen Threadripper PRO 9000 WX-Series

• Form Factor: Desktops

• AMD PRO Technologies: Yes

• Regional Availability: Global

• Former Codename: Shimada Peak

• Processor Architecture: Zen 5

• # of CPU Cores: 32

• Multithreading (SMT): Yes

• # of Threads: 64

• Max. Boost Clock : Up to 5.4 GHz

• Base Clock: 4 GHz

• L1 Cache: 2560 KB

• L2 Cache: 32 MB

• L3 Cache: 128 MB

• Default TDP: 350W

• Processor Technology for CPU Cores: TSMC 4nm FinFET

• Processor Technology for I/O Die: TSMC 6nm FinFET

• Package Die Count: 5

• Unlocked for Overclocking: Yes

• AMD EXPO™ Memory Overclocking Technology: Yes

• Precision Boost Overdrive: Yes

• Curve Optimizer Voltage Offsets: Yes

• CPU Socket: sTR5

• Supporting Chipsets: WRX90 , TRX50 , Pro 695

• CPU Boost Technology: Precision Boost 2

• Instruction Set: x86-64

• Supported Extensions: AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
• Thermal Solution (PIB): Not Included

• Max. Operating Temperature (Tjmax): 95°C

• Launch Date: 07/23/25

• *OS Support: Windows 11 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit , Windows 10 - 64-Bit Edition

Connectivity

• Native USB 3.2 Gen 2 (10Gbps): 4

• Native SATA Ports: 4

• PCI Express® Version: PCIe® 5.0

• Native PCIe® Lanes (Total/Usable/PCIe® 5.0): 148 , 144 , 128

• NVMe Support: Boot , RAID0 , RAID1 , RAID5 , RAID10

• System Memory Type: DDR5

• Memory Channels: 8

• System Memory Subtype: RDIMM

• System Memory Specification: Up to 6400 MT/s

• ECC Support: Yes (Default Enabled)

Graphics Capabilities

• Graphics Model: Discrete Graphics Card Required

Manageability

• DASH support: Yes

Security

• AMD Memory Guard: Yes

• AMD Secure Processor: Yes

• Windows Secure Boot: Yes

• UEFI Secure Boot: Yes

• Windows Device Guard: Yes

• Guest Mode Execution (GMET) Trap: Yes

• Virtualization-Based Security (VBS): Yes

• Windows Secured-Core PC:Yes

• Firmware TPM: Yes

• AMD-V (SVM): Yes

• AMD-V Nested Paging (RVI): Yes

• AMD AVIC (Interrupt Virtualization): Yes

• AMD-Vi (I/O MMU Virtualization): Yes

• Second Level Address Translation (SLAT): Yes

• Advanced Encryption Standard New Instructions (AES-NI): Yes

• AMD Enhanced Virus Protection (NX bit): Yes
• FIPS Certification: In Review

Key Features

• Supported Technologies: AMD EXPO™ Technology , AMD PRO technologies , AMD Ryzen™ Technologies
