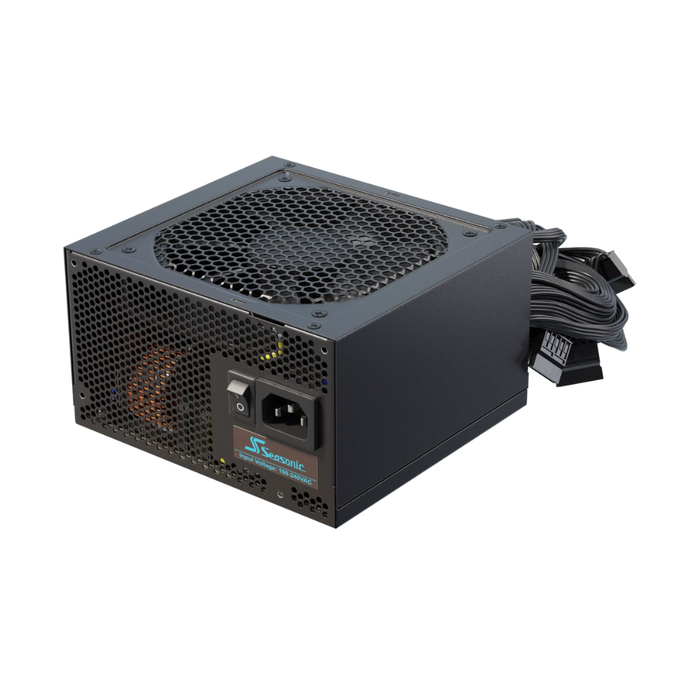

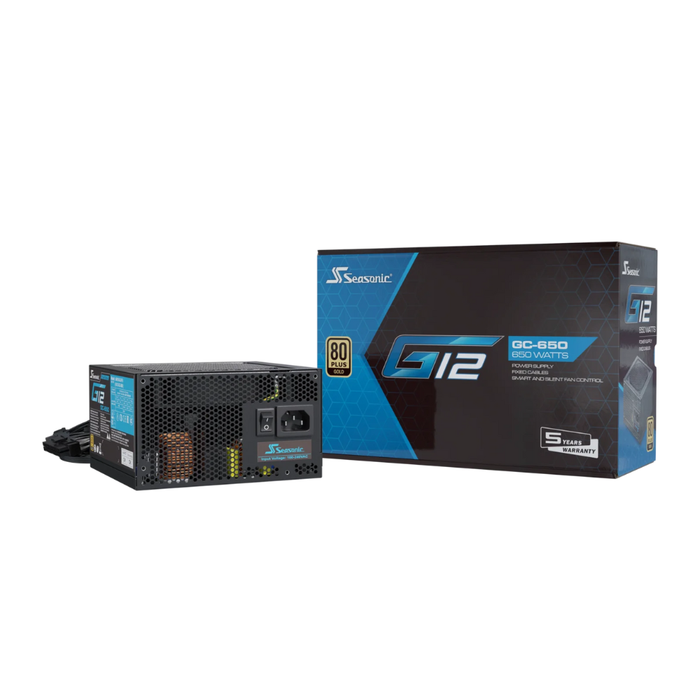

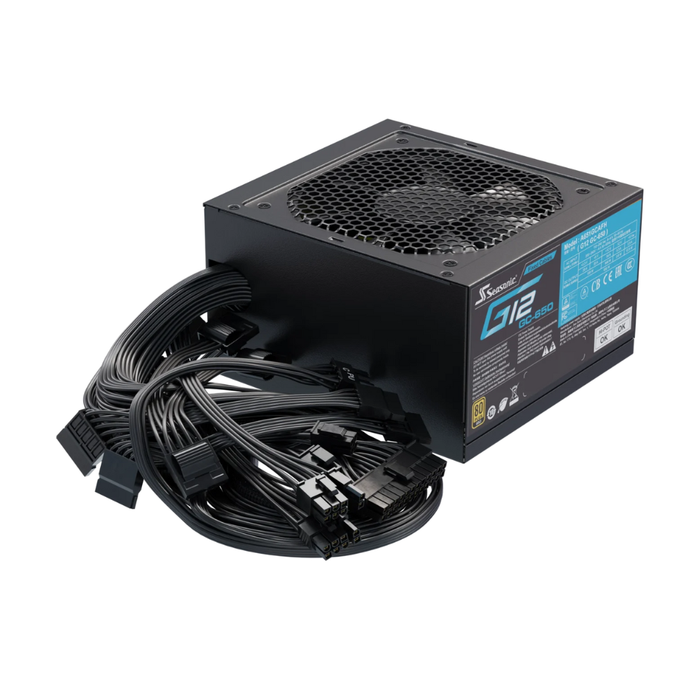

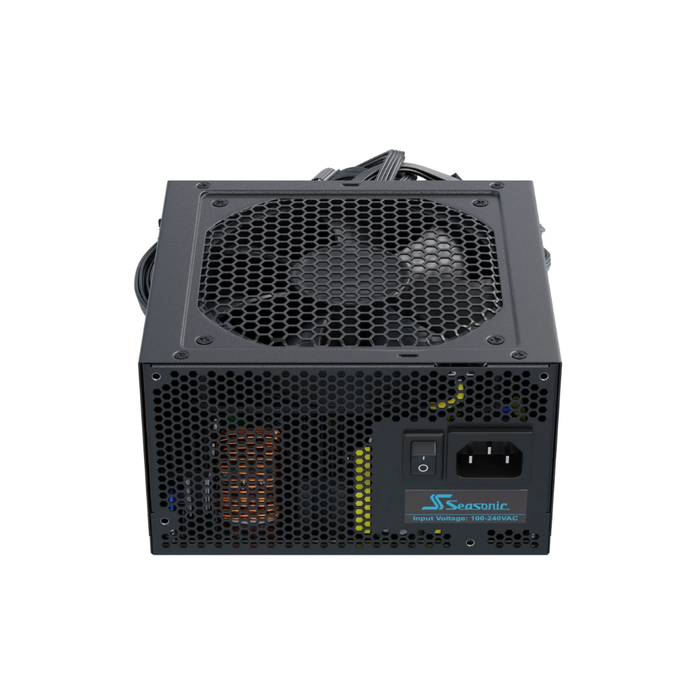

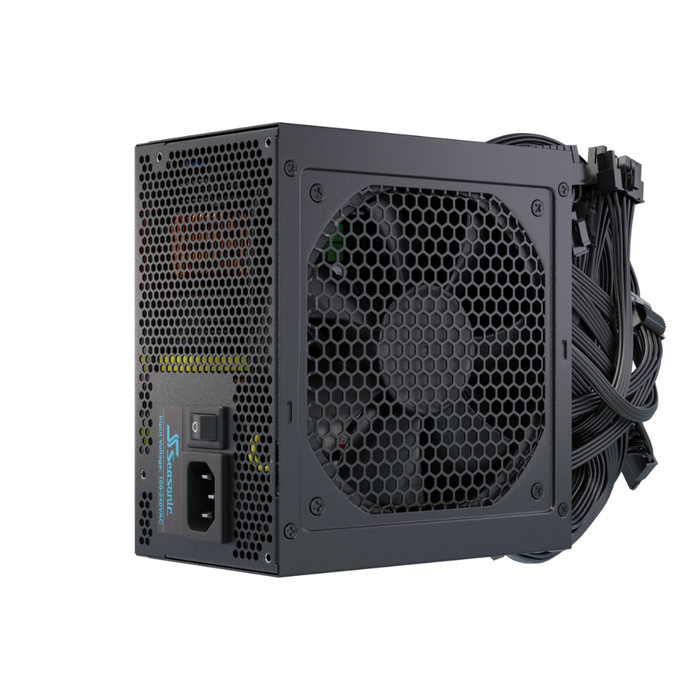

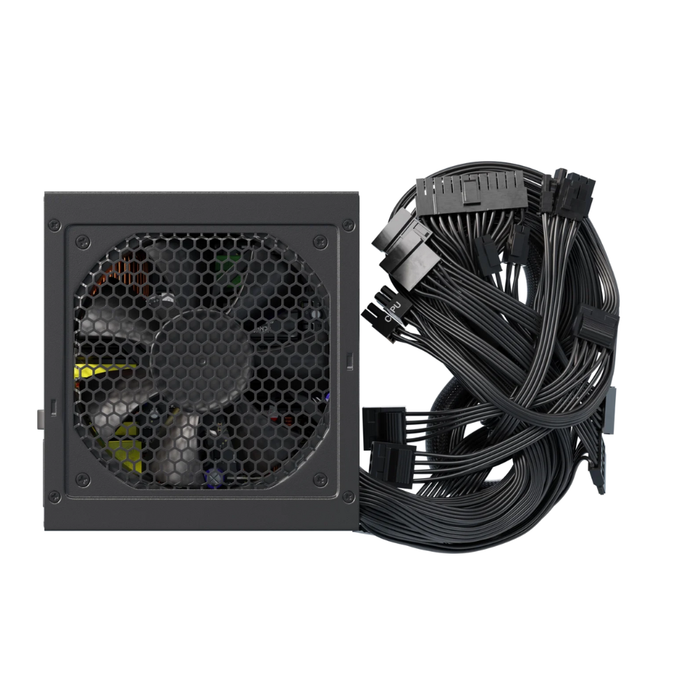

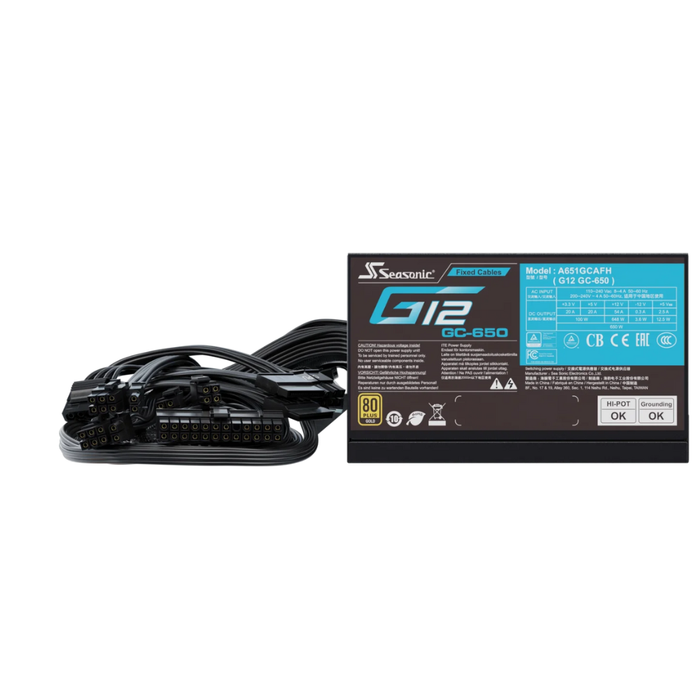

Seasonic Power Supply Core GC 650W

Specifications:

• Product Number: G12-GC-650
• 80PLUS: Gold
• Cybenetics Efficiency Level: TBA
• Cybenetics Noise Level: TBA

• Form Factor: ATX/EPS

• Dimensions: 140 × 150 × 86 mm

• Fan Information:
  • Fan Size: 120 mm

  • Fan Control: Smart and Silent Fan Control

  • Fan Bearing: Sleeve Bearing

• Cable Information:
  • Modularity: Fully Modular

• Electrical Features
  • Operating Temperature: 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C linearly)

  • MTBF @ 25 °C, excl. fan: 100,000 hours

  • AC Input: Full Range
  • Protection: OPP, OVP, OCP, OTP, SCP, UVP

• Safety and Environmental:
  • Safety and EMC: cTUVus, TUV, CB, CCC, BSMI, CE, FCC

  • Environmental Compliance: Energy Star, RoHS, WEEE, ErP Lot 6, REACH

• Power Output
  • AC Input: 100 V - 240 V, 9 - 4.5 A, 50 Hz - 60 Hz

• DC Output
  • Rail: +3.3 V, +5 V, +12 V, -12 V, +5 VSB
  • Maximum Power: 20 A, 20 A, 54 A, 0.3 A, 3 A, 100 W, 648 W, 3.6 W, 15 W
  • Total continuous power: 650 W
