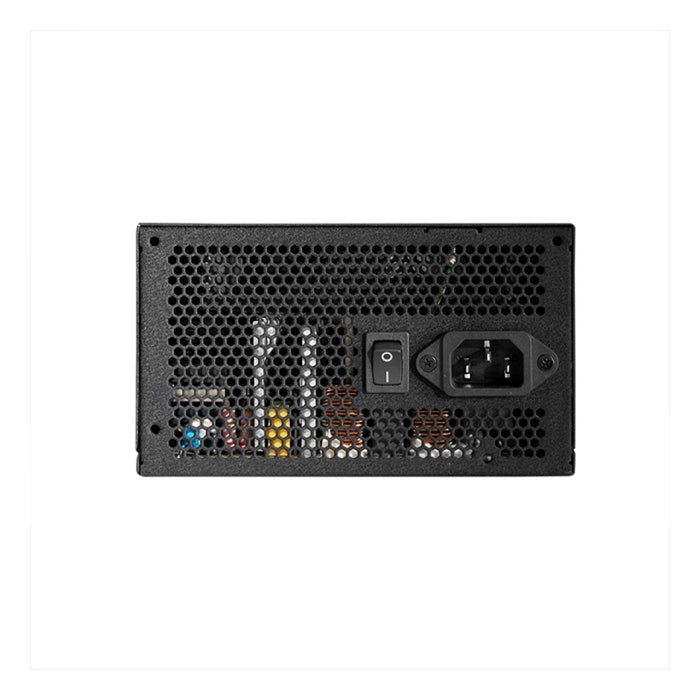

Chieftec Power Supply SteelPower Series BDK-550FC 550W

Specifications:

• Product Number: BDK-550FC 550W


Energy

• Total performance: 550 W

• AC input voltage: 100 - 240 V

• AC input frequency: 47 - 63 Hz

• Input current: 8 A
• Power factor: 0.9

• Power factor correction filter (PFC): Active

• Combined current (+3.3V): 100 W

• Combined current (+12V): 546 W

• Combined current (+5V): 100 W

• Combined current (-12V): 3.6 W

• Combined current (+5Vsb): 12.5 W

• Max. output current (+3.3V): 20 A

• Max. output current (+12V): 45.5 A

• Max output current (+5V): 20 A

• Max. output current (-12V): 0.3 A

• Max. output current (+5Vsb): 2.5 A
• Efficiency: 85%
• Energy protection properties: Overcurrent, overvoltage, overheating, overload protection, short circuit, undervoltage

Connections & interfaces

• Motherboard connector: 20+4 pin ATX

• Power cable length motherboard: 65 cm

• Number of SATA power connectors: 6

• SATA power cable length: 150, 500 mm

• Number of Molex connectors 4-pin: 3

• Peripheral (Molex) power cable length: 150, 500 mm

• EPS power connector (4+4 pin): Yes
• Number of PCI Express power connectors 6+2pin: 2

• Floppy drive power connection: 1

• Cable type: Fully modular


Services

• 80 Plus certification: 80 PLUS Bronze

• Power supply unit (PSU) form factor: ATX

• ATX version: 2.3
• Bearing type: FDB

Design

• Product color: Black

• cooling: Active

• Fan diameter: 12 cm

• Number of fans: 1 fan

Weight and dimensions

• Width: 150 mm

• Depth: 140 mm

• Height: 86 mm

• Weight: 1.62 kg
