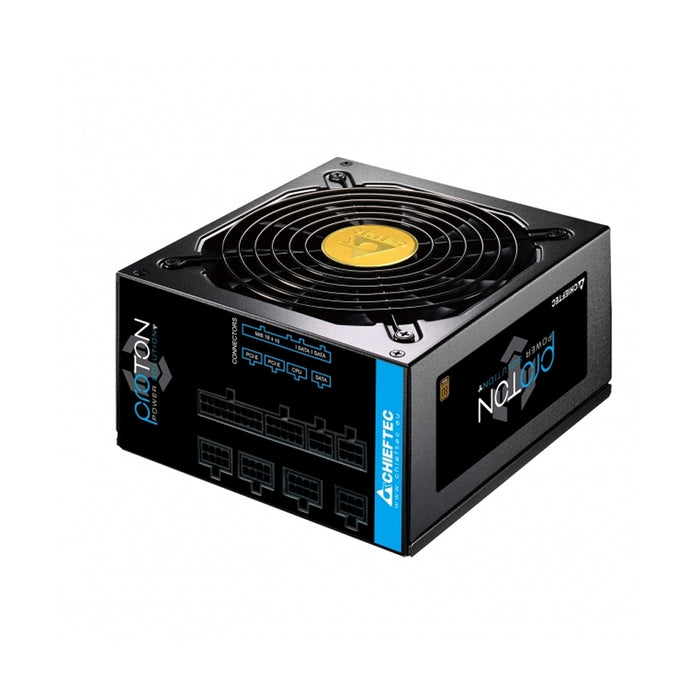

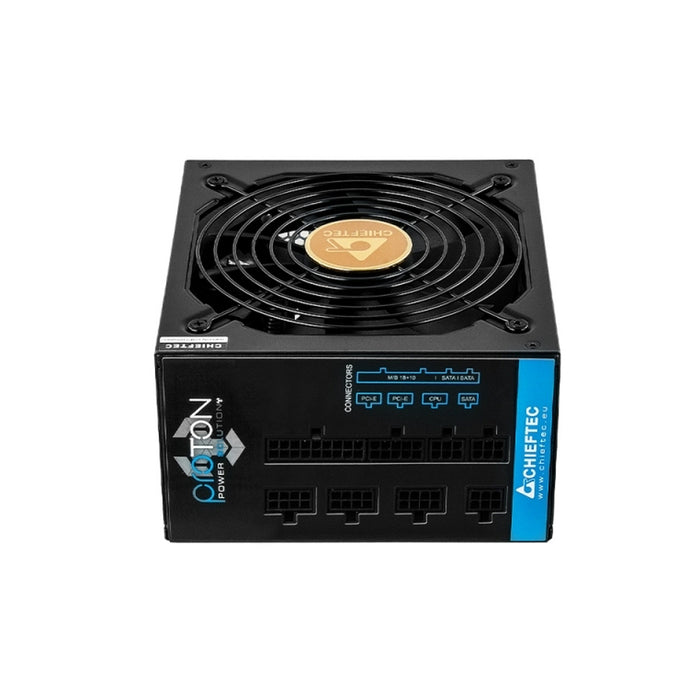

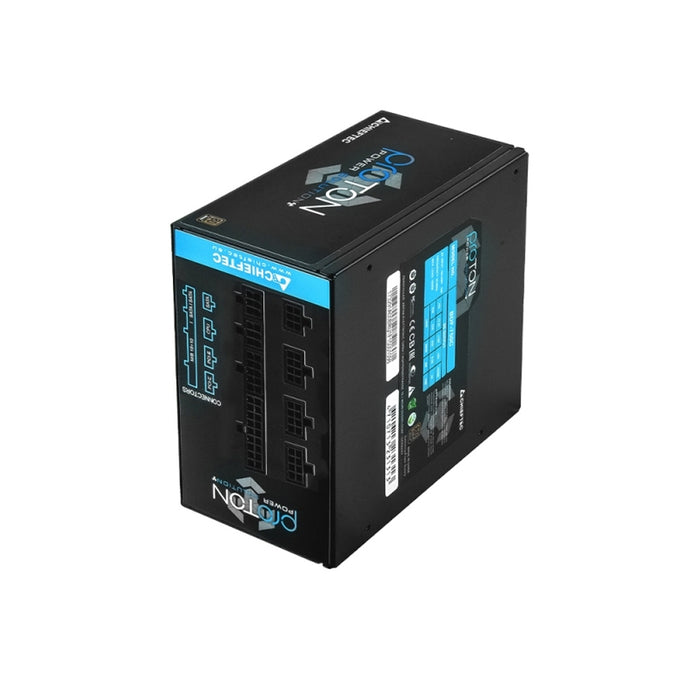

Chieftec Power Supply Proton Series BDF-750C 750W

Specifications:

• Product Number: BDF-750C


Energy

• Total performance: 750 W

• AC input voltage: 115 - 230 V

• AC input frequency: 50 - 60 Hz

• Power factor: 0.9

• Power factor correction filter (PFC): Active

• Combined current (+3.3V): 120 W

• Combined current (+5V): 120 W

• Max. output current (+3.3V): 22 A

• Max. output current (+12V): 62.5 A

• Max output current (+5V): 22 A

• Max. output current (-12V): 0.3 A

• Max. output current (+5Vsb): 2.5 A

• Efficiency: 85%
• Energy protection properties: Overcurrent, overvoltage, overheating, overload protection, short circuit, undervoltage

Connections & interfaces

• Motherboard connector: 20+4 pin ATX

• Number of SATA power connectors: 6

• Number of Molex connectors 4-pin: 3

• Number of PCI Express power connectors 6+2pin: 4

• CPU connector (4+4 pin): Yes

• Floppy drive connector: Yes

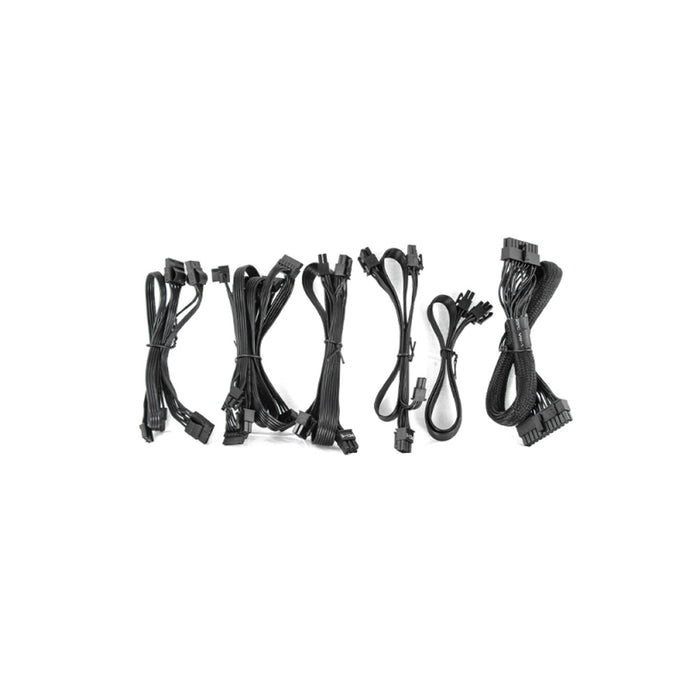

• Cable type: Fully modular


Services

• 80 Plus certification: 80 PLUS Bronze

• Power supply unit (PSU) form factor: PS/2

• ATX version: 2.3
• Warranty: 24 Months

Design

• Width: 150 mm

• Depth: 140 mm

• Height: 87 mm
