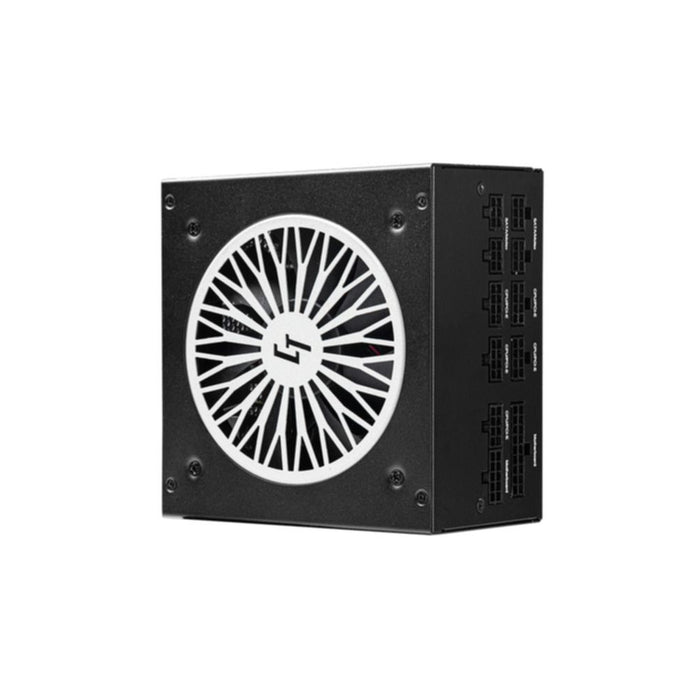

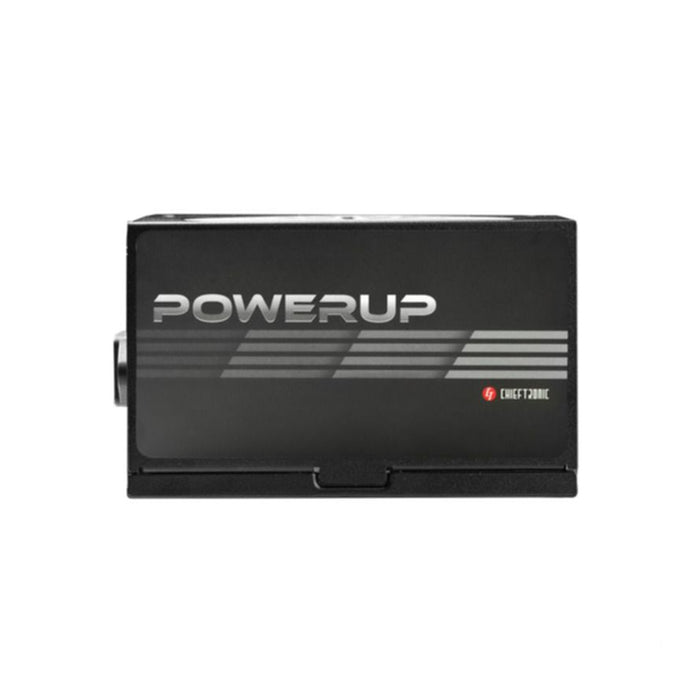

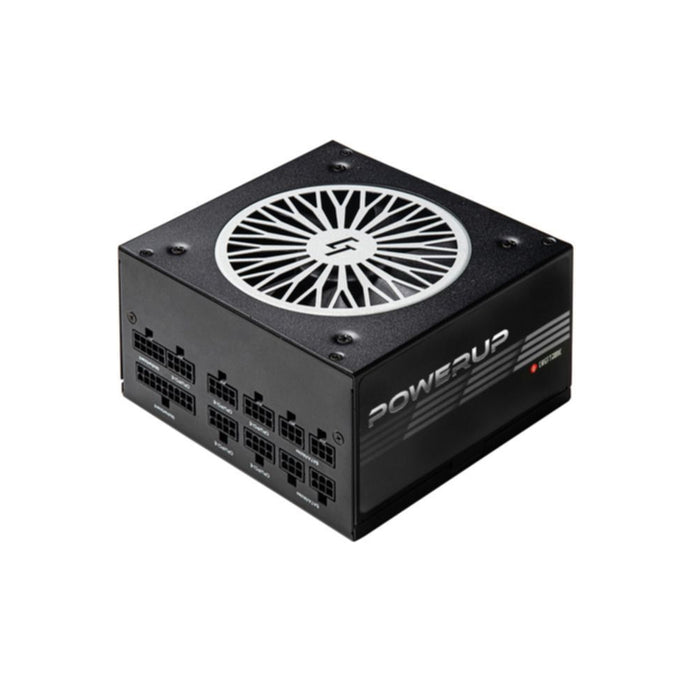

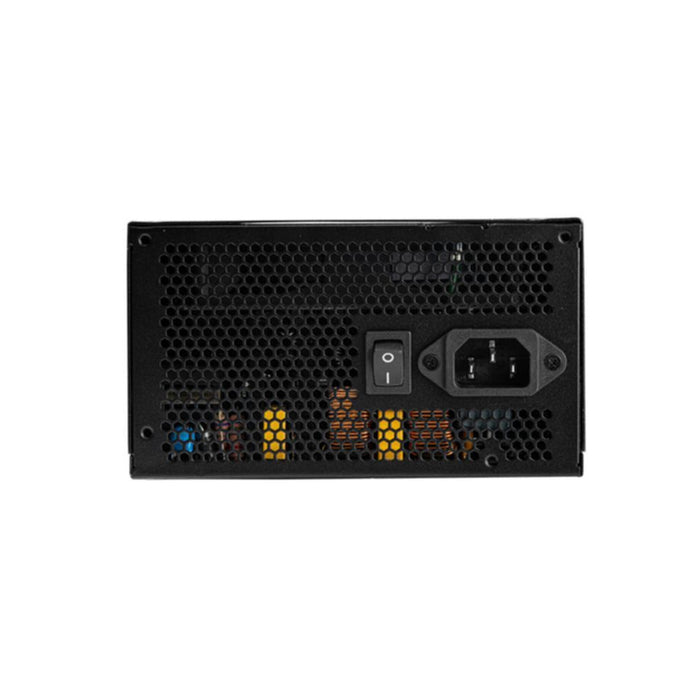

Chieftec Power Supply PowerUp Series GPX-550FC 550W

Specifications:

• Product Number: GPX-550FC


Power

• Total power: 550 W

• AC input voltage: 100-240 V

• AC input frequency: 47-63 Hz

• Input current: 8 A

• Power factor correction filter (PFC): Active

• Combined current (+3.3V): 100 W

• Combined current (+12V): 546 W

• Combined current (+5V): 100 W

• Combined current (-12V): 3.6 W

• Combined current (+5Vsb): 12.5 W

• Max. output current (+3.3V): 20 A

• Max. output current (+12V): 45.5 A

• Max output current (+5V): 20 A

• Max. output current (-12V): 0.3 A

• Max. output current (+5Vsb): 2.5 A
• Energy protection properties: Overcurrent, overload, overvoltage, overheating, short circuit

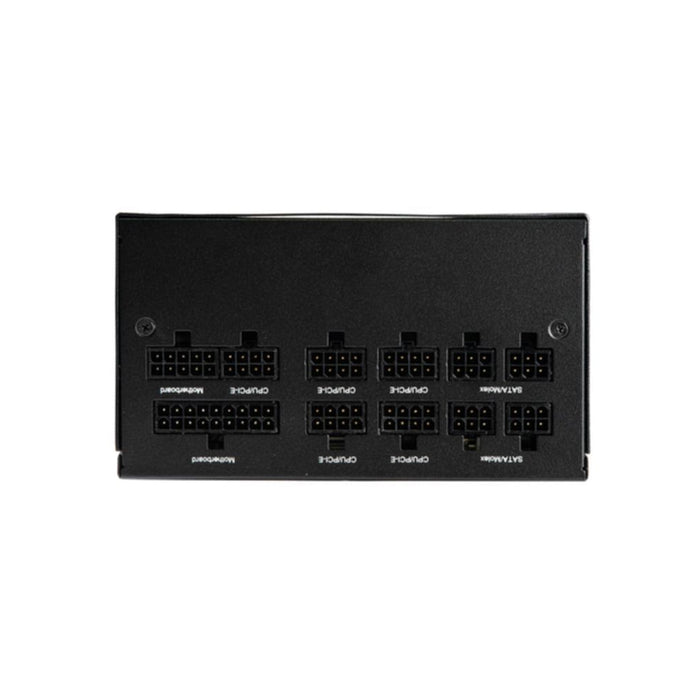

Connections & interfaces

• Motherboard connector: 20+4 pin ATX

• Power cable length motherboard: 65 cm

• Number of SATA power connectors: 6

• SATA power cable length: 500, 650, 800 mm

• Number of Molex connectors 4-pin: 3

• Peripheral (Molex) power cable length: 500, 650, 800, 950 mm

• Number of PCI Express power connectors 6+2pin: 2
• PCI Express power cable length: 50 cm

• CPU connector (4+4 pin): Yes

• CPU performance Cable length: 80 cm

• Floppy drive power connection: 1

• Cable type: Fully modular

Services

• 80 Plus certification: 80 PLUS Gold

• Power supply unit (PSU) form factor: ATX

• ATX version: 2.53

Design

• Product color: Black
• Cooling: Active

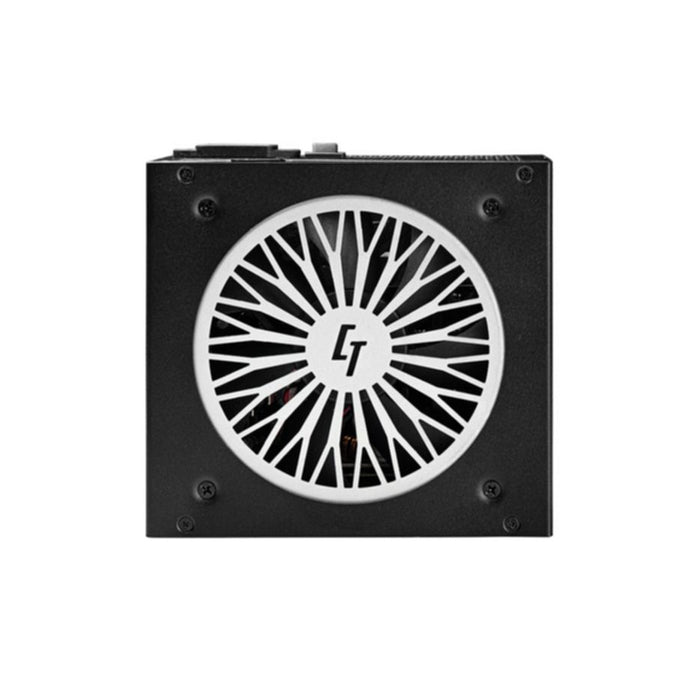

• Fan diameter: 12 cm

• Number of fans: 1


Dimensions

• Width: 150 mm

• Depth: 140 mm

• Height: 86 mm
• Weight: 2.15 kg
