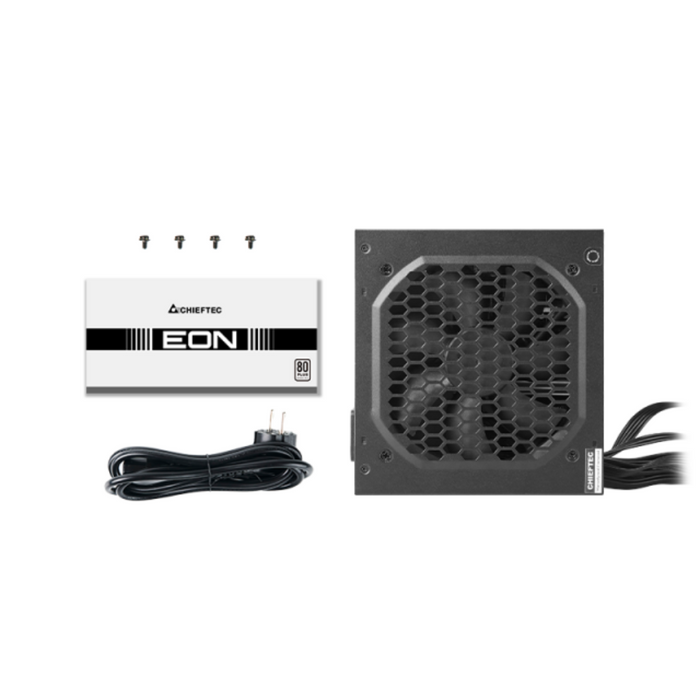

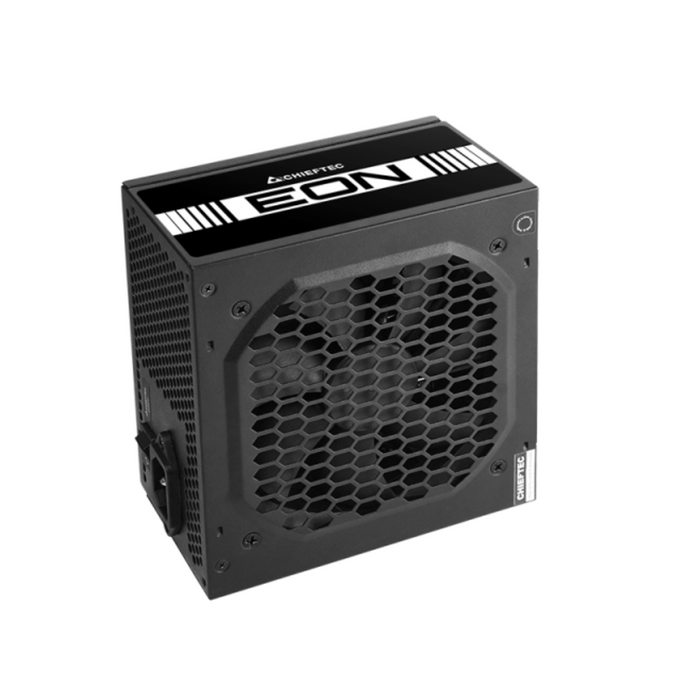

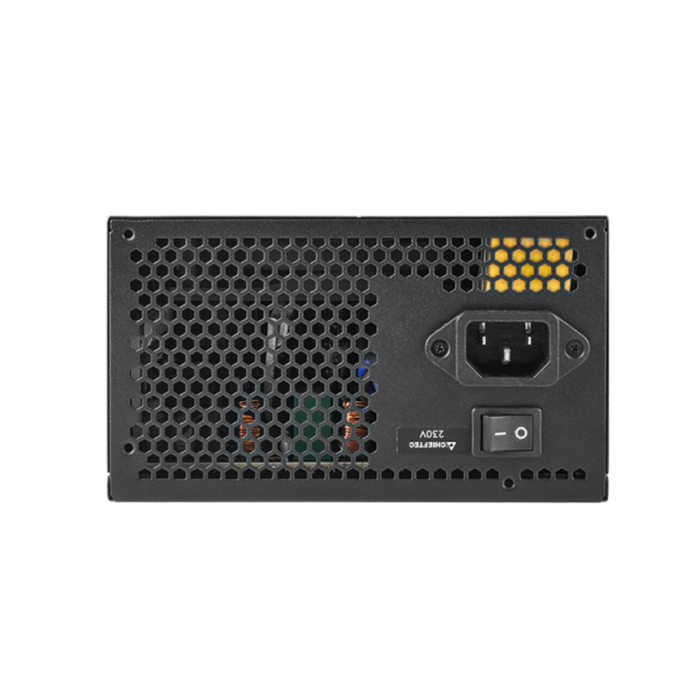

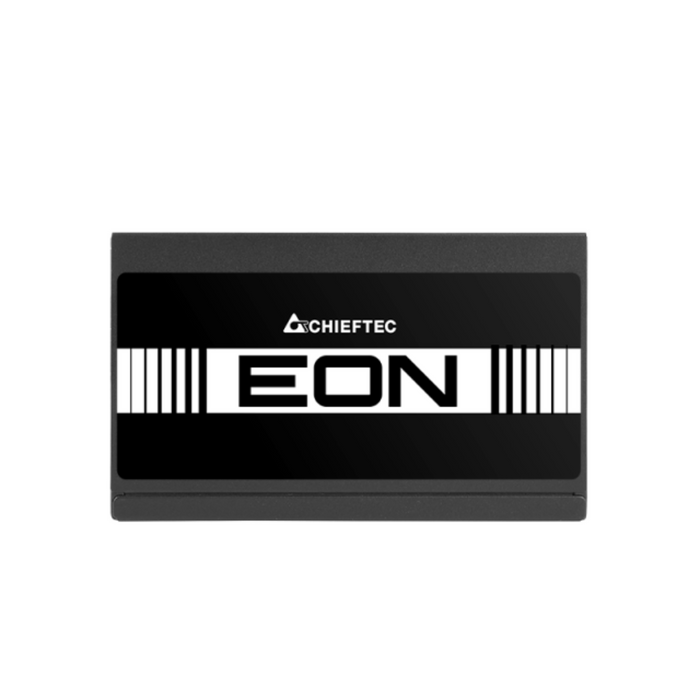

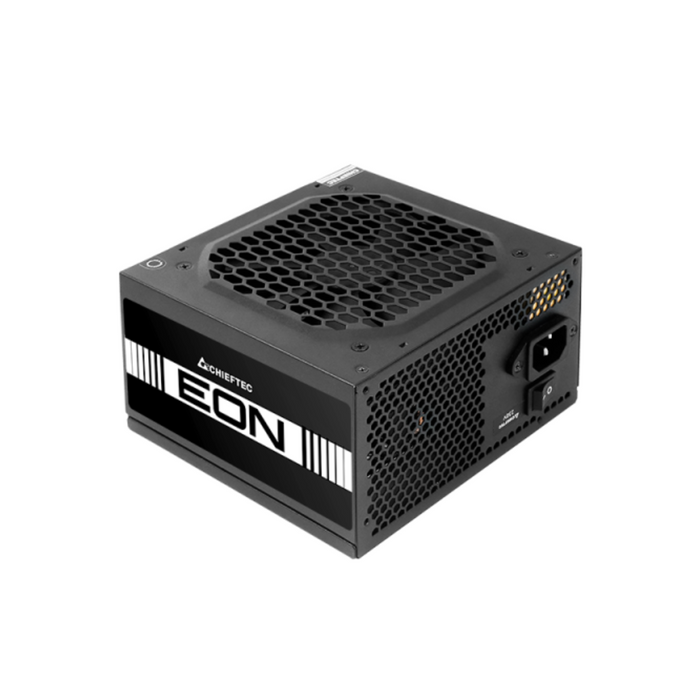

Chieftec Power Supply EON Series ZPU-600S 600W

Specifications:

• Product Number: ZPU-600S

Technical Data

• Model: EON 600W

• Article no.: ZPU-600S

• EAN code: 0753263078438

• Weight (without/with package): 1.34 kg / 1.62 kg

• AC Input: 200-240V~ / 4.5A

• Frequency: 50Hz

• +5V: 20A

• +3.3: V20A

• +5V & +3.3V combined: 100W

• +12V1: 45A

• +12V1, +12V2 combined: 540W

• P.F.: >0.9

• -12V: 0.4A / 4.8W

• +5VSB: 2.5A / 12.5W

• Maximum Power: 600W

Connectors

• 20+4 PIN ATX: 1

• 8 PIN EPS(4+4): 2

• 8 PIN PCIe (6+2): 2

• SATA: 4
• MOLEX/FLOPPY: 2

Cable length (mm)

• 20+4 PIN ATX: 650

• 8 PIN EPS (4+4): 1 x 700/100

• 8 PIN PCIe (6+2): 1 x 550/150

• SATA: 2 x 450/150/150
• MOLEX/FLOPPY: 450/150/150

Features

• Specification: ATX 12V 2.3

• Efficiency: 80Plus Standard 230V EU

• Dimension (DxWxH): 140mm x 150mm x 86mm

• PFC: Active PFC (0.9)

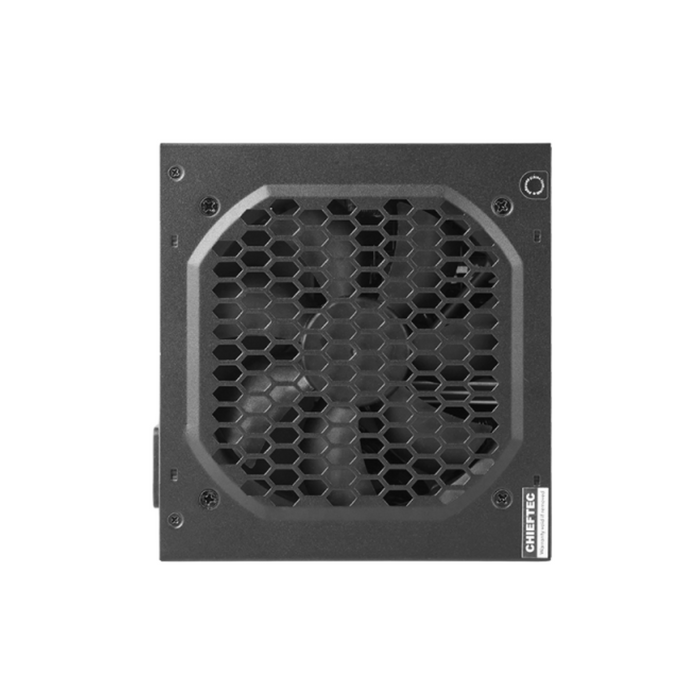

• Fan: 120mm silent fan

• Security: AFC (Automatic Fan speed Control), OPP (Overload protection), OVP (Overvoltage protection), SCP (Short-circuit protection), SIP (Surge & Inrush Protection), UVP (Under Voltage protection)

• Warranty: 24 Months
