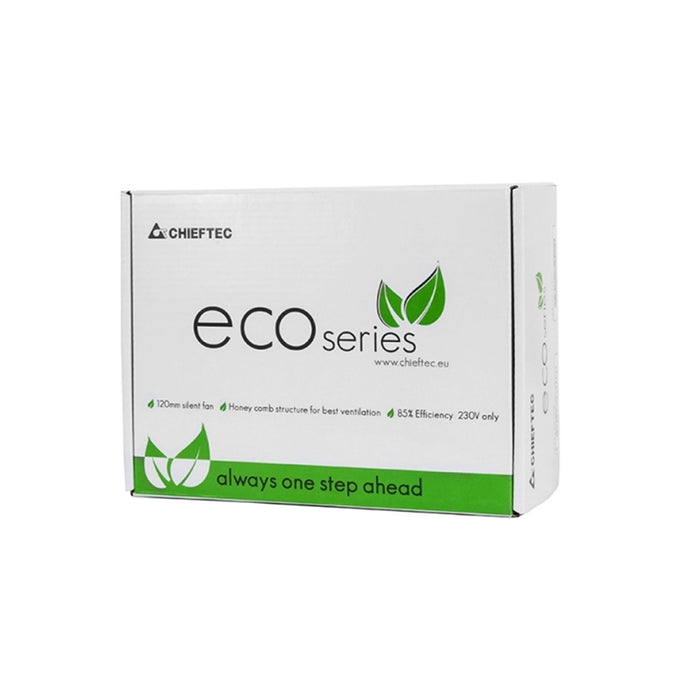

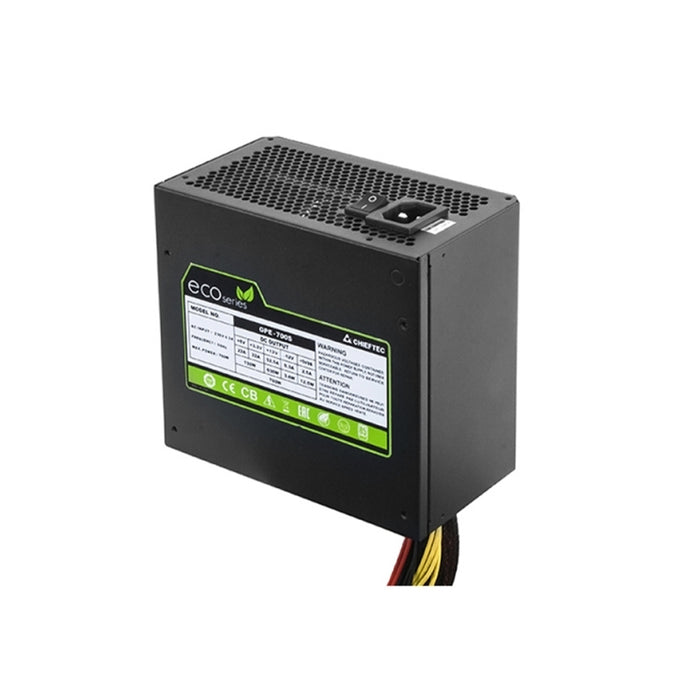

Chieftec Power Supply ECO Series GPE-600S 600W

Specifications:

• Product Number: GPE-600S


Technical Data

• Model: ECO 600W

• Article no.: GPE-600S

• EAN code: 4710713234192

• Weight (without/with package): 1.32kg / 1.44kg

• AC Input:  230V / 6.3A

• Frequency: 50 Hz

• +5V: 22A

• +3,3V: 22A

• +5V & +3,3V combined: 120W

• +12V1: 45A

• +12V2: -

• +12V1, +12V2 combined: 540W
• P.F.: >0,9

• -12V: 0,3A / 3,6W

• +5VSB: 2,5A / 12,5W

• Maximum Power: 600W

Connectors

• 20+4 PIN ATX: 1

• 8 PIN EPS(4+4): 1

• 8 PIN PCIe (6+2): 2

• SATA: 6

• MOLEX/FLOPPY: 2

Cable length (mm)

• 20+4 PIN ATX: 450

• 8 PIN EPS(4+4): 550

• 8 PIN PCIe (6+2): 450/150

• SATA: 2x 350/150/150

• MOLEX/FLOPPY: /150

Features

• ATX12V Version: ATX 12V 2.3
• Efficiency:  >85%
• Dimension (DxWxH): 140 mm x 150 mm x 86 mm
• PFC: Active PFC (0,9)
• Fan: 120mm silent fan
• Security:
• AFC (Automatic Fan speed Control)
• OPP (Over Power Protection)
• OVP (Over Voltage Protection)
• SCP (Short Circuit Protection)
• SIP (Surge & Inrush Protection)
• UVP (Under Voltage Protection)
• Warranty: 24 Months
