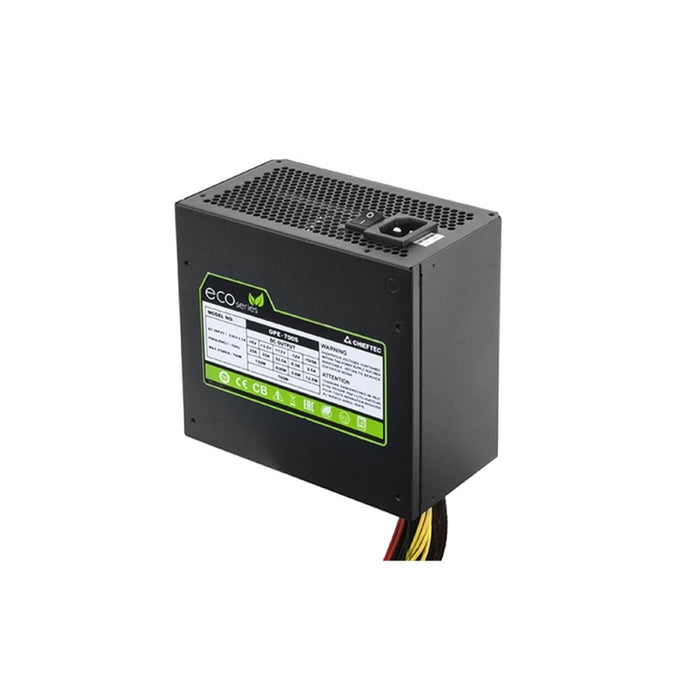

Chieftec Power Supply ECO Series GPE-500S 500W

Specifications:

• Product Number: GPE-500S


Technical Data

• Model: COMPACT 500W

• Article no: CSN-500C

• Weight (without/with package): 1.32kg / 1.44kg

• AC Input: 230V / 5A

• Frequency: 50 Hz

• +5V: 20A

• +3,3V: 21A

• +5V & +3,3V combined: 103W

• +12V1: 37.5A

• +12V2:  -

• +12V1, +12V2 combined: 450W

• P.F.: >0,9

• -12V: 0,3A / 3,6W

• +5VSB: 2,5A / 12,5W

• Maximum Power: 500W

Connectors

• 20+4 PIN ATX: 1

• 8 PIN EPS(4+4): 1

• 8 PIN PCIe (6+2): 1

• SATA: 4

• MOLEX/FLOPPY: 2

Cable length (mm)

• 20+4 PIN ATX: 450

• 8 PIN EPS(4+4): 500

• 8 PIN PCIe (6+2): 400

• SATA: 2x 350/150

• MOLEX/FLOPPY: /150

Features

• ATX12V Version: ATX 12V 2.3
• Efficiency:  >85%
• Dimension (DxWxH): 140 mm x 150 mm x 86 mm
• PFC: Active PFC (0,9)
• Fan: 120mm silent fan
• Security:
• AFC (Automatic Fan speed Control)
• OPP (Over Power Protection)
• OVP (Over Voltage Protection)
• SCP (Short Circuit Protection)
• SIP (Surge & Inrush Protection)
• UVP (Under Voltage Protection)
• Warranty: 24 Months
