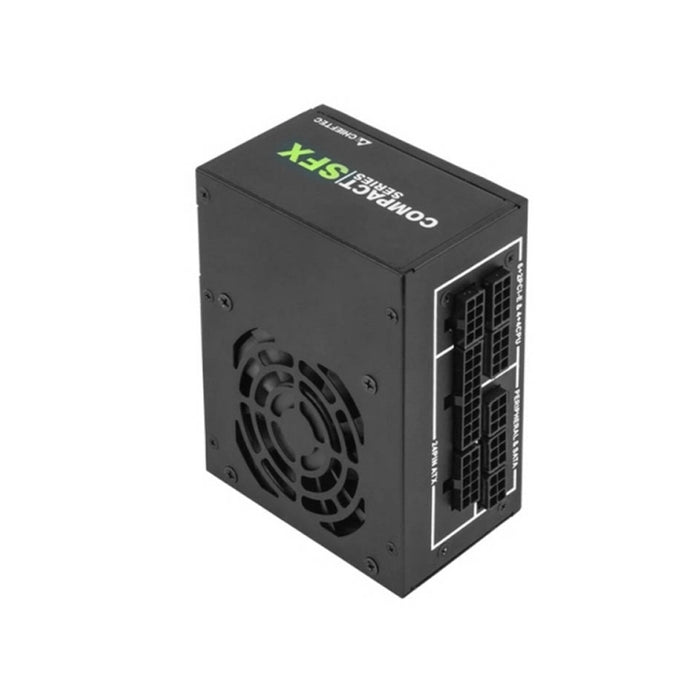

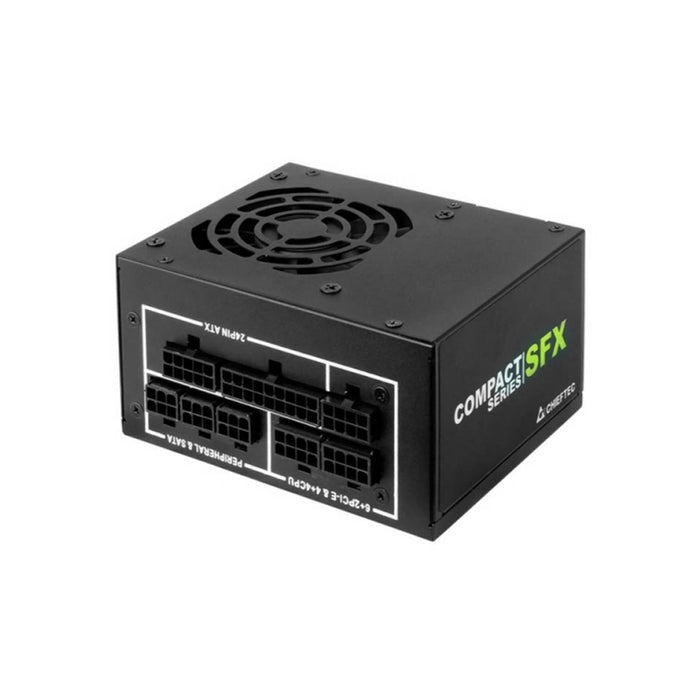

Chieftec Power Supply Compact Series CSN-550C 550W

Specifications:

• Product Number: CSN-650C 650W SFX


Technical Data

• Model: COMPACT 550W

• Article no: CSN-550C

• Weight (without/with package): 1.6 kg / 1.98 kg

• AC Input: 100 - 240V / 6A

• Frequency: 47 - 63Hz

• +5V: 15A

• +3,3V: 18A

• +5V & +3,3V combined: 90W

• +12V1: 45.8A

• +12V2: -

• +12V1, +12V2 combined: 549W

• P.F.>0,9

• -12V    0,3A / 3,6W

• +5VSB    3,0A / 15W

• Maximum Power: 550W

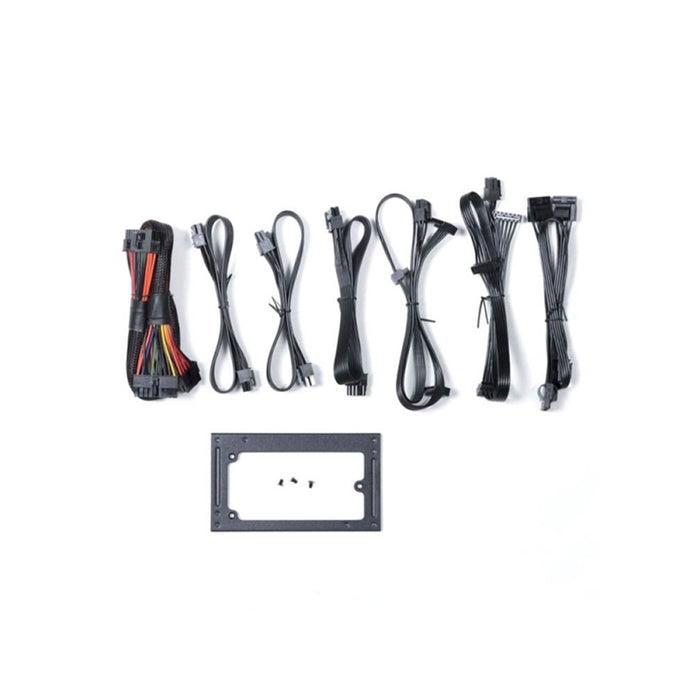

Connectors

• 20+4 PIN ATX: 1

• 8 PIN EPS(4+4): 1

• 8 PIN PCIe (6+2): 2

• SATA: 6

• MOLEX/FLOPPY: 3/1

Cable length (mm)

• 20+4 PIN ATX: 450
• 8 PIN EPS(4+4): 450
• 8 PIN PCIe (6+2): 2 x 4450
• SATA: 2x 450/150/150
• MOLEX/FLOPPY: 450/150/150/150

Features

• ATX12V Version: ATX 12V 2.3
• Efficiency:  80+Gold
• Dimension (DxWxH): 100 mm x 125 mm x 64 mm
• PFC: Active PFC (0,9)
• Fan: 80mm silent fan
• Security:
• AFC (Automatic Fan speed Control)
• OPP (Over Power Protection)
• OVP (Over Voltage Protection)
• SCP (Short Circuit Protection)
• SIP (Surge & Inrush Protection)
• UVP (Under Voltage Protection)
• Warranty: 24 Months
