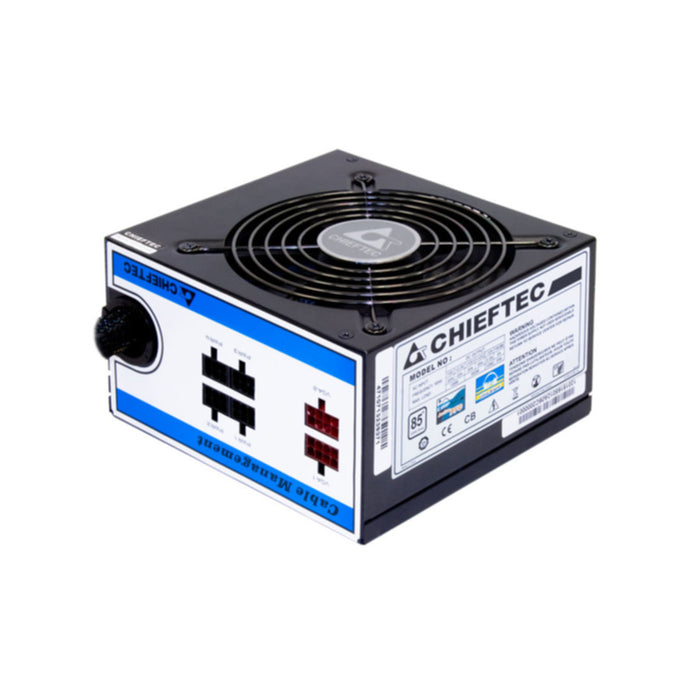

Chieftec Power Supply A-80 Series CTG-550C 550W

Specifications:

• Product Number: CTG-550C


Power

• Total power: 550 W

• AC input voltage: 230 V

• AC input frequency: 50 Hz

• Input current: 6 A

• Maximum input current (at 110V): +12V1,+12V2,+3.3V,+5V,+5Vsb,-12V

• Power factor: 0.9

• Power factor correction filter (PFC): Active

• Combined current (+3.3V): 130 W

• Combined current (+12V): 456 W

• Combined current (+5V): 130 W

• Combined current (-12V): 3.6 W

• Combined current (+5Vsb): 15 W

• Max. output current (+3.3V): 25 A

• Max. output current (+12V1): 25 A

• Max output current (+12V2): 25 A

• Max output current (+5V): 22 A

• Max. output current (-12V): 0.3 A

• Max. output current (+5Vsb): 3 A

• Efficiency: 85%
• Energy protection properties: Overcurrent, overvoltage, overheating, overload protection, short circuit, undervoltage

Connections & interfaces

• Motherboard connector: 20+4 pin ATX

• Number of SATA power connectors: 6

• Number of Molex connectors 4-pin: 4

• EPS power connector (8-pin): Yes

• Number of PCI Express power connectors 6+2pin: 2

• CPU P4 connector (4-pin): 1

• Floppy drive power connection: 2

• Cable type: Semi-Modular

Services

• 80 Plus certification: 80 PLUS

• Power supply unit (PSU) form factor: ATX

• ATX version: 2.3

• Mean time between failures (MTBF): 100,000 hours

Design

• Product color: Black

• Cooling: Active

• Fan diameter: 12 cm

• Number of fans: 1 fan

• Fan placement: Above

Dimensions

• Width: 150 mm

• Depth: 140 mm

• Height: 87 mm
