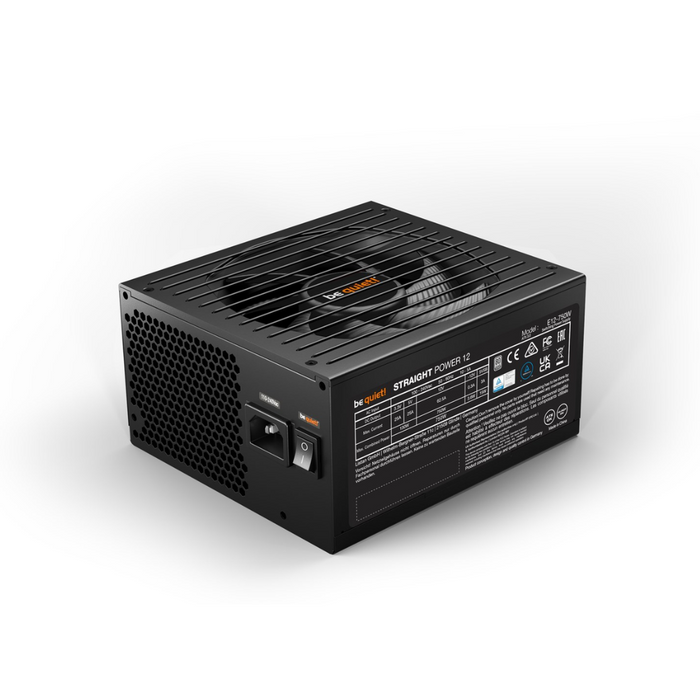

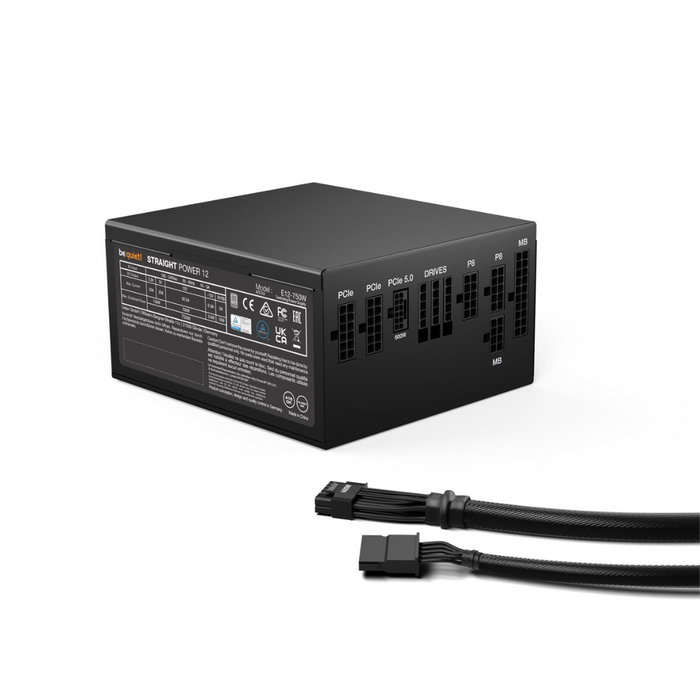

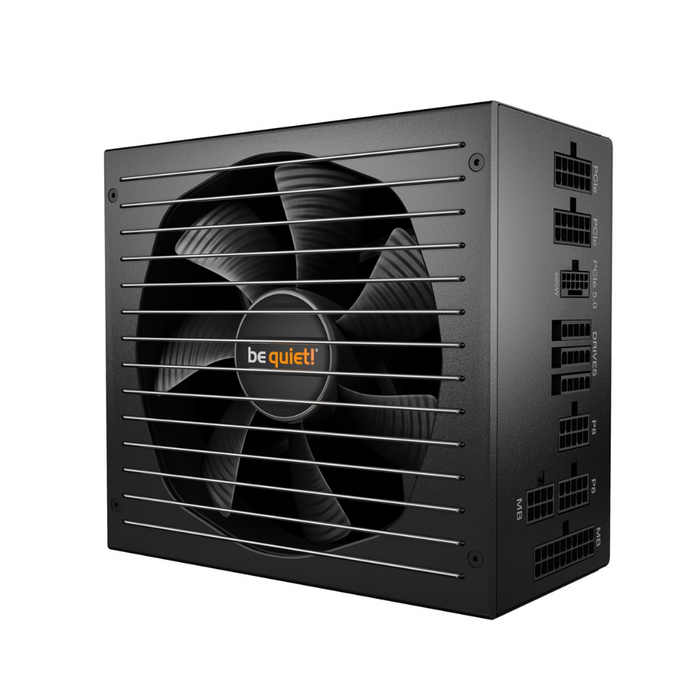

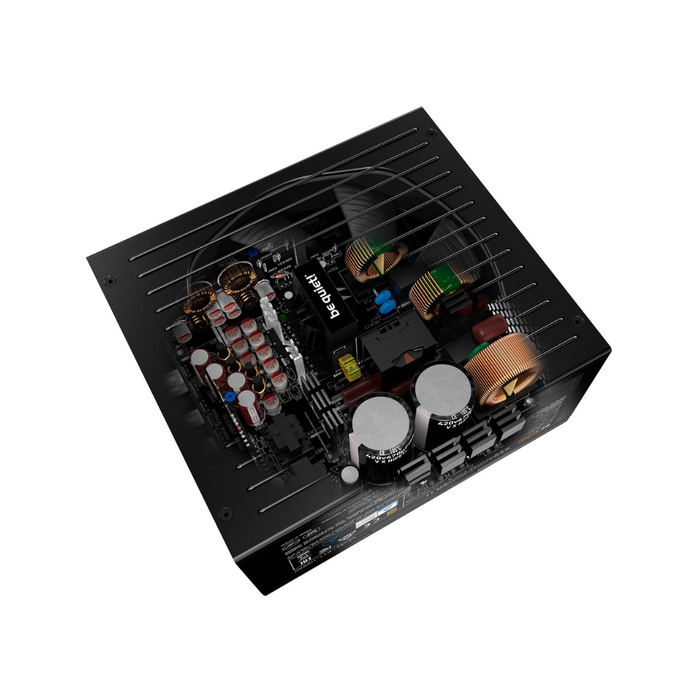

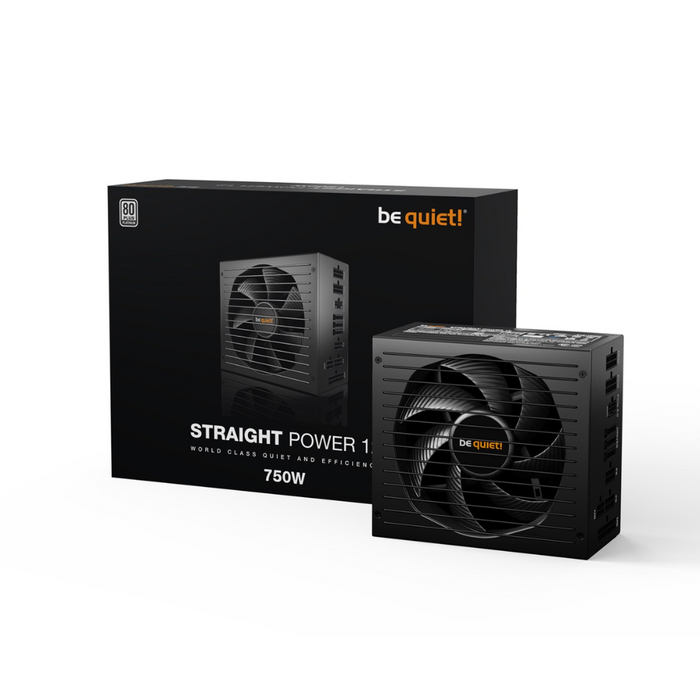

Be Quiet Power Supply Straight Power 12 750W

Specifications:

• Product Number: BN336


Power

• Total power: 750 W

• Peak power: 820 W

• AC input voltage: 110 - 240 V

• AC input frequency: 50/60 Hz

• Input current: 10/5 A
• Power factor: 0.99

• Combined power (+3.3V): 130 W

• Combined power (+12V): 750 W

• Combined power (+5V): 130 W

• Max output current (+3.3V): 25 A

• Max output current (+12V): 62.5 A

• Max output current (+5V): 25 A

• Max output current (-12V): 0.3 A

• Max output current (+5Vsb): 3 A

• Hold time: 24.8 ms
• Efficiency: 92.9%
• Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Ports & interfaces

• Motherboard power connector: 20+4 pin ATX

• Motherboard power cable length: 60 cm

• Number of SATA power connectors: 9

• Number of PATA power connectors: 2

• SATA power cable length: 1000, 550, 700, 850mm
• Peripheral (Molex) power cable length: 1000, 850 mm

• EPS power connector (8-pin): Yes

• EPS power connector (4+4 pin): Yes

• PCI Express power connectors (6+2 pin): 4

• PCI Express power connectors (16-pin): 1

• PCI Express power cable length: 60 cm

• CPU power cable length: 70 cm

• Cabling type: Fully-Modular

Performance

• 80 PLUS certification: 80 PLUS Platinum

• Supported motherboard form factors: ATX, micro ATX, Mini-ATX

• Purpose: PC

• Power supply unit (PSU) form factor: ATX
• ATX version:3.1

• EPS version: 2.92

• Noise level: 20.8 dB
• Bearing technology: FDB

• Mean time between failures (MTBF): 100000 h

Design

• Product colour: Black

• Cooling type: Active

• Fan diameter: 13.5 cm
• Number of fans: 1 fan(s)

• Fan speed: 0 - 1800 RPM

• On/off switch: Yes

Packaging content

• Cables included: CPU, SATA

• Cable tie(s) included: Yes

Weight & dimensions

• Width: 150 mm

• Depth: 160 mm

• Height: 86 mm

• Weight: 1.76 kg
