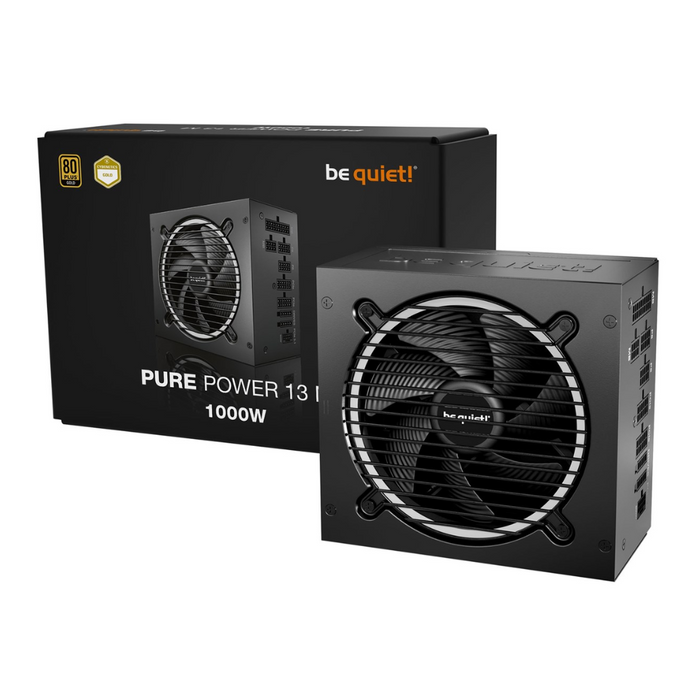

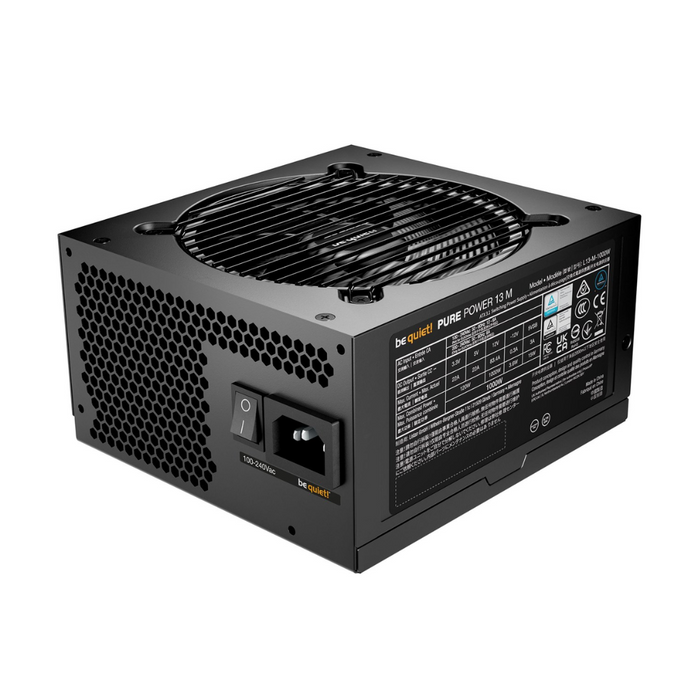

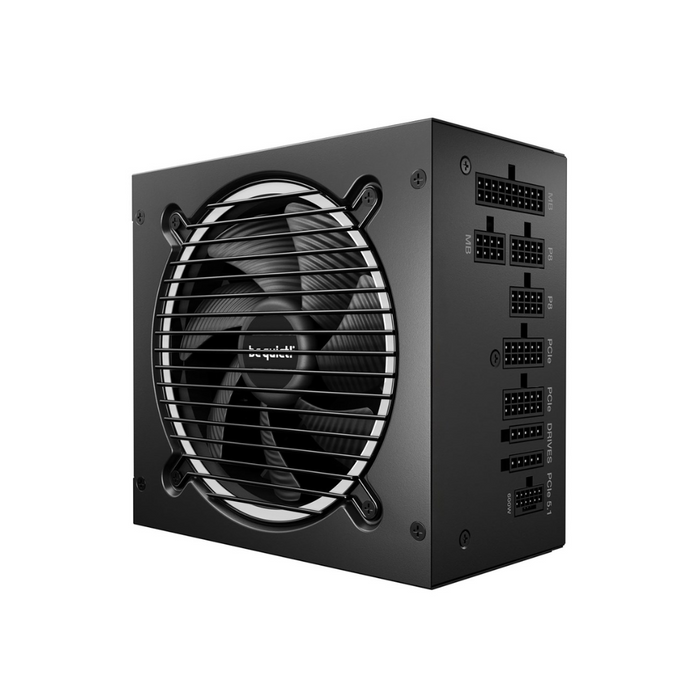

Be Quiet Power Supply Pure Power 13 M 1000W

Specifications:

• Product Number: BP028EU

Power

• Total power: 1000W

• Peak power: 1050W

• AC input voltage: 110 - 240 V

• AC input frequency: 50/60 Hz

• Maximum input current (@110V): 12 A

• Maximum input current (@220V): 6 A

• Power factor: 0.98

• Power Factor Correction (PFC) type: Active

• Number of +12V rail(s): 1

• Combined power (+3.3V): 120 W

• Combined power (+12V): 1000 W

• Combined power (+5V): 120 W

• Combined power (-12V): 3.6 W

• Combined power (+5Vsb):15 W

• Max output current (+3.3V): 22 A

• Max output current (+12V1): 83.4 A

• Max output current (+5V): 22 A

• Max output current (-12V): 0.3 A

• Max output current (+5Vsb): 3 A

• Hold time: 21.09 ms

• Efficiency: 92.5%

• Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage

Ports & interfaces

• Motherboard power connector: 20+4 pin ATX

• Motherboard power cable length: 55 cm

• Number of SATA power connectors: 6

• SATA power cable length: 500 mm, 650 mm, 800mm, 950 mm

• Peripheral (Molex) power connectors (4-pin): 2

• Peripheral (Molex) power cable length: 800. 950mm

• PCI Express power connectors (6+2 pin): 4

• PCI Express power connectors (12-pin): 1

• CPU P4 connector (4-pin): 2
• CPU power connector (4+4 pin): Yes

• CPU power cable length: 65 cm

• Cabling type: Fully-Modular

Performance

• 80 PLUS certification: 80 PLUS Gold

• Purpose: PC

• Power supply unit (PSU) form factor: ATX

• ATX version: 3.1

• EPS version: 2.92

• Noise level: 30.2 dB

• Bearing technology: Rifle

• Mean time between failures (MTBF): 100000 h

Design

• Product colour: Black

• Cooling type: Active

• Fan diameter: 12 cm

• Number of fans: 1 fan(s)

• Fan speed: 0 - 2000 RPM
• On/off switch: Yes

Packaging Data

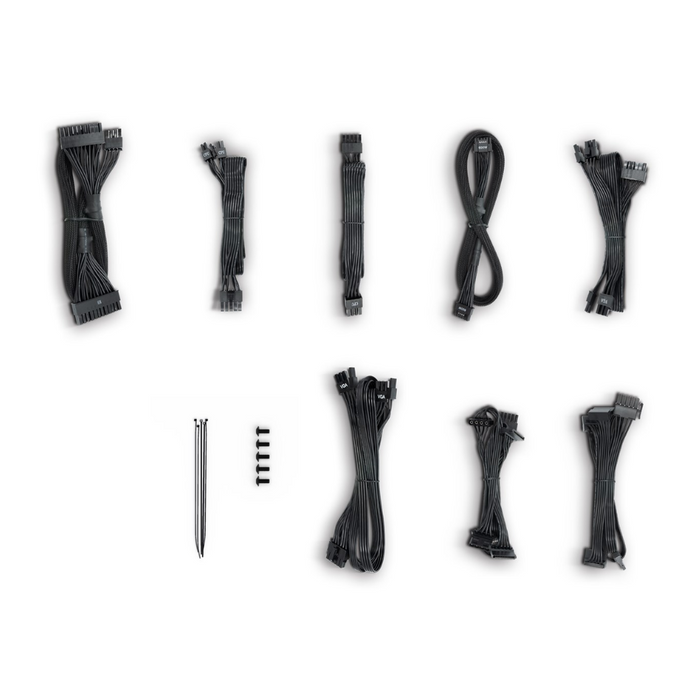

• Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA

• Cable tie(s) included: Yes
• Screws included: Yes

Weight & dimensions

• Width: 150 mm

• Depth: 160 mm

• Height: 86 mm

• Weight: 2.64 kg
