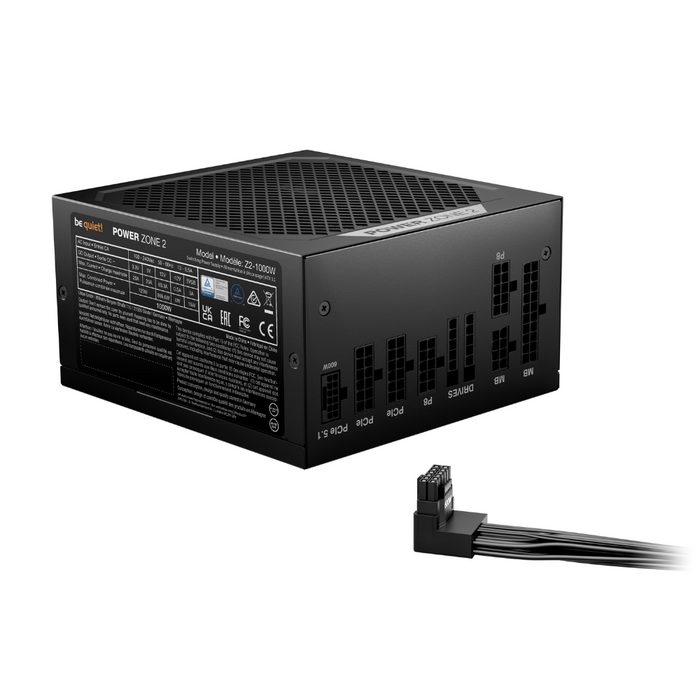

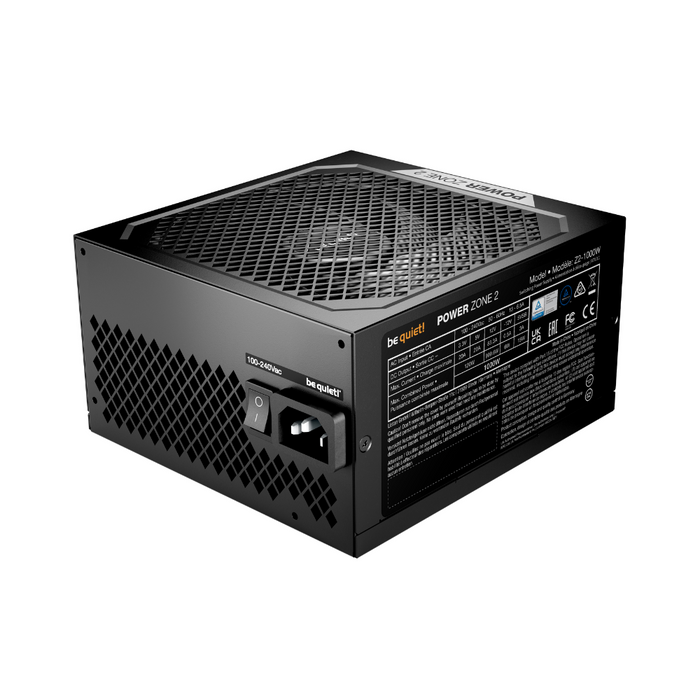

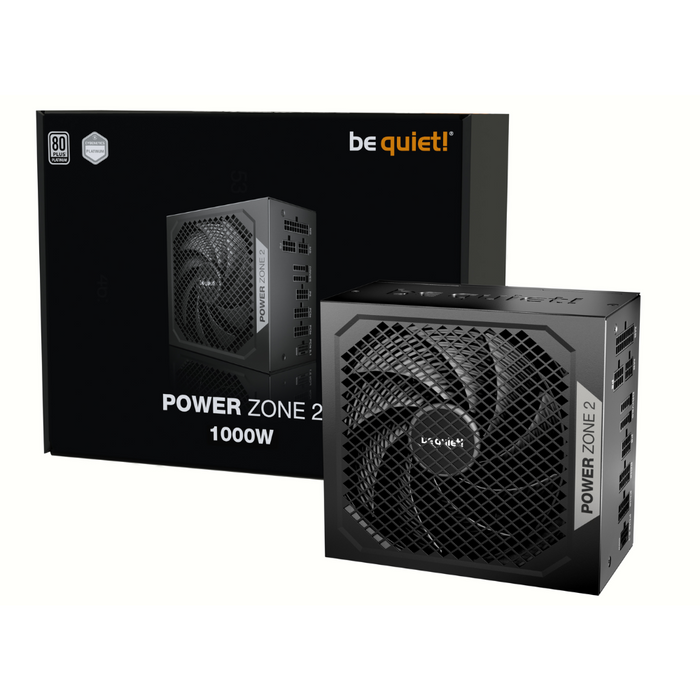

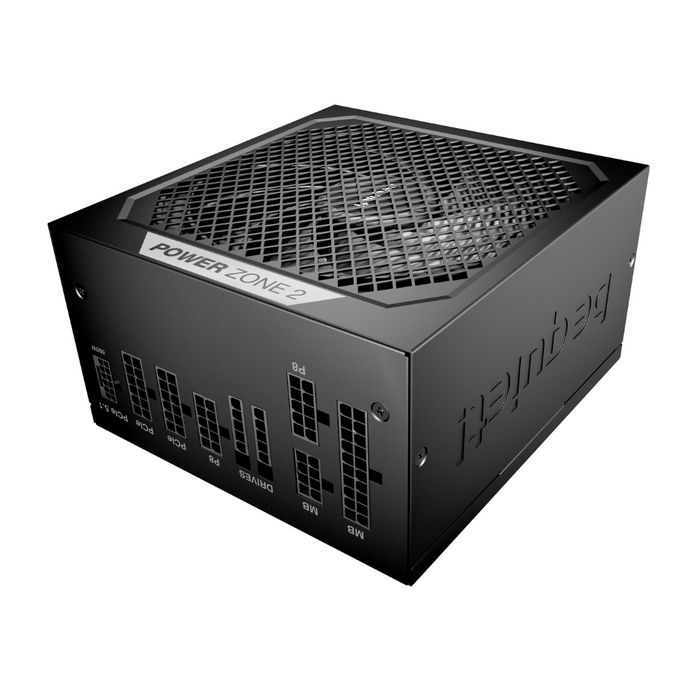

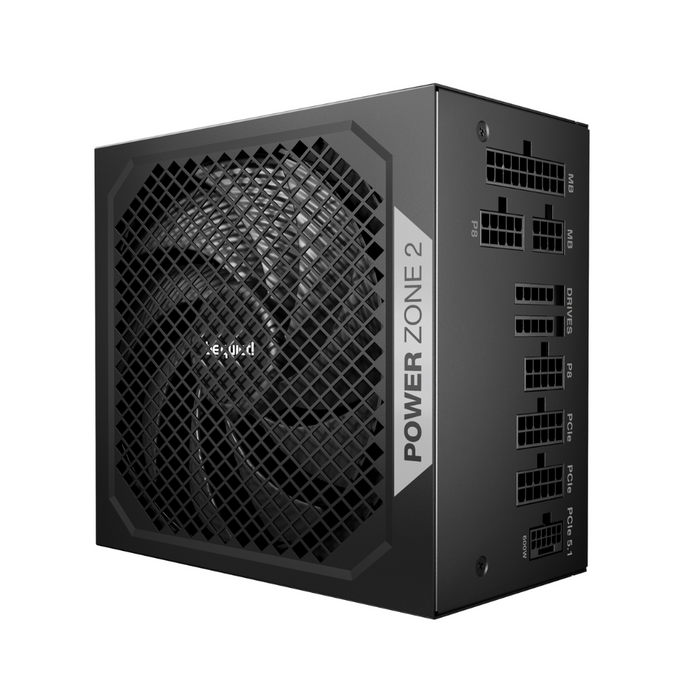

Be Quiet Power Supply Power Zone 2 1000W

• Product Number: BP008EU
• Model: Power Zone 2

Power

• Total power: 1000 W

• Peak power: 1070 W

• Form factor: Version 3.1

• Form factor EPS 12V: Version 2.92

• Topology: LLC + SR + DC/DC

• Voltage (Vac): 100 - 240

• Frequency (Hz): 50 - 60

• Input current (A): 13 / 6.5

• Power factor at 100% load: >0.98

• Modern standby: Yes

• Power consumption in standby (W): <0.18

• Average life time (h / 25°C): >100,000

• Operating temperature up to (°C): 40

Fan and cooling technology

• Cybenetics Noise Rating: A+

• Fan: Pure Wings 3

• Fan size (mm): 140

• Bearing technology: Rifle

• Motor technology: 4-pole fan motor

• Max. fan speed (rpm): 2100

• dB(A) at 10% load: 6.5

• dB(A) at 20% load: 6.5

• dB(A) at 50% load: 6.5

• dB(A) at 100% load@ 27.2

Output

• 12V single rail operation: Yes

• +3.3V (A): 20

• +5V (A): 20

• +12V1 (A): 83.3

• +12V2 (A): N/A

• +12V3 (A): N/A

• +12V4 (A): N/A

• +12V5 (A): N/A

• +12V6 (A): N/A

• -12V (A): 0.5

• +5Vsb (A): 3

• Max. combined power 12V (W): 999.6

• Max. combined power 12V-2x6 (W): 600

• Max. combined power 3.3V + 5V (W): 120

• Hold-up time at 100% load (ms): 22.7

• Hold-up time at 80% load (ms): 30.5

• Power good signal (ms)    100 - 150

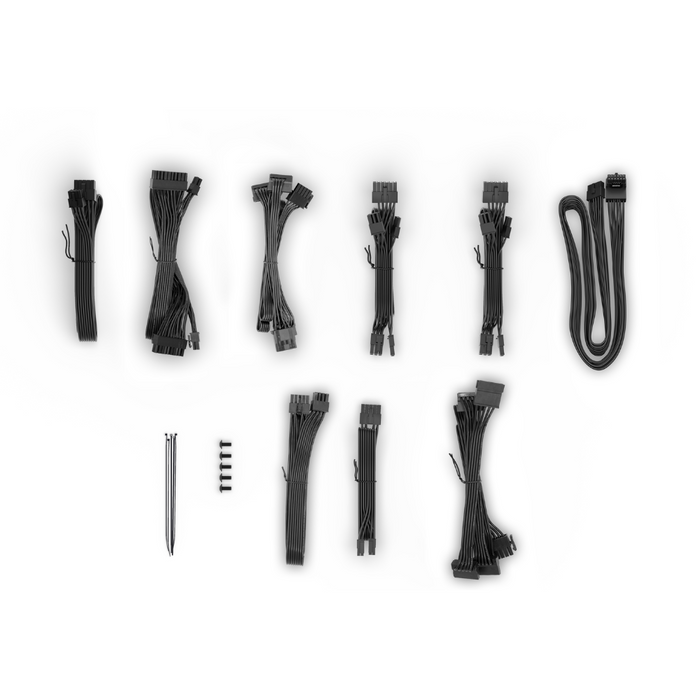

Cables and connectors

• Modular cables: Yes

• Sleeved cables: Yes

• Flat cables: Yes

• Maximum cable length (cm): 100

• Cable length to motherboard (cm): 60

• No. of cables: 8

• ATX-Motherboard (20+4-pin): 1

• P4+4 (CPU): 1

• P8 (CPU): 1

• P4 (CPU): 1
• 12V-2x6 cables: 1

• PCI-e 6+2-pin (GPU): 3

• SATA: 7

• PATA: 1


Protection

• OTP (over temperature protection)

• OCP (over current protection)

• OPP (over power protection)

• SCP (short circuit protection)

• OVP (over Voltage protection)

• UVP (under Voltage protection)

• SIP (Surge & Inrush protection)

Casing

• Dimensions without cable:
  • Length: 160mm
  • Width:150mm
  • Height: 86mm
• Weight (kg): 2.82

• Colour: Black

Packaging Data

• Screws: Yes

• Cable ties: Yes
