Be Quiet Power Supply Dark Power 13 750W

SKU PSU-225
Sold out
Original price €0,00 - Original price €0,00
Original price €0,00
€249,00
€249,00 - €249,00
Current price €249,00

Specifications:

  • Product Number: BN333
  • Model: Dark Power 13 750W
  • Continuous power (W): 750
  • Peak power (W): 850
  • Form factor: Version 3.0
  • Form factor EPS 12V: Version 2.92

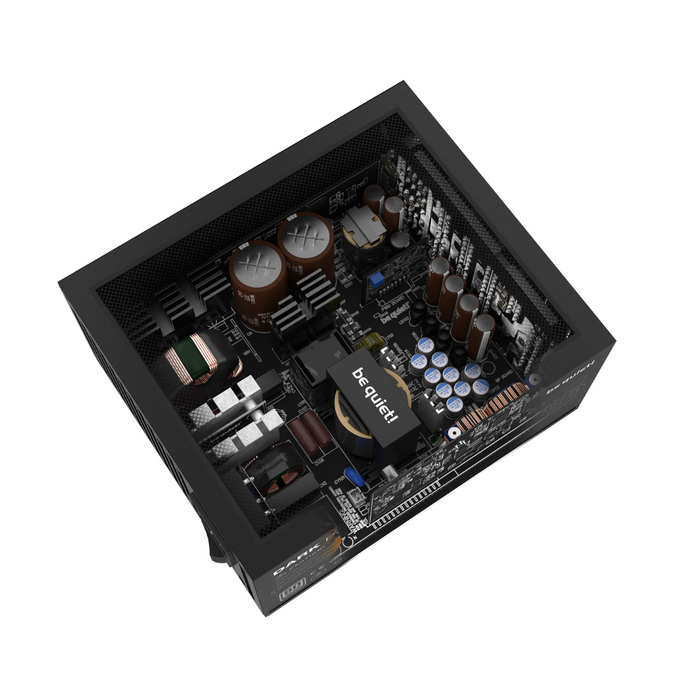

  • Topology: Active Rectifier + Full bridge + LLC + SR + DC/DC
  • Voltage (Vac): 100 - 240
  • Frequency (Hz): 50 - 60
  • Input current (A): 9 / 4.5
  • Power factor at 100% load: >0.98
  • Power consumption in standby (W): <0.13
  • Average life time (h / 25°C): >100,000
  • Operating temperature up to (°C): 40

Fan and cooling technology

  • Fan: Silent Wings
  • Fan size (mm): 135
  • Bearing technology: FDB
  • Motor technology: 6-pole fan motor
  • Max. fan speed (rpm): 2100
  • dB(A) at 10% load: 7.9
  • dB(A) at 20% load: 8.5
  • dB(A) at 50% load: 9
  • dB(A) at 100% load: 18.8

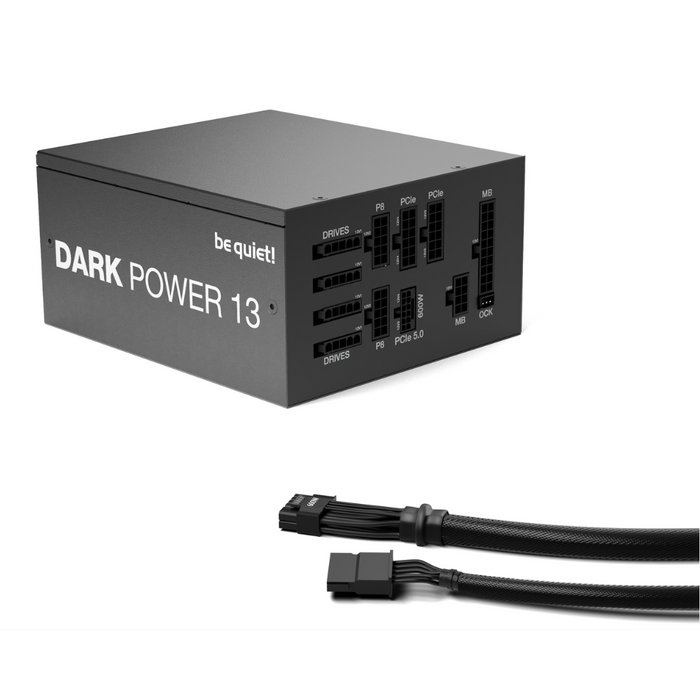

Cables and connectors

  • Modular cables: Yes
  • Sleeved cables: Yes
  • Maximum cable length (cm): 105
  • Cable length to motherboard (cm): 60
  • No. of cables: 12
  • ATX-Motherboard (20+4-pin): 1
  • P4+4 (CPU): 1
  • P8 (CPU): 1
  • 12V-2x6 cables: 1
  • PCI-e 6+2-pin (GPU): 4
  • SATA: 12
  • PATA: 2

Output

  • Multi-rail operation (12V rails): 4
  • 12V single rail operation: Yes
  • Overclocking key: Yes
  • +3.3V (A): 22
  • +5V (A): 22
  • +12V1 (A): 25
  • +12V2 (A): 25
  • +12V3 (A): 30
  • +12V4 (A): 30
  • -12V (A): 0.5
  • +5Vsb (A): 3
  • Max. combined power 12V (W): 744
  • Max. combined power 12V-2x6 (W): 600
  • Max. combined power 3.3V + 5V (W): 110
  • Hold-up time at 100% load (ms): 22.6
  • Hold-up time at 80% load (ms): 31.2
  • Power good signal (ms): 100 - 150

Protection

  • OTP (over temperature protection)
  • OCP (over current protection)
  • OPP (over power protection)
  • SCP (short circuit protection)
  • OVP (over Voltage protection)
  • UVP (under Voltage protection)
  • SIP (Surge & Inrush protection)

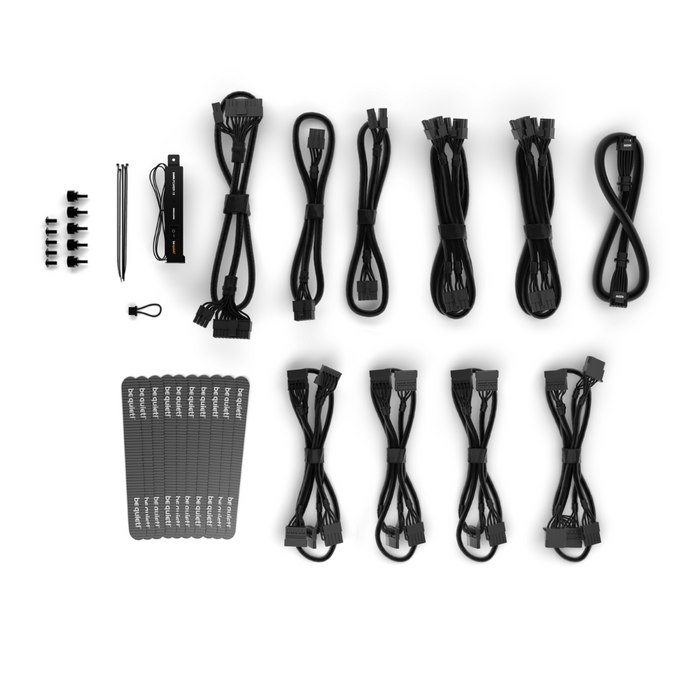

Packaging Data

  • Thumb screws
  • Screws
  • Cable ties
  • Velcro cable ties
  • OCK slot bracket with switch / OCK jumper

Casing

  • Dimensions without cable:
    • Length: 175mm
    • Width: 150mm
    • Height: 86mm
  • Weight (kg): 1.96
  • Colour: Black

-Despite our best efforts we cannot guarantee that the published specifications and images do not contain errors or mistakes.
