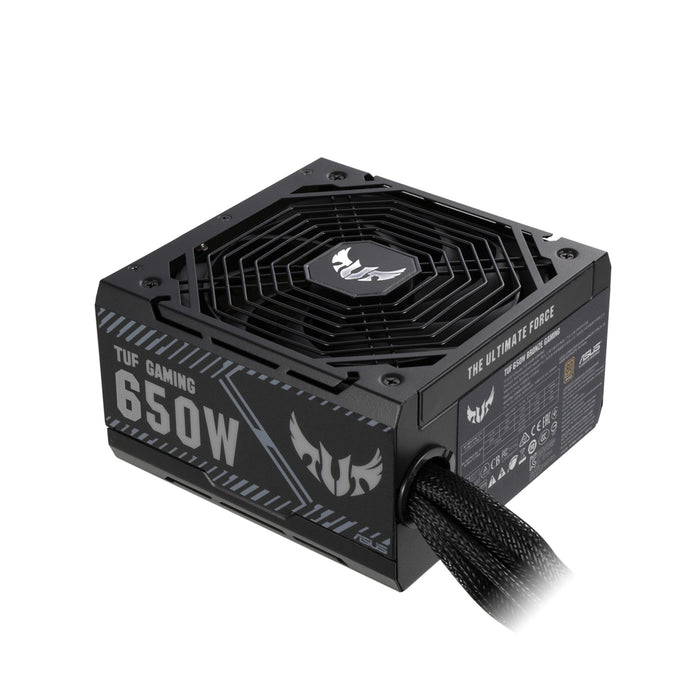

Asus Power Supply TUF Gaming 650W

Specifications:

• Product Number: 90YE00D1-B0NA00

Power

• Total power: 650 W
• AC input voltage: 100 - 240 V

• Input current: 25 A
• Combined power (+3.3V): 130 W
• Combined power (+12V): 612 W
• Combined power (+5V): 130 W
• Combined power (-12V): 9.6 W
• Combined power (+5Vsb): 15 W
• Max output current (+3.3V): 25 A
• Max output current (+12V): 51 A
• Max output current (+5V): 25 A
• Max output current (-12V): 0.8 A
• Max output current (+5Vsb): 3 A

Ports & interfaces

• Motherboard connector: 20+4 pin ATX
• Power cable length motherboard: 60 cm
• Number of SATA power connectors: 5
• SATA power cable length: 400 mm
• Number of Molex connectors 4-pin: 4

• Number of PCI Express power connectors 6+2pin: 4

• PCI Express power cable length: 60 cm

• CPU connector (4+4 pin): Yes

• CPU performance Cable length: 80 cm

• Cable type: Non-modular

Services

• 80 Plus certification: 80 PLUS Bronze
• Purpose: PC
• Power supply unit (PSU) form factor: ATX

Design

• Product colour: Black
• Cooling type: Active

• Number of fans: 1 fan

• Fan diameter: 13.5 cm

• Supplied cables: CPU, PCIe, Peripheral (Molex), SATA

Weight & dimensions

• Width: 150 mm
• Depth: 150 mm
• Height: 86 mm
• Weight: 2.06 kg
