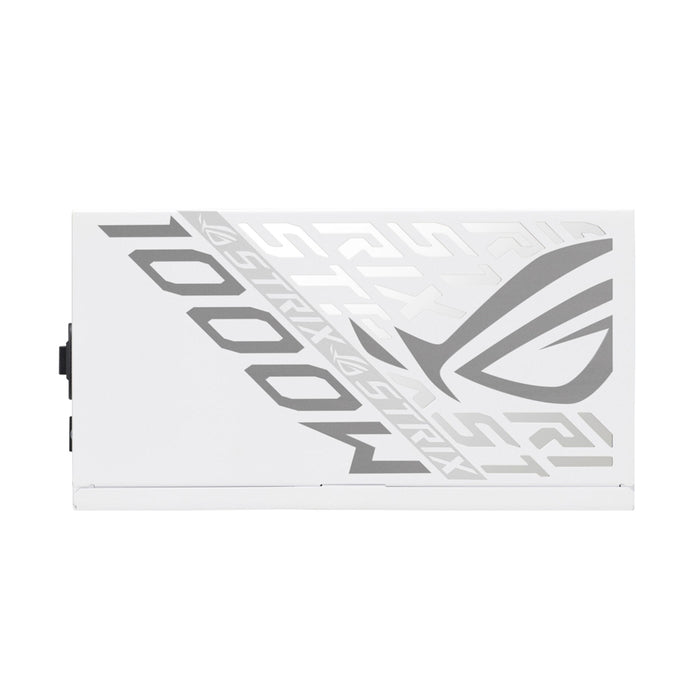

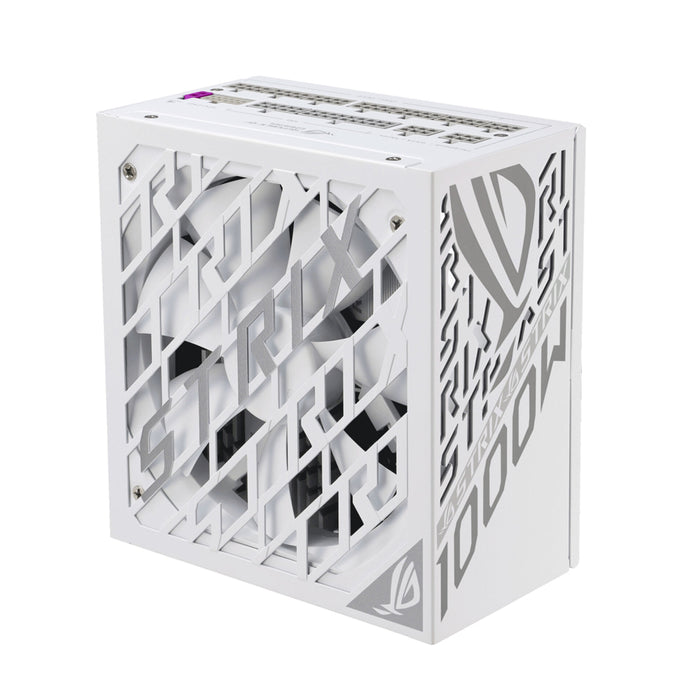

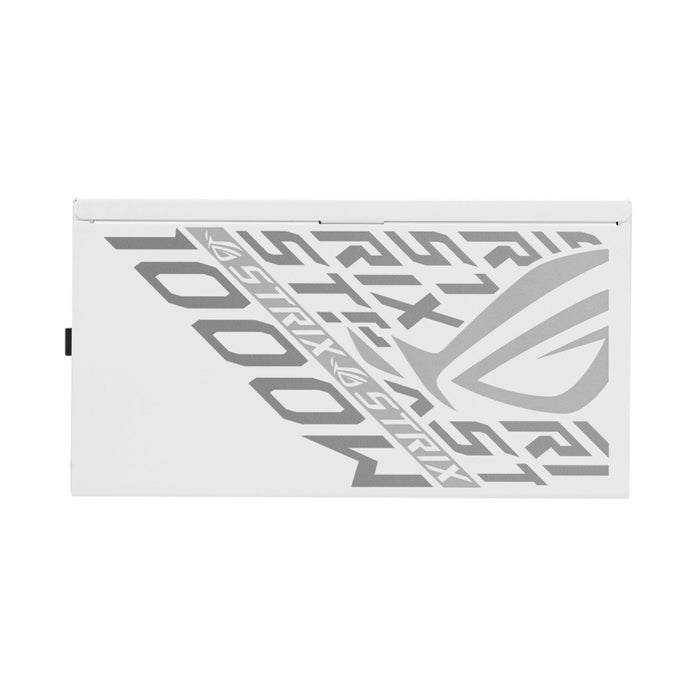

Asus Power Supply ROG Strix 1000P 1000W White

Specifications:

• Product Number: 90YE00W4-B0NA00

Power

• Total power: 1000 W
• AC input voltage: 100 - 240 V
• Power factor correction filter (PFC): Active

• Combined power (+3.3V): 130 W
• Combined power (+12V): 1000 W
• Combined power (+5V): 130 W
• Combined power (-12V): 3.6 W
• Combined power (+5Vsb): 15 W
• Max output current (+3.3V): 25 A
• Max output current (+12V): 83.3 A
• Max output current (+5V): 25 A
• Max output current (-12V): 0.3 A
• Max output current (+5Vsb): 3 A
• Efficiency: 92%
• Power protection features: Overcurrent, overload, overvoltage, overheating, short circuit, undervoltage

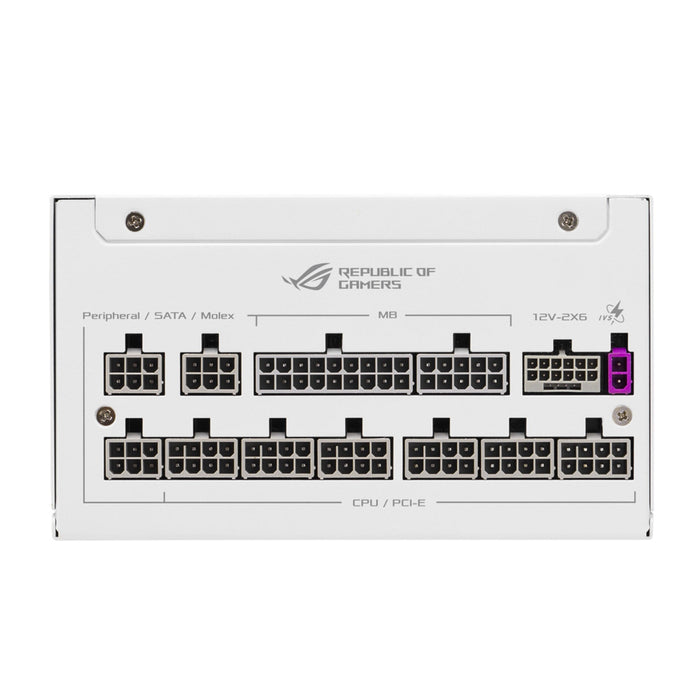

Ports & interfaces

• Motherboard connector: 20+4 pin ATX
• Power cable length motherboard: 61 cm
• Number of SATA power connectors: 5
• SATA power cable length: 120, 400 mm
• Number of Molex connectors 4-pin: 3
• Peripheral (Molex) power cable length: 120, 400 mm
• Number of PCI Express power connectors 8pin: 4
• PCI Express power connectors (16-pin): 1
• PCI Express power cable length: 75 cm
• CPU connector (4+4 pin): Yes
• CPU performance Cable length: 100 cm

• Cable type: Fully modular

Services

• 80 Plus certification: 80 PLUS Platinum
• Purpose: PC
• Power supply unit (PSU) form factor: ATX
• Noise level: 20 dB

• Bearing type: ball bearings
• Mean time between failures (MTBF): 120,000 hours

Design

• Product colour: White

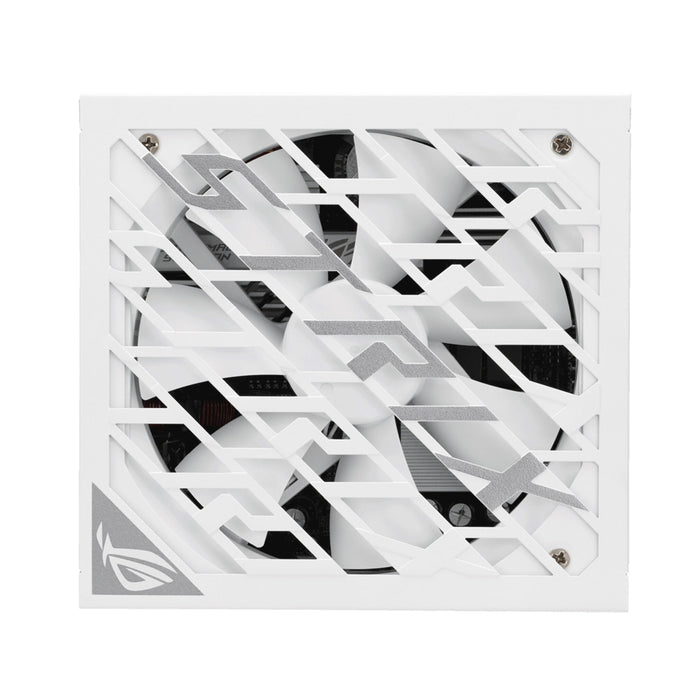

• Cooling type: Semi-passive

• Number of fans: 1 fan

• Fan placement: Above

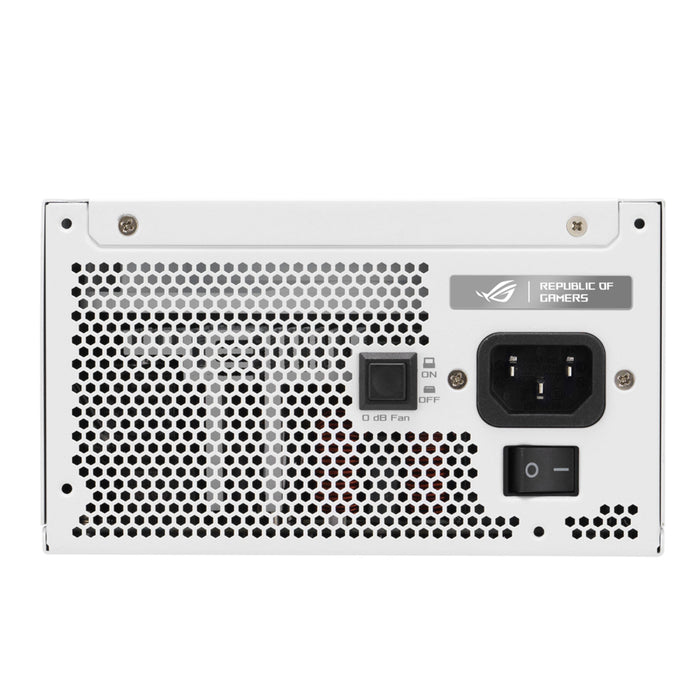

• On/off switch: Yes
• Supplied cables: AC, CPU, PCIe, Peripheral (Molex), SATA

Weight & dimensions

• Width: 160 mm
• Depth: 150 mm
• Height: 86 mm
• Weight: 1.81 kg
