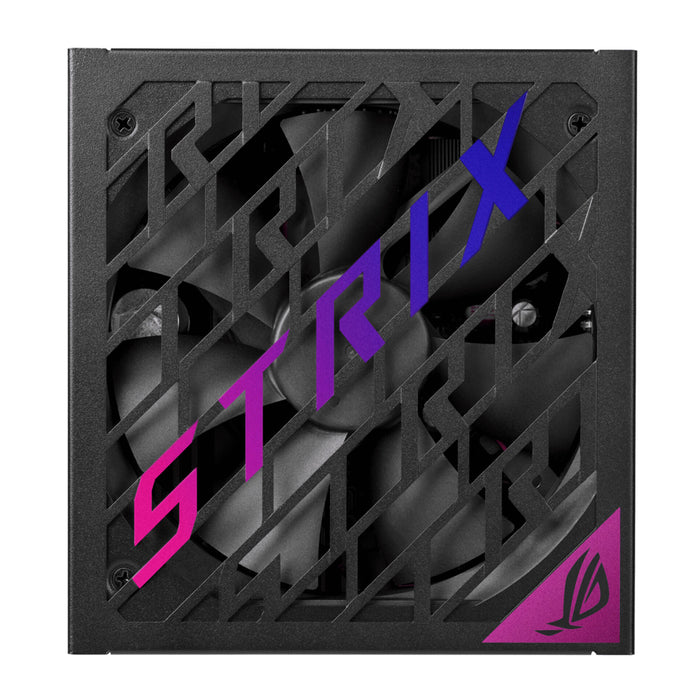

Asus Power Supply ROG Strix 1000P 1000W

Specifications:

• Product Number: 90YE00W1-B0NA00

Power

• Total power: 1000 W

• AC input voltage: 100 - 240 V

• Power factor correction filter (PFC): Active
• Combined power (+3.3V): 130 W

• Combined power (+12V): 1000 W

• Combined power (+5V): 130 W

• Combined power (-12V): 3.6 W

• Combined power (+5Vsb): 15 W

• Max output current (+3.3V): 25 A

• Max output current (+12V): 83.3 A

• Max output current (+5V): 25 A

• Max output current (-12V): 0.3 A

• Max output current (+5Vsb): 3 A

• Efficiency: 92%

• Power protection features:
  • Overcurrent, overload, overvoltage, overheating, short circuit, undervoltage

Ports & interfaces

• Motherboard connector: 20+4 pin ATX

• Power cable length motherboard: 61 cm

• Number of SATA power connectors: 5

• SATA power cable length: 120, 400 mm

• Number of Molex connectors 4-pin: 3

• Peripheral (Molex) power cable length: 120, 400 mm

• Number of PCI Express power connectors 8pin: 4

• PCI Express power connectors (16-pin): 1

• PCI Express power cable length:  75 cm

• CPU connector (4+4 pin): Yes

• CPU performance Cable length: 100 cm

• ATX power connector (20+4 pin): Yes
• Cable type: Fully modular


Services

• 80 Plus certification: 80 PLUS Platinum,

• Purpose: PC

• Power supply unit (PSU) form factor: ATX

• Noise level: 20 dB
• Bearing type: ball bearings

• Mean time between failures (MTBF): 120,000 hours

Design

• Product colour: Black, silver

• Cooling type: Semi-passive
• Number of fans: 1 fan
• Lighting: Yes
• On/off switch: Yes

• Supplied cables: AC, CPU, PCIe, Peripheral (Molex), SATA

Weight & dimensions

• Width: 160 mm

• Depth: 150 mm

• Height: 86 mm

• Weight: 2.91 kg
