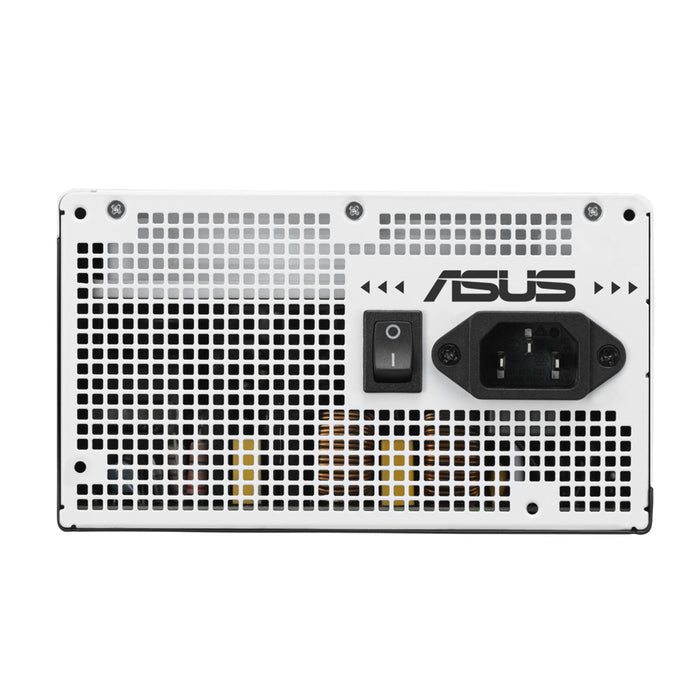

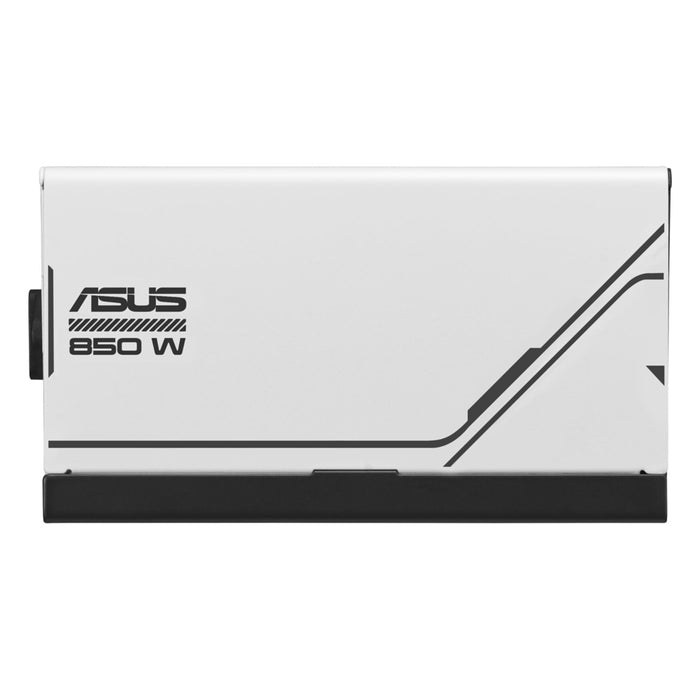

Asus Power Supply Prime 850W Black and White

Specifications:

• Product Number: 90YE00U0-B0NA00

• Total power: 850 W
• AC input voltage: 100 - 240 V
• Combined power (+3.3V): 110 W
• Combined power (+12V): 846 W
• Combined power (+5V): 110 W
• Combined power (-12V): 3.6 W
• Combined power (+5Vsb): 12.5 W
• Max output current (+3.3V): 20 A
• Max output current (+12V): 70.5 A
• Max output current (+5V): 20 A
• Max output current (-12V): 0.3 A
• Max output current (+5Vsb): 2.5 A
• Efficiency: 92%
• Power protection features:
• Over current
• Over power
• Over voltage
• Short circuit
• Under voltage

Ports & interfaces

• Motherboard power connector: 20+4 pin ATX
• Motherboard power cable length: 61 cm
• Number of SATA power connectors: 5
• SATA power cable length:
• 120 mm
• 400 mm
• Peripheral (Molex) power connectors (4-pin): 3
• Peripheral (Molex) power cable length:
• 150 mm
• 400 mm
• PCI Express power connectors (8-pin): 3
• PCI Express power connectors (16-pin): 1
• PCI Express power cable length: 67.5 cm
• CPU power connector (4+4 pin): Yes
• CPU power cable length: 65 cm

Performance

• 80 PLUS certification: 80 PLUS Gold
• Purpose: PC
• Power supply unit (PSU) form factor: ATX
• ATX version: 3.0

Design

• Product colour: Black & White
• Cooling type: Active

• Number of fans: 1 fan

• Fan placement: Above

• Lighting: Yes


Packaging content

• Cables included: CPU, PCIe, SATA, Peripheral (Molex)

Weight & dimensions

• Width: 150 mm
• Depth: 150 mm
• Height: 86 mm
• Weight: 1.5 kg

Technical details

• Sustainability certificates: RoHS
