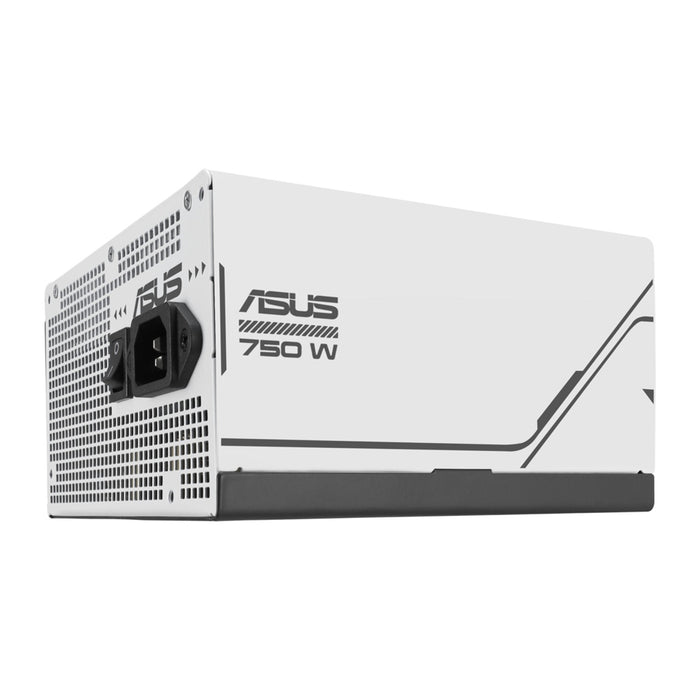

Asus Power Supply Prime 750G 750W Black and White

Specifications:

• Product Number: 90YE00U1-B0NA00

Power

• Total power: 750 W

• AC input voltage: 100 - 240 V

• Power factor correction filter (PFC): Active
• Combined power (+3.3V): 110 W

• Combined power (+12V): 744 W

• Combined power (+5V): 110 W

• Combined power (-12V): 3.6 W

• Combined power (+5Vsb): 12.5 W

• Max output current (+3.3V): 20 A

• Max output current (+12V): 62 A

• Max output current (+5V): 20 A

• Max output current (-12V): 0.3 A

• Max output current (+5Vsb): 2.5 A

• Efficiency: 92%

• Power protection features:
  • Overcurrent, overload, overvoltage, overheating, short circuit, undervoltage

Ports & interfaces

• Motherboard connector: 20+4 pin ATX

• Power cable length motherboard: 61 cm

• Number of SATA power connectors: 5

• SATA power cable length: 120, 400 mm

• Number of Molex connectors 4-pin: 3

• Peripheral (Molex) power cable length: 120, 400 mm

• Number of PCI Express power connectors 8pin: 3

• PCI Express power connectors (16-pin): 1

• CPU P4 connector (4-pin): 2
• PCI Express power cable length: 80 cm
• CPU connector (4+4 pin): Yes
• CPU performance Cable length: 65 cm

• ATX power connector (20+4 pin): Yes

• Cable type: Fully modular

Services

• 80 Plus certification: 80 PLUS Gold

• Purpose: PC

• Power supply unit (PSU) form factor: ATX

• ATX version: 3.0
• Bearing type: ball bearings

• Mean time between failures (MTBF): 120,000 hours

Design

• Product colour: Black & White

• Cooling type: Active
• On/off switch: Yes


Weight & dimensions

• Width: 150 mm

• Depth: 150 mm

• Height: 86 mm

• Weight: 1.47 kg
