Asus Power Supply ATS-750G Gaming 750W Gold

Specifications:

• Product Number: 90YE04A1-B0NC00

Power

• Total power: 750 W

• AC input voltage: 110 - 240 V

• Power factor correction filter (PFC): Active
• Combined power (+3.3V): 100 W

• Combined power (+12V): 750 W

• Combined power (+5V): 100 W

• Combined power (-12V): 3.6 W

• Combined power (+5Vsb): 15 W

• Max output current (+3.3V): 20 A

• Max output current (+12V): 62.5 A

• Max output current (+5V): 20 A

• Max output current (-12V): 0.3 A

• Max output current (+5Vsb): 3 A

• Efficiency: 92%

• Power protection features:
  • Overcurrent, overload, overvoltage, overheating, short circuit, undervoltage

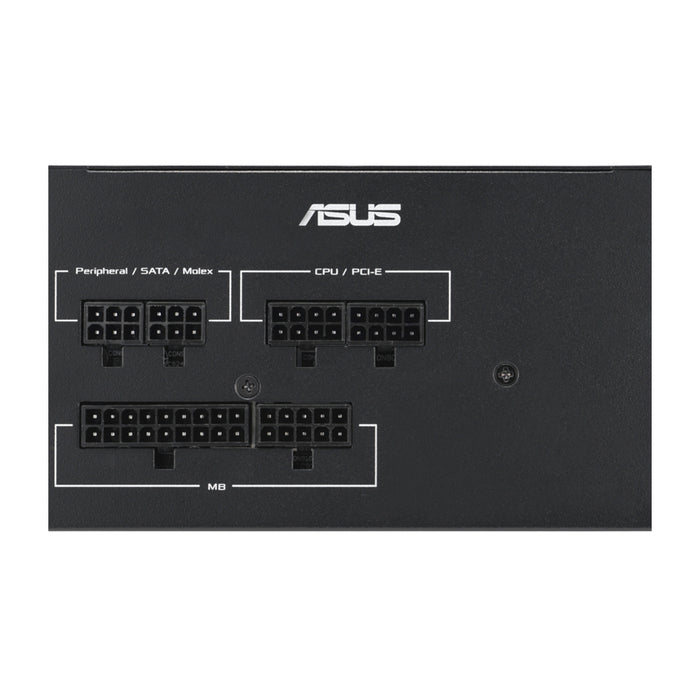

Ports & interfaces

• Motherboard connector: 20+4 pin ATX

• Power cable length motherboard: 55 cm

• Number of SATA power connectors: 3

• SATA power cable length: 120, 400 mm

• Number of Molex connectors 4-pin: 3

• Peripheral (Molex) power cable length: 120, 400 mm

• Number of PCI Express power connectors 6+2pin: 2

• PCI Express power cable length: 67.5 cm

• CPU connector (4+4 pin): Yes
• CPU performance Cable length: 65 cm

• ATX power connector (20+4 pin): Yes

• Cable type: Fully modular


Services

• 80 Plus certification: 80 PLUS Gold

• Purpose: PC

• Power supply unit (PSU) form factor: ATX

• Bearing type: ball bearings

• Mean time between failures (MTBF): 120,000 hours

Design

• Product colour: Black

• Cooling type: Active

• Number of fans: 1 fan(s)

• On/off switch: Yes


Weight & dimensions

• Width: 150 mm

• depth: 140 mm

• Height: 86 mm

• Weight: 1.53 kg
