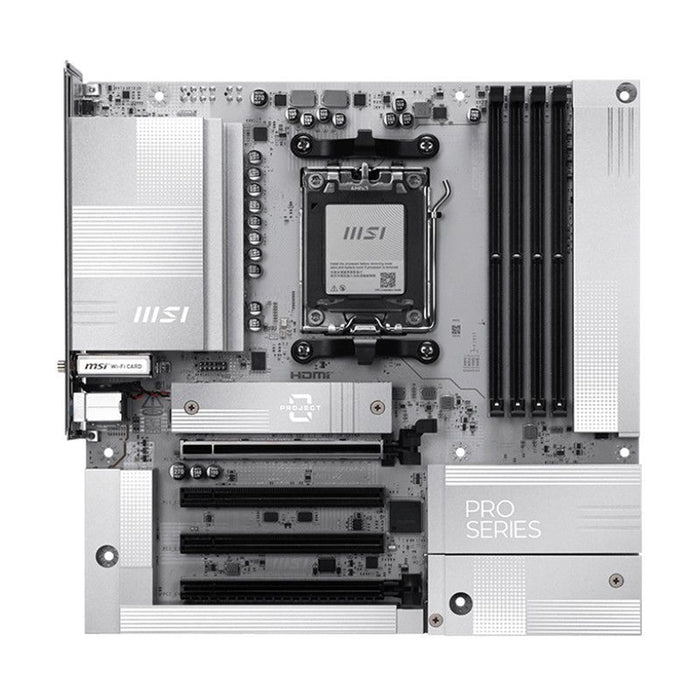

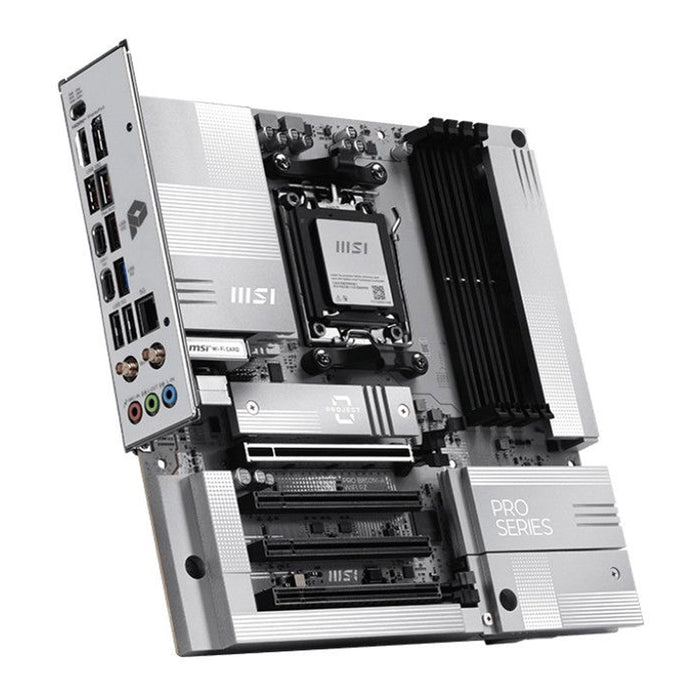

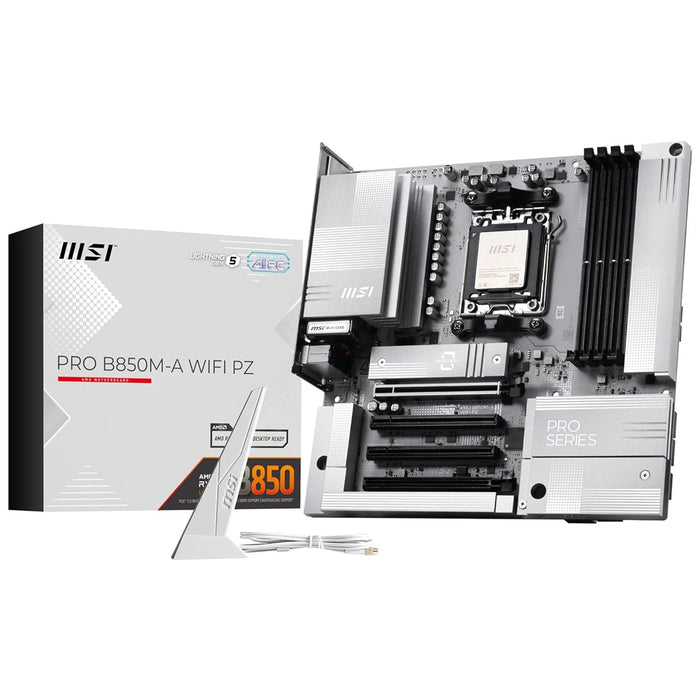

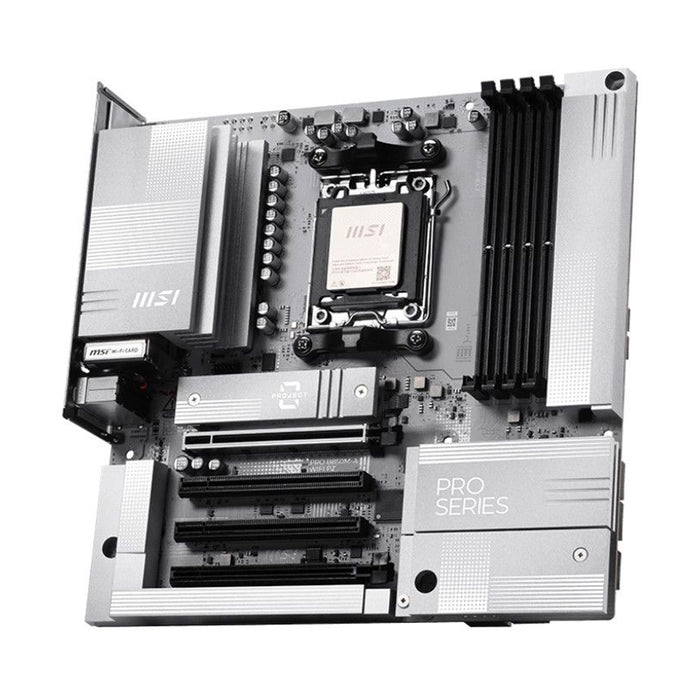

MSI Motherboard PRO B850M-A WiFi Project Zero

Specifications:

• Product Number: 7E78-001R


Processor

• Processor manufacturer: AMD

• Processor socket: AM5
• Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
• Supported processor sockets: Socket AM5

Memory

• Supported memory types: DDR5-SDRAM

• Number of memory slots: 4

• Memory slots type: DIMM

• Memory channels: Dual-channel

• ECC сompatibility: Non-ECC

• Supported memory clock speeds: 6000, 6400, 8200 MHz

• Supported memory clock speed (max): 8200 MHz

• Maximum internal memory: 256 GB


Storage controllers

• Supported storage drive types: HDD & SSD

• Supported storage drive interfaces: M.2

• Number of HDDs supported: 4

• Number of storage drives supported: 6

• RAID support: Yes

• RAID levels: 0, 1, 10

Graphics

• Parallel processing technology support: Not supported
• On-board graphics card: No

Internal I/O

• USB 2.0 connectors: 4

• USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

• USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

• Number of SATA III connectors: 4

• Total number of SATA connectors: 4

• Front panel audio connector: Yes

• Front panel connector: Yes

• ATX Power connector (24-pin): Yes

• CPU fan connector: Yes

• Number of CPU fan connectors: 2

• Number of water pump connectors: 1

• RGB LED pin header: Yes

• Number of RGB LED pin headers: 3

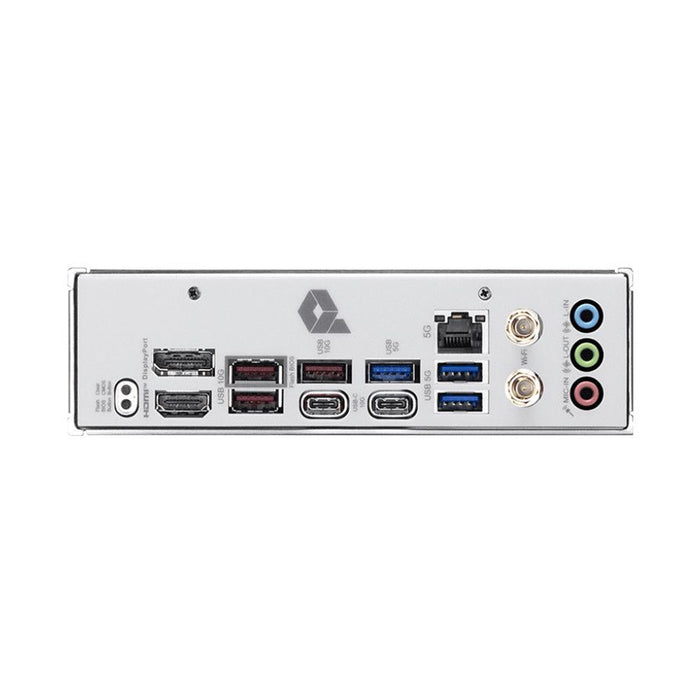

Rear panel I/O ports

• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3

• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
• Ethernet LAN (RJ-45) ports: 1

• HDMI ports quantity: 1

• HDMI version: 2.1

Network

• Ethernet LAN: Yes

• Ethernet interface type: 5 Gigabit Ethernet

• Wi-Fi: Wi-Fi 7 (802.11be)

• Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-
• Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)

• Bluetooth: Yes

• Bluetooth version: 5.4

Features

• Features: AMD B850

• Audio chip: Realtek ALC897

• Audio output channels: 7.1 channels

• Product colour: Black

• Component for: PC

• Motherboard form factor: micro ATX

• Motherboard chipset family: AMD

• Windows operating systems supported: Windows 11 x64

Expansion Slots

• PCI Express x4 slots: 1

• PCI Express x16 slots: 1

• PCI Express x16 (Gen 3.x) slots: 1

• PCI Express x16 (Gen 4.x) slots: 1

• PCI Express x16 (Gen 5.x) slots: 1

• Number of M.2 (M) slots: 2

• 1st M.2 largest key size: 2280

• 1st M.2 highest PCI Express generation: 5.0

• 2nd M.2 largest key size: 2280

• 2nd M.2 highest PCI Express generation: 4.0

BIOS

• BIOS type: UEFI AMI

• BIOS memory size: 256 Mbit

• ACPI version: 6.5

• System Management BIOS (SMBIOS) version: 3.7
