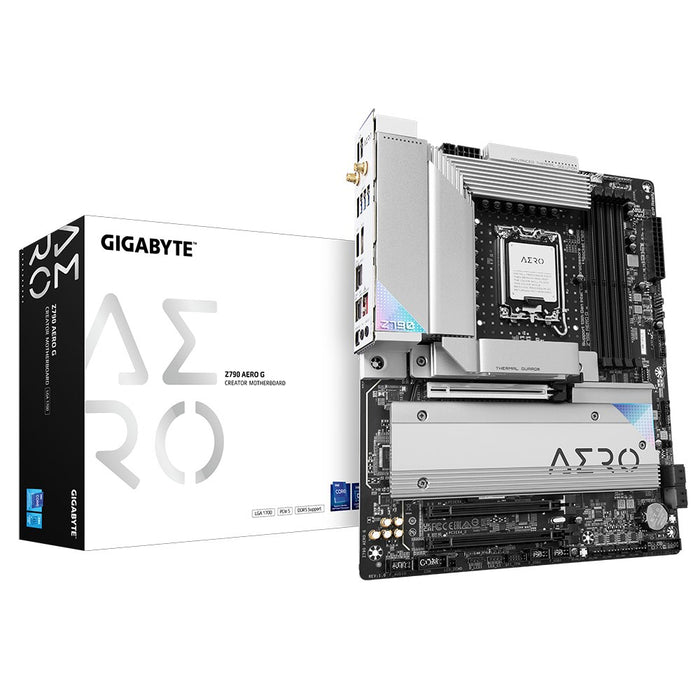

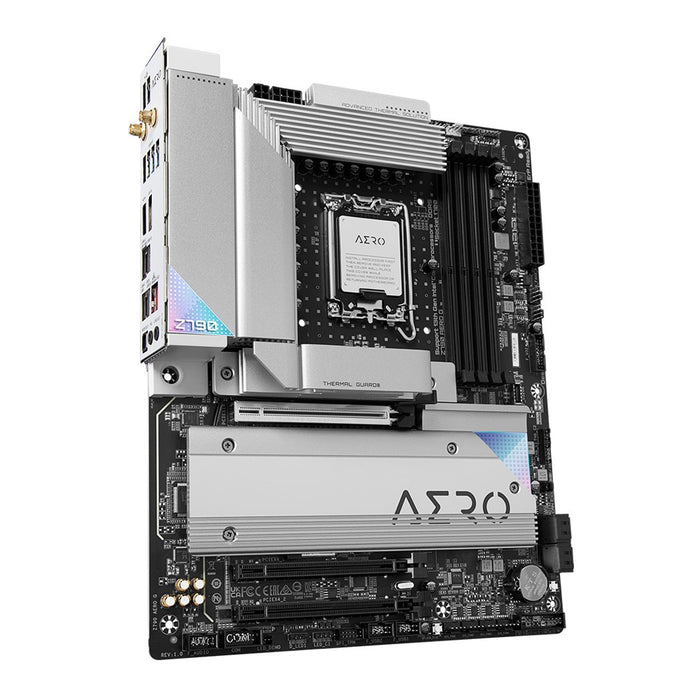

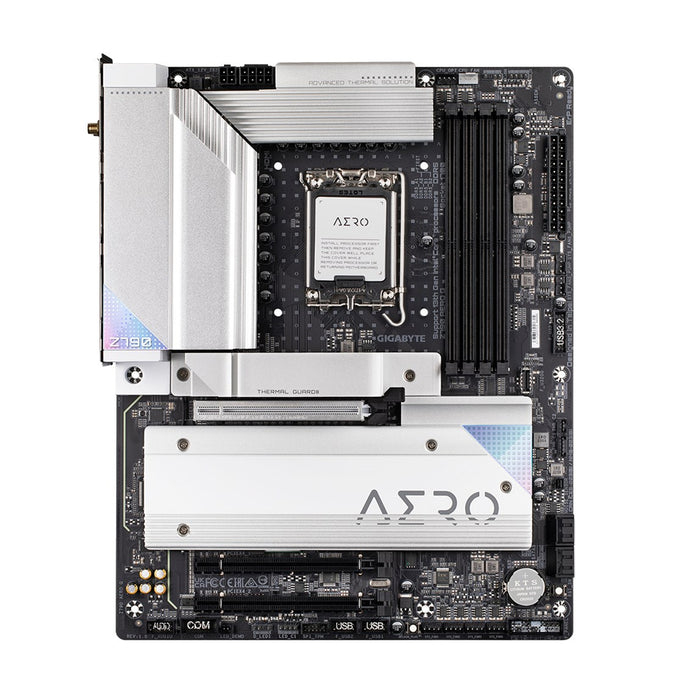

Gigabyte Motherboard Z790 AERO G

Specifications:

• Product Number:  Z790 AERO G

CPU

• LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*

• L3 cache varies with CPU

Chipset

•     Intel® Z790 Express Chipset

Memory

• Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules

• 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

• Dual channel memory architecture

• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

• Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics

• Integrated Graphics Processor-Intel® HD Graphics support:
• 1 x USB Type-C® port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 4096x2304@60 Hz
  * Support for drawing tablets and 20V@3A of power delivery.
  * Support for DisplayPort 1.4 version and HDR.

• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  * Support for HDMI 2.1 version and HDCP 2.3.
  ** Support native HDMI 2.1 TMDS compatible ports.

Audio

• Realtek® ALC1220-VB CODEC
  * The back panel line out jack supports DSD audio.

• High Definition Audio

• 2/4/5.1/7.1-channel
  * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

• Support for S/PDIF Out

LAN

•     Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module

• Intel® Wi-Fi 6E AX211

• WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

• BLUETOOTH 5.3

• Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Expansion Slots

• CPU:
• 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
  * The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector
  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
• Chipset:
• 1 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1)

• 1 x PCI Express x16 slots, supporting PCIe 3.0 and running at x4 (PCIEX4_2)

Storage Interface

• CPU:
• 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)

• 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
• Chipset:
• 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)

• 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

• 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)

• 4 x SATA 6Gb/s connectors
• RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
• RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB

• Chipset:
  • 2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header)

  • 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support

  • 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

  • 2 x USB 3.2 Gen 1 ports available through the internal USB header

  • 2 x USB 2.0/1.1 ports on the back panel
• Chipset+USB 3.2 Gen 1 Hub:
  • 4 x USB 3.2 Gen 1 ports on the back panel
• Chipset+USB 2.0 Hub:
  • 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors

• 1 x 24-pin ATX main power connector

• 1 x 8-pin ATX 12V power connector

• 1 x 4-pin ATX 12V power connector

• 1 x CPU fan header

• 1 x water cooling CPU fan header

• 4 x system fan headers

• 2 x system fan/water cooling pump headers

• 2 x addressable LED strip headers

• 2 x RGB LED strip headers

• 5 x M.2 Socket 3 connectors

• 4 x SATA 6Gb/s connectors

• 1 x front panel header

• 1 x front panel audio header

• 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support

• 1 x USB 3.2 Gen 1 header

• 2 x USB 2.0/1.1 headers

• 1 x noise detection header

• 2 x Thunderbolt™ add-in card connectors

• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0
• module only)

• 1 x serial port header

• 1 x Q-Flash Plus button

• 1 x reset button

• 1 x reset jumper

• 2 x temperature sensor headers

• 1 x Clear CMOS jumper

Back Panel Connectors

• 2 x USB 2.0/1.1 ports

• 2 x SMA antenna connectors (2T2R)

• 4 x USB 3.2 Gen 1 ports

• 1 x DisplayPort In port

• 1 x HDMI 2.0 port

• 2 x USB 3.2 Gen 2 Type-A ports (red)

• 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support

• 1 x USB Type-C® port (DisplayPort), with USB 3.2 Gen 2 support

• 1 x RJ-45 port

• 1 x optical S/PDIF Out connector

• 2 x audio jacks

I/O Controller

• iTE® I/O Controller Chip

H/W Monitoring

• Voltage detection

• Temperature detection

• Fan speed detection

• Water cooling flow rate detection

• Fan fail warning

• Fan speed control
  * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

• Noise detection

BIOS

• 1 x 256 Mbit flash

• Use of licensed AMI UEFI BIOS

• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

• Support for GIGABYTE Control Center (GCC)
• * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
• Support for Q-Flash
• Support for Q-Flash Plus
• Support for Smart Backup

Bundled Software

• Norton® Internet Security (OEM version)
• LAN bandwidth management software

Operating System

• Support for Windows 11 64-bit
• Support for Windows 10 64-bit

Form Factor

• ATX Form Factor; 30.5cm x 24.4cm
