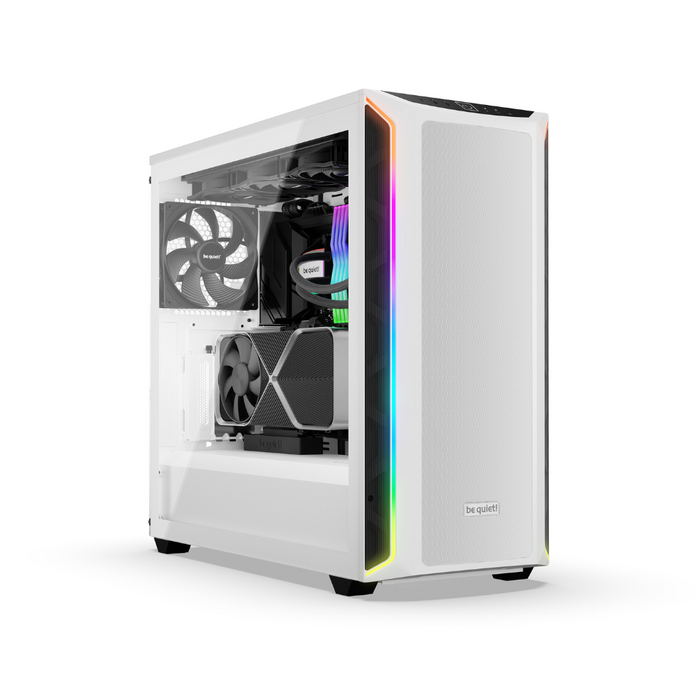

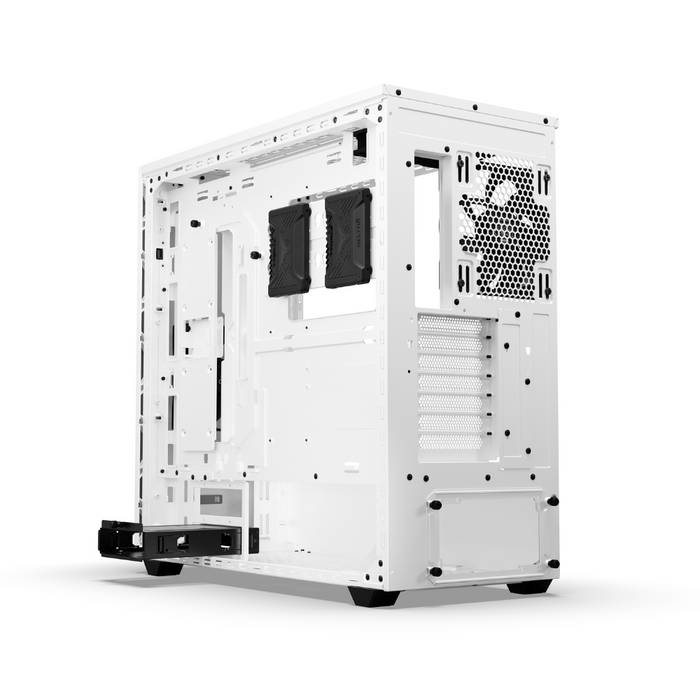

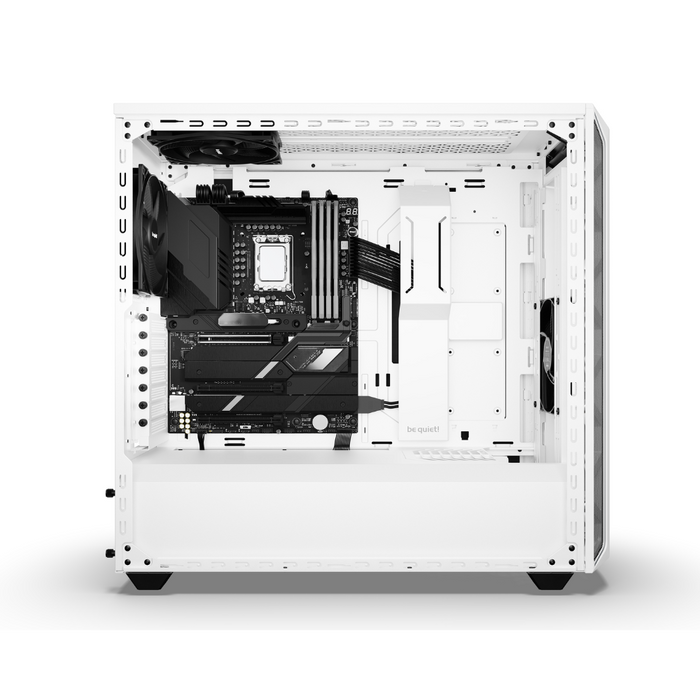

Be Quiet PC Case Shadow Base 800 DX Midi Tower White

Specifications

• Product Number: BGW62
• Model: Shadow Base 800 DX White
• Colour: White

• Motherboard compatibility:

  • ATX
  • M-ATX
  • Mini-ITX
  • E-ATX
• Case size excl. stands:
  • Length: 550mm
  • Width: 247mm
  • Height: 503mm
• Case size incl. stands:
  • Length: 550mm
  • Width: 247mm
  • Height: 522mm
• Volume (L): 62.74

• PSU form factor: ATX PS/2

• Net weight (kg): 11.8

• Expansion slots: 7

Pre-installed fans

• Fan at top: 1x Pure Wings 3 140mm PWM
• Fan at front: 1x Silent Wings 2 140mm PWM

• Fan at rear: 1x Silent Wings 2 120mm PWM

• Dimensions Front
  • Length: 140mm
  • Width: 25mm
  • Height: 140mm
• Dimensions Rear:
  • Length: 120mm
  • Width: 25mm
  • Height: 120 mm
• Dimensions Top:

  • Length: 140mm

  • Width: 25mm

  • Height: 140mm
• Fan speed at 100% PWM / 12V (rpm): 1200

• Airflow at 100% PWM / 12V (CFM / m3/h): Front: 57.4/97.5

• Air Pressure at 100% PWM / 12V (mm H2O): 0.96

• Noise level at 100% PWM / 12V (dB(A)): 21.9

• Voltage range (V DC): 12

• Input power (W): 3.6

• Input current (A): 0.3

• Connector: 4-pin

• Lifespan (h / 25°C): 80,000


Maximum fan installation

• Maximum fans: 8

• Top: 3 x 140 / 3 x 120mm

• Front: 3 x 140 / 3 x 120mm

• Rear: 1 x 120mm/ 1 x 140mm
• Bottom: 1 x 140/ 1 x120mm

Optional radiator installation

• Top (mm): 120 / 140 / 240 / 280 / 360 / 420

• Front (mm): 120 / 140 / 240 / 280 / 360 / 420

• Rear (mm): 120


PSU compatibility

• Maximum dimensions excl. bottom fan (mm): 305

• Maximum dimensions incl. bottom fan (mm): 260

Graphics card

• HDD cage (in height of graphics card) installed (mm): 430

• HDD cage (in height of graphics card) removed (mm): 430

• Maximum PCIe slots with vertical graphics card (pcs.): 7

Drive bay capacity

• 3.5 slots (scope of delivery): 2

• 3.5 slots (max.): 4

• 2.5 slots (scope of delivery): 4

• 2.5 slots (max.): 8

Cooling

• Max. construction height of CPU cooler unit (mm): 180

• Airflow channel: Front / Top/ Rear/ Bottom

I/O Panel

• USB 3.2 Gen. 2 Type C: 1
• USB 3.2 Type A: 2

• HD Audio I/O: Mic + Audio

Insulation and damping

• Side panel insulation mats

• Anti-vibration decoupled HDD

• Anti-vibration decoupled PSU


Scope of delivery

• Screw set (Drives/Motherboard)
• Cable ties (pcs.): 6/4 (Velcro)

Removeable dust filters

• Bottom: 1
• Front: 1

Material

• Top cover: ABS

• Front panel: ABS

• Side panel: Steel

• Side panel window: Tempered Glass
• Stands: ABS
